Gaodetec Equipment is a manufacturer and supplier with many years of production and sales of grouting plant systems.

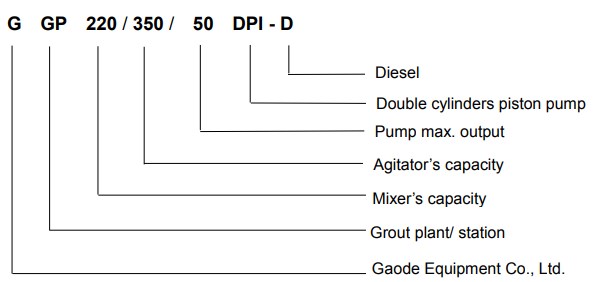

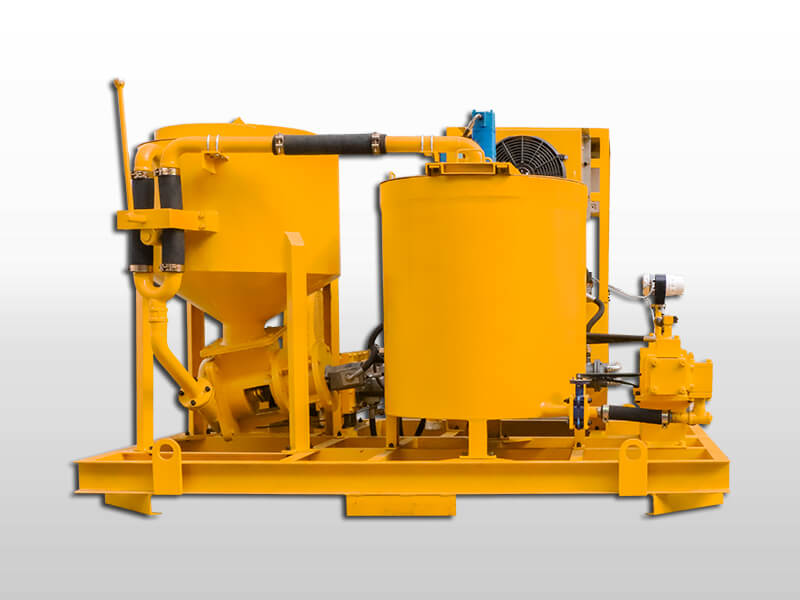

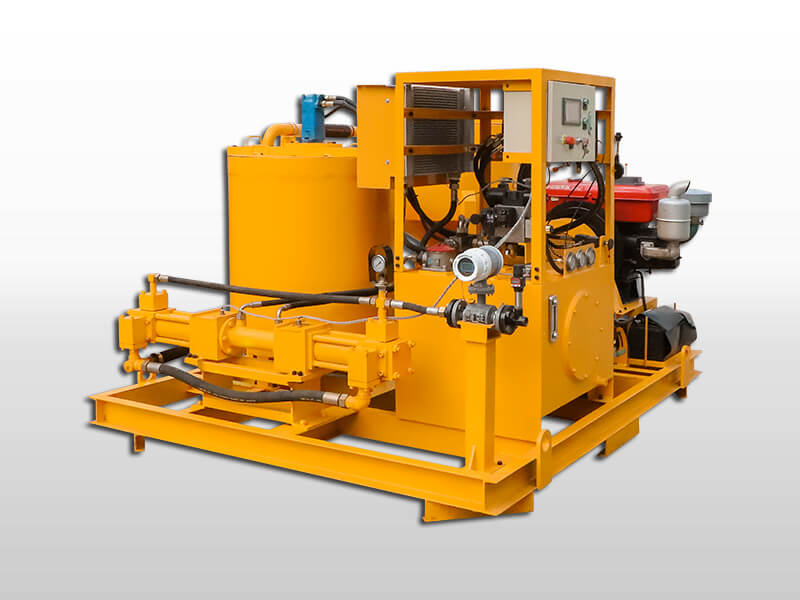

GGP220/350/50DPI-D TBM grouting plant is an updated machine, based on our existing grouting plant, as well as, is a combination of mixer, agitator and grout pump all in one base frame.

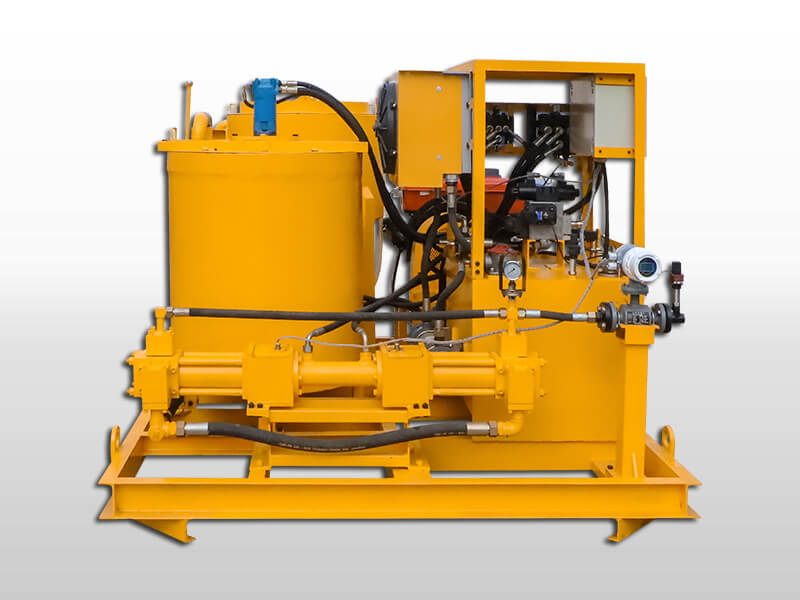

GGP220/350/50DPI-D TBM grouting plant for tunnel lining is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. It also takes up a small space. It has compact size and also it is easy to operate.
Working principle of GGP220/350/50DPI-D TBM grouting plant:

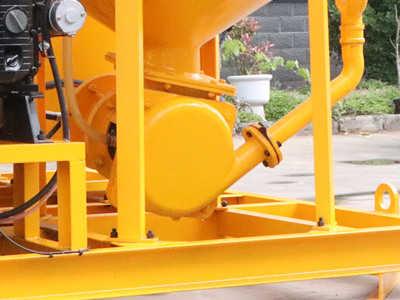

High shear, high speed colloidal grout mixer cause a vortex flow to ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. The mixed slurry is then delivered to the agitator. The grout pump is injected from the mixer (storage tank). This ensures continuous mixing and grouting operations.

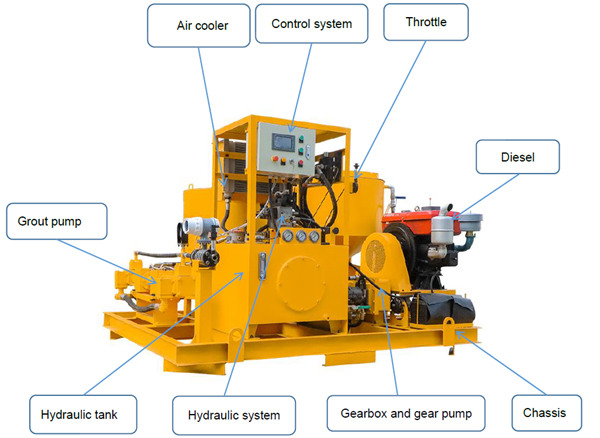

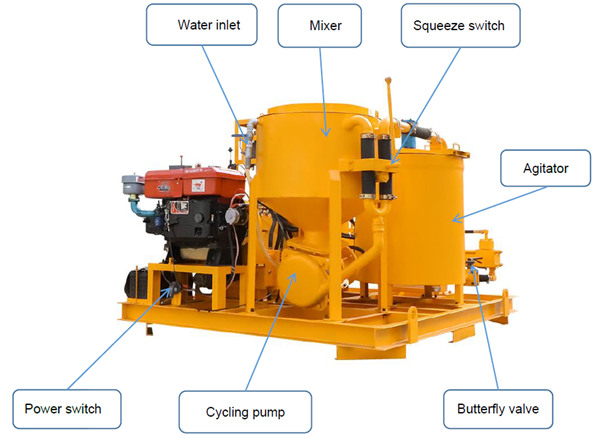

Details of GGP220/350/50DPI-D TBM grouting plant for tunnel lining:

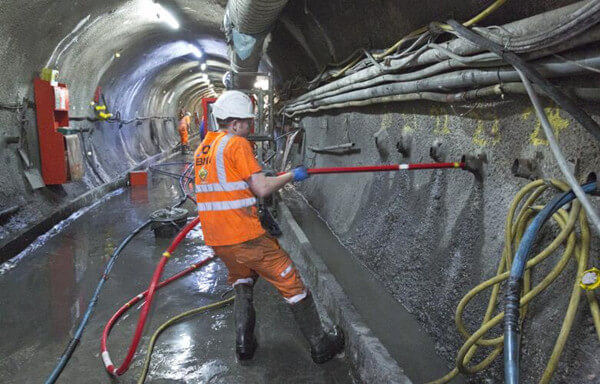

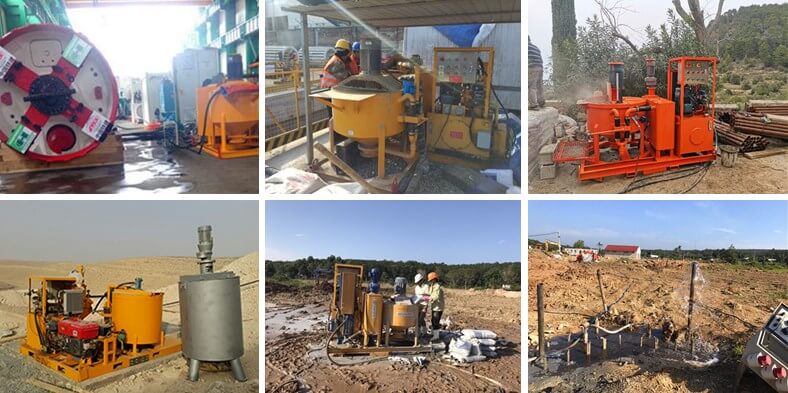

GGP220/350/50DPI-D Grouting plant for sale is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

1. Up to 5mm particle size.

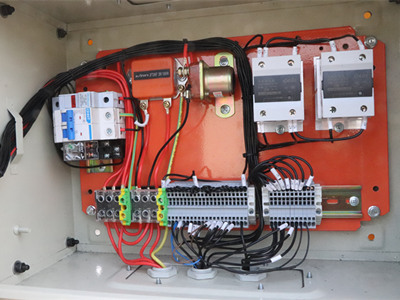

2. Solid state relay.
3. Grouting pressure and displacement of TBM grouting plant for tunnel lining is adjustable.

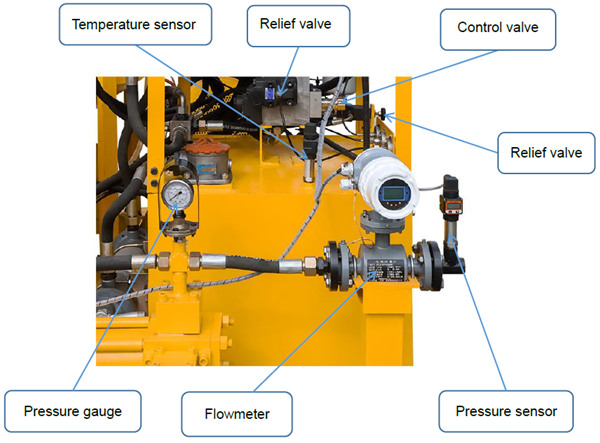

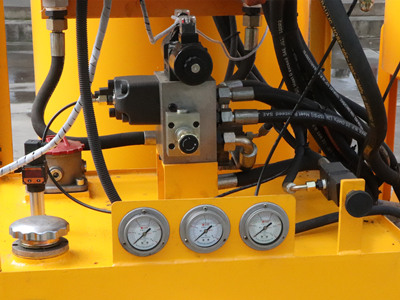

4. Grouting plant for tunnel lining with pressure, hydraulic oil temperature and flow sensors, over hydraulic oil temperature protection.

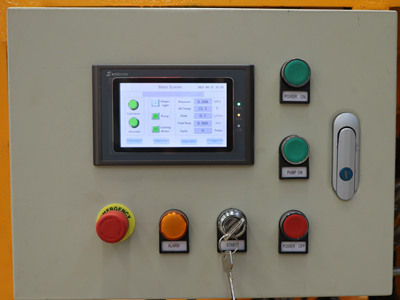

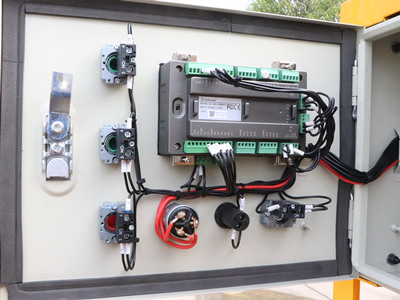

5. TBM grouting plant with PLC and HMI control.

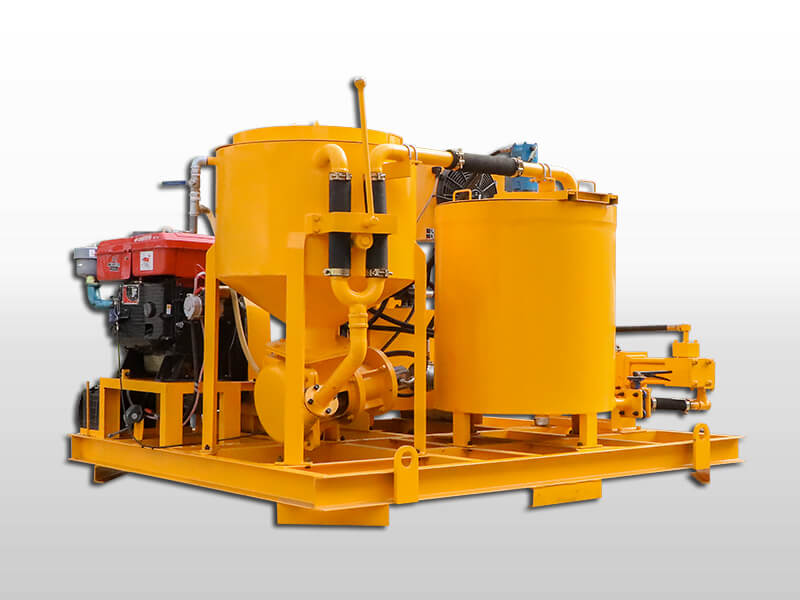

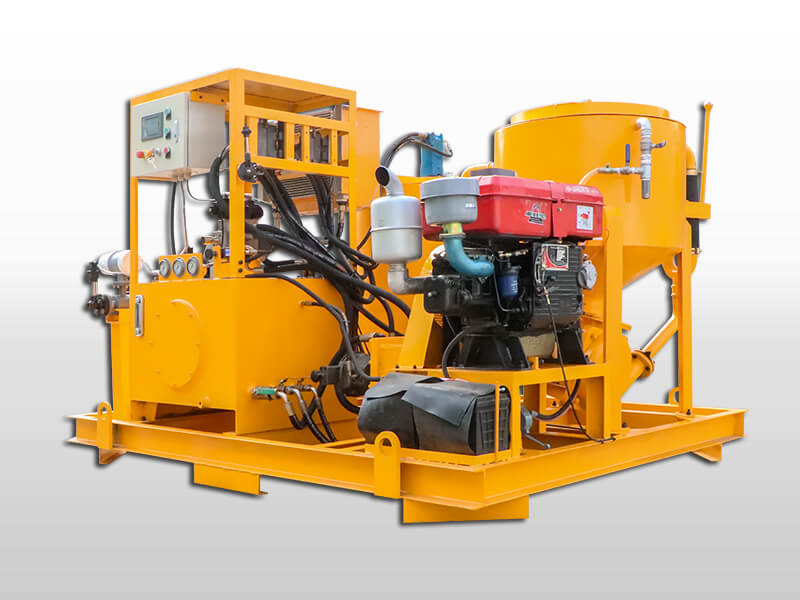

6. Grouting plant for TBM is with diesel and full hydraulic driven.

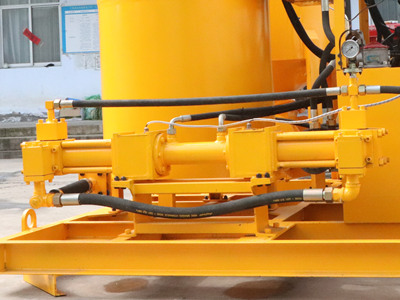

7. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
8. Air cooling and water cooling for the hydraulic.
9. The function switch between mixer and agitator is realized by using squeeze switch.
10. The grouting/ injection recorder with computer is optional.

Name		Data
Type		GGP220/350/50DPI-D Grout plant for tbm
Mixer	Volume	220L
	Speed	1500rpm
Agitator	Volume	350L
	Speed	36rpm
Grouting pump	Pump pressure	0-30bar
	Pump output	0-50L/min
Dimension	Dimension	2400×2000×1620mm
	Weight	1550kg
