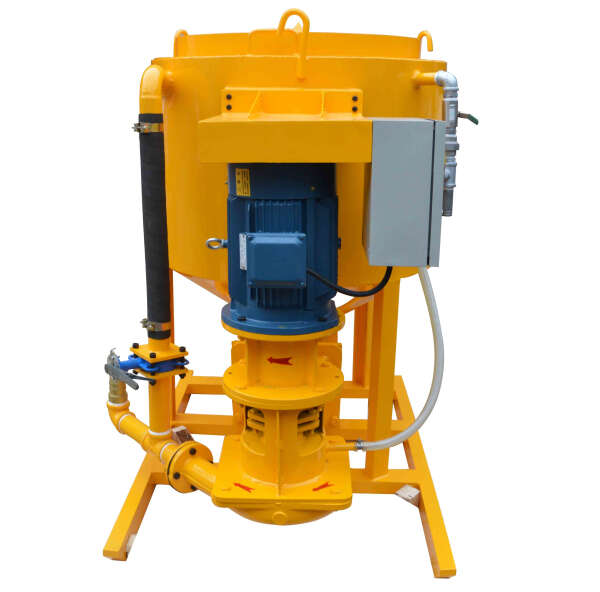

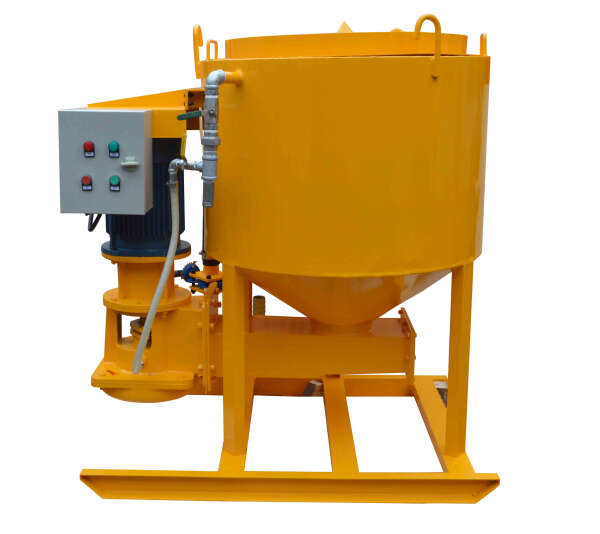

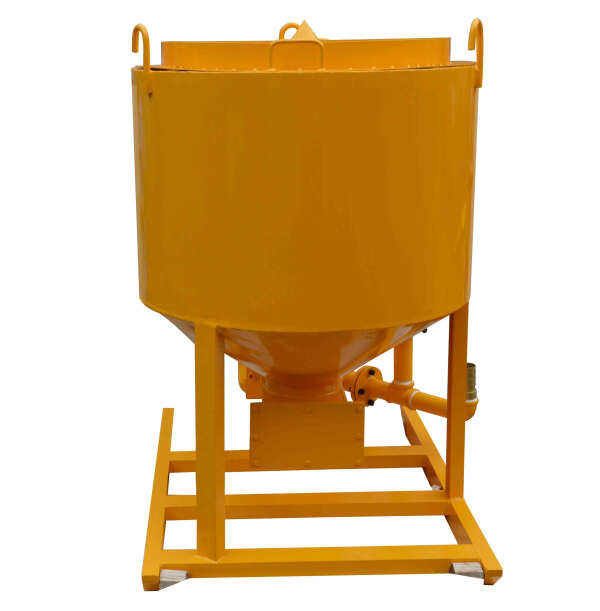

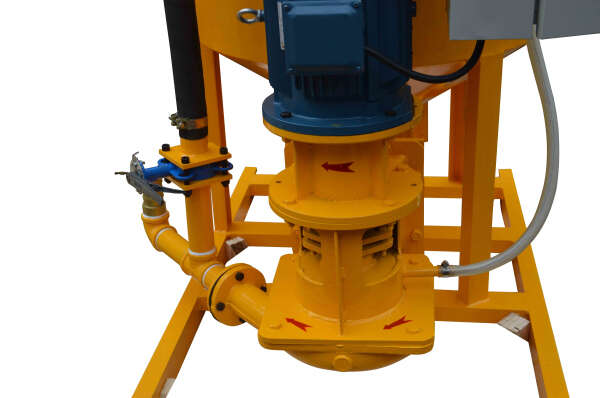

GM400E high shear grout mixer is a high speed high shear grout mixer. GM400E wing shaft type grout mixer has been designed for use either in conjunction with a conventional paddle mixer and pump or by virtue of its own built in impeller pump, as a stand-alone mix and place machine. The unit will rapidly and efficiently mix various types of grout which can include cement, bentonite and sand. It is specially design for cement mixing and grouting in ground/underground engineering. We also can design the mixer with agitator, to make the mixing work can continuously be done.

GM400E high shear grout mixer (wing shaft type) has been designed for use either in conjunction with a conventional paddle mixer and pump or by virtue of its own built in impeller pump, as a stand-alone mix and place machine.

GM400E wing shaft high shear grout mixer will rapidly and efficiently mix various types of grout which can include cement, bentonite and sand. GM400E high shear grout mixer is specially design for cement mixing and grouting in ground/underground engineering. We also can design the mixer with agitator, to make the mixing work can continuously be done.

Item	GM400E High Shear Grout Mixer
Rated capacity	400 liter
Acceptable W/C ratio	≥0.5:1
Mixing time	3 min
Power	7.5kW
Weight	400 kgs
Overall Dimension	1500x1100x1500mm
