GCP15H-E hose type concrete pump was designed based on the squeeze hose pump, the concrete pump uses high pressure, wear resisting extruded tubes. More widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials.

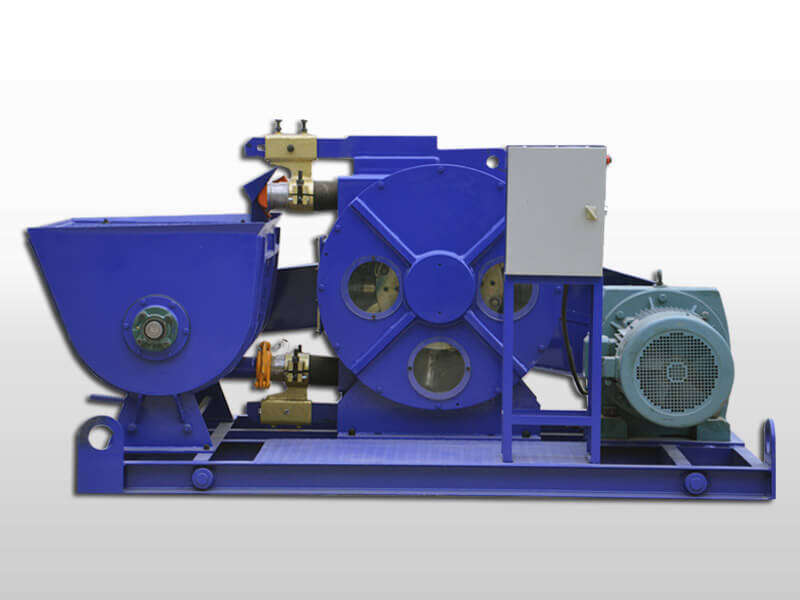

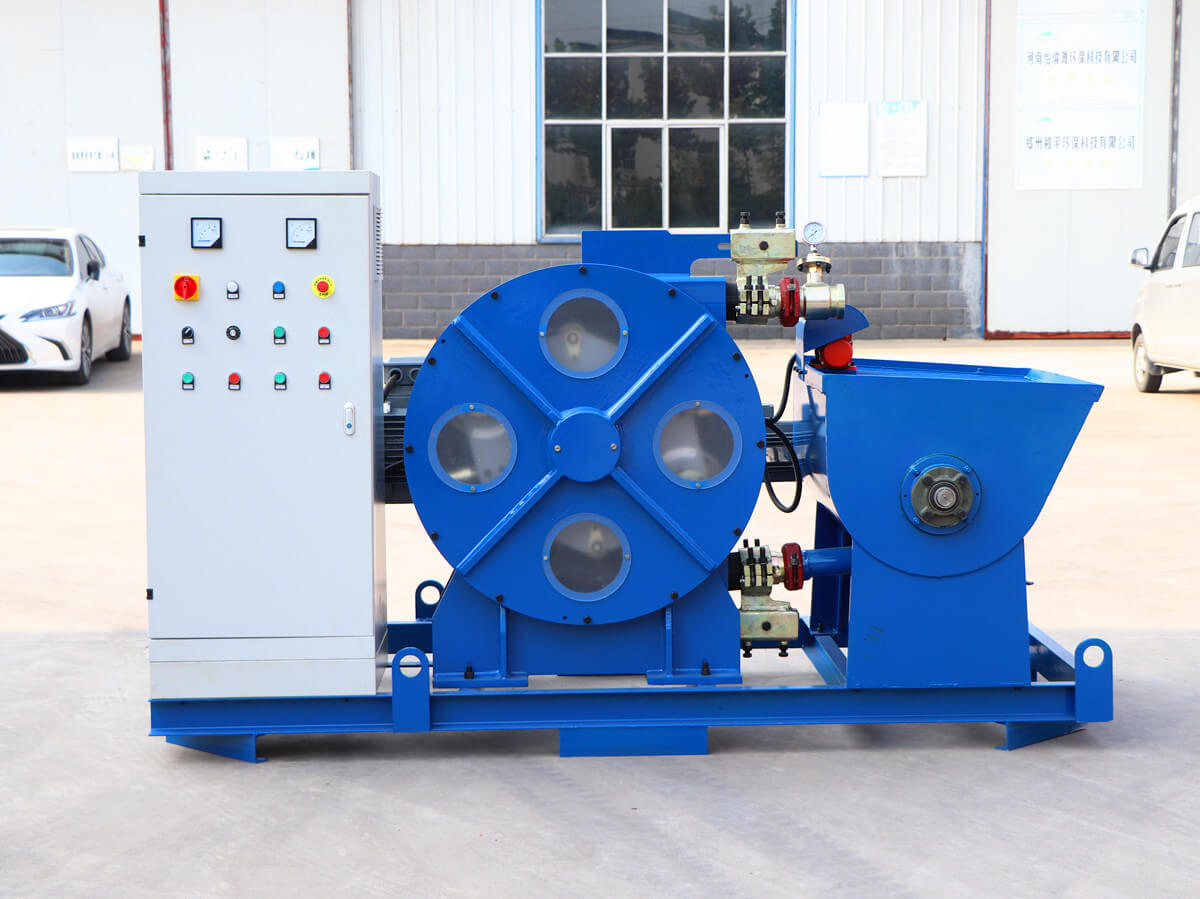

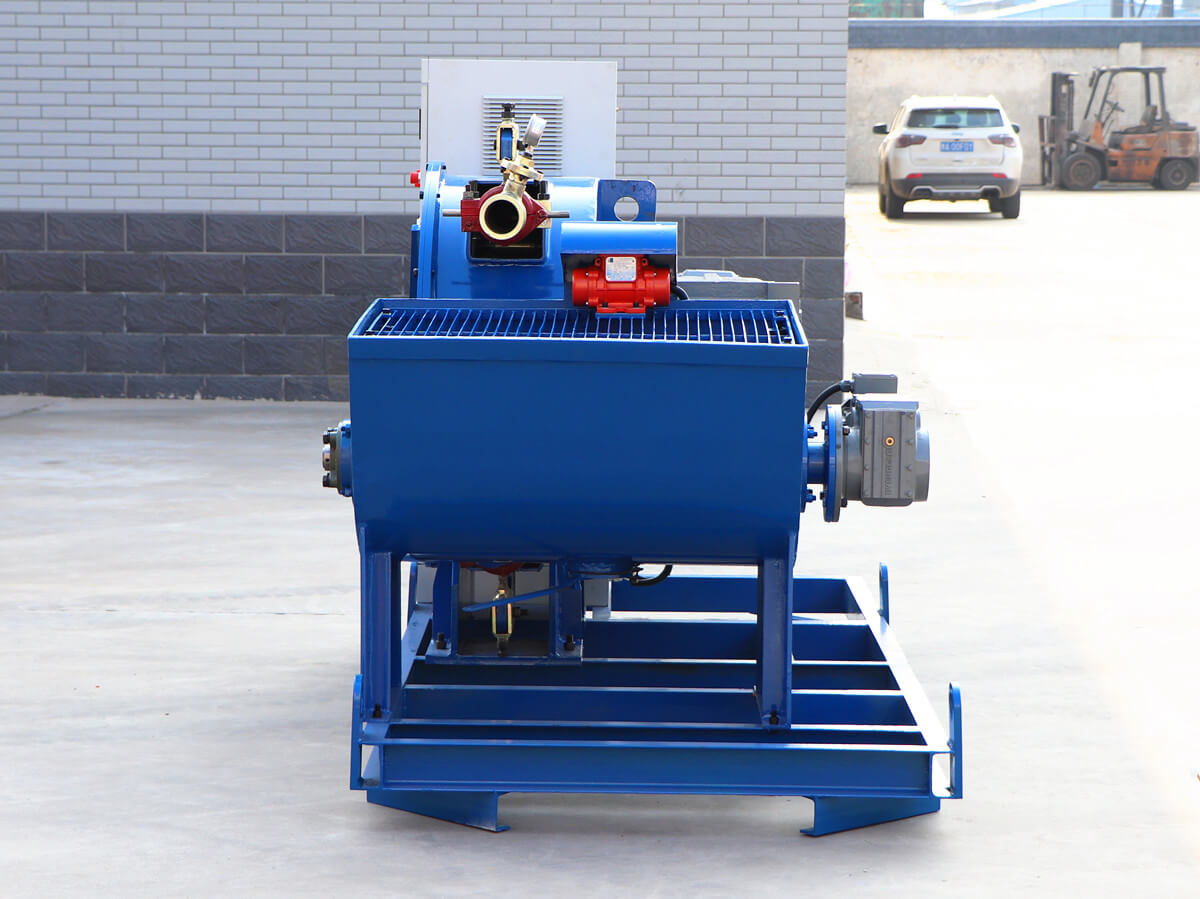

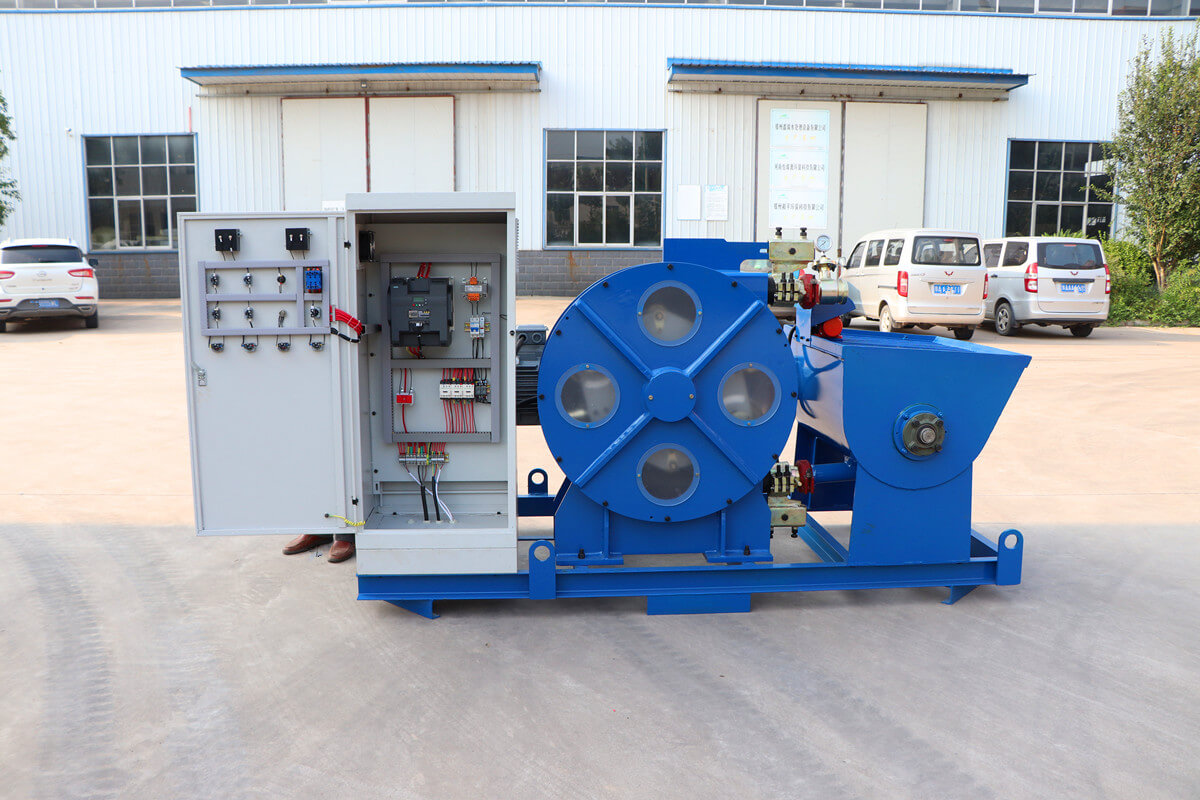

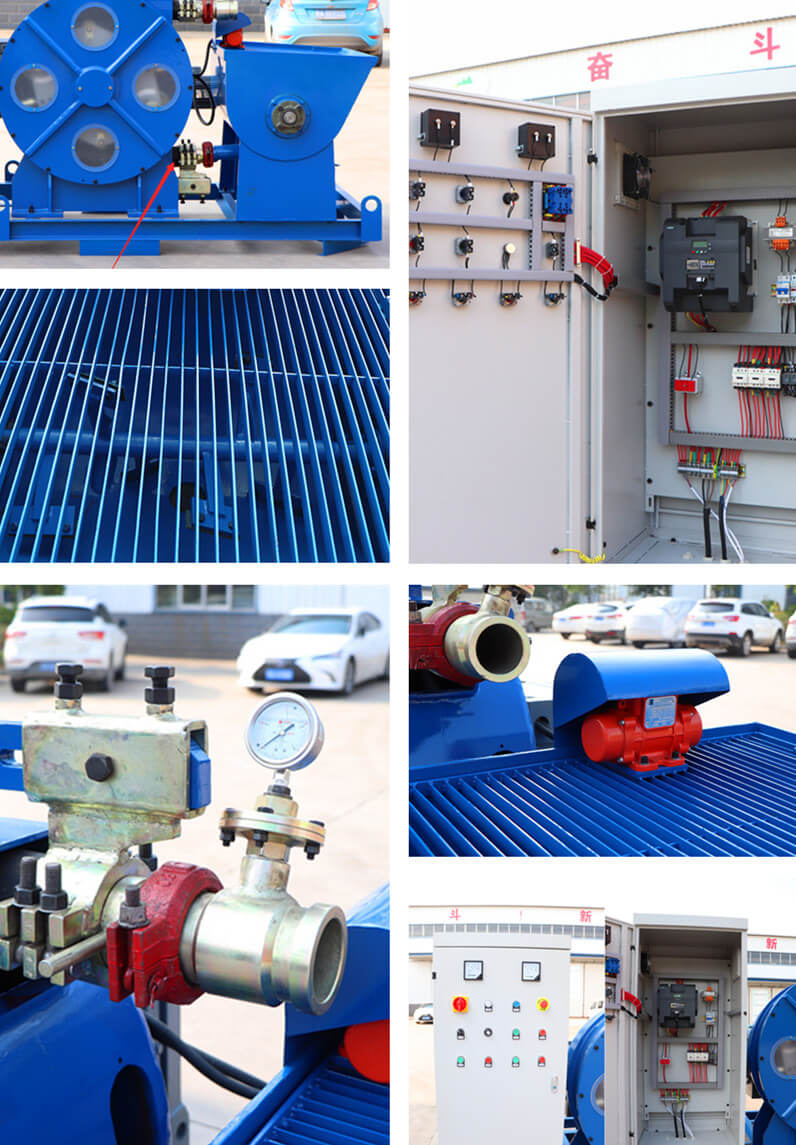

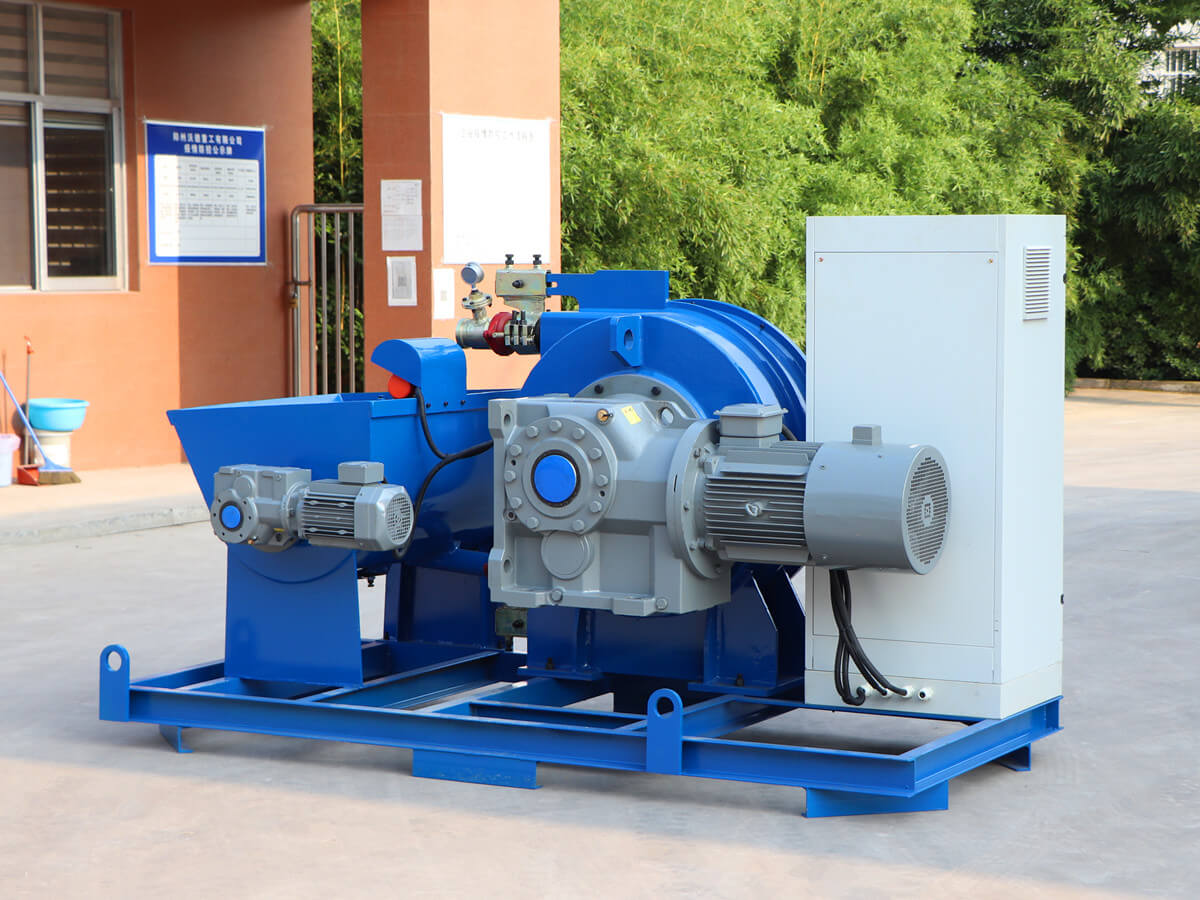

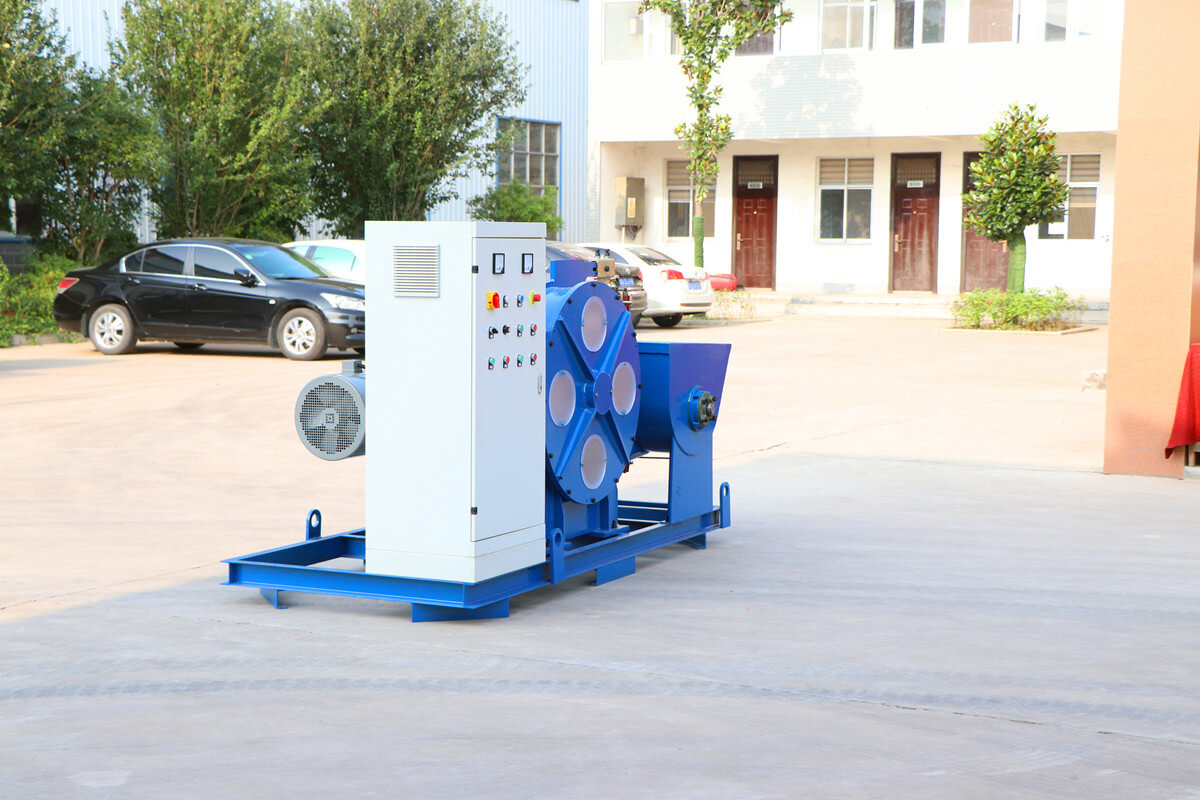

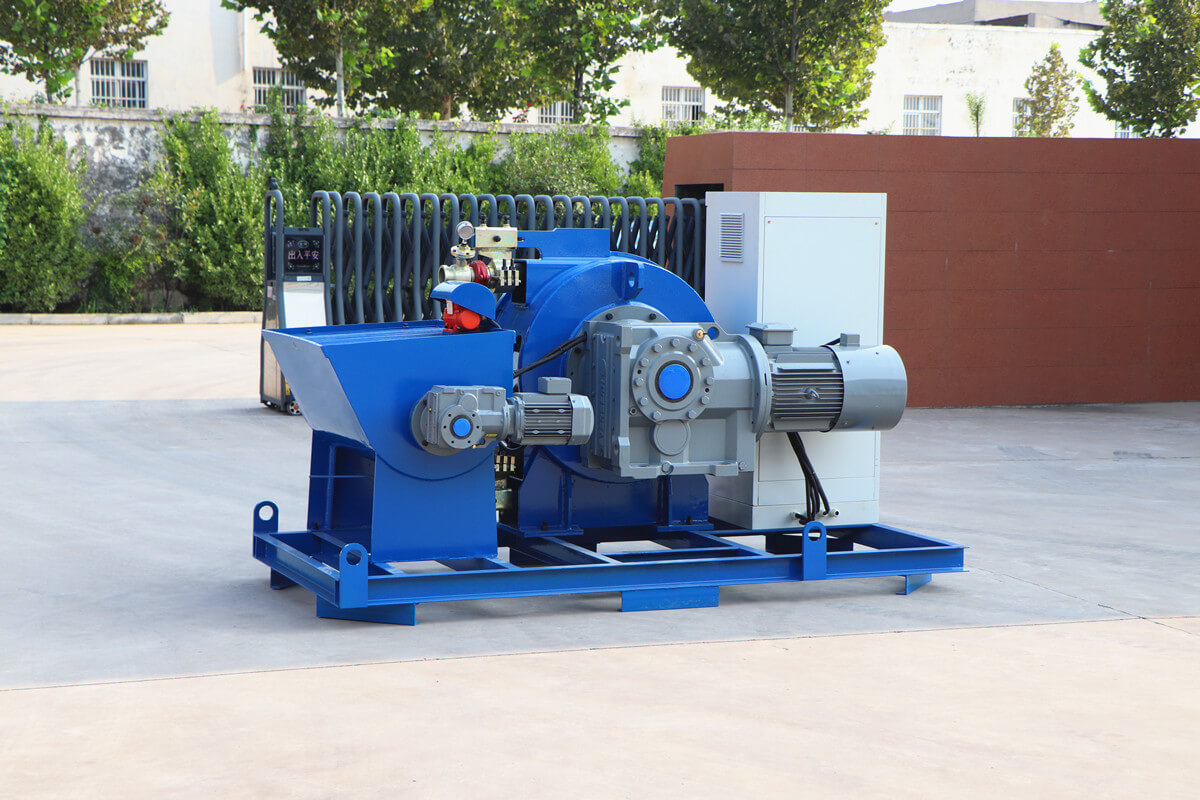

Factory display pictures of GCP15H-E hose type concrete pump with hopper:

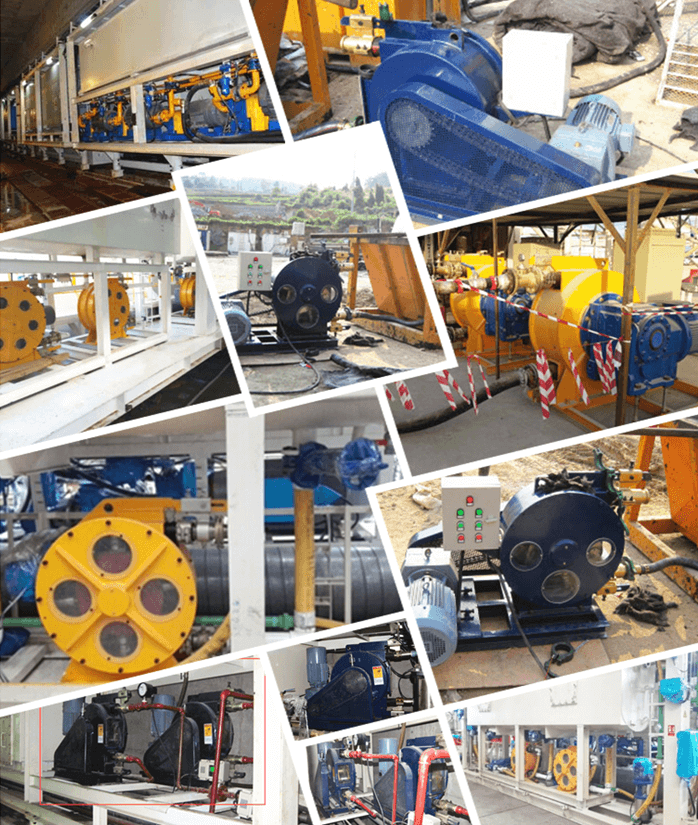

GCP15H-E Hose Type Concrete Pump is widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The hose type concrete pump also could be used for spraying concrete or refractory materials.

Features of GCP15H-E concrete squeeze hose pump:
1. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
2. Installation of frequency control, stepless output.
3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
4. Imported special concrete squeeze tubes, pressure, wear, long life.
5. Reversible work, facilitate the removal of plugging failure.
6. Clean on the line, sample, convenient.

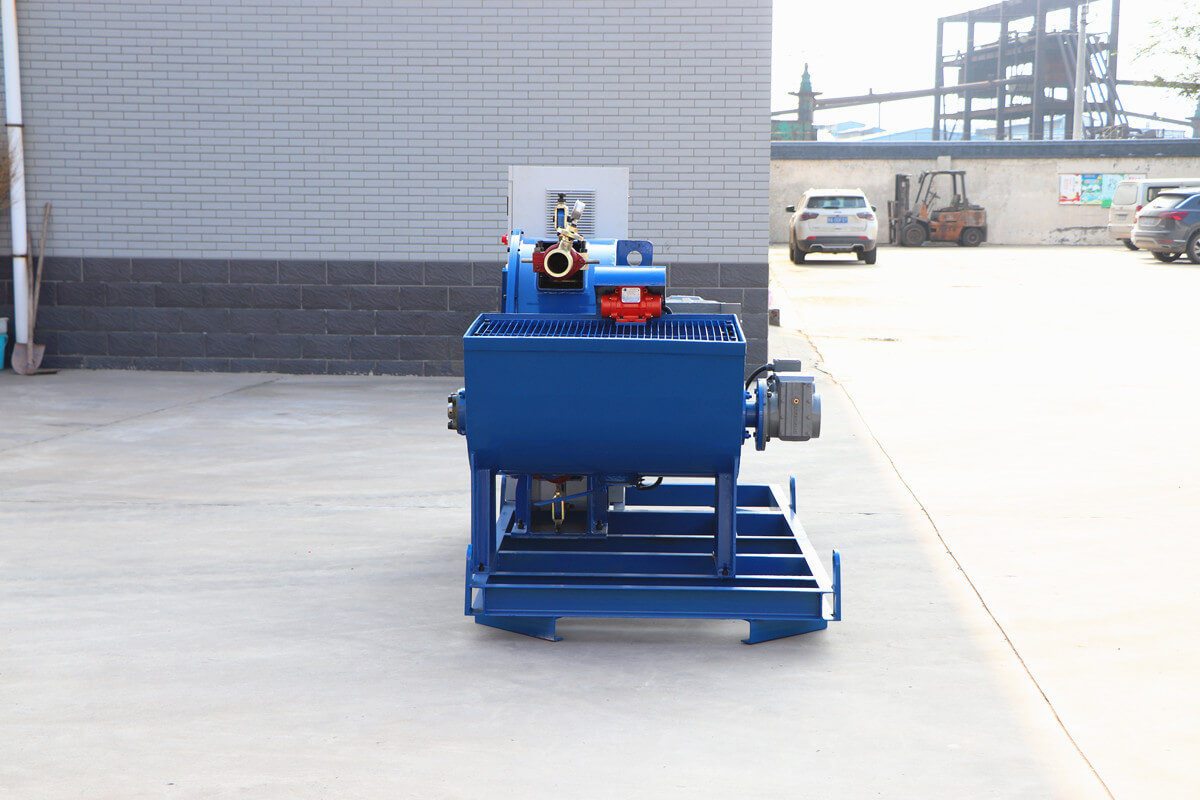

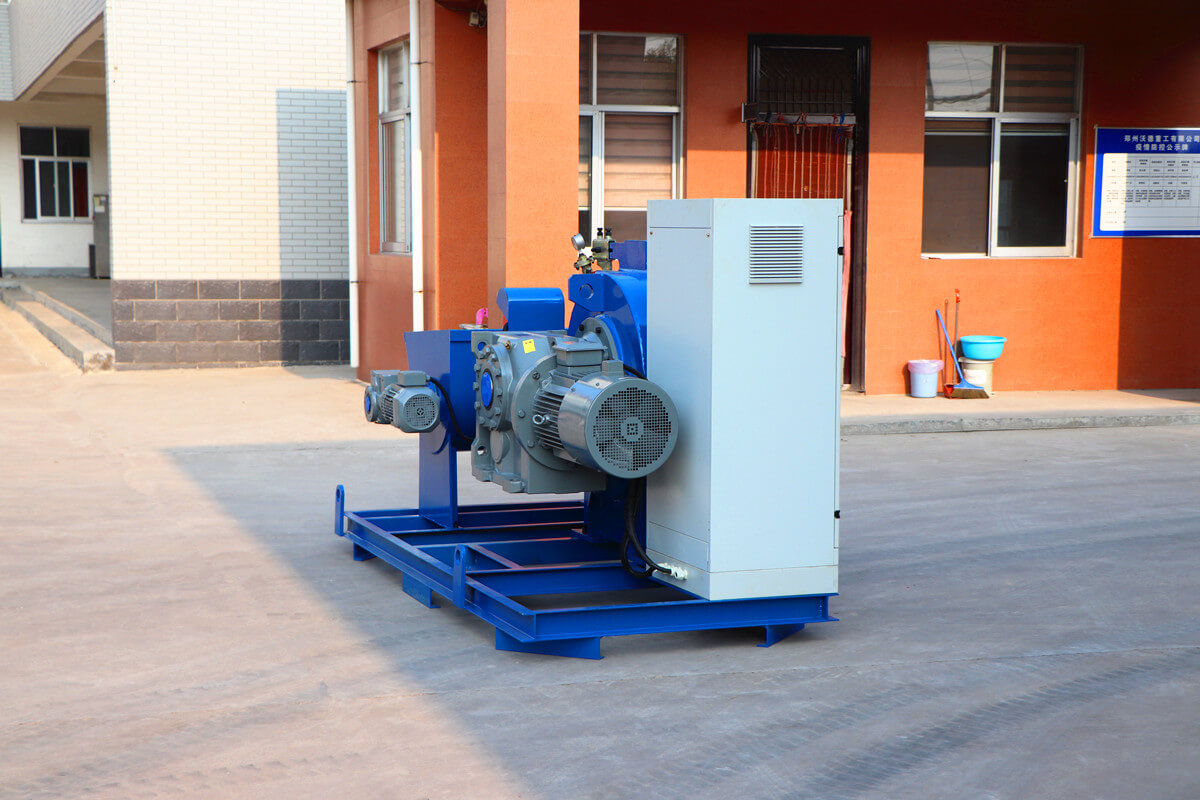

GCP15H-E concrete squeeze hose pump delivery pictures:

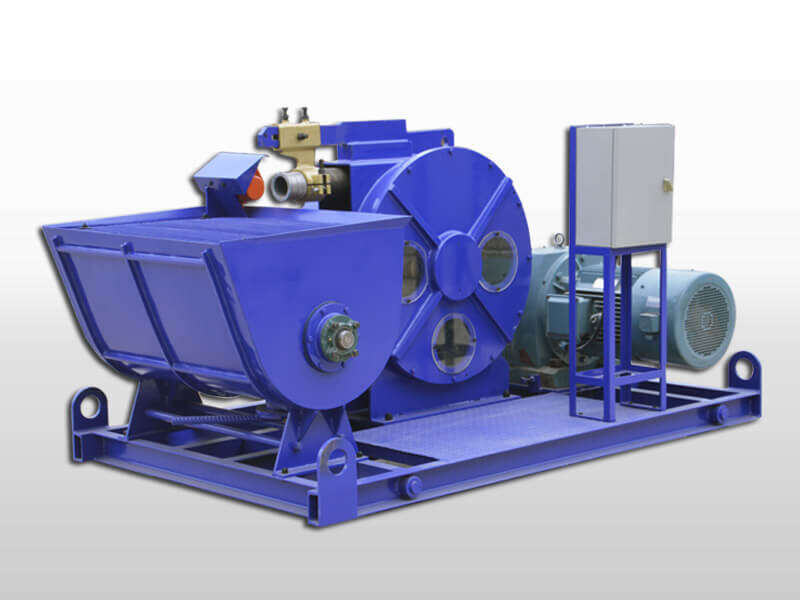

GCP15H-E Hose Type Concrete Pump

Description	parameter
Squeeze Hose Pump	GH76-610
Hose ID	75mm (Trelleborg Squeeze hose)
Speed	37rpm
Output	15m3/h
Pressure	2.5Mpa
Max. Aggregate size	<15mm
Concrete Slump	15-23cm
Hopper Capacity	350L
Stirring speed	37rpm
Reducer Model	NR137
Voltage	22KW  50HZ  IP55  3~380V
Overall Dimension	2400x1300x1200mm
Weight	1560kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar

GCP15H-D Hose Type Concrete Pump

Description	parameter
Squeeze Peristaltic Hose Pump	GH76-610
Hose ID	75mm (Trelleborg Squeeze hose)
Speed	37rpm
Output	15m3/h
Pressure	2.5Mpa
Max. Aggregate size	<15mm
Concrete Slump	15-23cm
Hopper Capacity	350L
Stirring speed	37rpm
Diesel engine power	30KW
Overall Dimension	2400x2100x1800mm
Weight	2300kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar

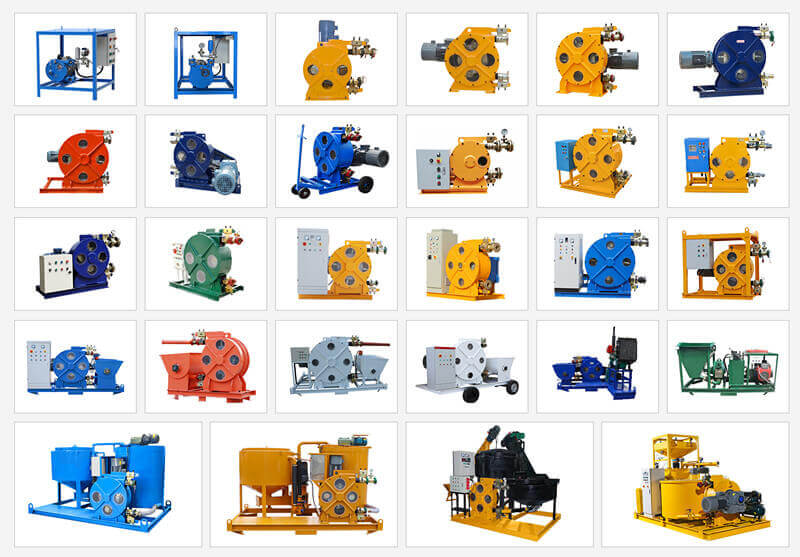

More hose squeeze pumps for sale:
