BW Series Slurry Pump is one of the principal equipment for geological drilling. It delivers the enough volume circulating mud water of desired characteristic under pressure into the well to bring the rock clastic up to ground, to cool the drill bit to lubricate the drill tool and to protect the wall of the well. So the function of mud pump affects the efficiency of drilling and safety in production directly.

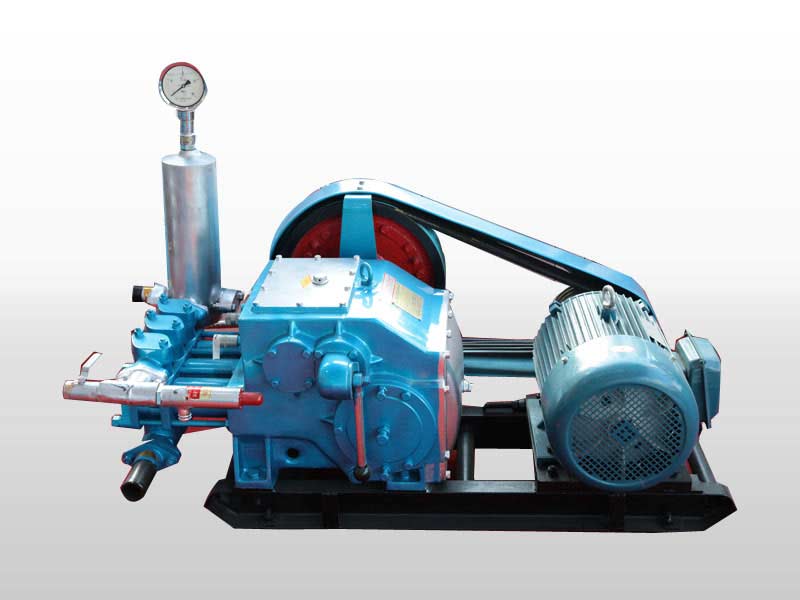

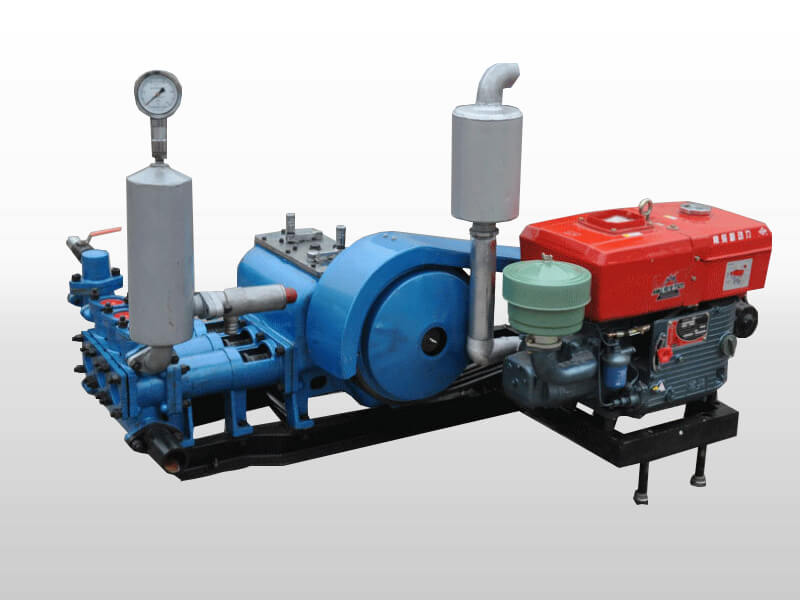

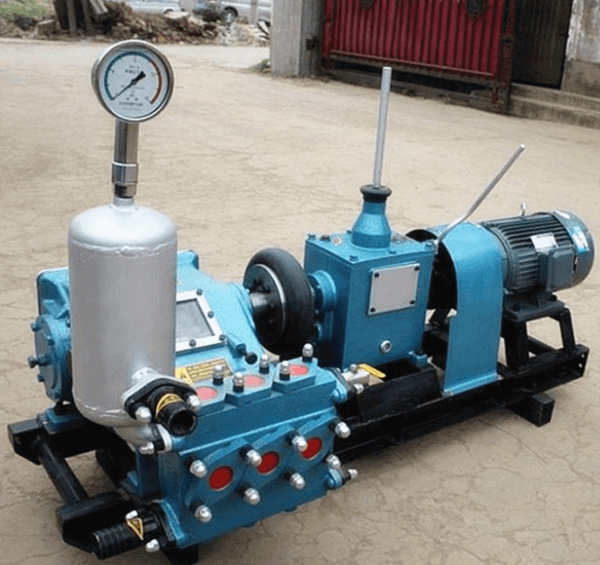

BW-250 Mud pump is a horizontal, triplex, single acting reciprocating piston pump. It has the advantages of multi-speed shift gears for variable displacement, construction, light weight,readily movable and easy to be operated etc. BW-250 Mud Pump is provided with two kinds of the liner, 80mm is for core frilling of the ordinary bore, and 65 mm is for core drilling of small bore with diamond bit. The slurry pump can be driven by electric motor or diesel engine according to the requirement of the customer in order.

BW Series Slurry Mud Pump can match with 1500m drilling rigs and also for grouting.

1. Small size, light weight slurry mud pump.
2. Long life.
3. Easy handling.
4. Delivery time within 15 working days.

Model	Max.Flow	Max Pressure	Input Power	Suction Pipe Diameter(mm)	Discharge pipe Diameter(mm)	Weight(kg)	Size(mm)
BW-150	150L/Min	7Mpa	7.5kw	51mm	32mm	560kg	1080*850*750
BW-250	250L/min	8Mpa	15kw	76mm	51mm	1000kg	1100*995*650
BW-320	320L/min	10Mpa	30kw	76mm	51mm	1000kg	1280*855*750
BW-350	350L/min	13Mpa	45kw	76mm	51mm	720kg	1905*1100*1200
BW-450	450L/Min	2Mpa	18.5Kw	89mm	51mm	540kg	1350*820*1040
BW-300	300L/Min	6Mpa	55kw	76mm	51mm	1200kg	2050*1030*1350
BW-150/1.5	150L/min	1.5Mpa	5.5Kw	51mm	32mm	650kg	1100*750*650
BW-160H	160L/min	1.3Mpa	5.5Kw	51mm	32mm	130Kg	1100*750*750
BW-200/10	200L/min	10Mpa	22kw	76mm	51mm	800kg	1660*920*867
BW-200	200L/min	4Mpa	15kw	65mm	37mm	300kg	1050*630*820
BW-450Q	450L/min	2Mpa	18.5kw	89mm	51mm	560kg	1350*820*1040
BW-500/7	500L/min	7Mpa	30kw	89mm	51mm	720kg	1350*820*1040
BW-400/10	400L/Min	2.2Mpa	45kw	76mm	51mm	720kg	1905*1100*1200
BW-450/5	450L/min	2Mpa	22kw	76mm	51mm	520kg	1000*995*650
BW600/10	600L/min	10Mpa	55KW	89mm	51mm	1400KG	1500*890*1230
BW-850/2	850L/Min	2Mpa	37kw	125mm	64mm	3100kg	3018*1120*2050
BW-850/5	850L/Min	5Mpa	90kw	152mm	64mm	3100kg	3010*1120*2050

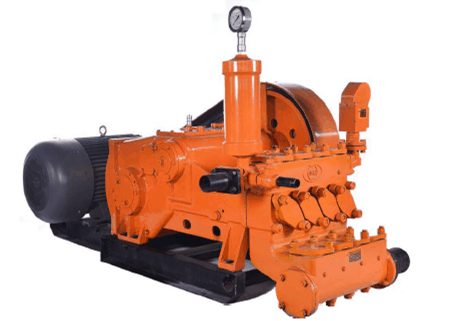

1200/10 horizontal four cylinder reciprocation single acting piston pump:

Model	Four cylinders 1200/10 mud pump
Cylinder diameter (mm)	120
Stroke (mm)	140
Input speed (time/min)	215 175 152 84
Flow (l/min)	1200 970 846 467
Pressure (Mpa)	5.5 6 7.5 10
Power (Kw)	132
Shape size (mm)	1650*1150*1200
Weight (kg)	1620

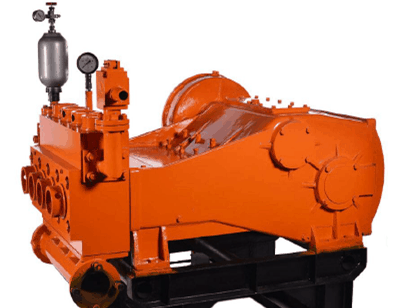

1300/15 horizontal four cylinder reciprocation single acting piston pump:

Model	Four cylinder 1300/15 mud pump
Stroke (mm)	136
Pump speed (time/min)	180
Cylinder diameter (mm)	130 90
Flow (l/min)	1300  650
Pressure (Mpa)	15 25
Power (Kw)	185
Shape size (mm)	1685* 1650*1450
Weight (kg)	2560
