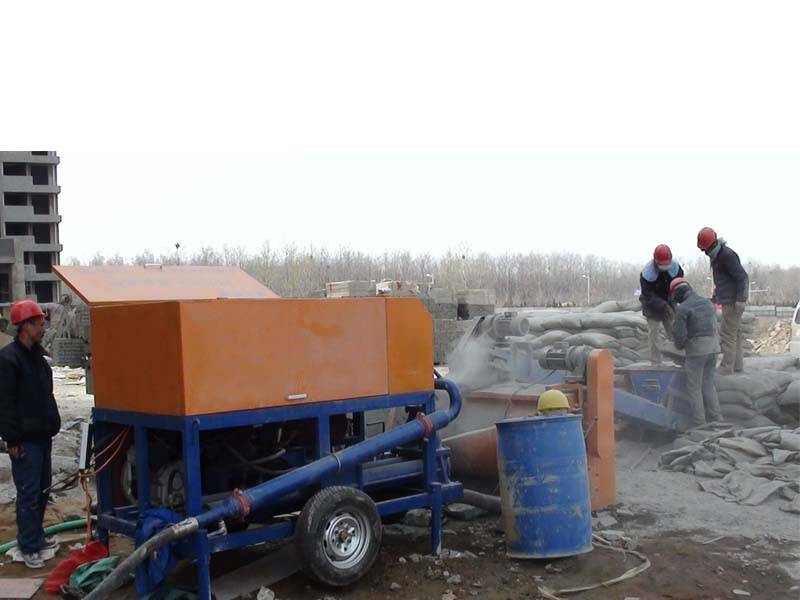

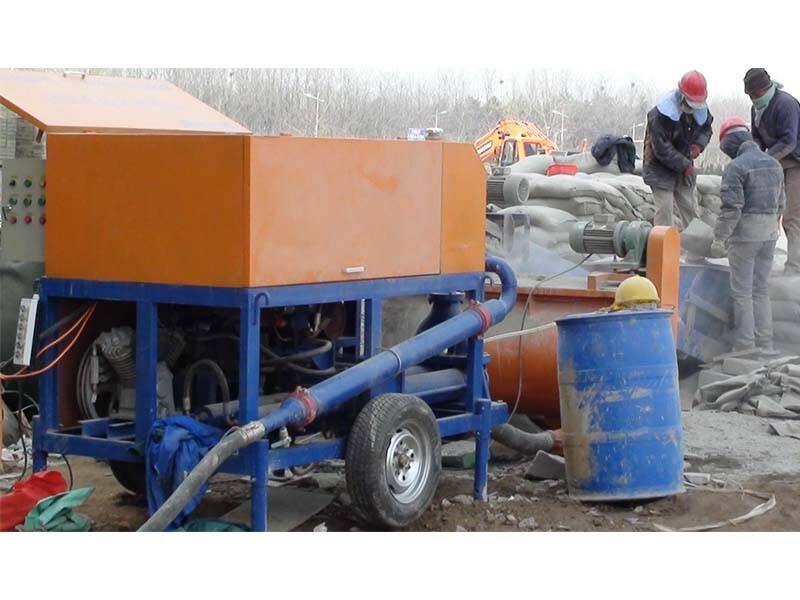

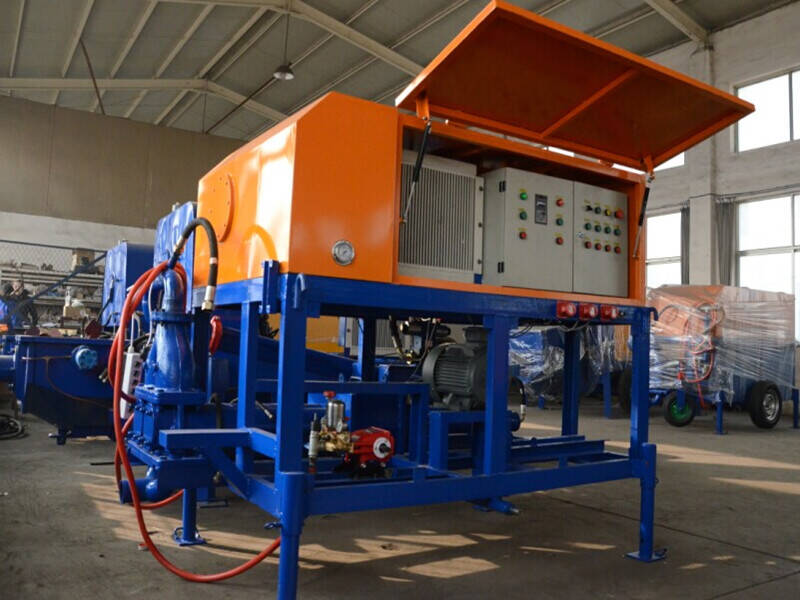

The GF40 cement foam concrete machine mix cement and water in the mixer tank to make concrete slurry, then convey them into pipeline by hydraulic cylinder; foam agent are mixed with water then mixed with compressed air by high pressure pump, in pipeline rich foam formed and mixed with concrete slurry to be foam concrete.

1. Applied for insulating layer in floor heating constructions: the surface will flow smooth naturally and is an essential advanced equipment for floor heating construction;
2. Applied for roof insulation constructions: The foam material used in roof insulation is with warm keeping, heat insulating function, it’s effect is 20-30 times the ordinary material, which keeps the room temperature of top floor the same as other floors, warm in winter and cool in summer;
3. Can be used in producing various specifications of cement foam board, cement foam bricks and external wall insulation material;
4. Can be used in filling tunnel and mine internal voids, etc. And applied for insulation of low temperature cold store and refrigerated depot section;
5. Applied in freezing prevention and temperature maintenance of pipeline.

1. Simple structure, light weight, easy operate;
2. According demands to choose suitable pumping speed;
3. Foaming system adjust frequency control speed, could adjust foaming agent ratio;
4. Mainly used for roof insulation, floor heating, foam concrete block,etc.projects;
5. High cost-performance.

Model	GF40
Max.Output	35-40m3/h
Output Pressure	7MPa
Max.Horizontal Transporting Range	450m
Max. Vertical Transporting Height	180m
Acceptable Max. Aggregates size	8mm
Control method of foam system	digital frequency conversion
Filling height	1100mm
Feeder motor power	1.5kw
Power	41KW
Main Machine Dimension	2200×1540×1760mm
Mixer Dimension	1940*780*1470mm
Feeder Dimension	3800×760×830mm
