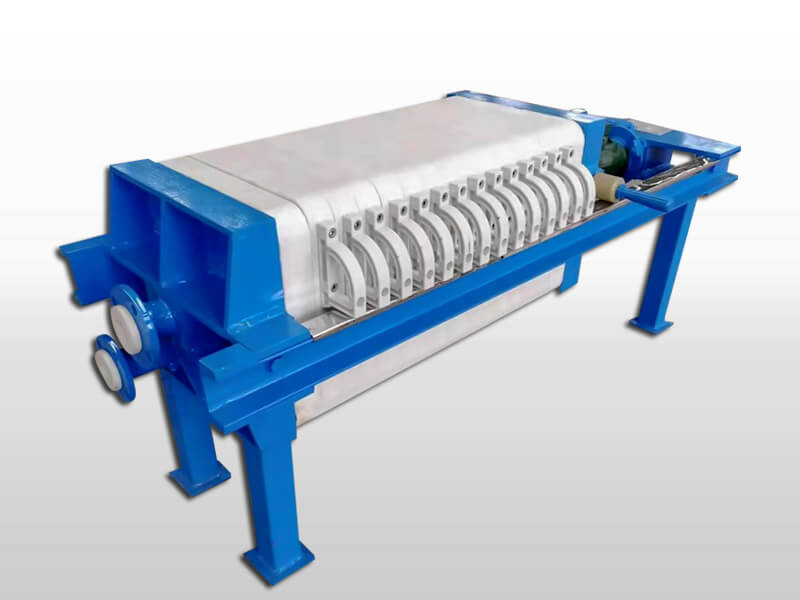

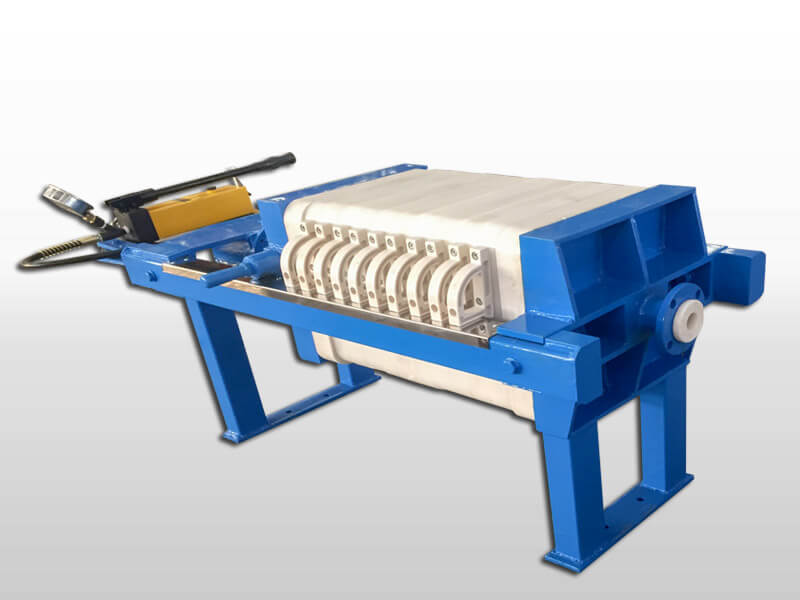

This screw jack filter press adopts screw jack as closing system. This manual filter press machine has features of simple structure, easy operation, no power consumption, cost saving. It is generally used in filter press with 1-40m2 filter area.

Structure and Operating Principle of Manual Jack Filter Press:
1. Small manual jack filter press consist of frame, filter plate, pressing system(manual, mechanical or hydraulic) and electric control cabinet.
2. Frame consists of base, push plate and girder and supports the pressing device and filter plates.
3. Filter plates are installed on girder between tail plate and push plate, with filter cloth sandwiched in them.
4. In operation, the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate .
Filter chambers are formed between pressed filter plates and material get in to the filter chambers through the feeding port in tail plate. Solid particles are trapped in filter chambers form into cakes, while liquid is discharged out of the tail plate. In similar manner, to drying the press cakes, compressed air can be introduced through the washing port.

Details of manual filter press machine:

Filter plate:

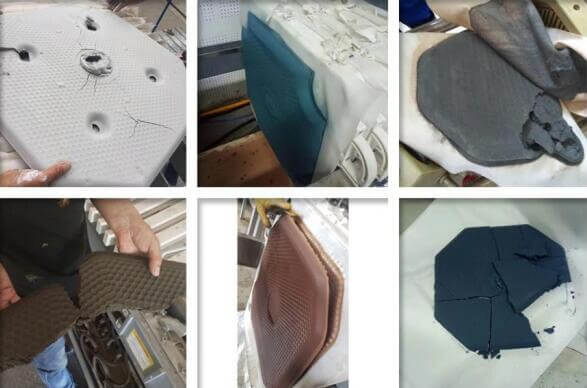

Filter cloth:

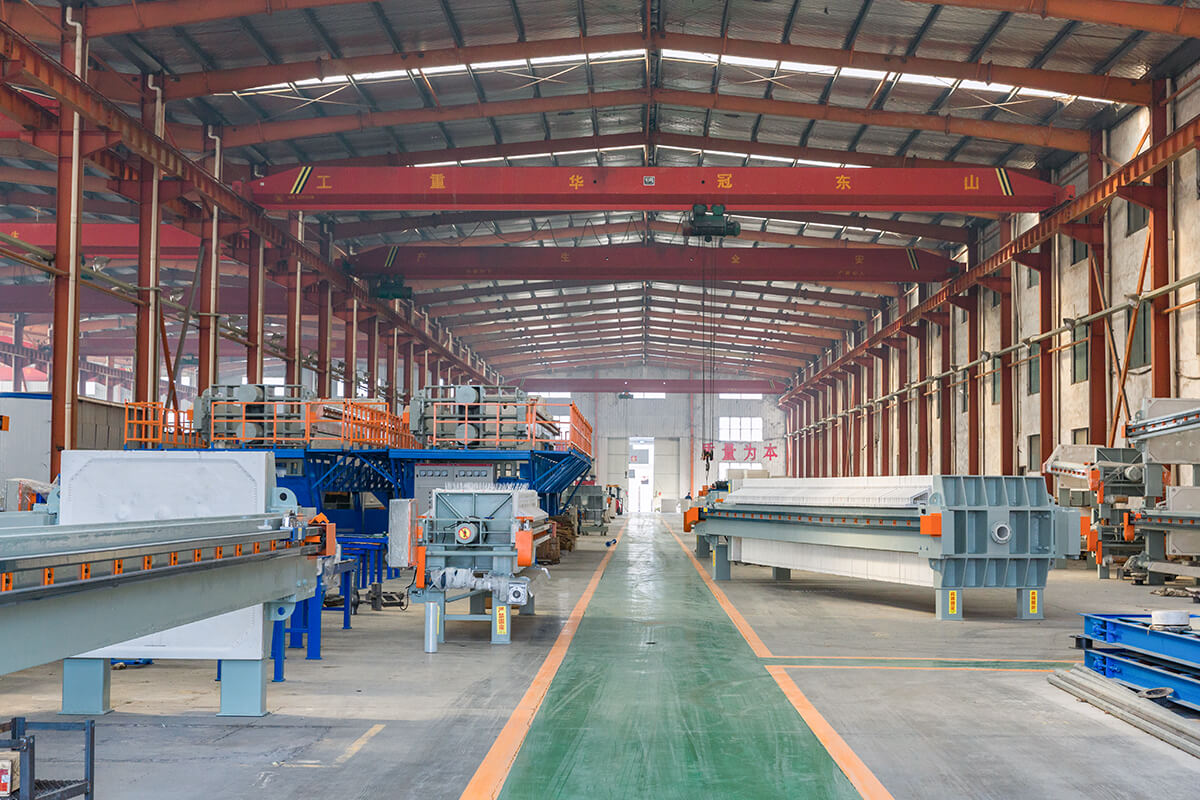

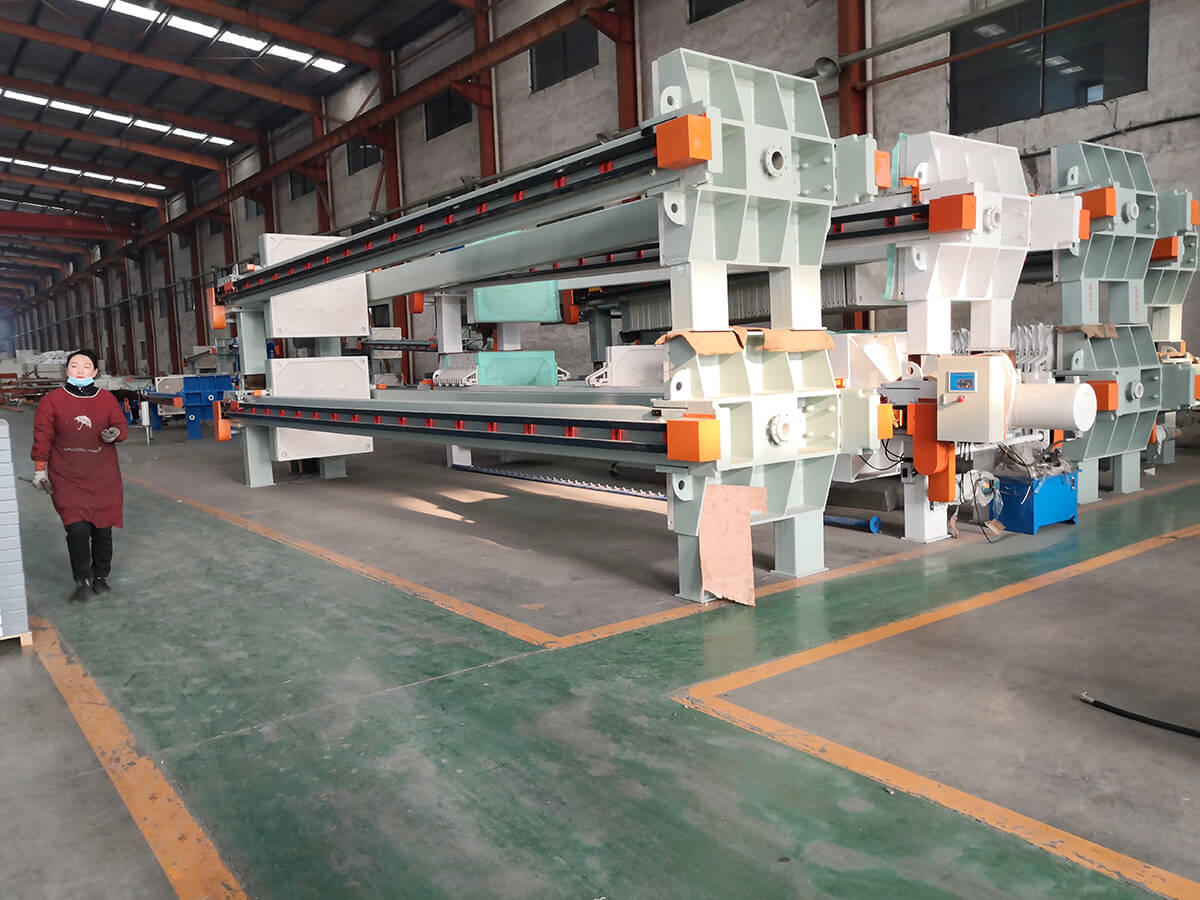

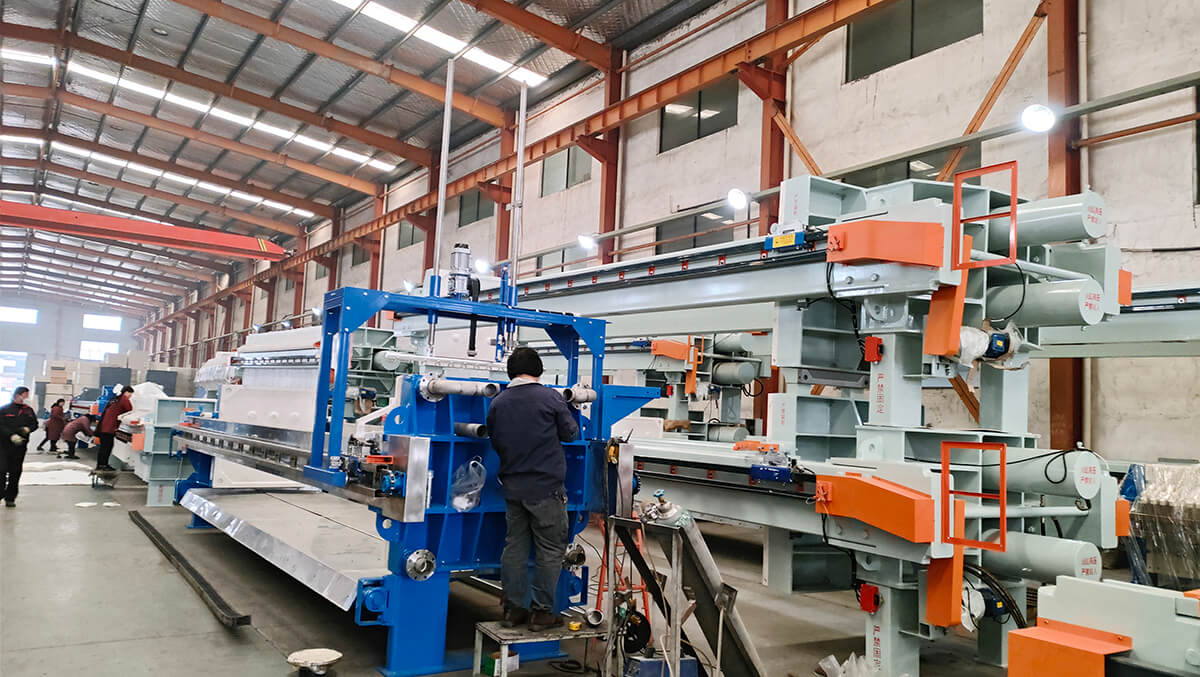

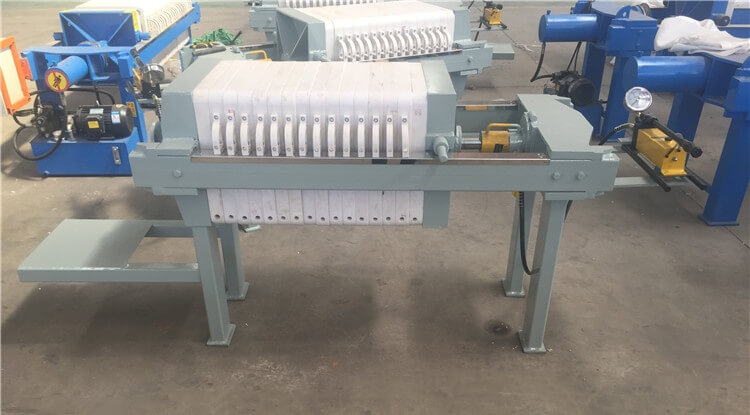

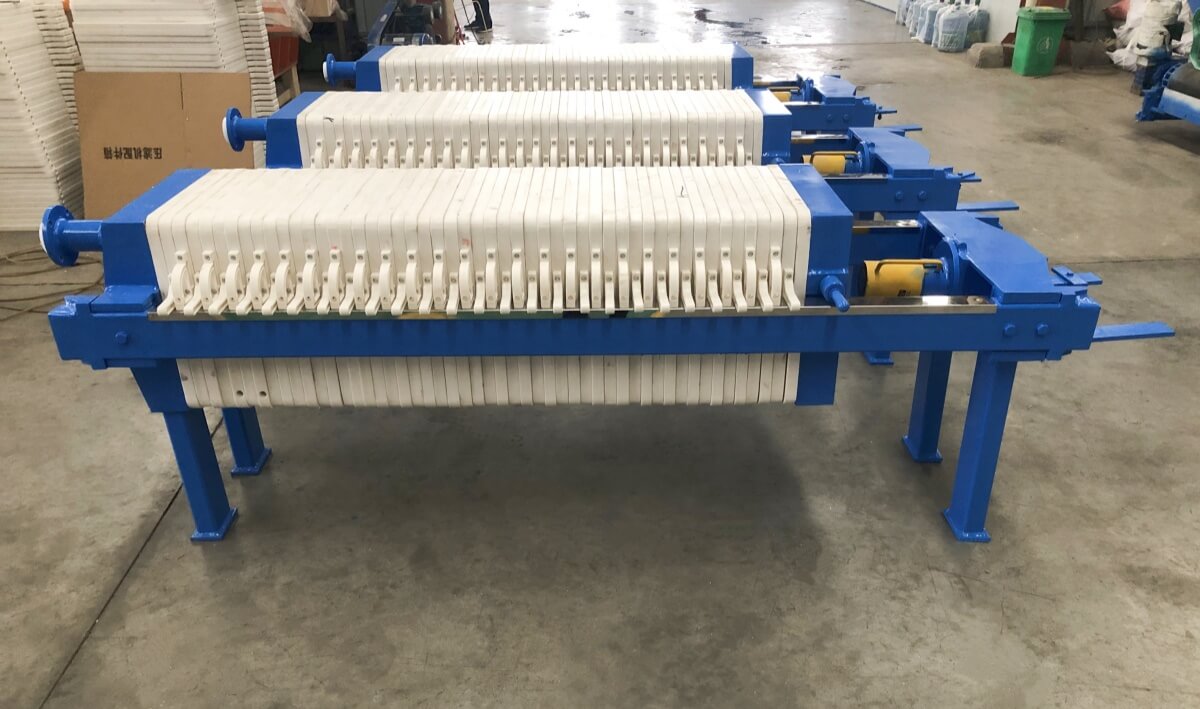

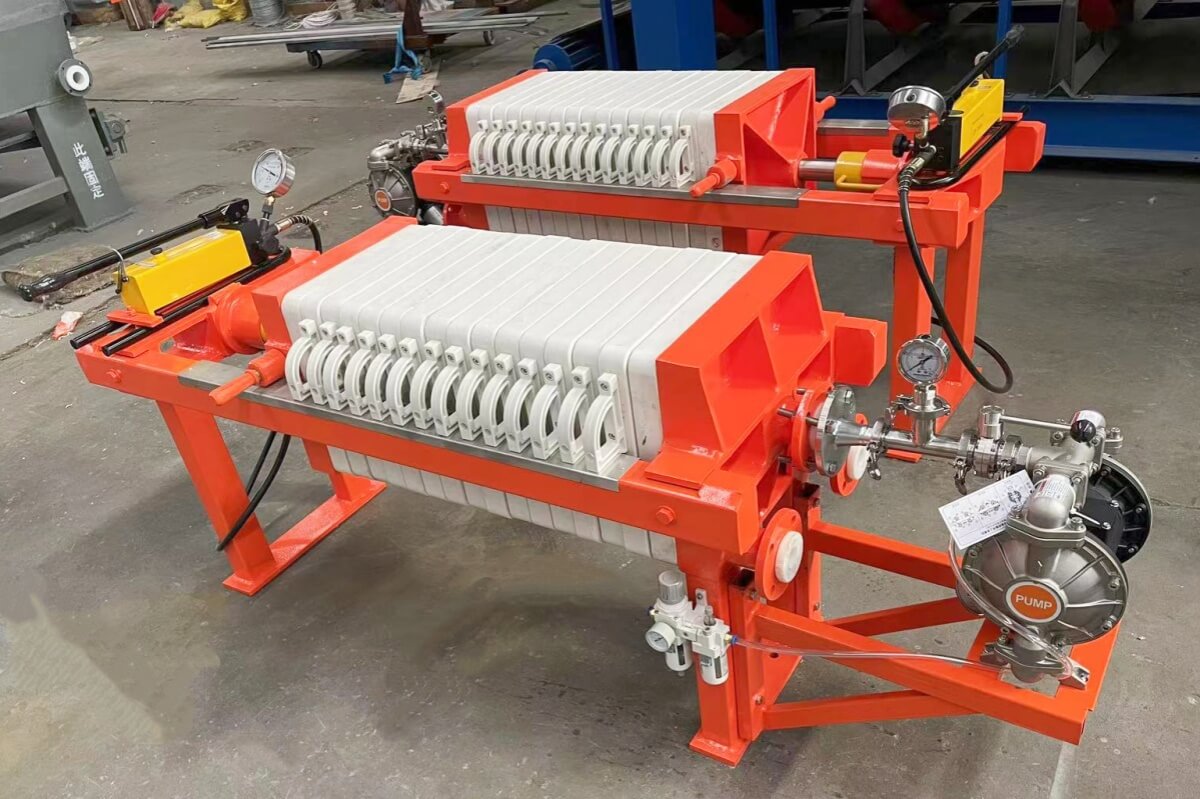

Our manual jack filter press factory:

This small filter press equipment is suitable for the industry of coal washing, inorganic salts, alcohol, chemical, metallurgy, pharmacy, coal carbon, food, textile, environmental protection, energy etc.

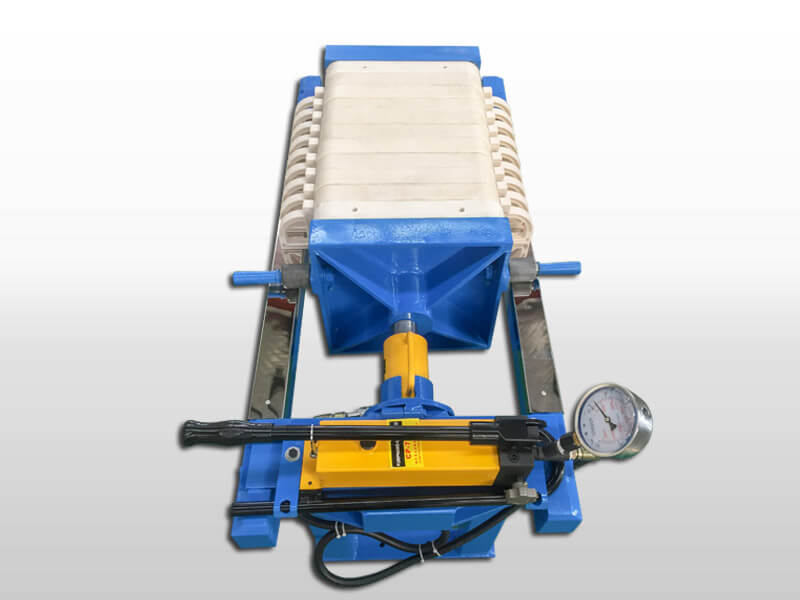

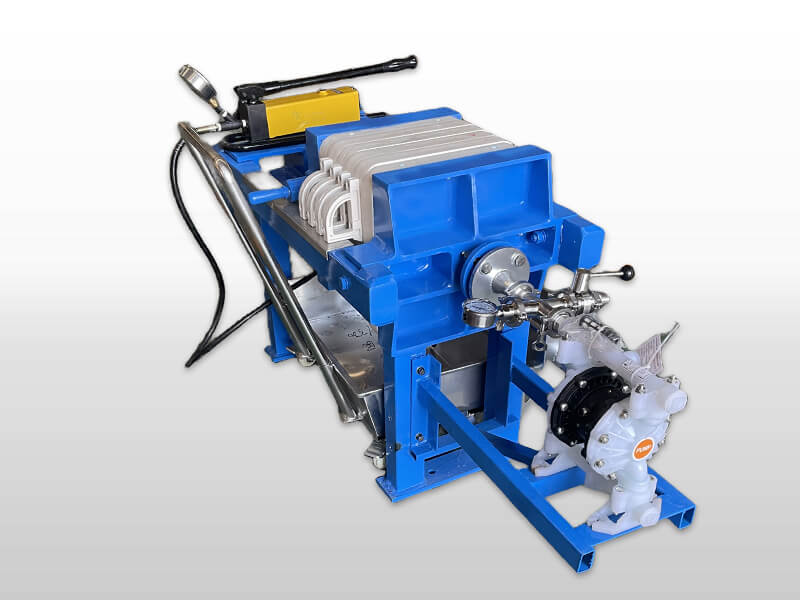

Manual hydraulic filter press adopts manual hydraulic system as closing system. It has features of simple structure, easy operation, no power consumption, cost saving.

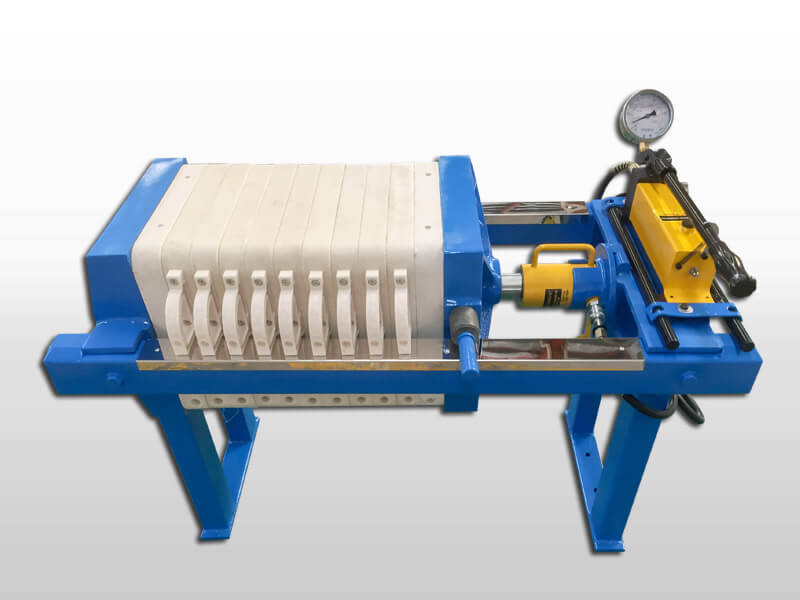

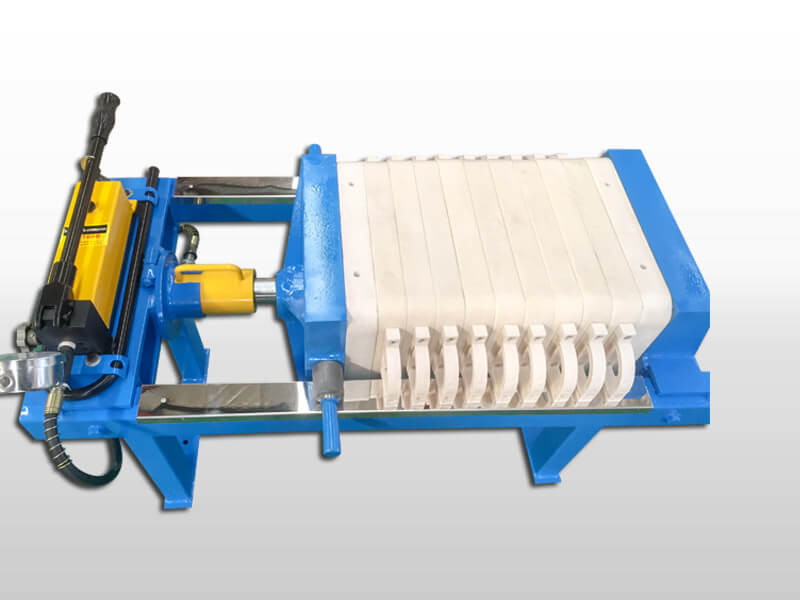

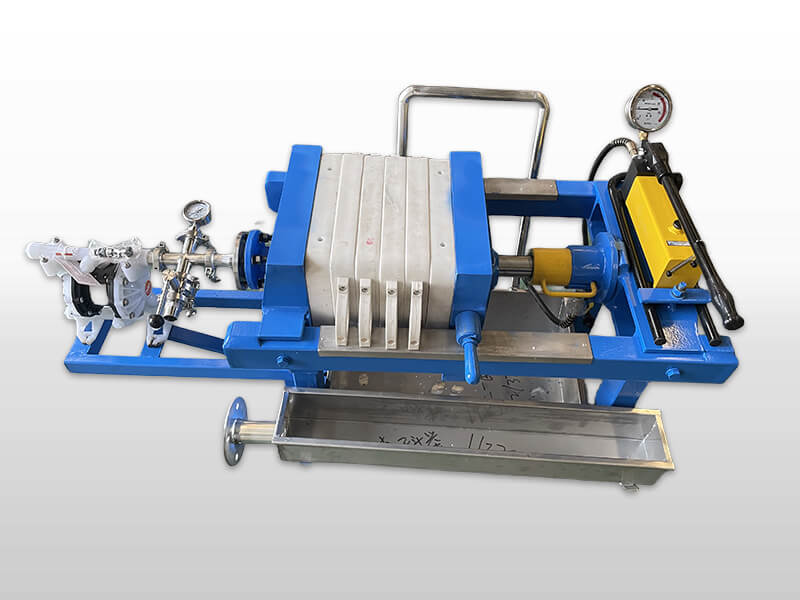

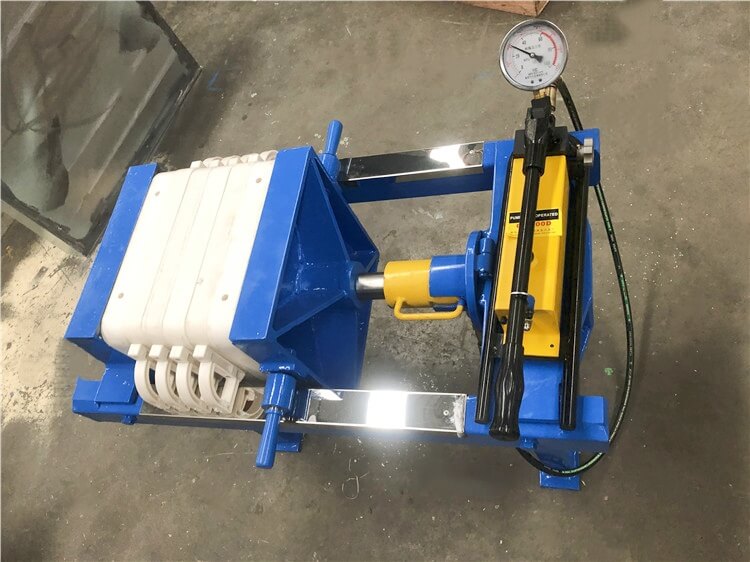

Manual filter press adopts screw jack as pressing device.
1.Screw jack filter press has compact design and simple structure.
2.This type small filter press is easy to operate and maintain.
3. Manual hydraulic jack press filter need no power consumption and zero running cost.
4. It is cost saving.
5. It has 320mm, 450mm and 630mm models.
6. Its filter area is 1-40m2.

Chamber type manual jack filter press
Model	Filter area  (m2)	Plate size (mm)	Cake thickness  (mm)	Filter chamber volume  (L)	Plate NO. (pcs)	Filtration pressure (Mpa)	Weight (kg)	Dimensions  L*W*H (mm)
XMQ1/320-30U	1	380*380	30	15	4	≤0.6	490	1230*570*660
XMQ2/320-30U	2	380*380	30	31	9	≤0.6	528	1455*570*660
XMQ3/320-30U	3	380*380	30	46	14	≤0.6	550	1680*570*660
XMQ4/450-30U	4	500*500	30	60	9	≤0.6	780	1630*800*900
XMQ6/450-30U	6	500*500	30	91	14	≤0.6	830	1880*800*900
XMQ8/450-30U	8	500*500	30	121	19	≤0.6	880	2130*800*900
XMQ10/450-30U	10	500*500	30	151	24	≤0.6	930	2380*800*900
XMQ12/450-30U	12	500*500	30	182	29	≤0.6	980	2630*800*900
XMQ15/450-30U	15	500*500	30	225	36	≤0.6	1030	2980*800*900
XMQ16/450-30U	16	500*500	30	243	39	≤0.6	1050	3130*800*900
XMQ15/630-30U	15	700*700	30	226	18	≤0.6	1257	2250*1080*1060
XMQ20/630-30U	20	700*700	30	297	24	≤0.6	1347	2550*1080*1060
XMQ30/630-30U	30	700*700	30	452	37	≤0.6	1693	3200*1080*1060
XMQ40/630-30U	40	700*700	30	595	49	≤0.6	2193	3900*1080*1060

Plate and frame type manual jack filter press
Model	Filter area  (m2)	Plate size (mm)	Cake thickness  (mm)	Filter chamber volume  (L)	Plate NO. (pcs)	Number frame (pcs)	Filtration pressure (Mpa)	Weight (kg)	Dimensions  L*W*H (mm)
BMQ1/320-30U	1	380*380	30	15	4	5	≤0.5	500	1180*570*660
BMQ2/320-30U	2	380*380	30	31	9	10	≤0.5	545	1620*570*660
BMQ3/320-30U	3	380*380	30	46	14	15	≤0.5	570	1920*570*660
BMQ4/450-30U	4	500*500	30	60	9	10	≤0.5	798	1750*800*900
BMQ6/450-30U	6	500*500	30	91	14	15	≤0.5	858	2050*800*900
BMQ8/450-30U	8	500*500	30	121	19	20	≤0.5	918	2350*800*900
BMQ10/450-30U	10	500*500	30	151	24	25	≤0.5	978	2650*800*900
BMQ12/450-30U	12	500*500	30	182	29	30	≤0.5	1038	2950*800*900
BMQ15/450-30U	15	500*500	30	225	36	37	≤0.5	1038	2950*800*900
BMQ16/450-30U	16	500*500	30	243	39	40	≤0.5	1158	3560*800*900
BMQ15/630-30U	15	710*710	30	226	18	19	≤0.5	1579	2460*1110*1190
BMQ20/630-30U	20	710*710	30	297	24	25	≤0.5	1796	2820*1110*1190
BMQ30/630-30U	30	710*710	30	452	37	38	≤0.5	2258	3600*1110*1190
BMQ40/630-30U	40	710*710	30	595	49	50	≤0.5	2893	4420*1110*1190
