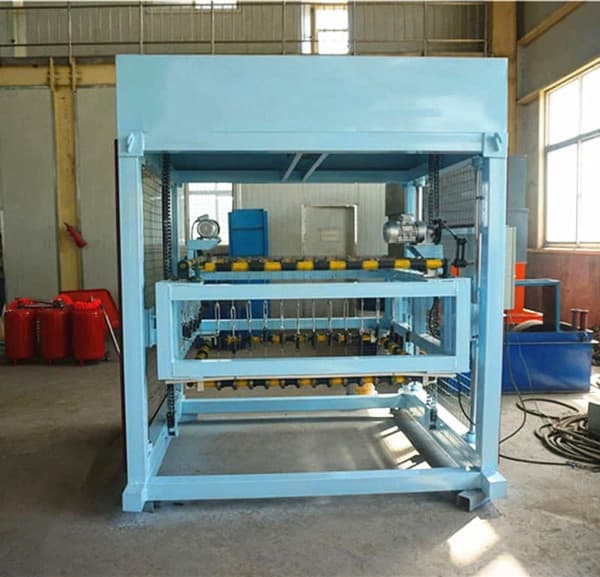

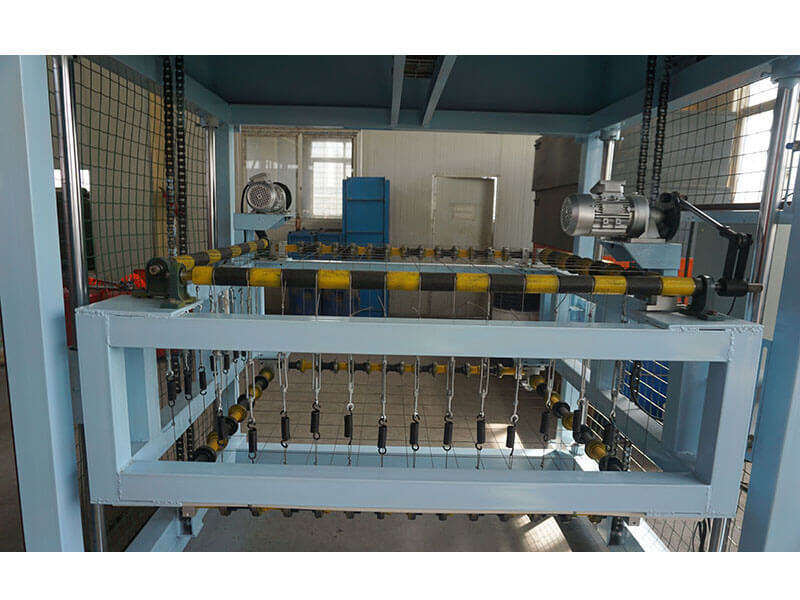

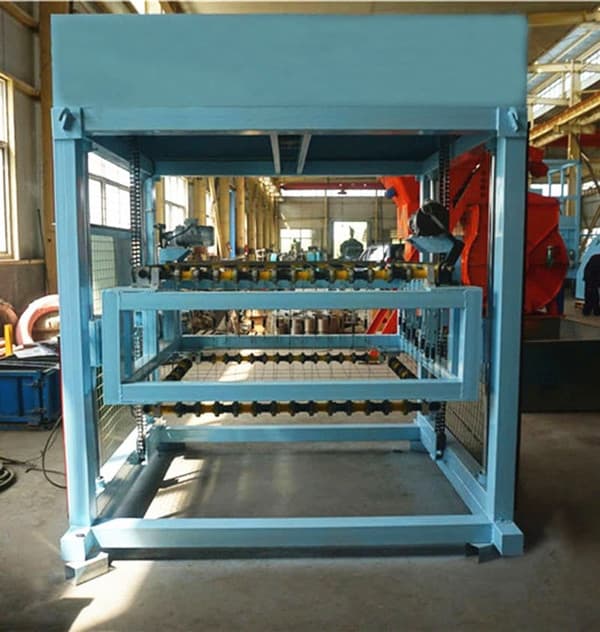

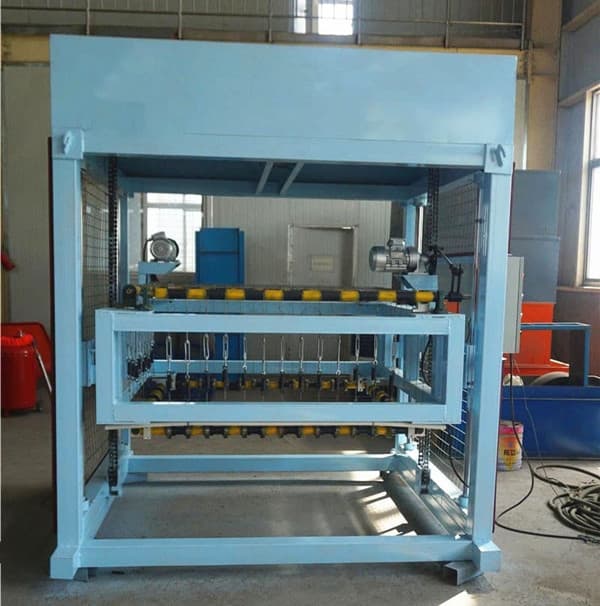

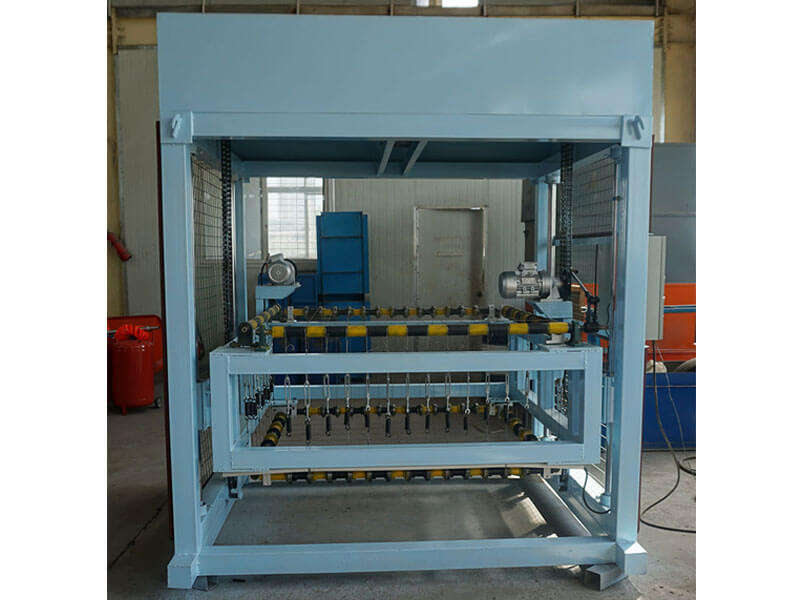

GW30B Foam Concrete Block Wire Cutting Machine is a new product in the foam concrete plant, It is specially used to cut various foam concrete blocks. Easy operation, high efficiency.

Main performance of lightweight concrete block cutting machine:
1. The lifting motor adopt the standard automatically brake motor.
2. Lifting speed could be adjusted through the frequency converter.
3. The block size between 100-200-300-400-500-600-700-800-900-1000-1100-1200mm could be adjusted willfully.
4. All motors are equipped with speed reducers.

GW30Bfoam concrete brick cutting machine is specially used to cut various foam concrete blocks. Easy operation, high efficiency.

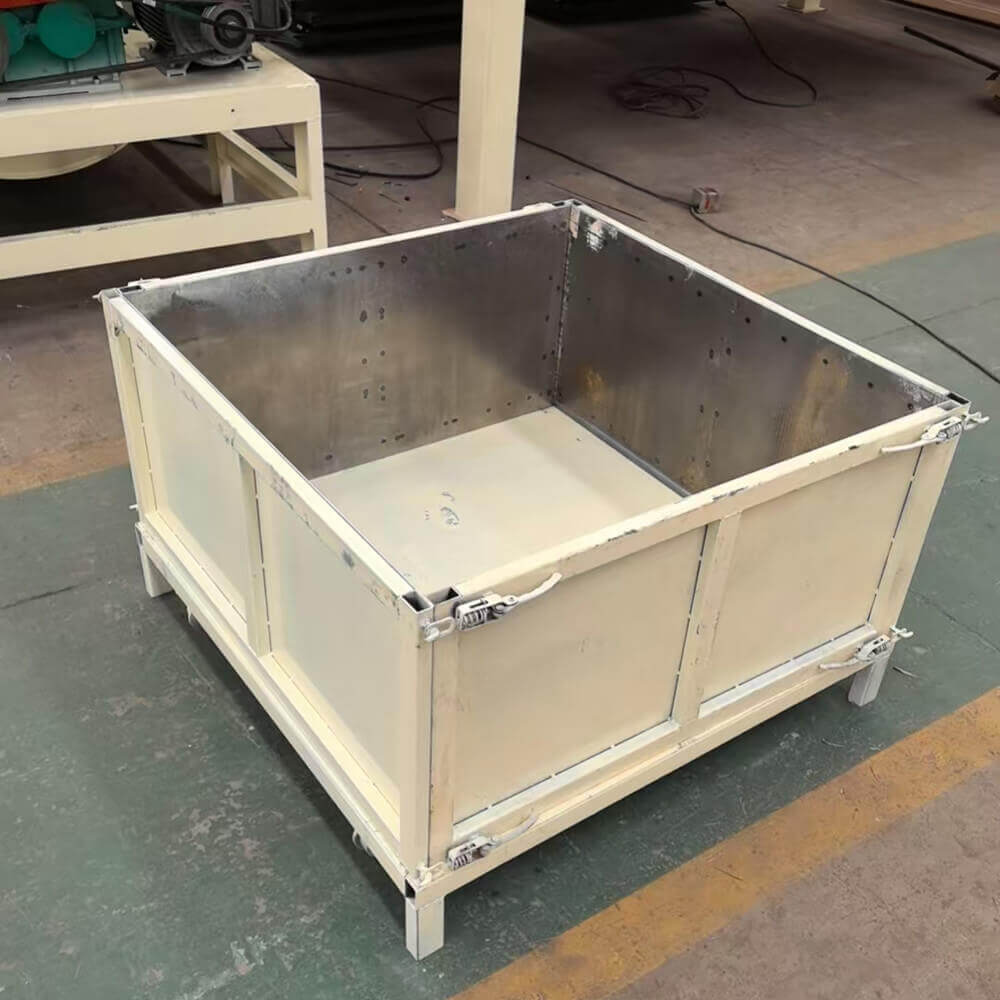

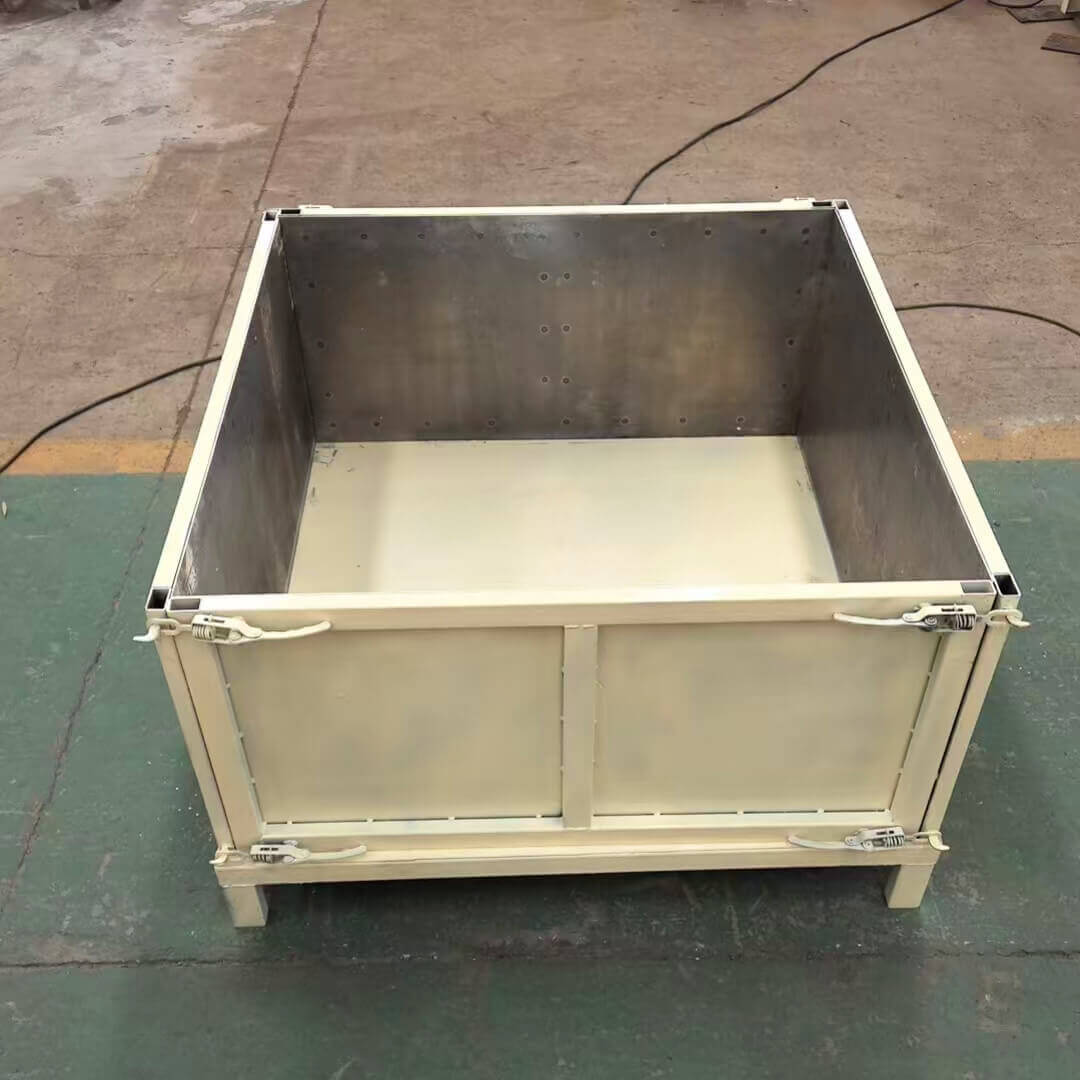

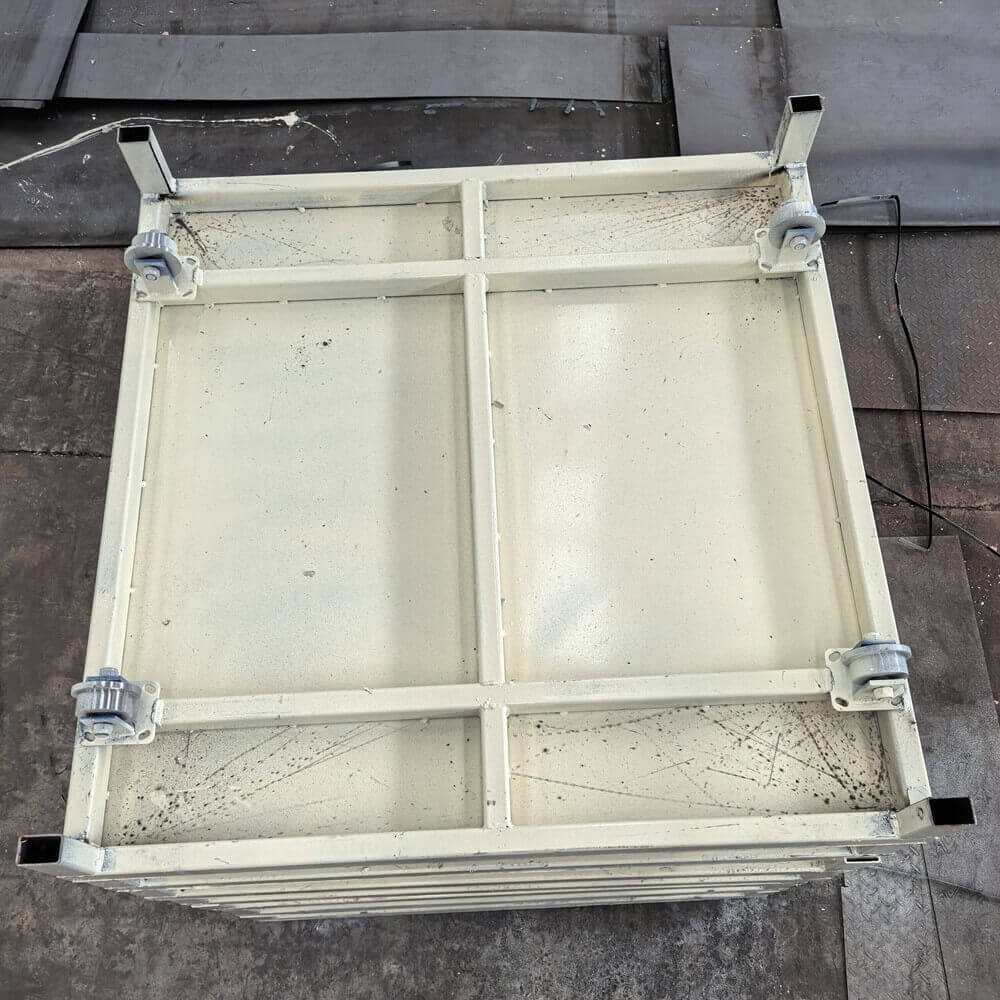

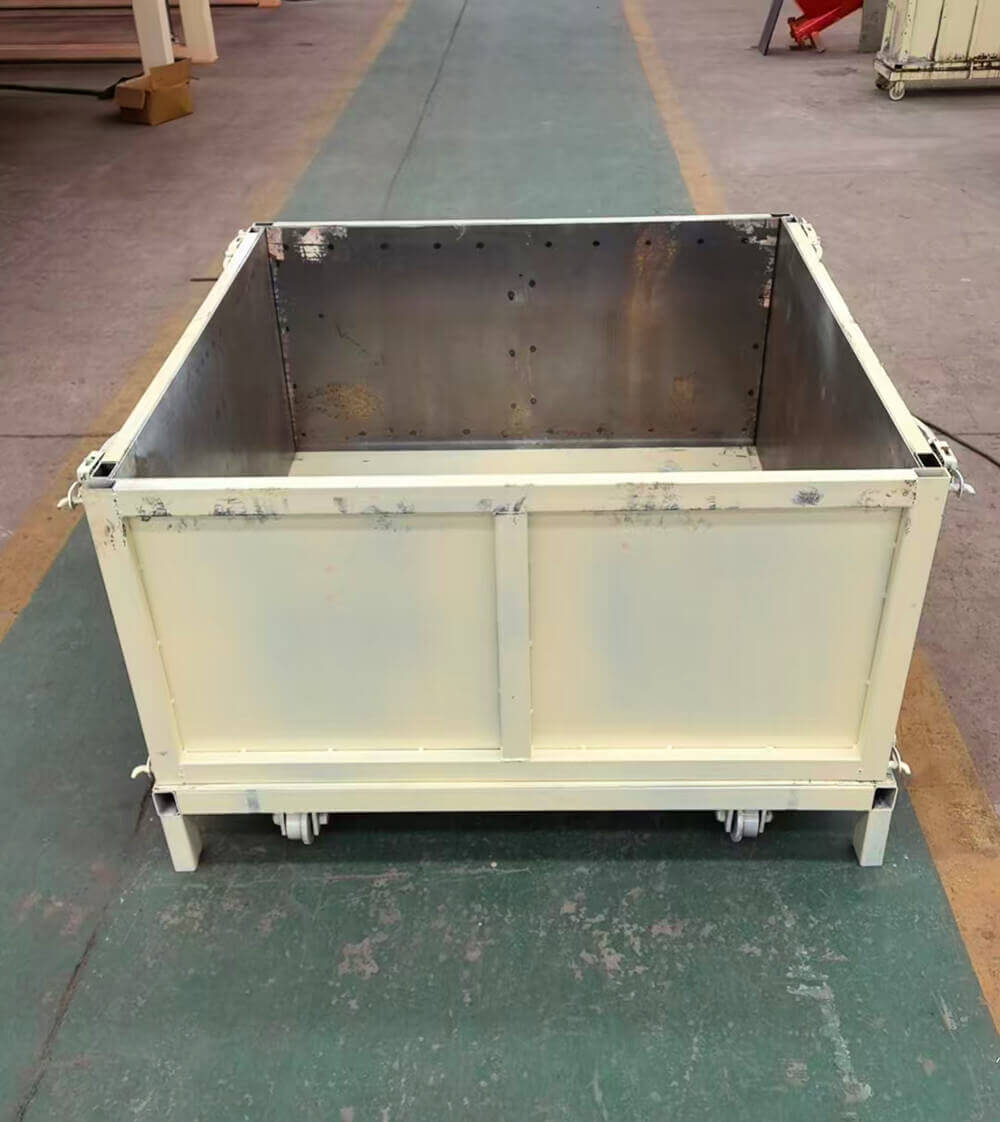

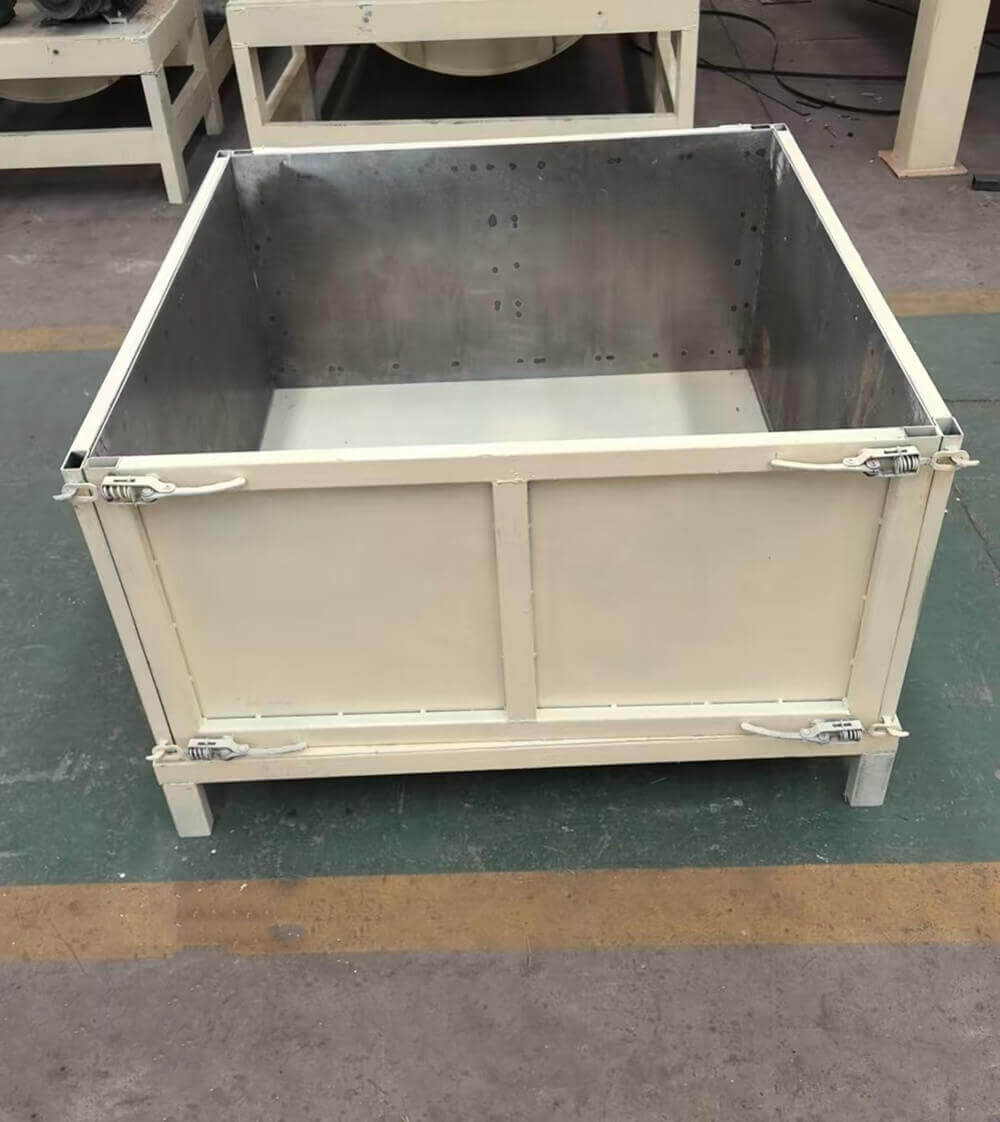

GW30B Foam Concrete Block Wire Cutting Machine is applied cutting in semi dried foam concrete blocks. It is easy operation, cost-effective, good cutting results and high efficiency. The Mould include the PPC Frame and wooden plate trailer.

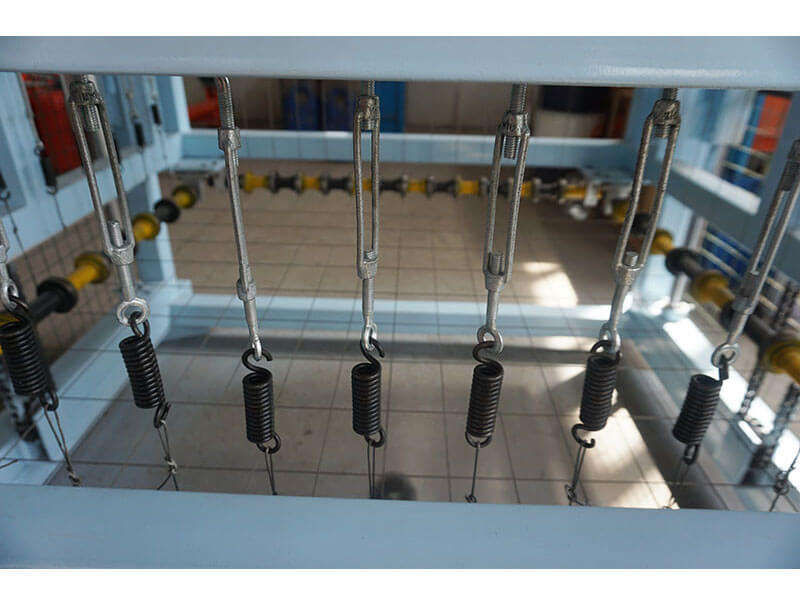

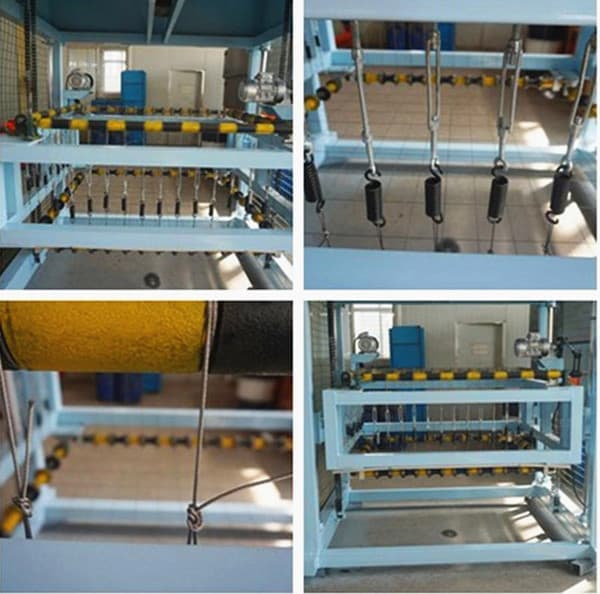

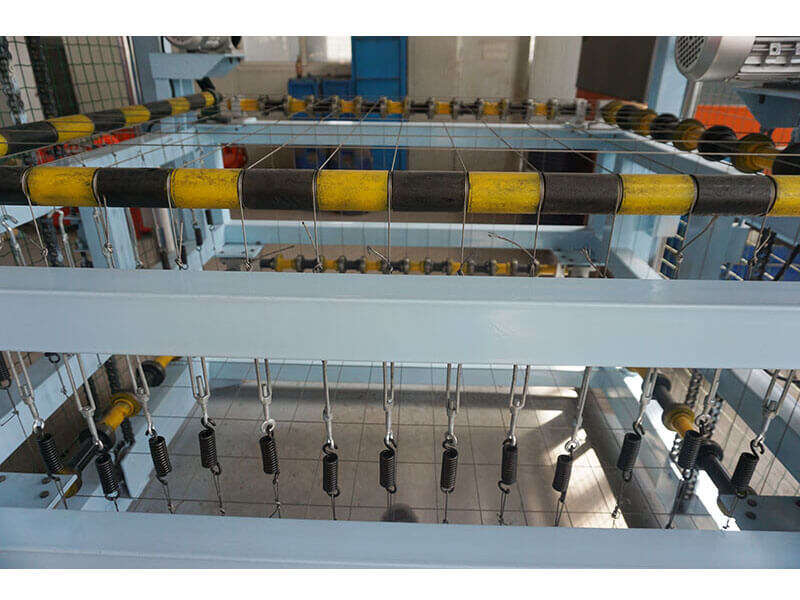

1. Six shafts equipped with bearings, reduce the friction, and increase the rope wire lifetime.
2. Both horizontal and vertical cutting are cutting both way, keep the blocks more stable, and get good shape blocks.
3. Lifting speed could be also adjusted under the chain drive and lifting motor, more stable.
4. Two cutting motors equipped on the cutting frame, save space, and make the structure more impact.
5. Steel doors instead of the guard grids, more easy for daily maintenance.
6. Add cover on the top of the cutting machine, make the cutter elegant appearance.
7. Improved the control panel too, it is available for 380V/50HZ~460V/50HZ.

Name	GW30B Foam Concrete Block Wire Cutting Machine
Electric Motor （Kw）	2.2kw*1set, 0~560r/min adjusted 750w*2sets, 0~560r/min adjusted
Effective hoisting height	700mm
Cutting platform size (L*W*H)	1240*1240*225mm
Net cutting size (L*W*H)	1200*1200*600mm
Cutting cycle	60-180seconds
Overall dimension (L*W*H)	2160*2060*2280mm
Total weight	1100kg
