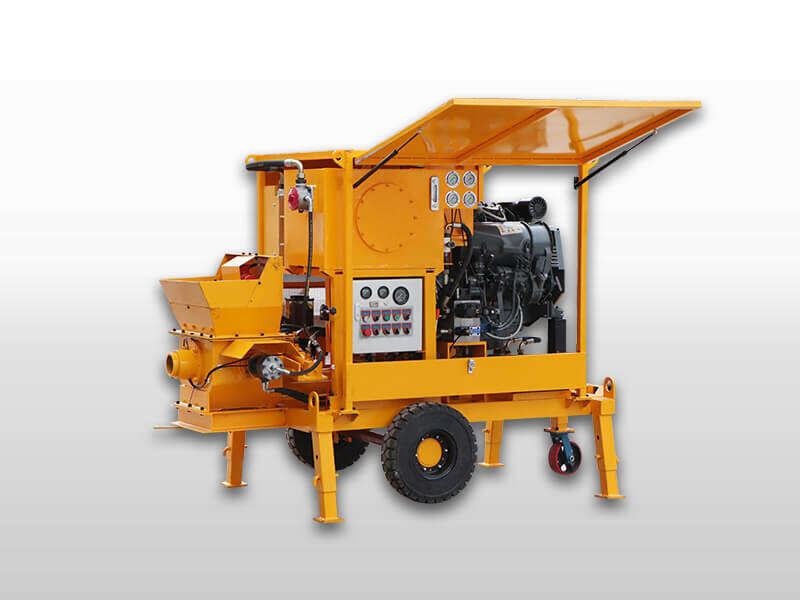

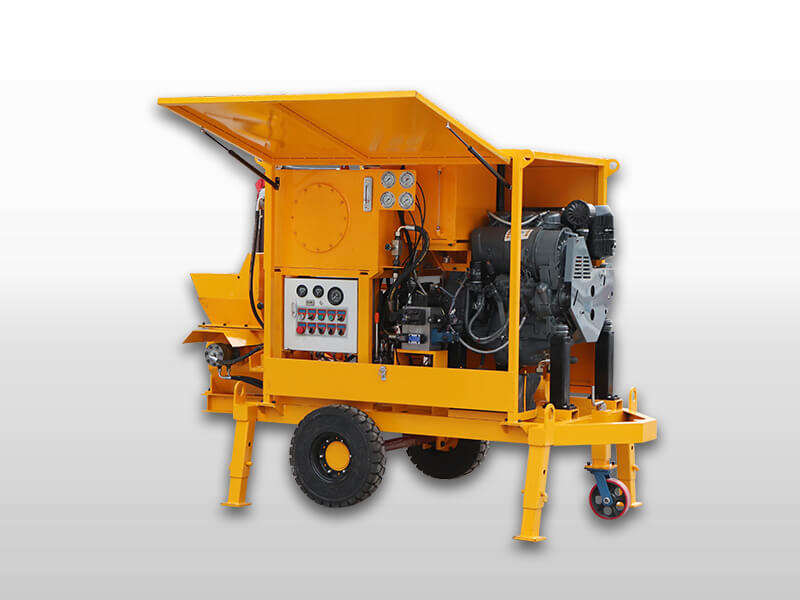

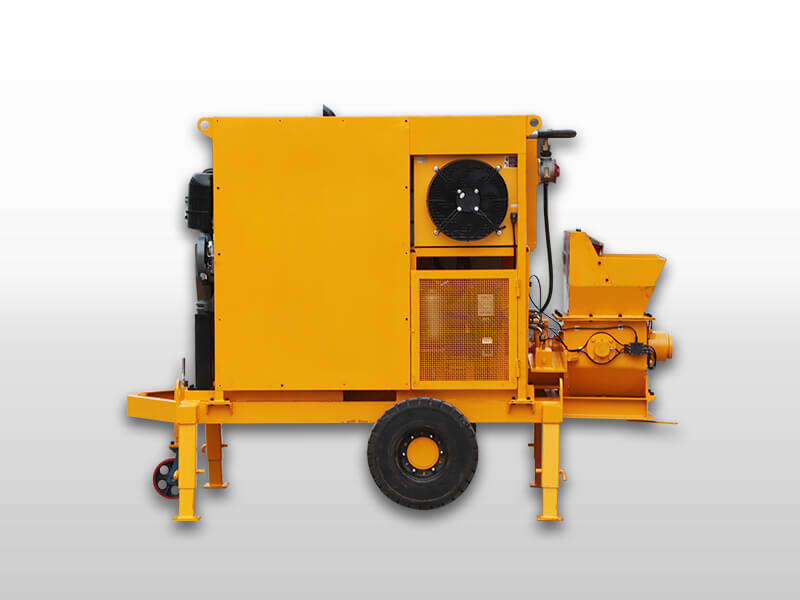

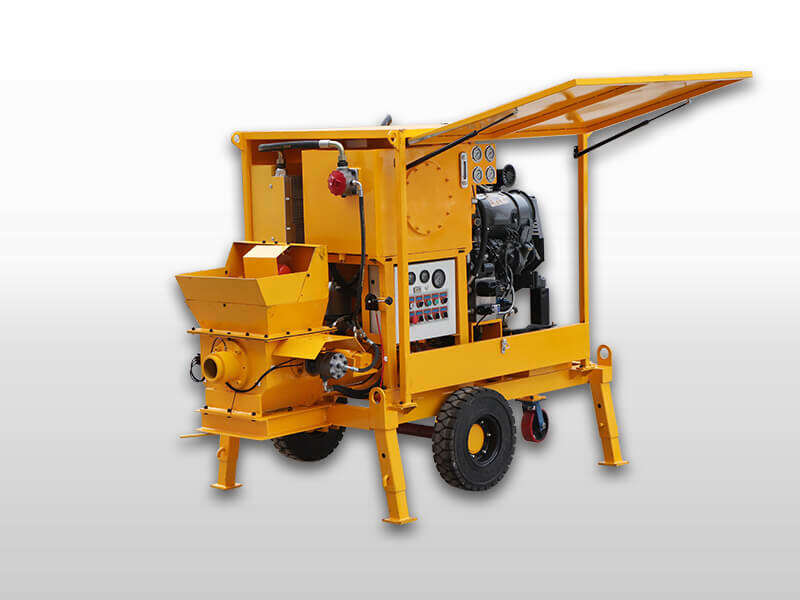

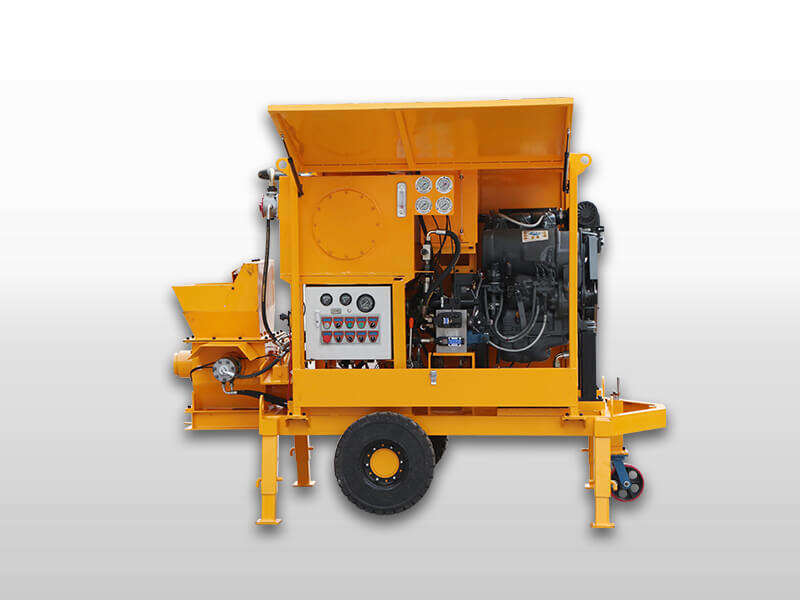

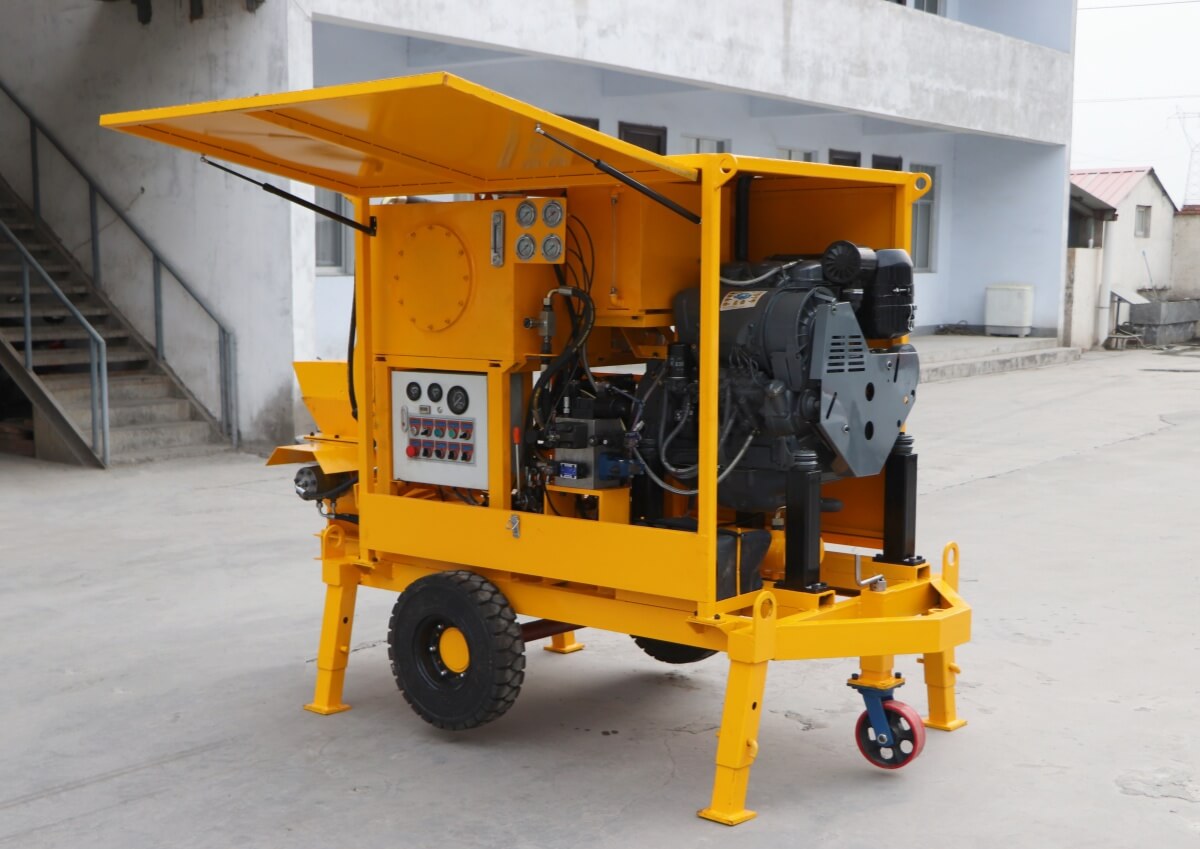

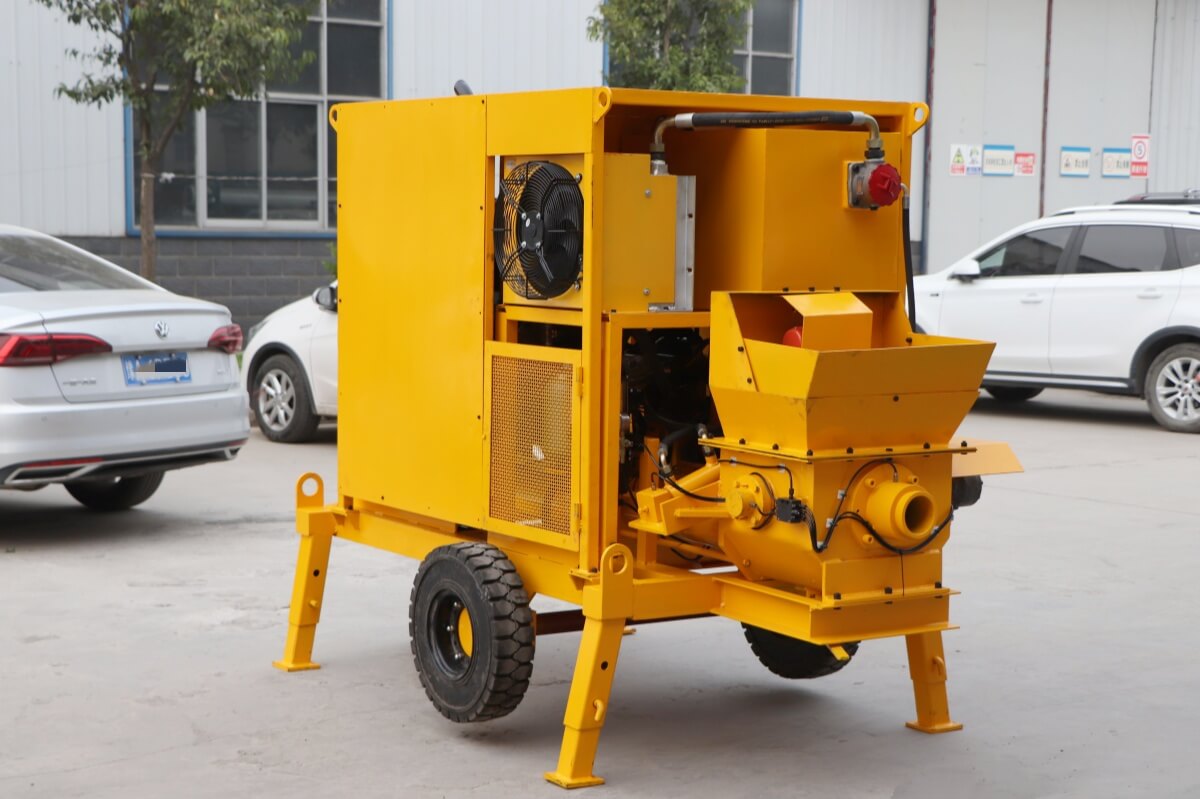

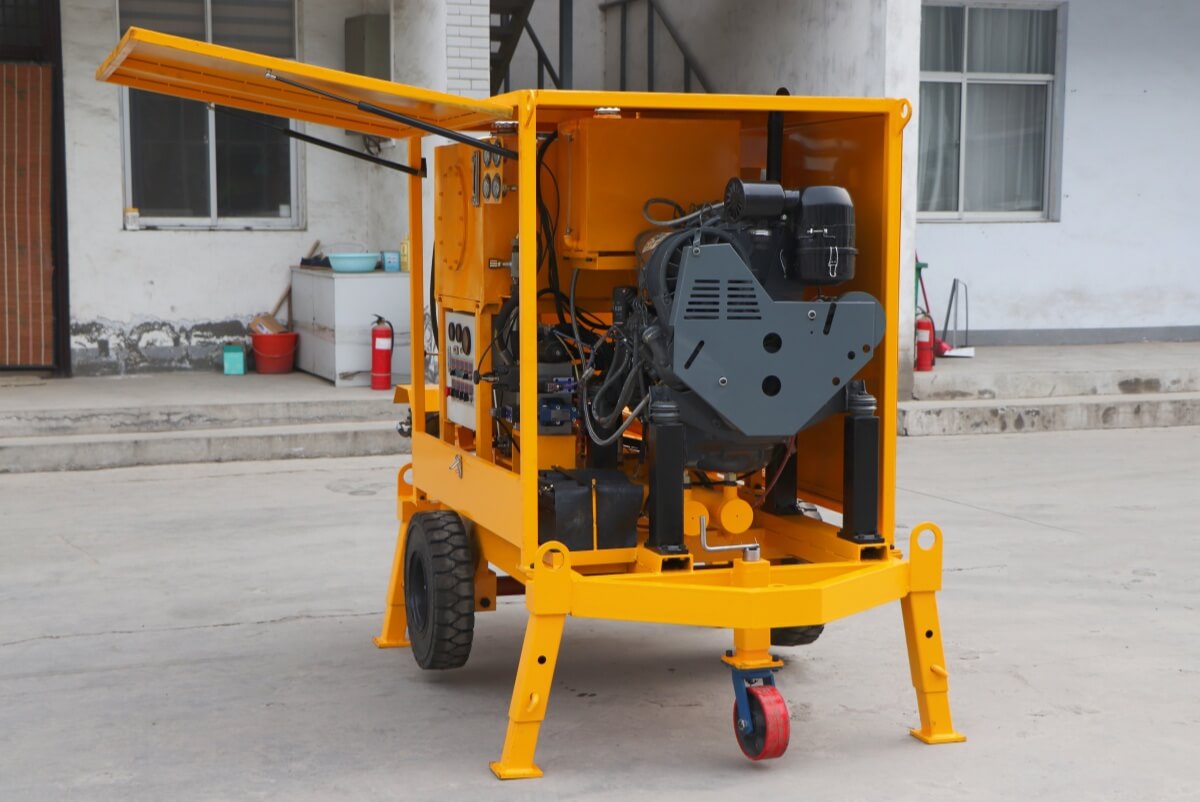

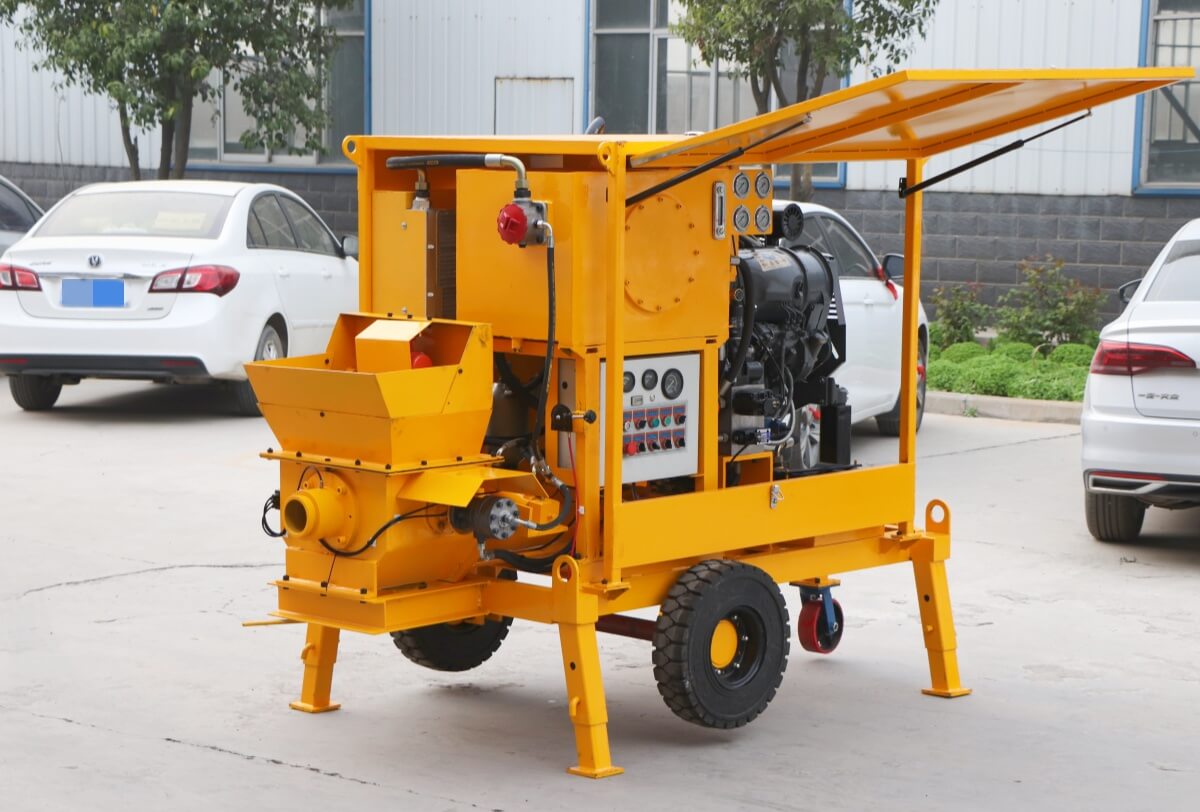

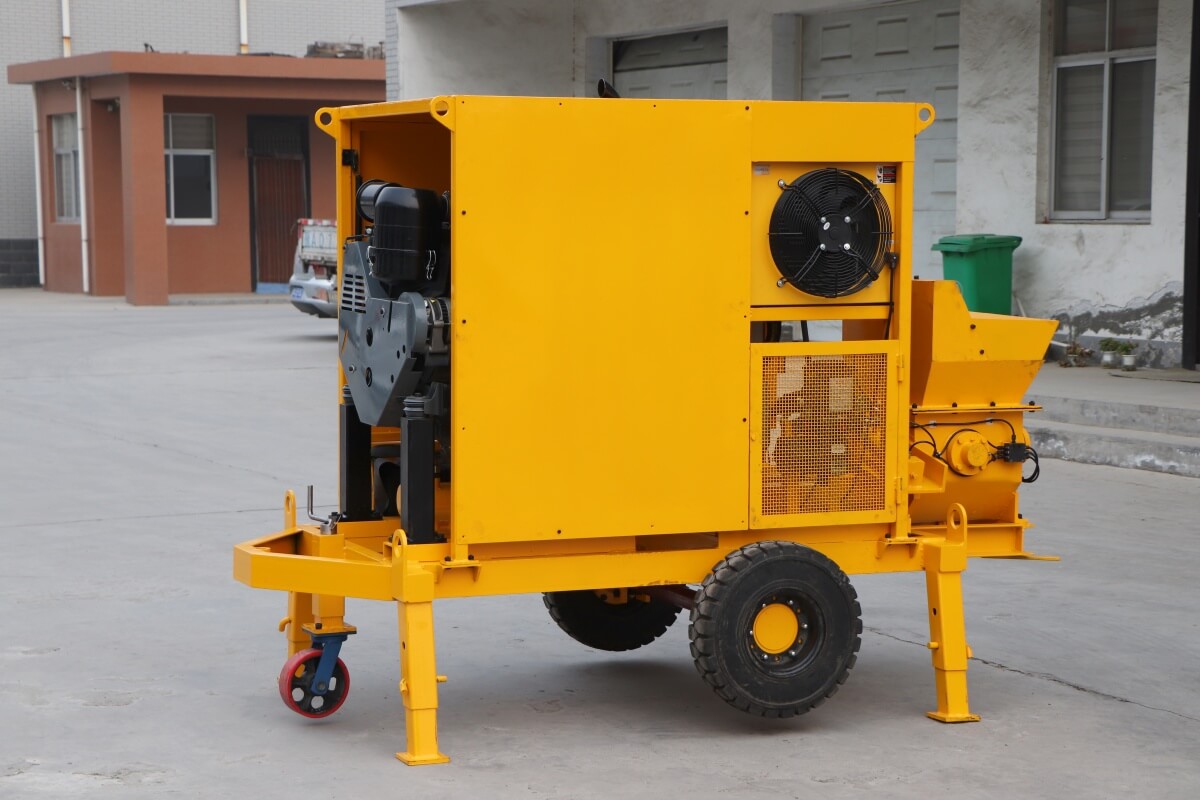

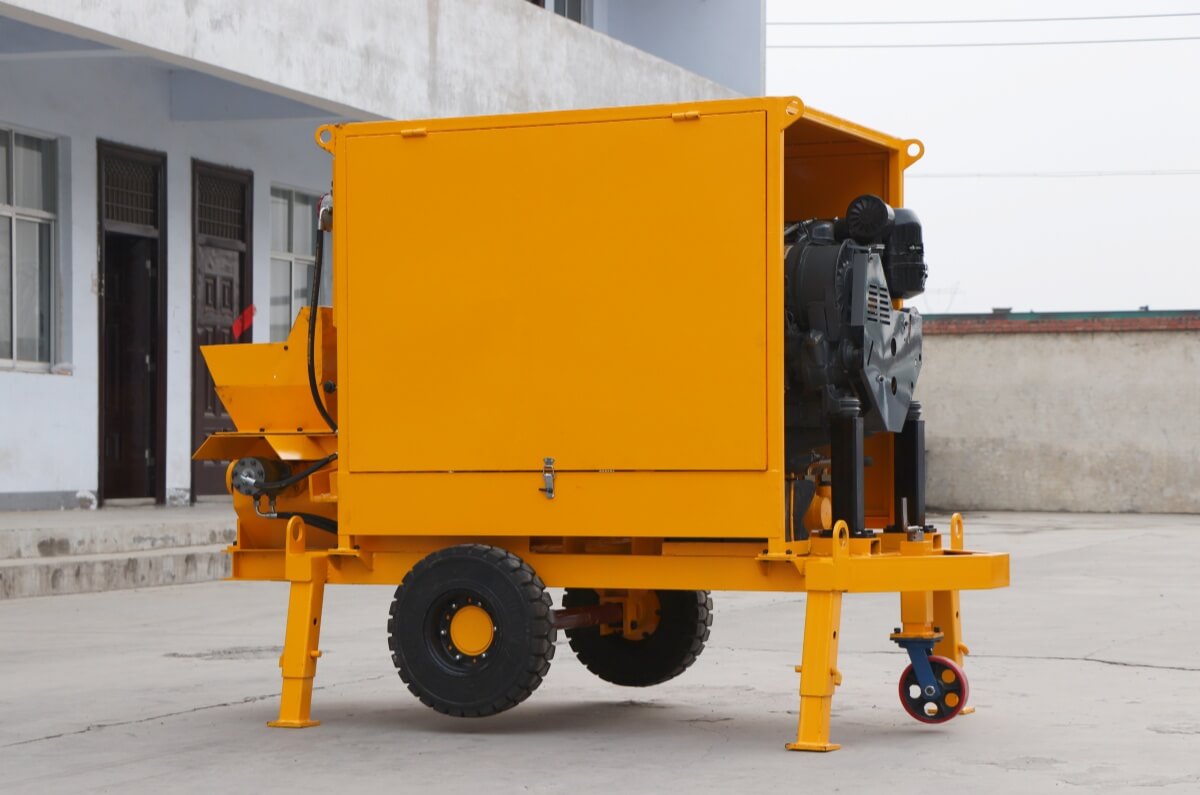

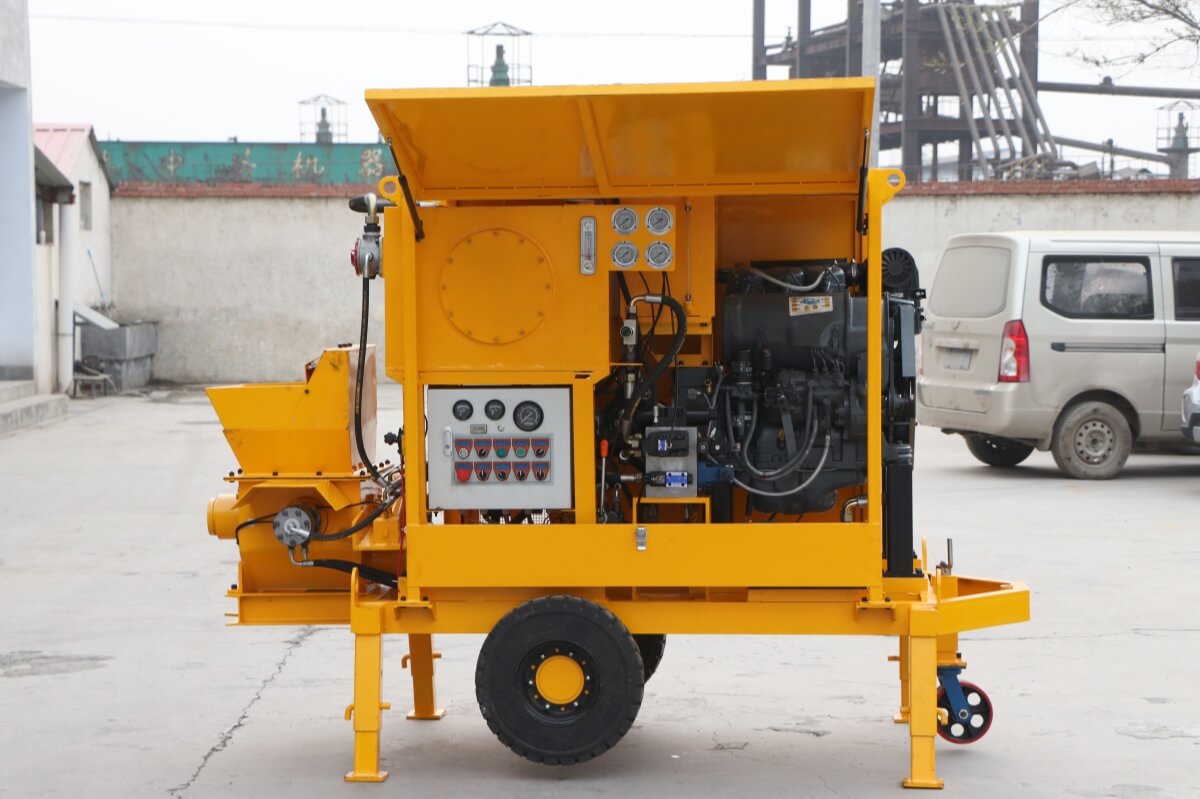

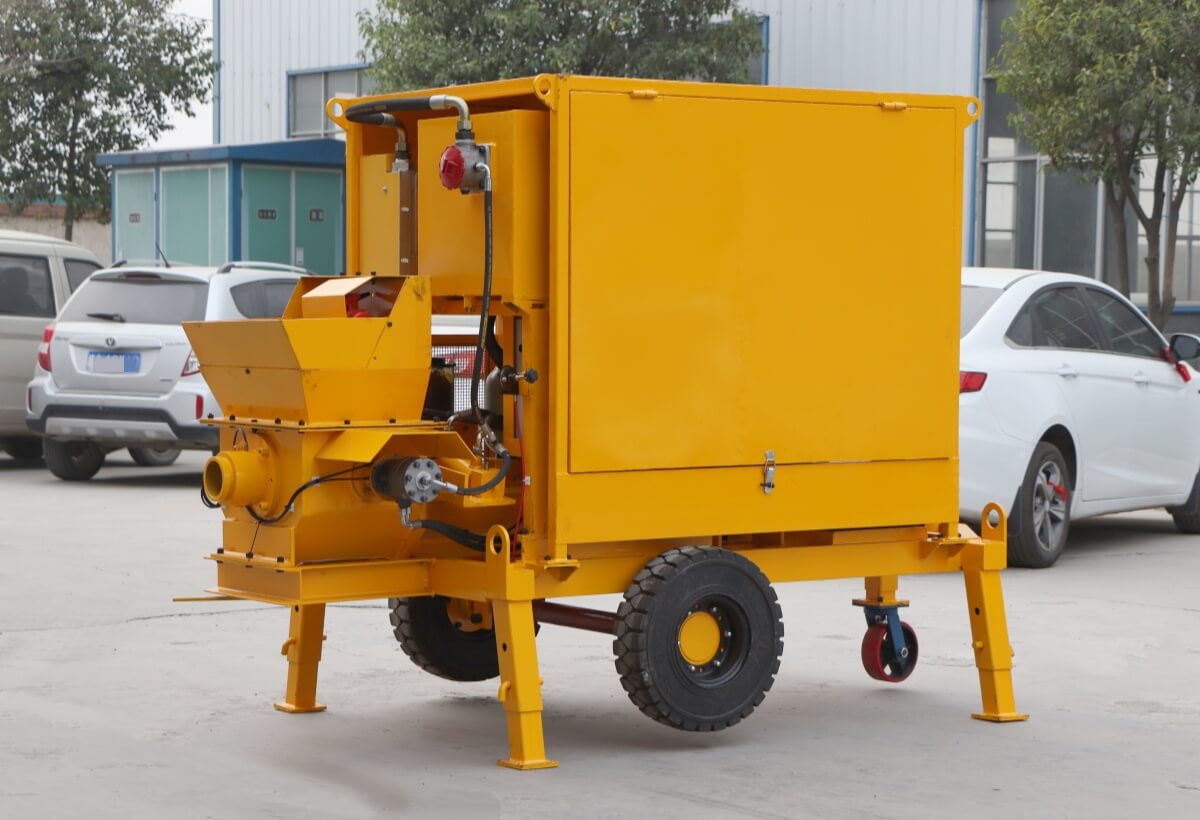

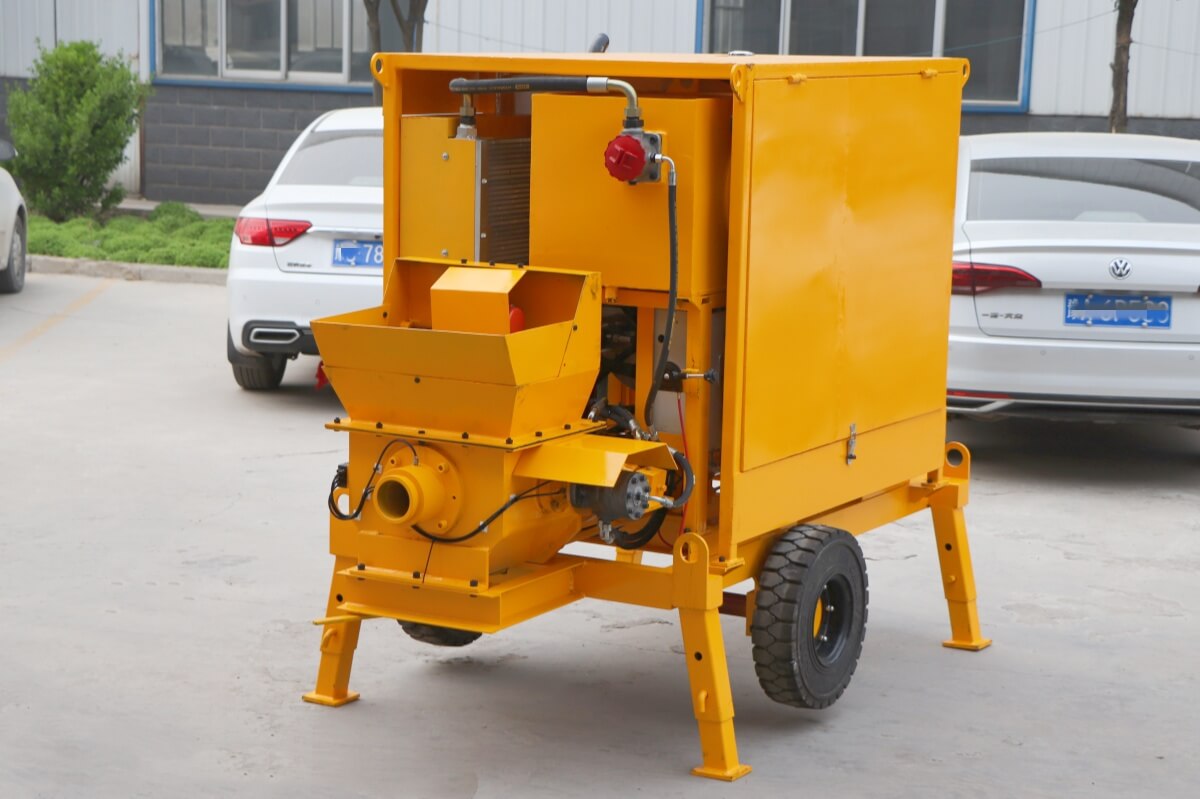

GCP8/80-30D Diesel Concrete Pump is a multi-purpose heavy-duty Swing-Valve concrete pump with air cooling diesel engine, hopper mixer, hopper vibrator, automatic lubrication and LS variable output. Concrete convey, Swing valve and hopper mixer are respectively driven by three hydraulic pump, among them, the concrete convey hydraulic pump is LS piston high pressure pump.

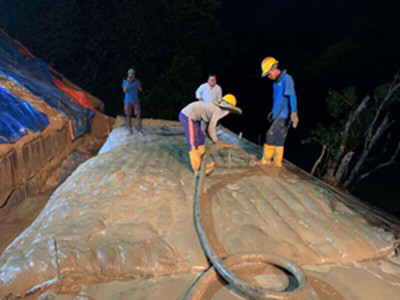

Diesel concrete pump machine application:
1. Concrete wall construction;
2. Masonry block filling;
3. Concrete wall grouting;
4. Concrete sidewalk;
5. Refractory castable&shotcrete;
6. Concrete shotcrete;
7. Tunneling construction;
8. Mining support (sprayed concrete walls and ceilings);
9. Swimming pool (sprayed concrete shells);
10. Excavation-protection;

1. Diesel engine concrete pump with variable output(LS);
2. Concrete pump with diesel engine with automatic lubrication;
3. Diesel concrete pump with vibrator in hopper;
4. Mixer in receiving hopper;

Rated Output	3-8m3/h (LS)
Pump Work Pressure	80Bars
Acceptable Max. Aggregate Size	20mm
Cylinder Diameter	Ø 100mm
Cylinder Stroke	550mm
Pump Valve	S Valve
Max. Horizontal Conveying Distance	200m
Max. Vertical Conveying Distance	100m
Concrete Slump	7-15cm
Conveying Pipe Inner Diameter	100/80/50mm

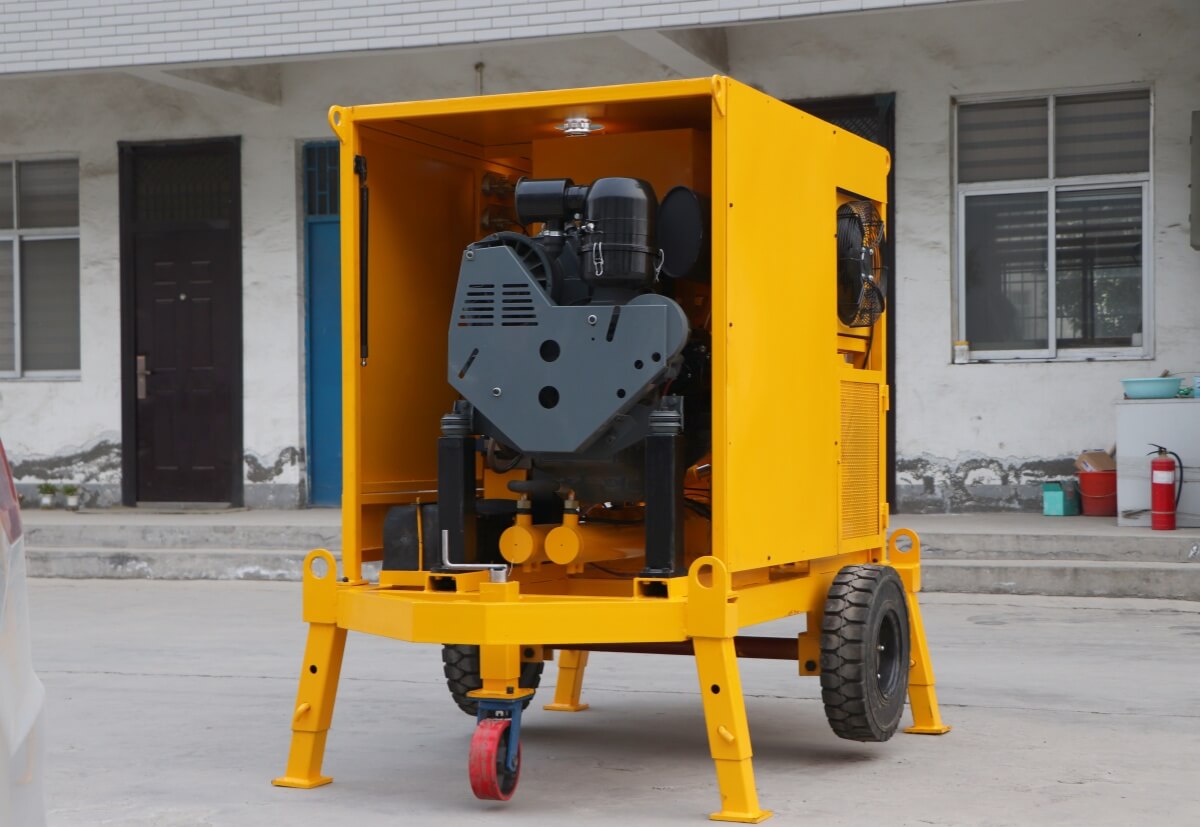

Diesel	30kw@1800rpm 3-cylinder, air cooling
Dimension(L × W × H)	3000*1600*1900mm
Weight	1650kg
