GH32-330B industrial explosion proof peristaltic hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurry, and discharging through outlet under roller’s push, finally forms pressure conveying of slurry.

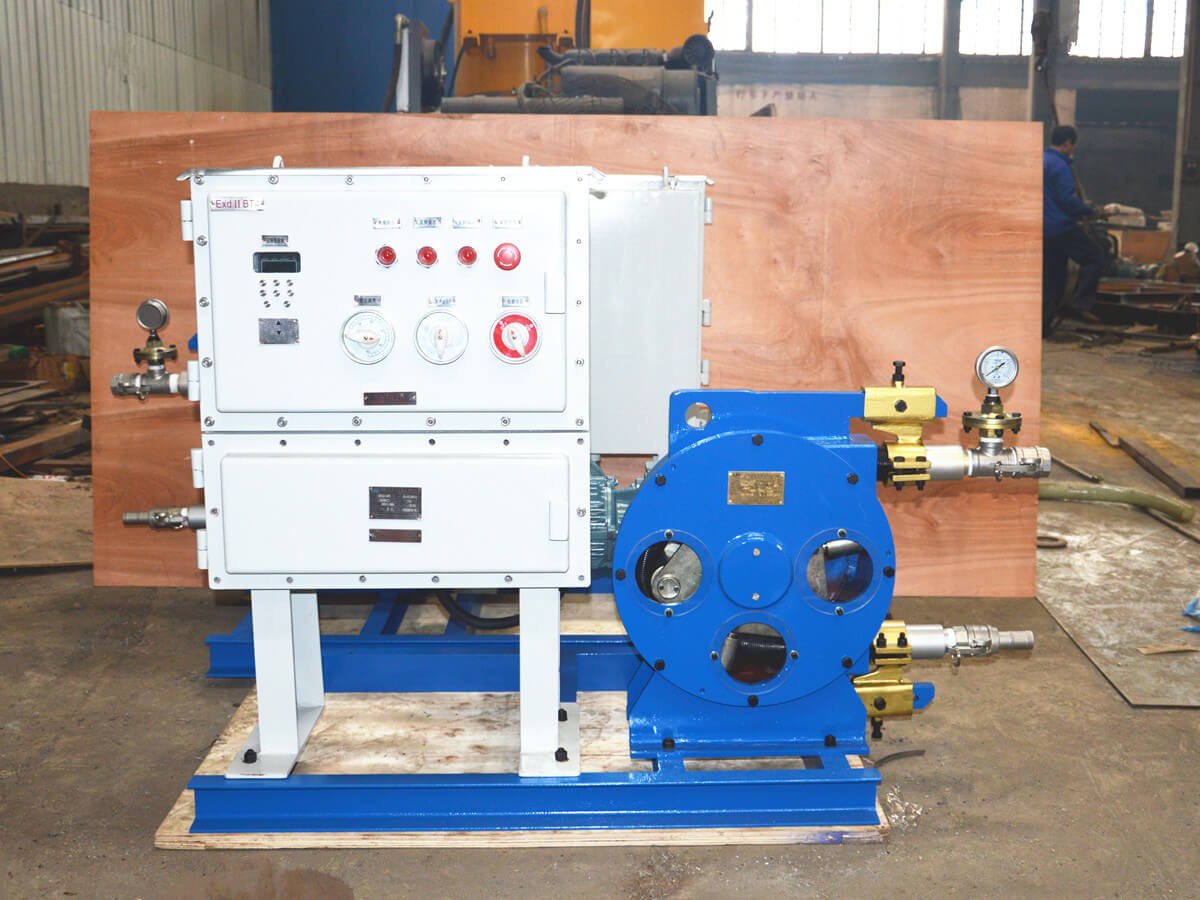

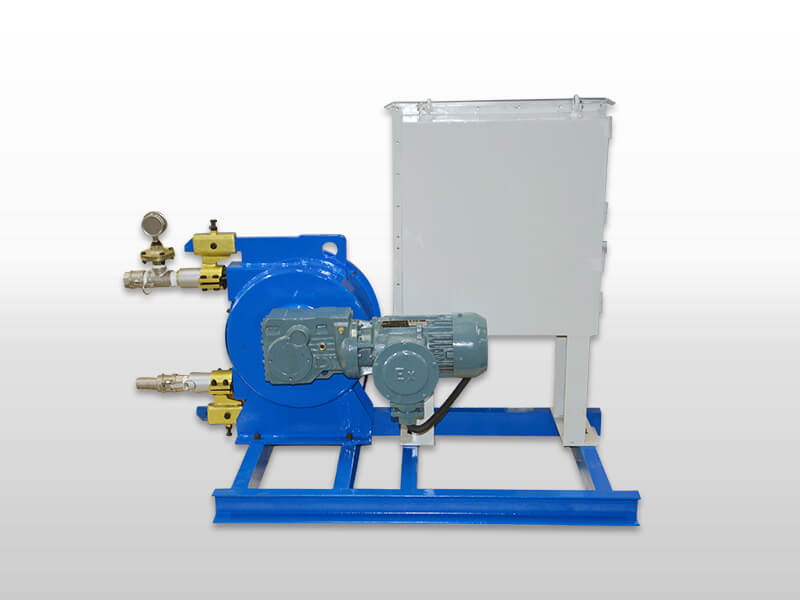

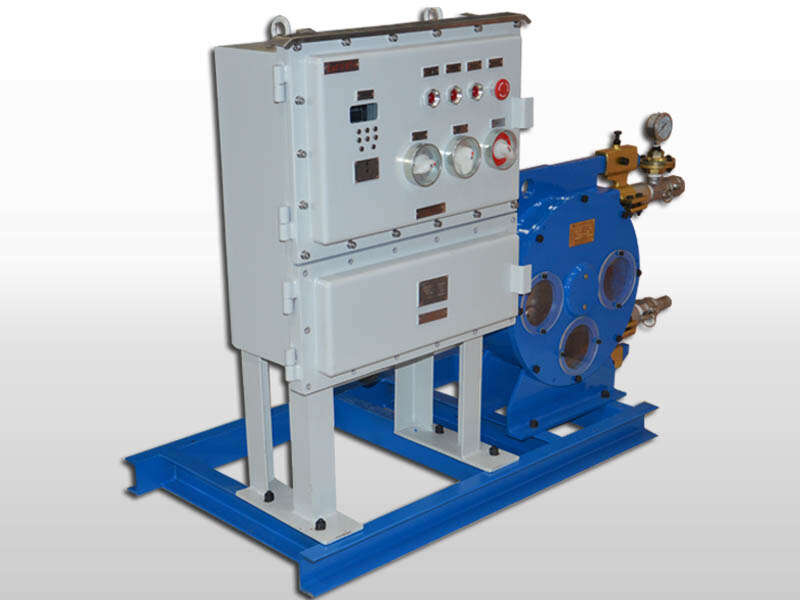

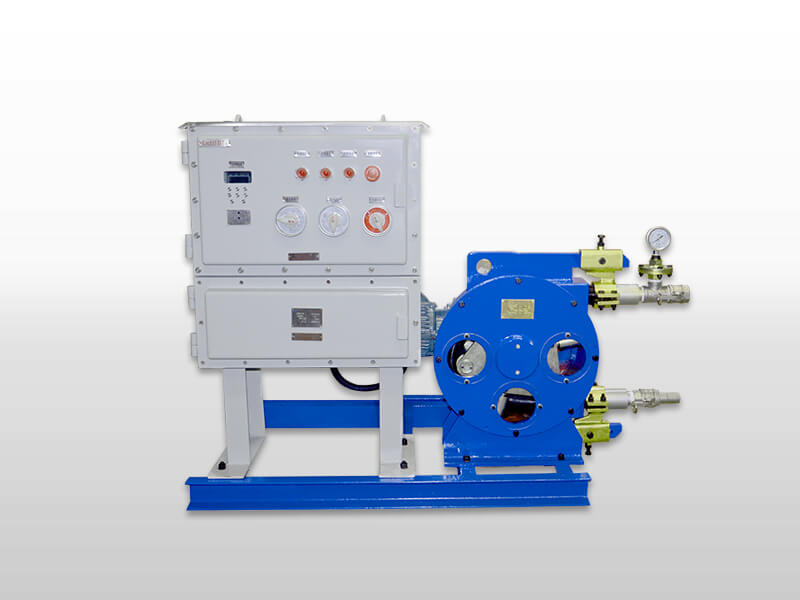

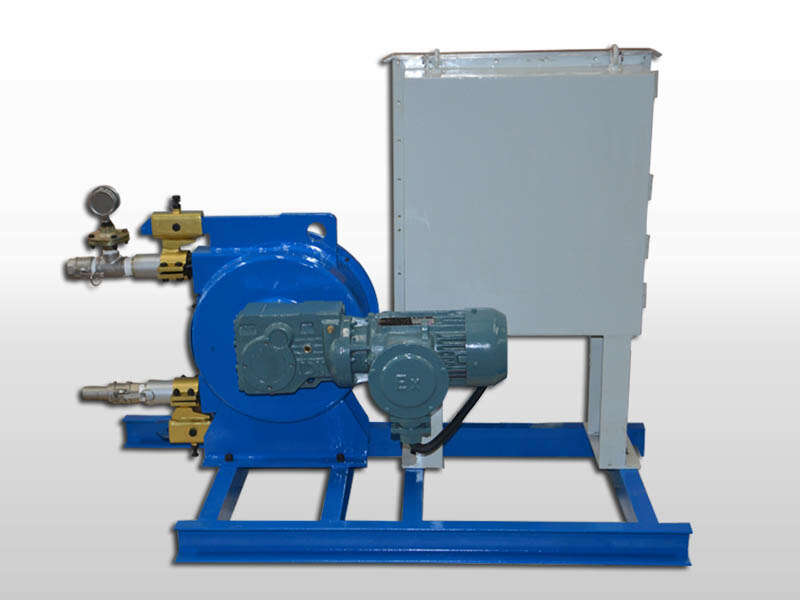

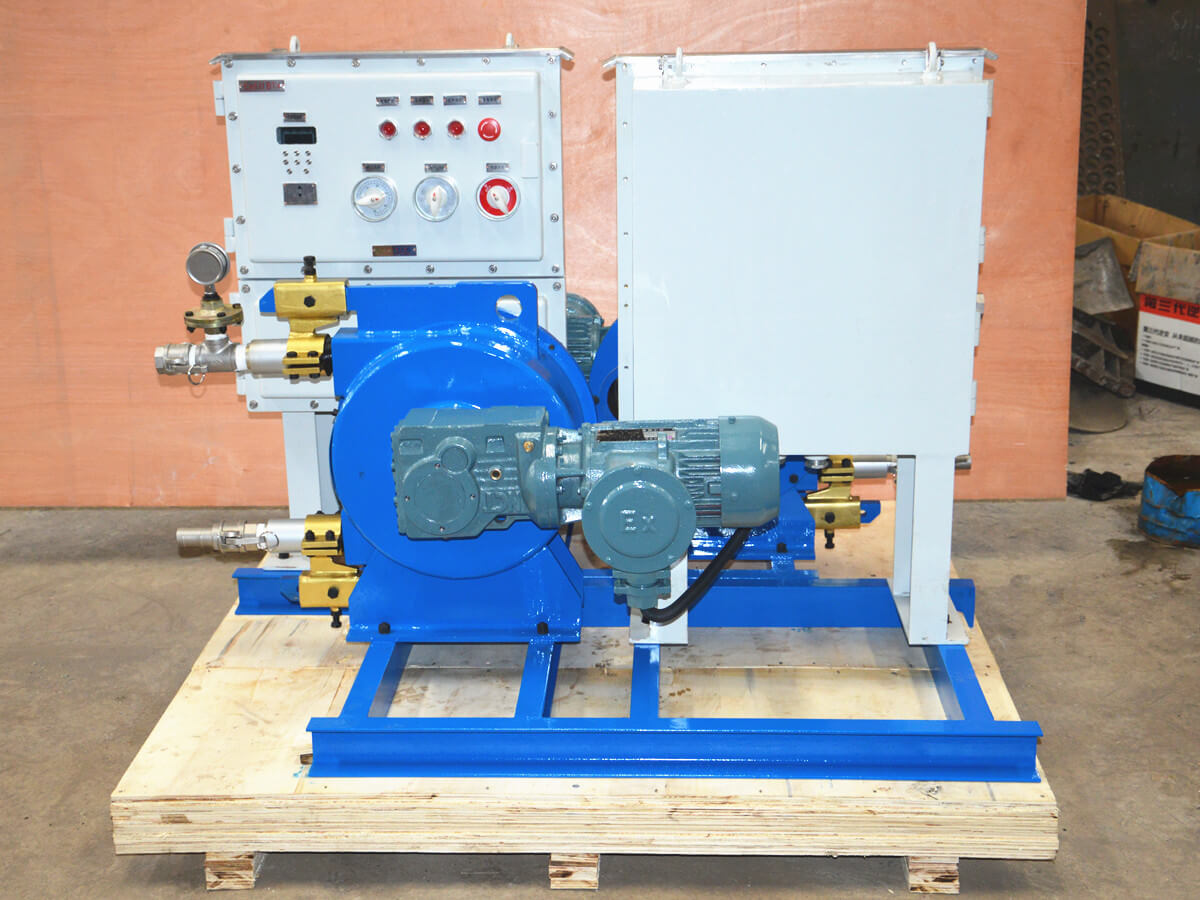

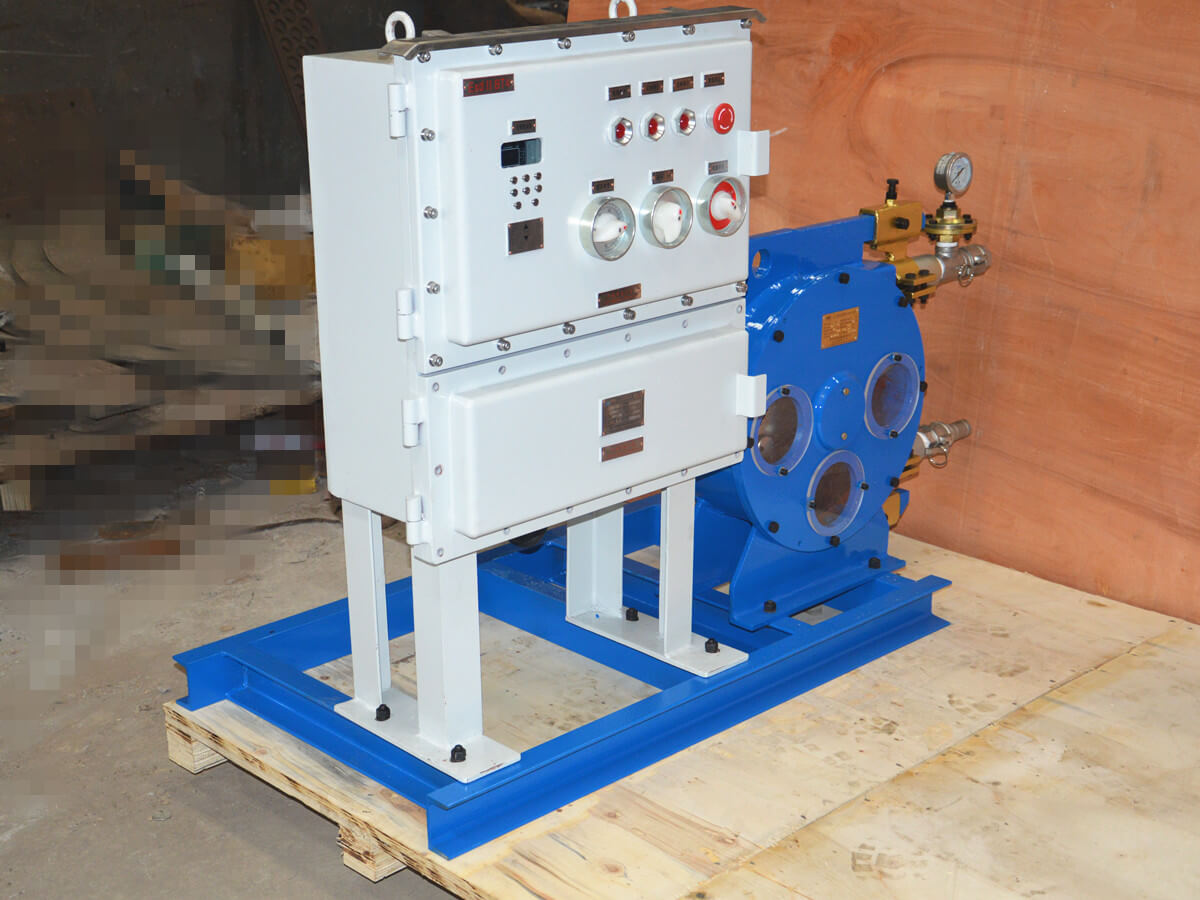

Factory real pictures:

This GH32-330B explosion proof peristaltic squeeze hose pump is designed for aggressive medium used in chemical manufacturing as per customers’ project. As per their need, explosion proof electric motor, control and frequency converter are added.

♦ No seals
♦ No valves
♦ Self -priming
♦ Only tube to replace
♦ Dry –running without damage
♦ Reversible
♦ No contact between product and mechanical parts
♦ Able to pump products with solid parts inside
♦ Easy maintenance, low-cost, short down time

Model	GH32-330B Squeeze hose pump
Output	2m3/h
Rated pressure	0.5Mpa
Rotation	60rpm
Squeeze hose ID	32mm
Squeeze hose material	NR
Electric motor	1.5kw
Electric voltage	3 phase 380v 50hz
