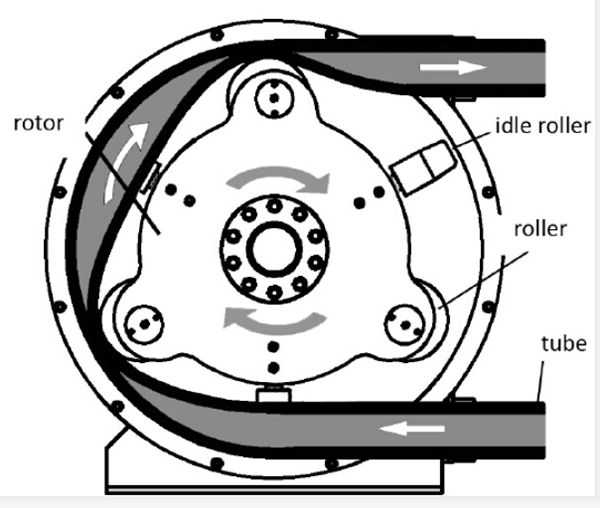

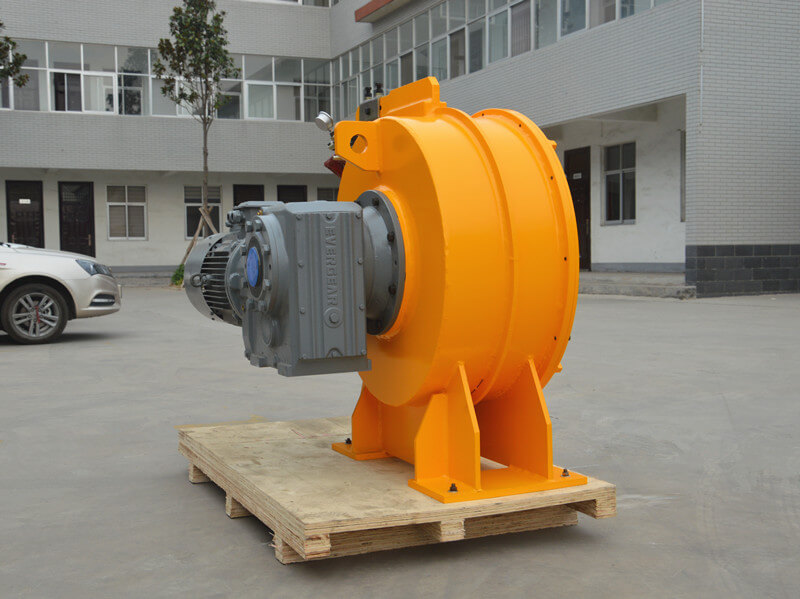

GH76-915B industrial hose pump (squeeze pump) for TMB consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

Our Squeeze Hose Grouting Pump has been recognized by many customers, and our customers are located in many countries, such as Mexico, Russia, Indonesia, Australia, South Korea, Singapore, Thailand, Vietnam, the United States, Canada, etc.

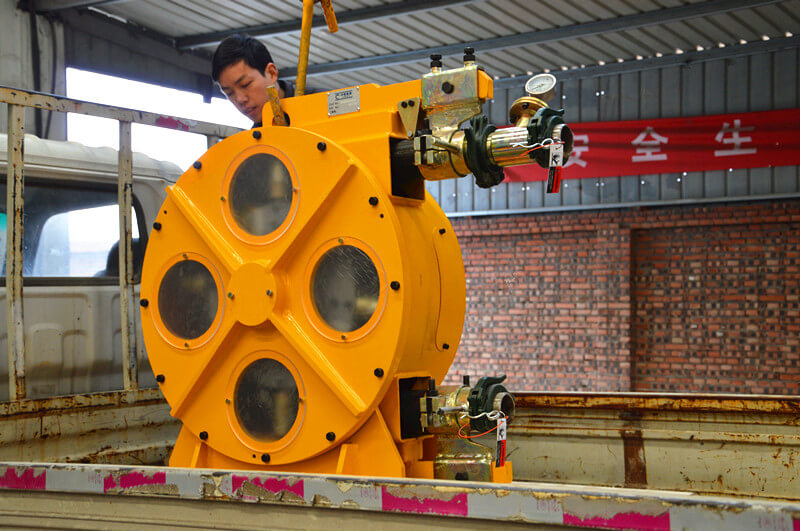

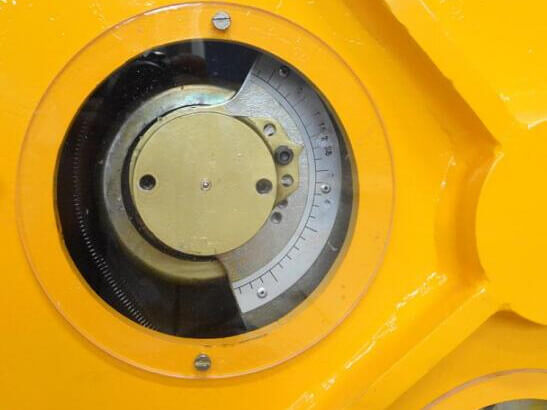

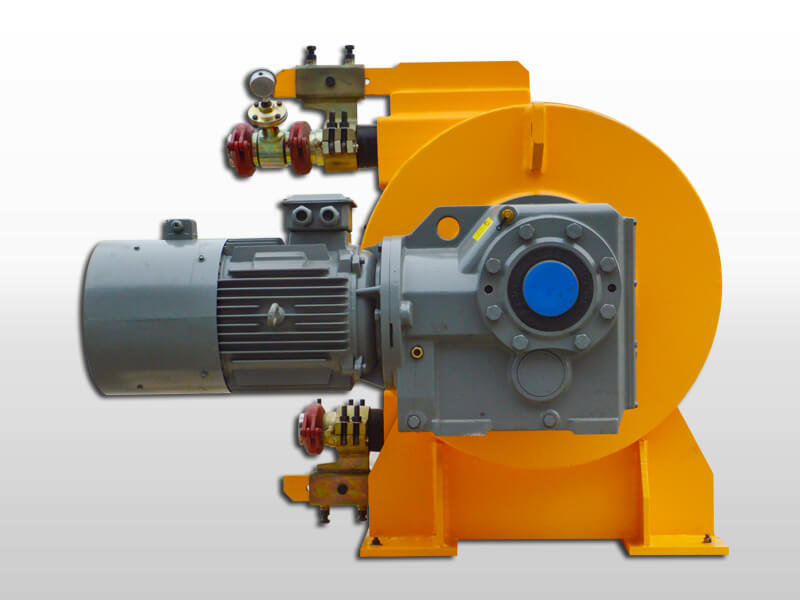

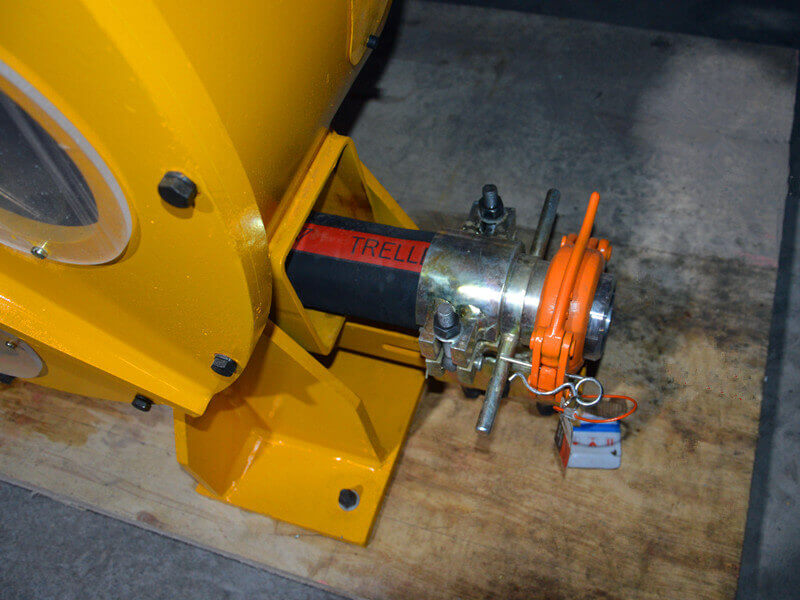

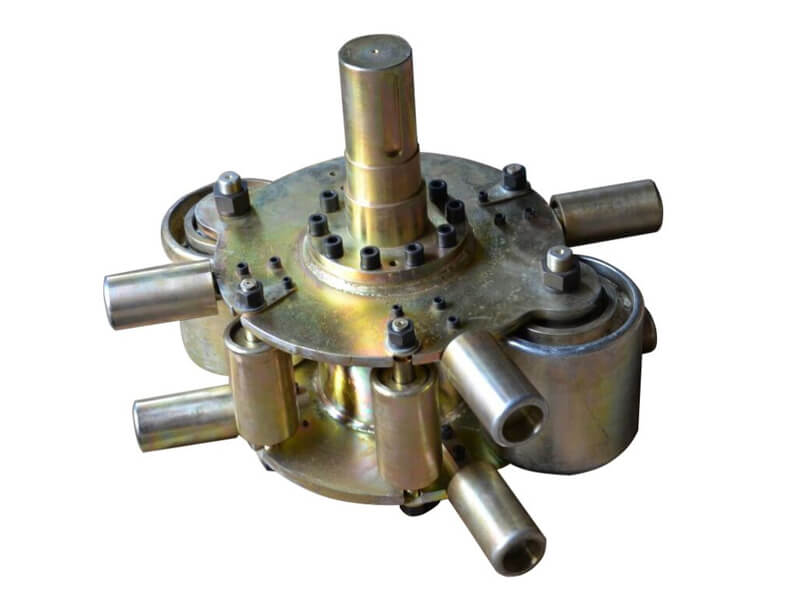

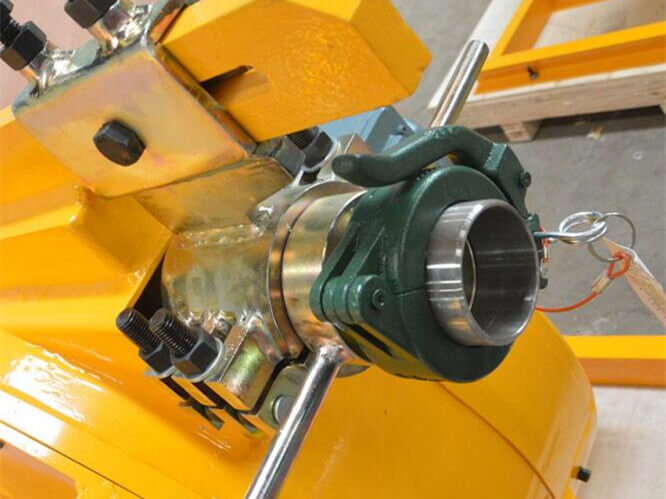

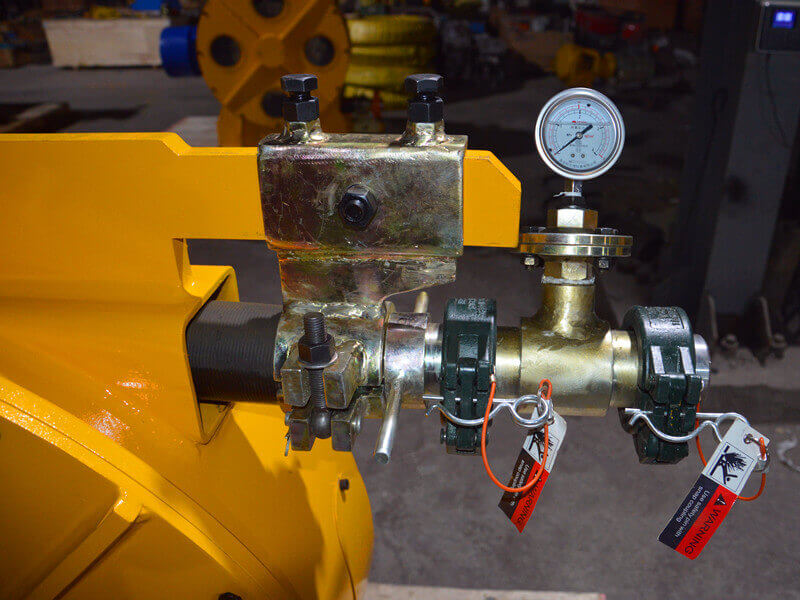

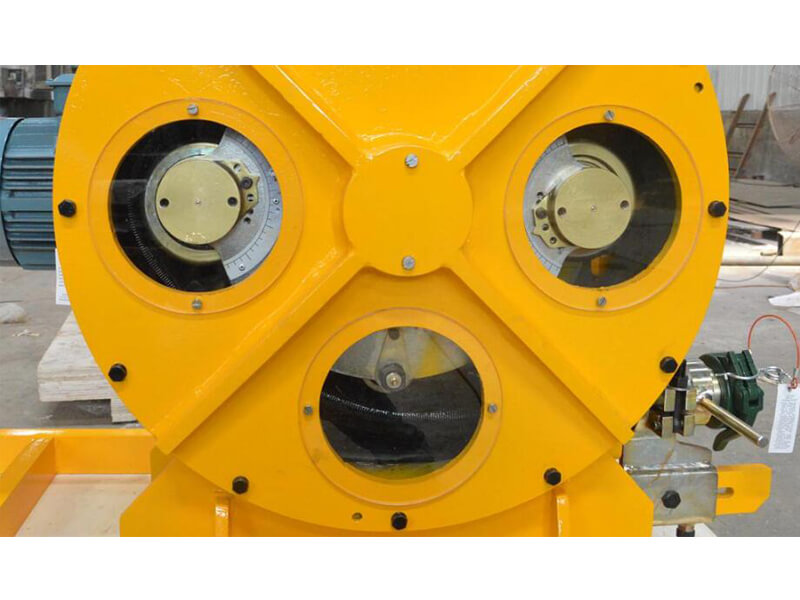

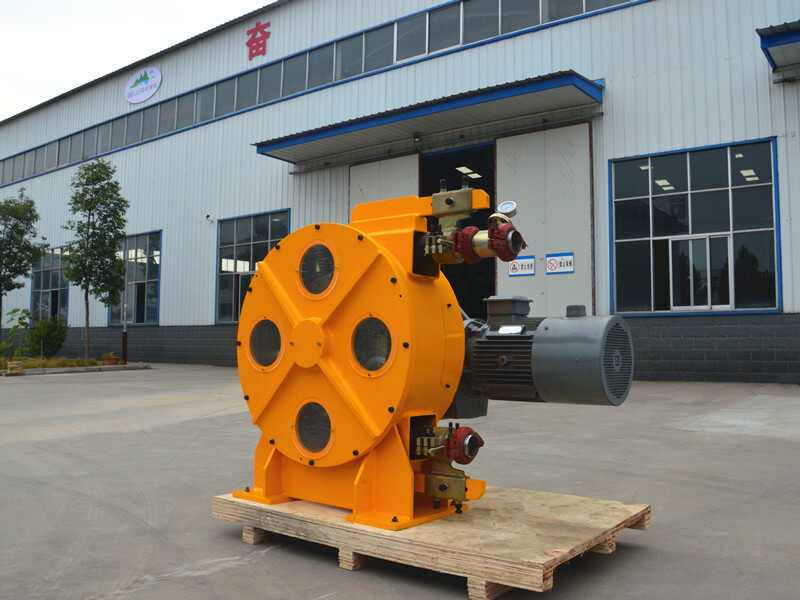

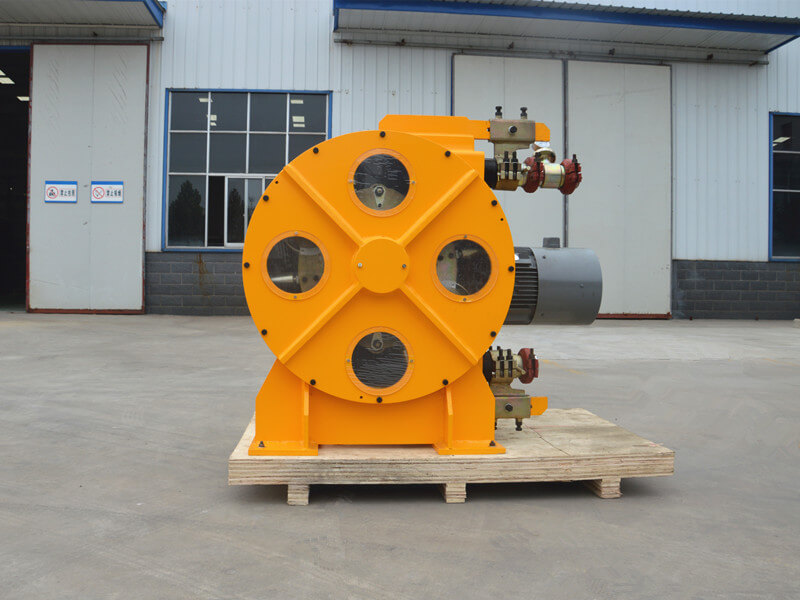

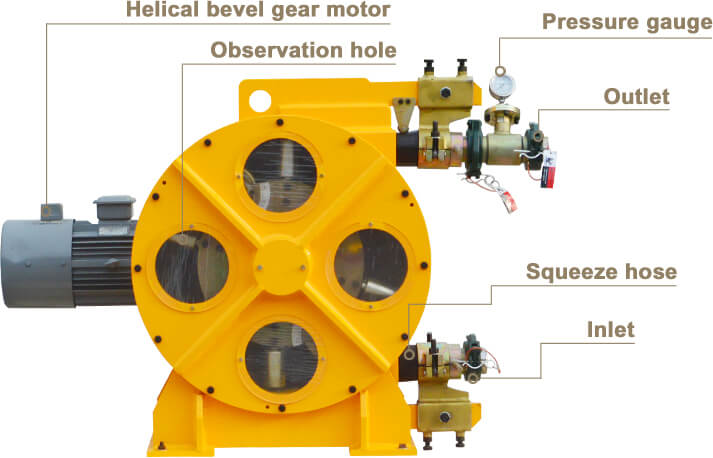

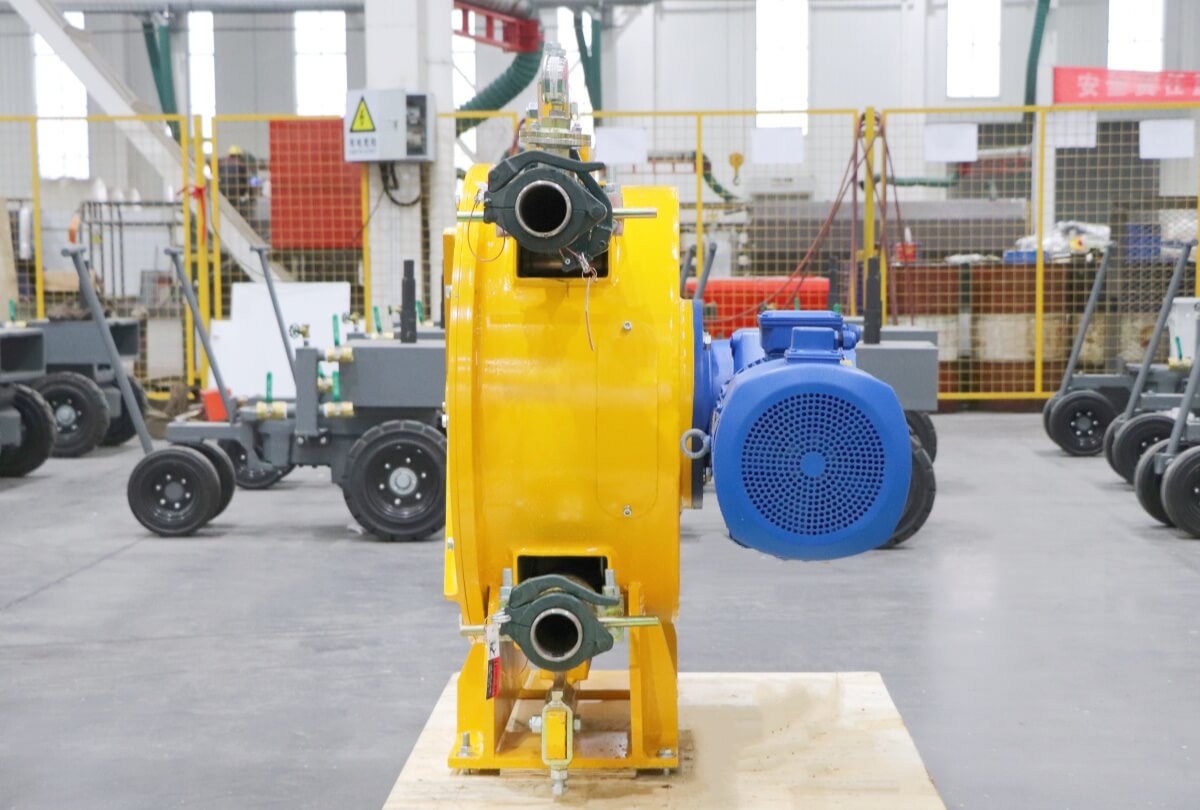

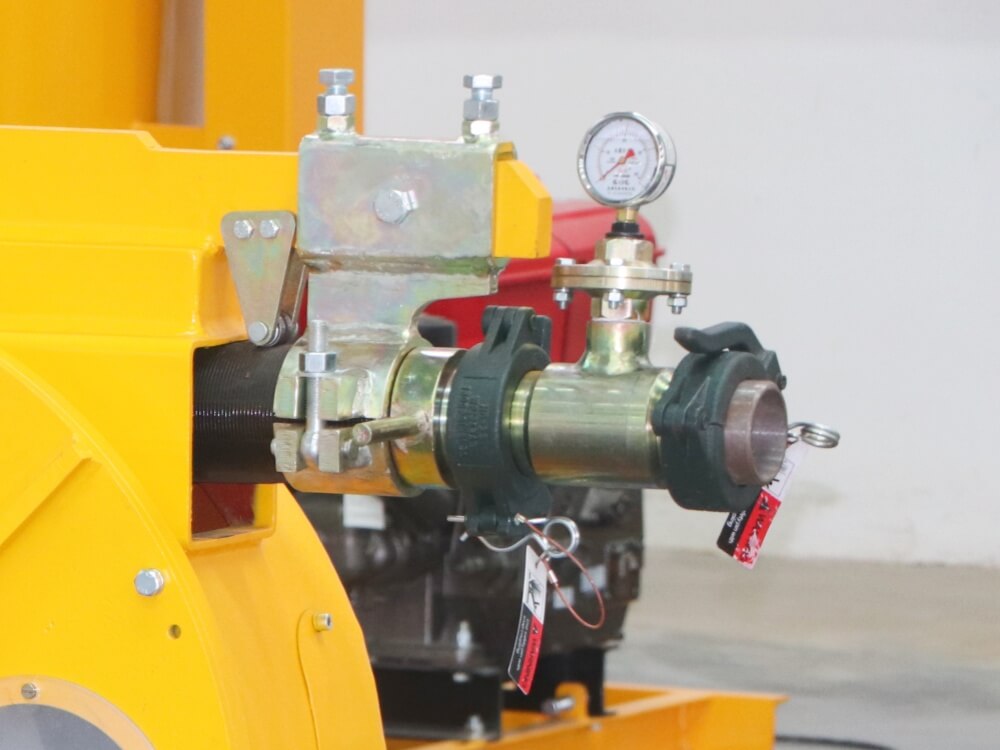

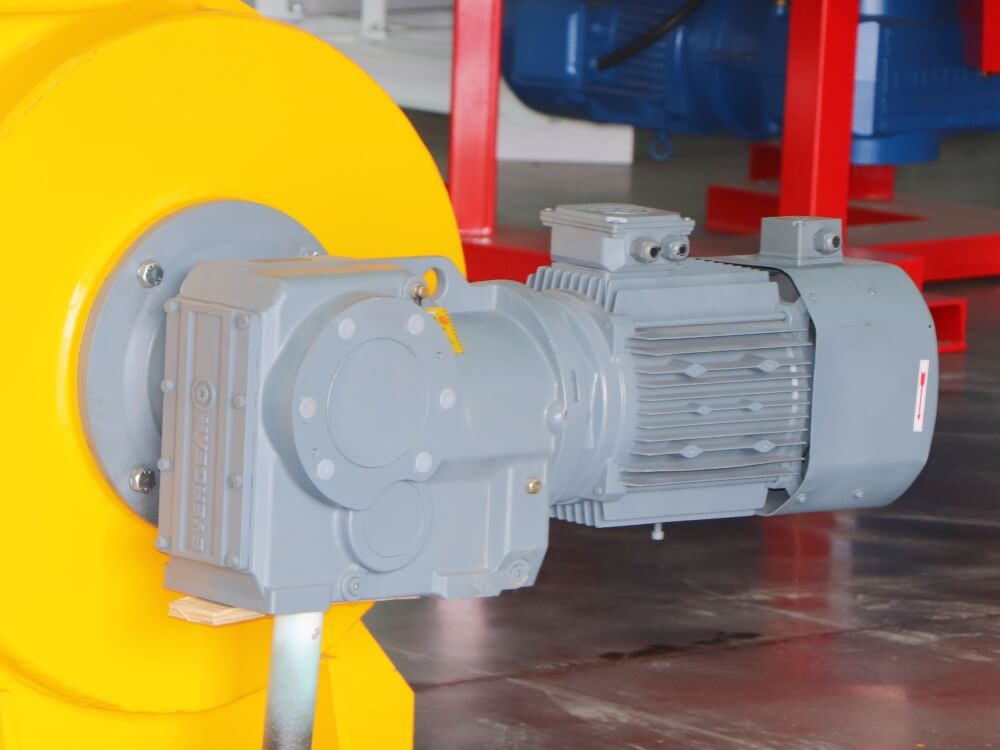

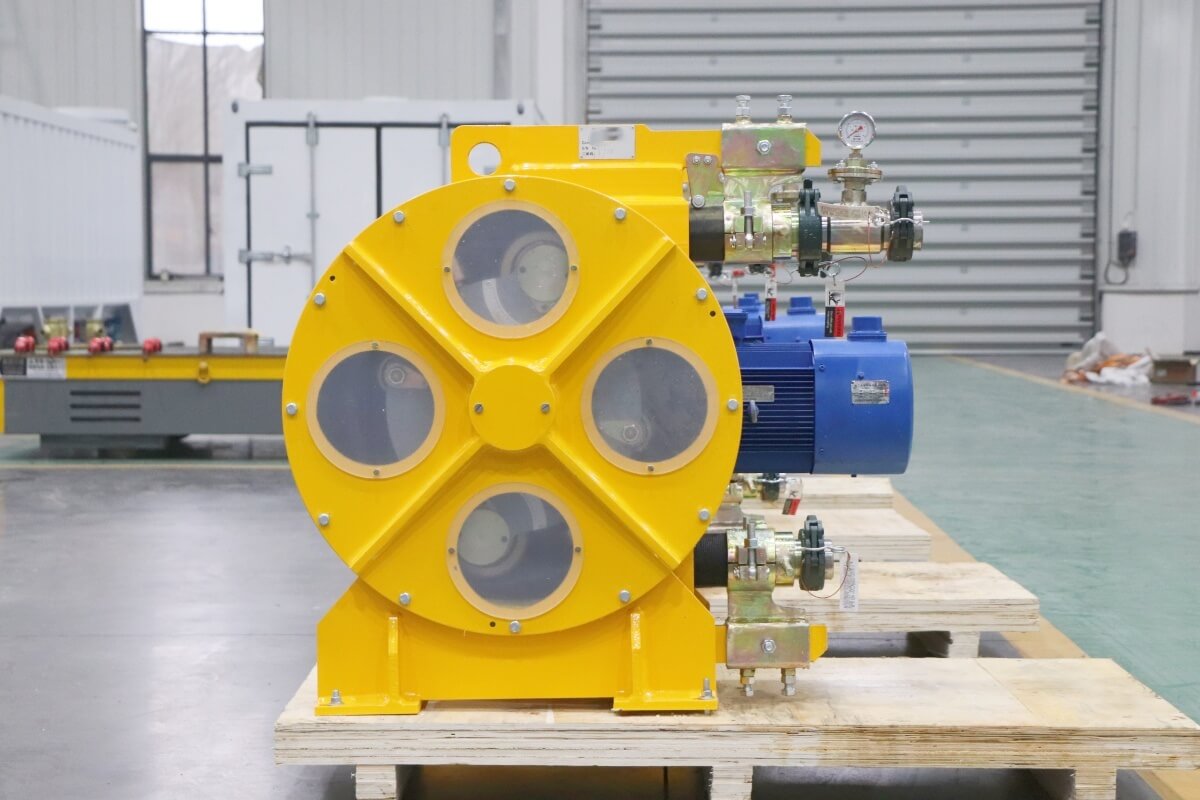

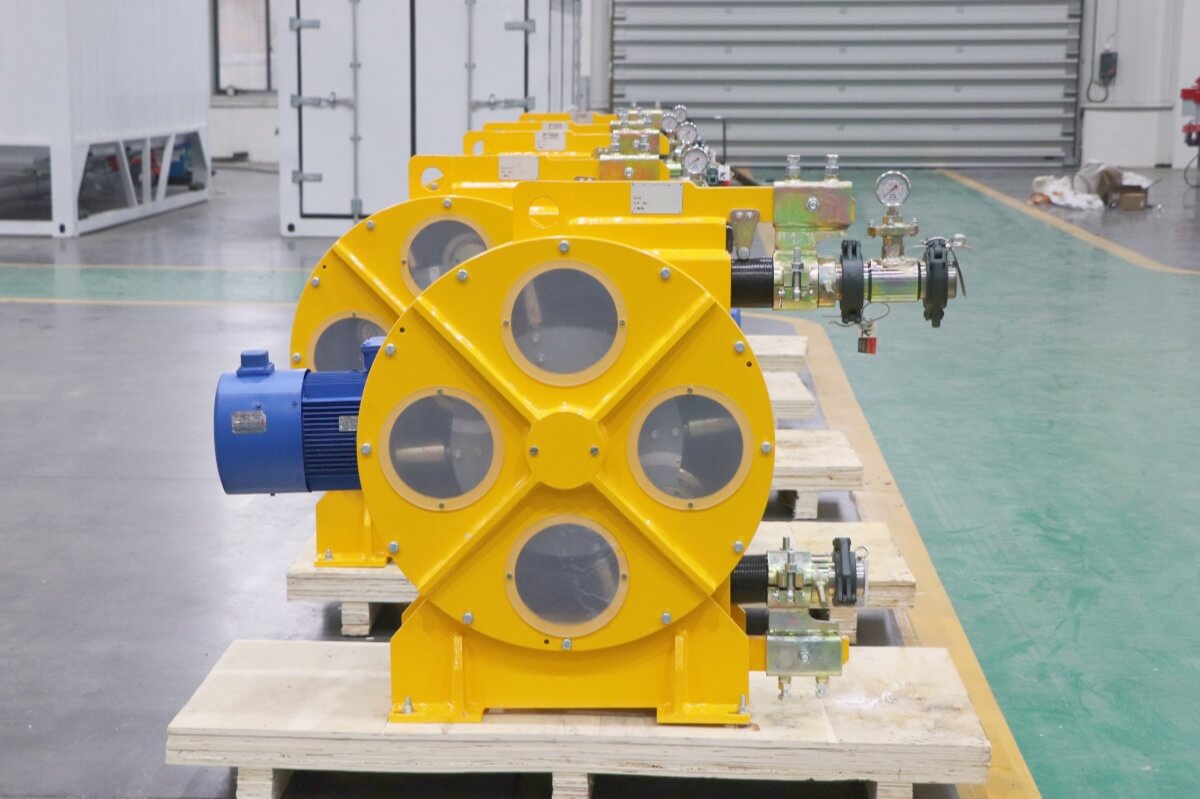

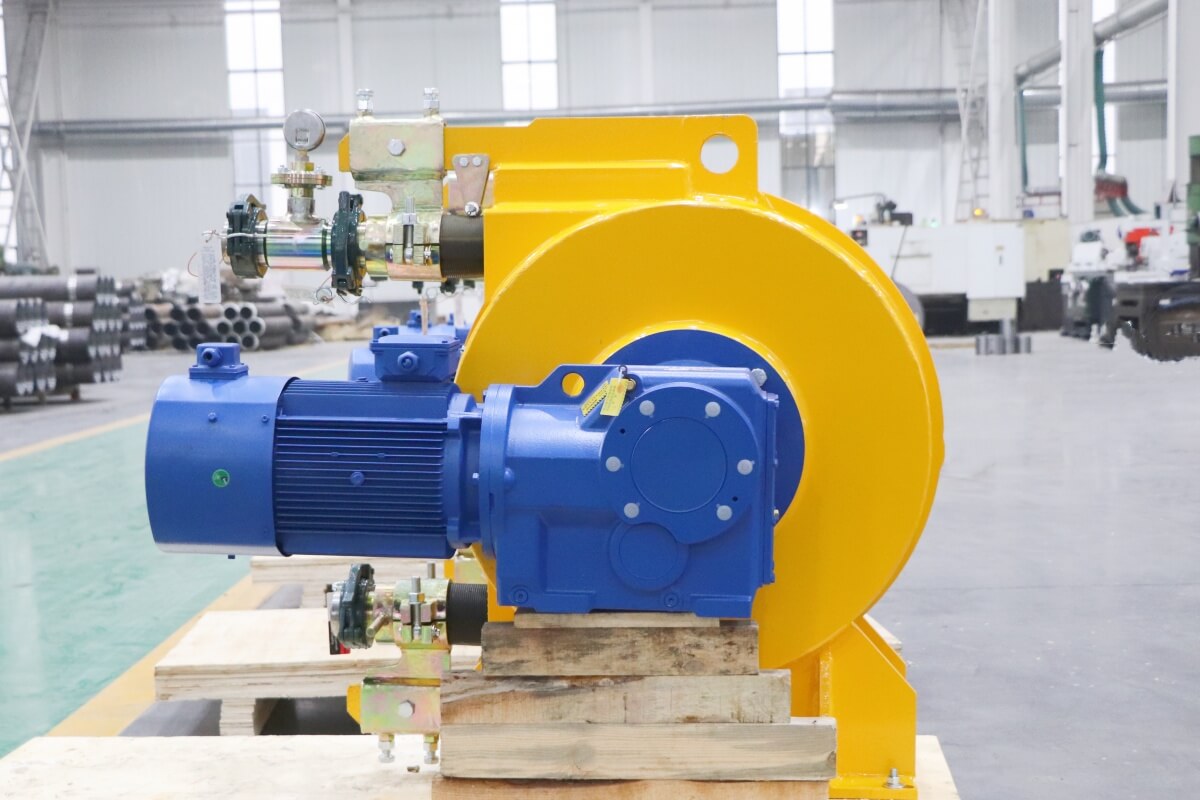

Details of GH76-915B Squeeze peristaltic hose pump:

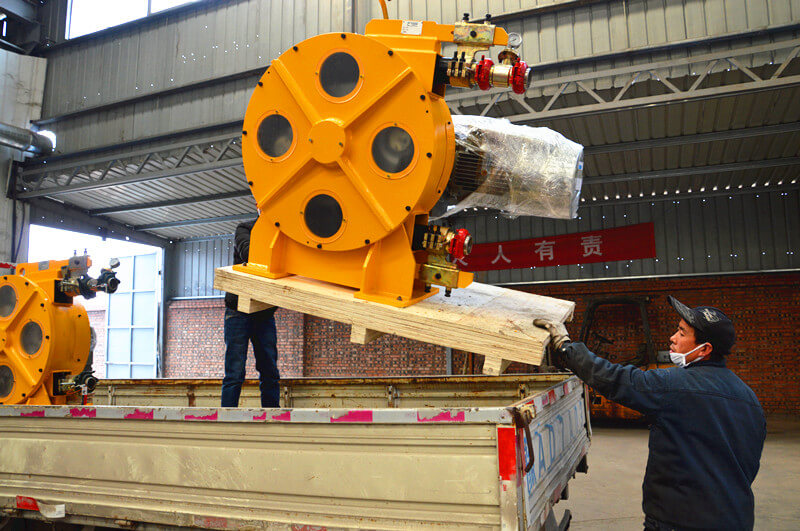

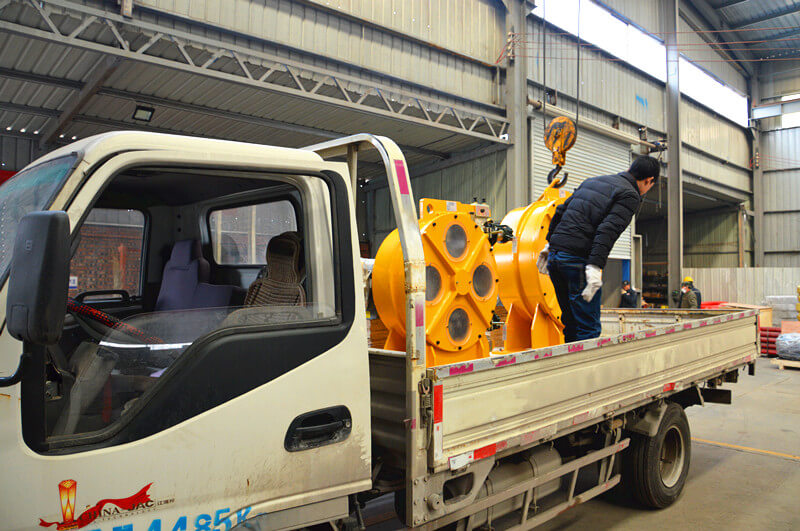

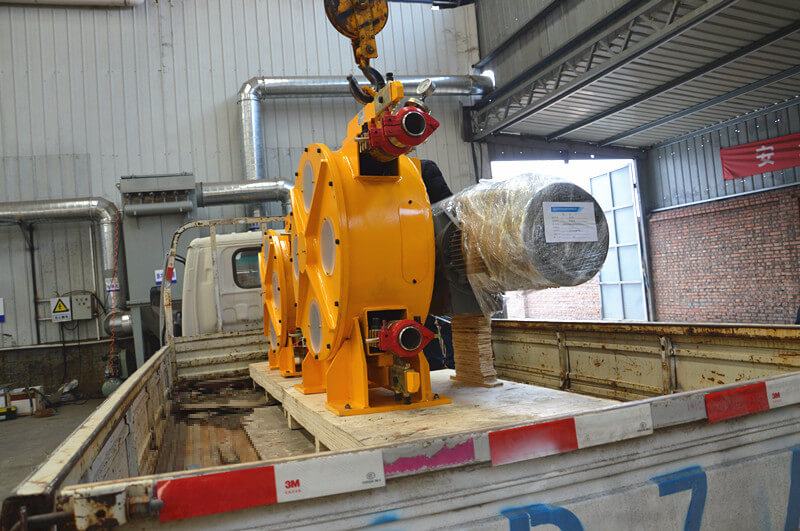

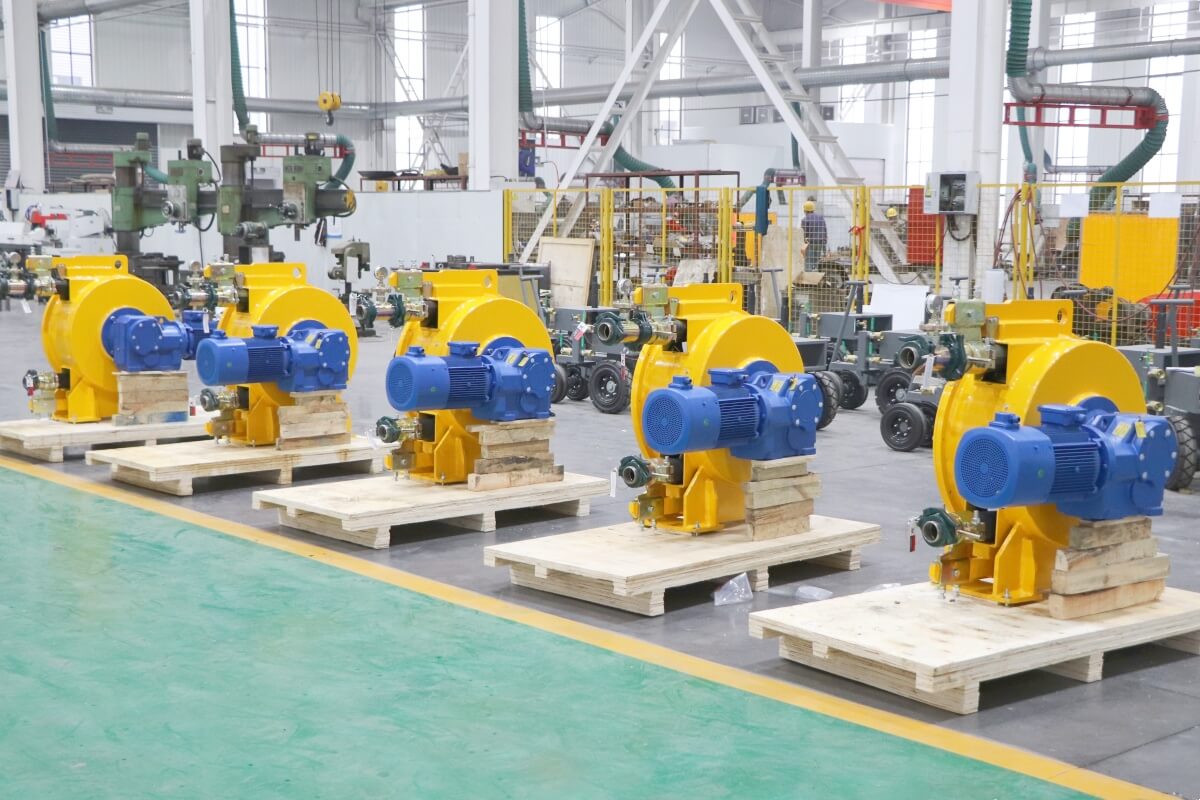

Delivery of squeeze hose pump for our Singapore customer:

Application of Squeeze Hose Pump:
1. Squeeze Hose Pump for construction - cement, coatings, spray concrete,brick and roof tiles, colourants and aggregate.
2. Squeeze Hose Pump for mining and mineral separation – tailing Slurries,sludges and reagents.
3. Squeeze Hose Pump for chemical – corrosive acids,and bases.
4. Squeeze Hose Pump for textiles – fibres,dyes and additives.
5. Squeeze Hose Pump for pint and pigments – dispersion mill feed, pigment and latex transfer.
6. Squeeze Hose Pump for water and wastewater treatment – lime, kalic,sodium hypochlorite,ferric chloride and sludges.
7. Squeeze Hose Pump for breweries – yeast, diatomaceous earth, flocculants, stabilizers, filter press feed.
8. Squeeze Hose Pump for printing and packaging – varnishes,inks, coatings and adhesives.
9. Squeeze Hose Pump for ceramics and glass – fine china.
10. Squeeze Hose Pump for food and beverage – CIP applications, wine, brewery, dairy, bakery, flavourings and additives.

GH76-915B Squeeze Hose Grouting Pump is our main cooperation product with in CREG (China Railway Engineering Equipment Group Co., Ltd.) for TBM. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries. This Squeeze Hose Grouting Pump is used for construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).

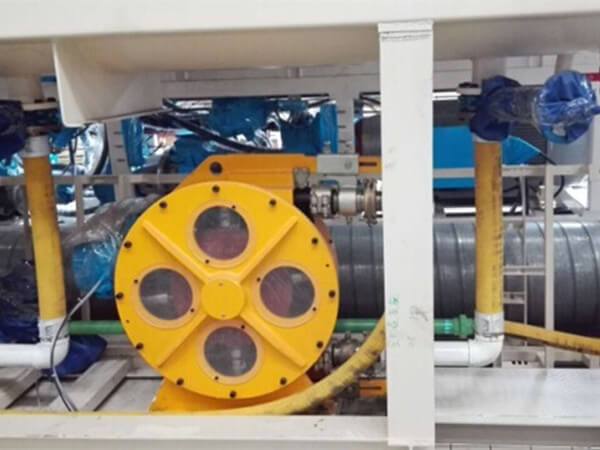

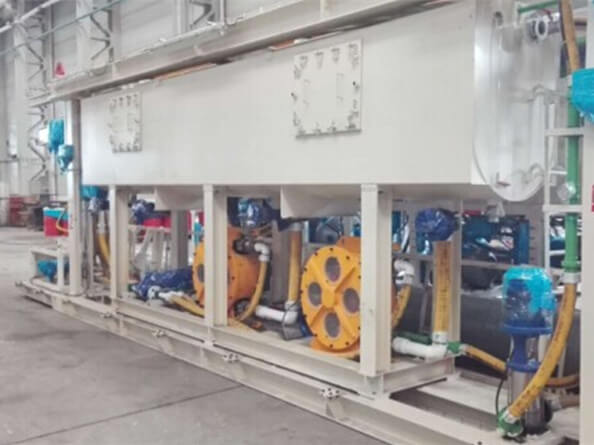

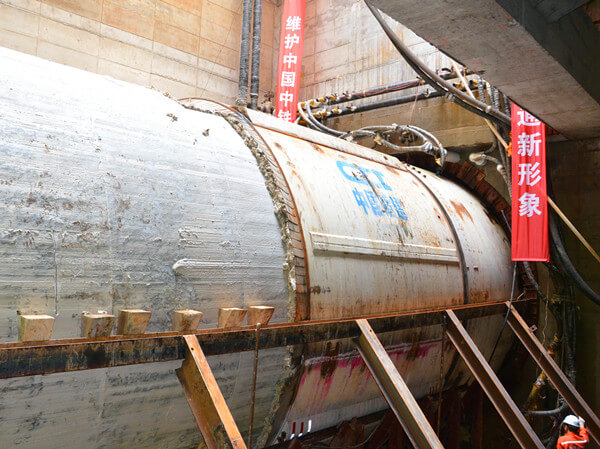

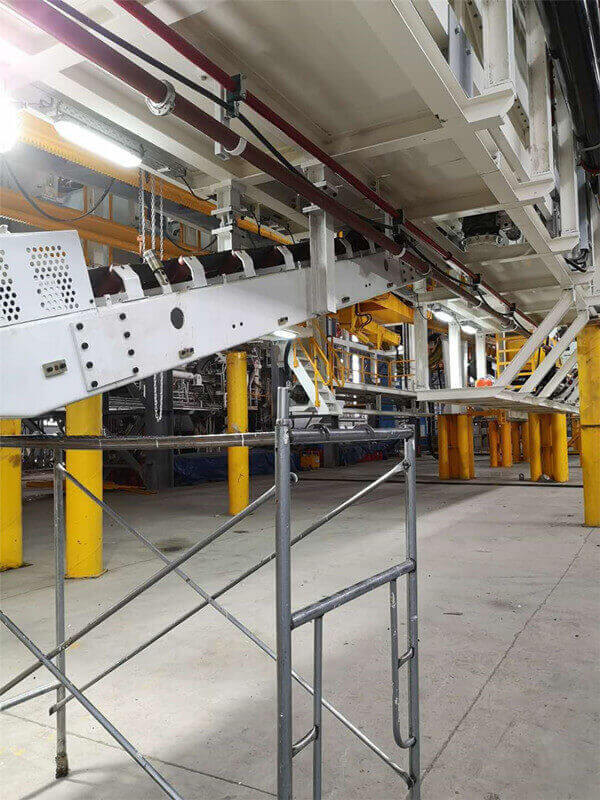

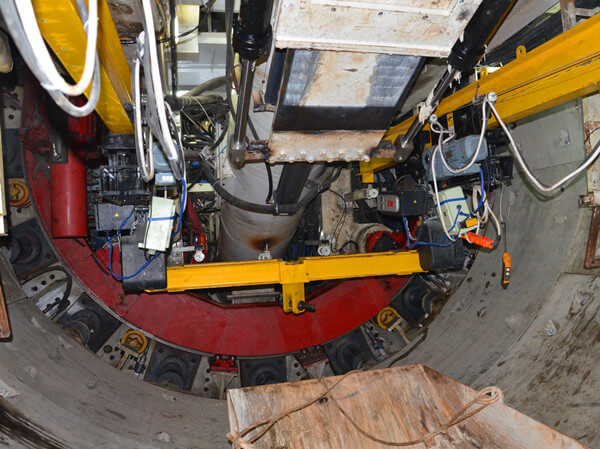

Application picture of our GH76-915B  industrial squeeze peristaltic hose grouting pump for TBM:

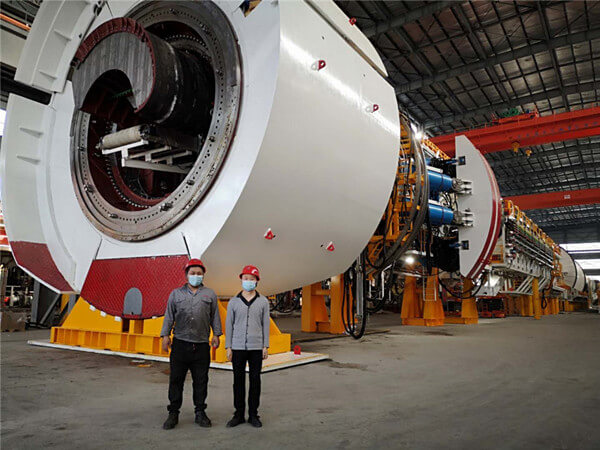

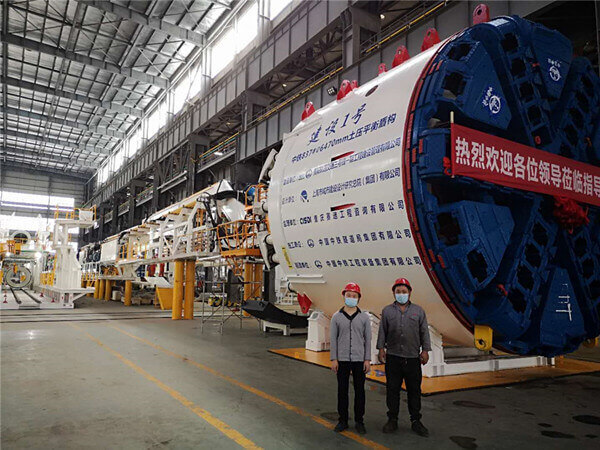

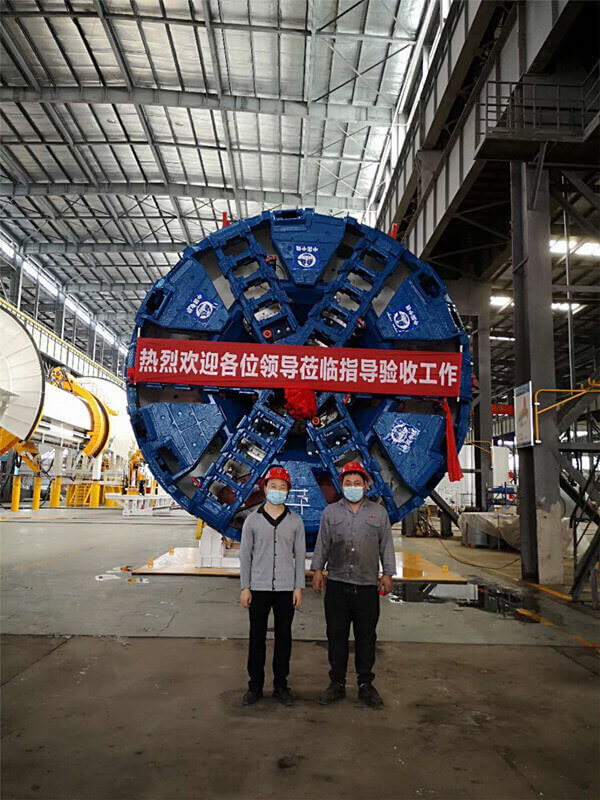

Our engineers are doing after-service in the worksite of TBM in CREG (China Railway Engineering Equipment Group Co., Ltd.).

Features of Squeeze Hose Grouting Pump for TBM:
1. No valves;
2. Self-priming;
3. Only tube to replace;
4. Dry-running without damage;
5. Reversible;
6. No contact between product and mechanical parts;
7. Squeeze Hose Grouting Pump is able to pump products with solid parts inside;
8. This Squeeze Hose Grouting Pump for TBM is easy maintenance, low-cost, shot down time.

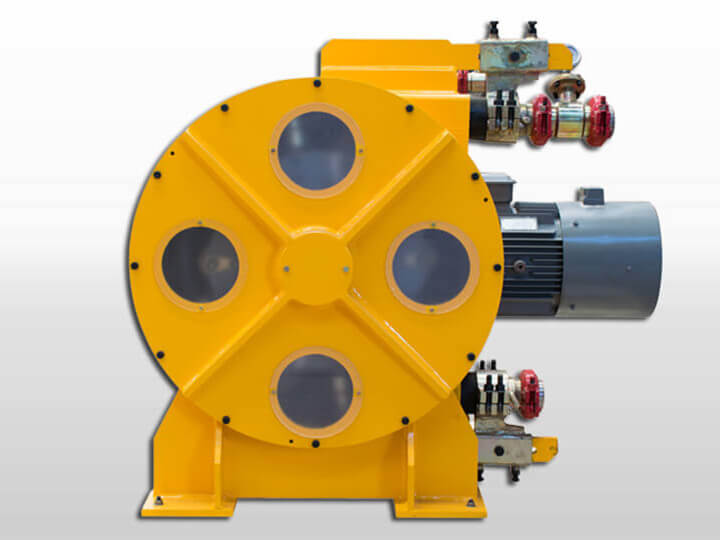

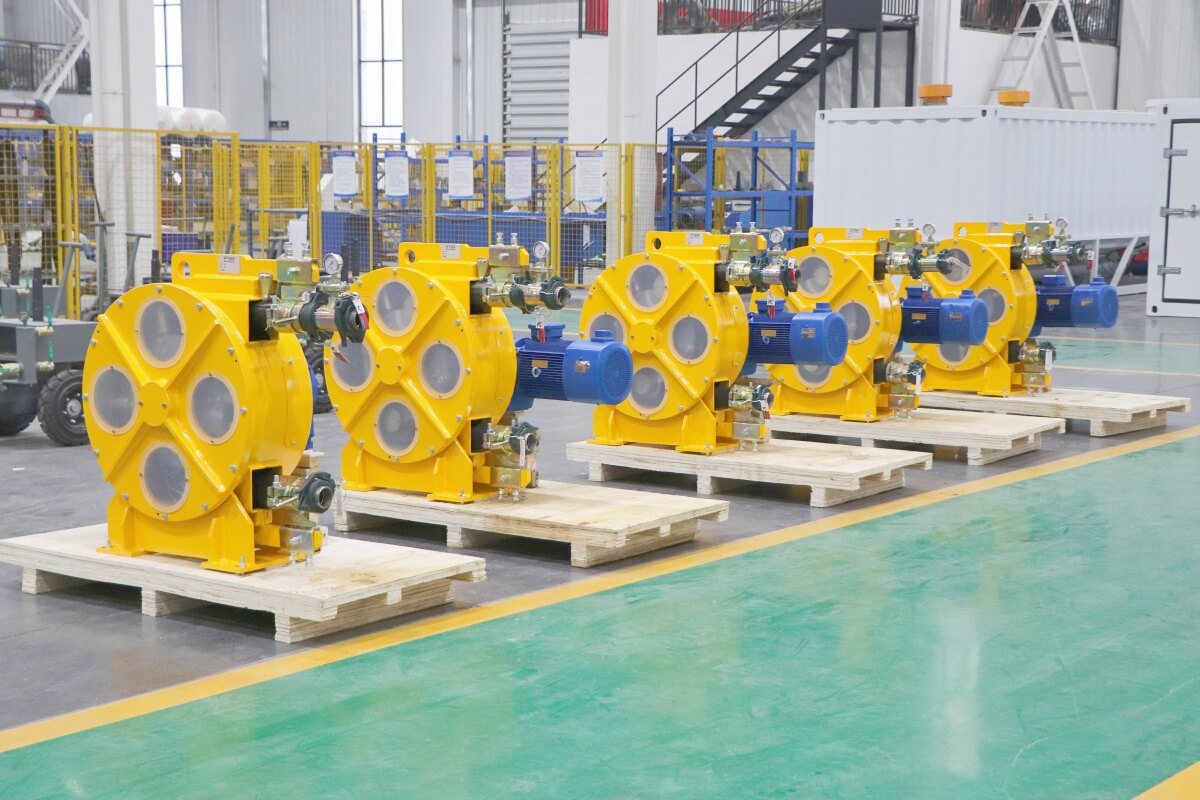

Delivery of TBM large squeeze hose ID 76mm squeeze pump for pumping concrete:

Type	GH76-915B Squeeze Hose Grouting Pump for TBM
Max. output	20M3/h
Rotation	40RPM
Squeeze hose ID	76mm
Rotation diameter	915mm
Max. pressure	1.0Mpa
Voltage	3 phase, 380V, 50HZ
Power	18.5KW

  Gaodetec can also customize squeeze hose grouting pump for TBM according to your demands.
