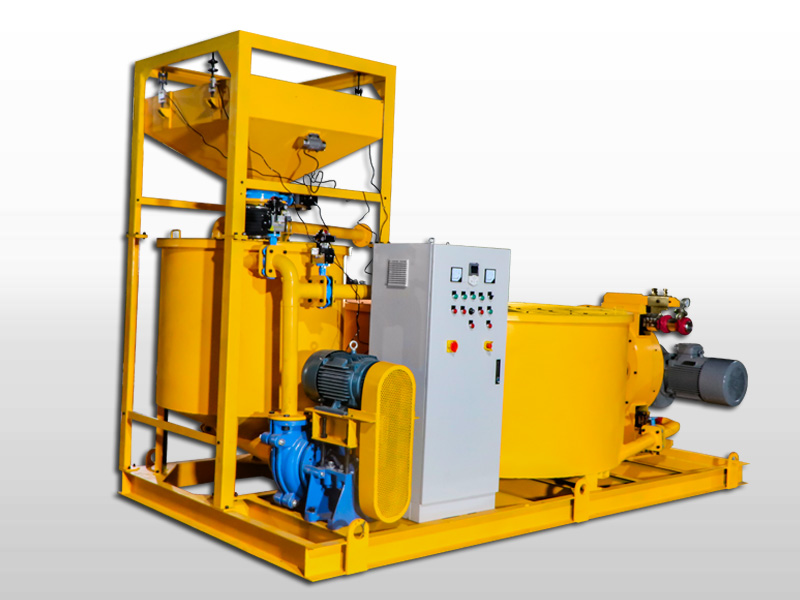

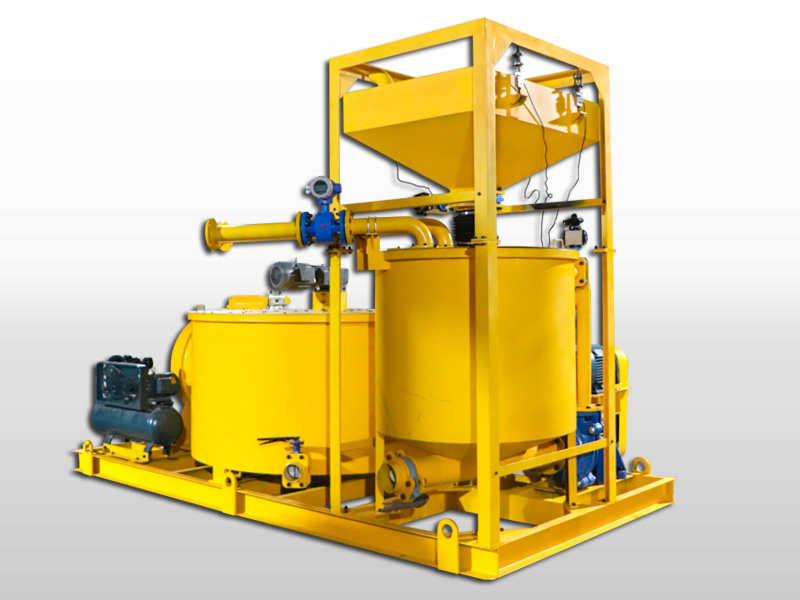

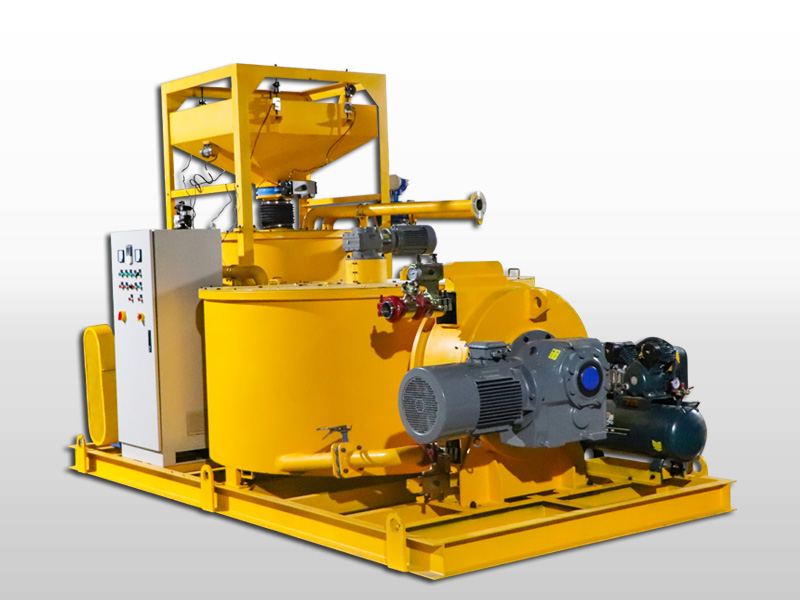

GGP1200/3000/300H-E Grout mixer and pump for backfilling is a combination of the mixer, agitator and grouting pump in one grout plant, the grout plant is equipped the automatically batching weight system and PLC control system to automate operations, which can weigh 500Kg, mixer volume is 1200L, agitator volume is 3000L, and hose pump displacement is 300L/min. The dimension of GGP1200/3000/300H-E Grout mixer and pump is 4150×2100×2750mm, it is a big volume grout plant, so it is especially suitable for large projects. It is mainly used to mix cement, bentonite, slurry for grouting and backfilling grouting injection in ground and underground project.

GGP1200/3000/300H-E Grout mixer and pump for backfill grouting is a device integrating weighing, mixer, agitator and grouting pump. It is characteristic that at least three kinds of materials can be mixed quantitatively. More importantly, the most popular PLC module is added to realize one-key startup of the device, which greatly improves the work efficiency.

GGP1200/3000/300H-E Grout mixer and pump has been unanimously received by many customers. Excellent performance, simple operation, and appearance are all its outstanding features. Gaodetec has been focusing on grouting equipment for more than ten years since its establishment. In the past years, we have accumulated a lot of experience, and we have also established many stable partners, which are distributed all over the world. Hydraulic, pneumatic, diesel, electric are all areas where we excel. Therefore, no matter what reasonable request you have, as long as you ask, we will do our best to meet your request.

GGP1200/3000/300H-E Grout mixer and pump for backfilling is particularly suitable for grouting applications in all cements and ultrafine cements, bentonite suspensions that is used in backfilling hole, micro tunneling, pipe jacking, directional drilling, TBM tunnel construction, such as highways, railways, water and electricity, construction, mining etc.

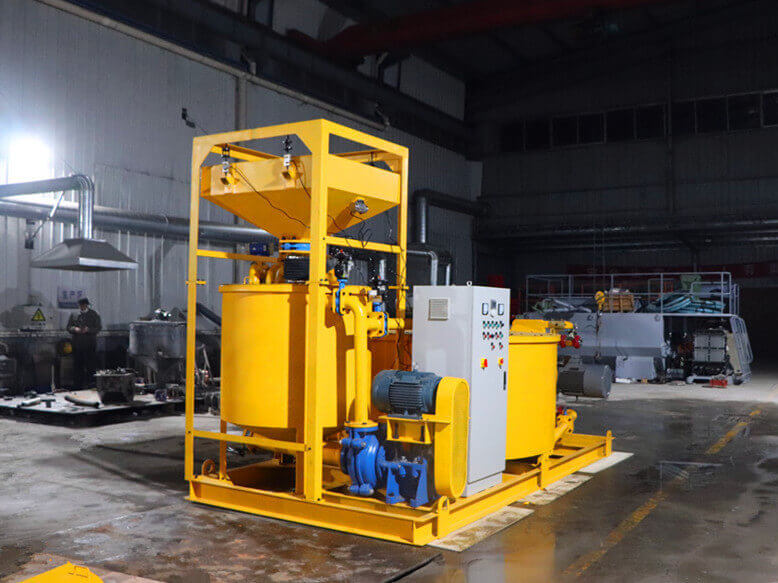

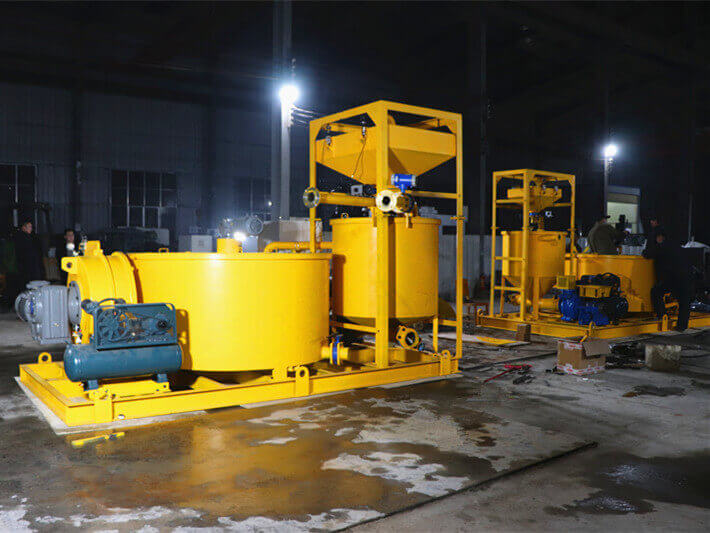

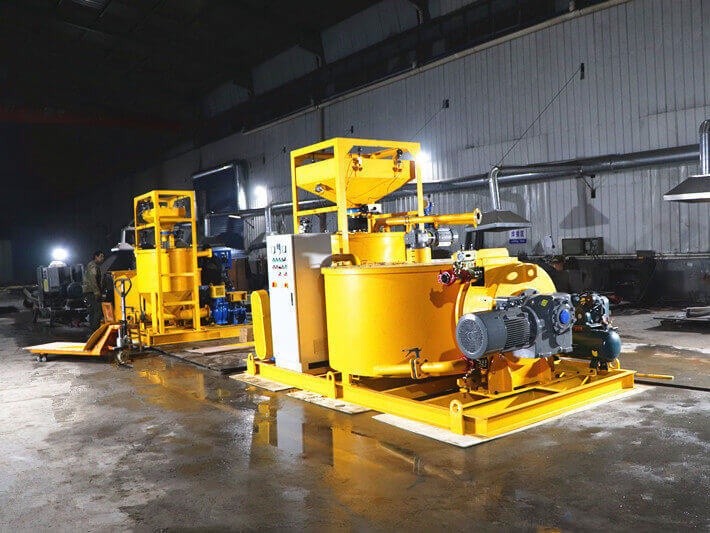

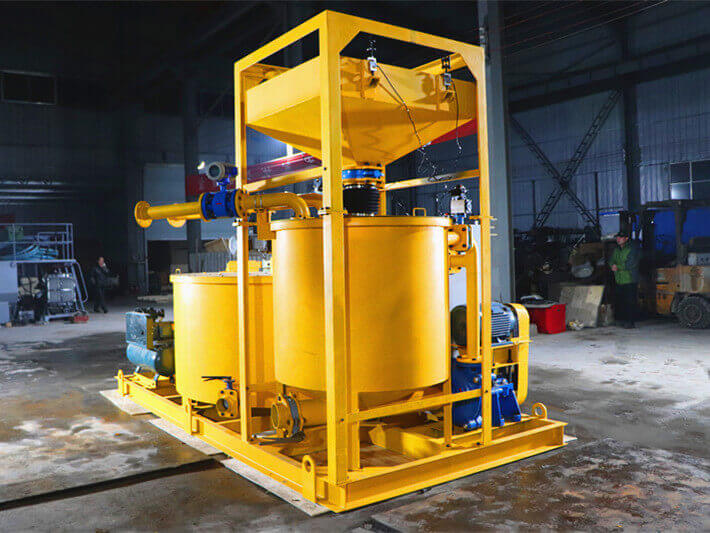

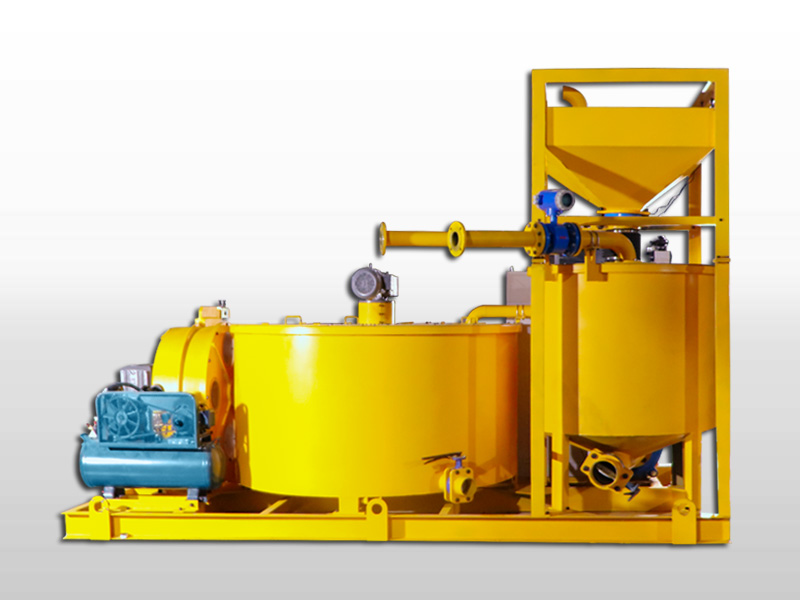

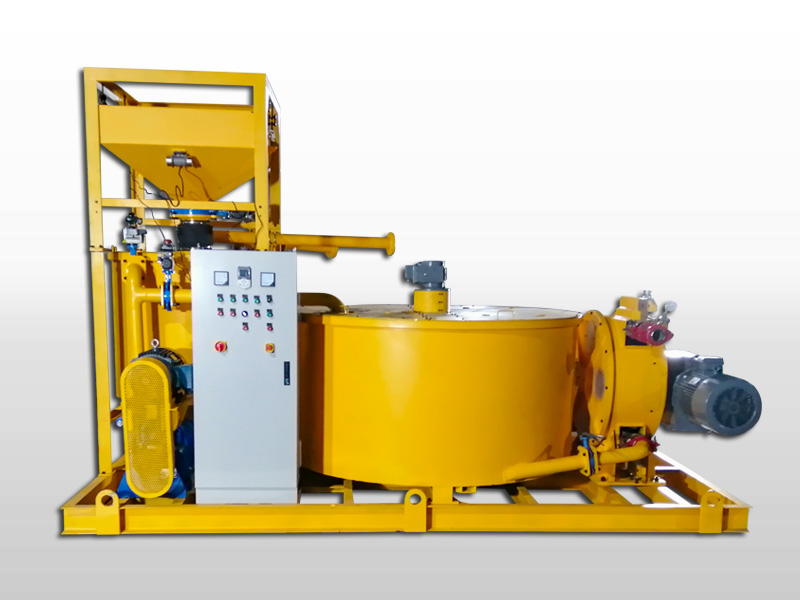

More details about GGP1200/3000/300H-E Grout mixer and pump from our factory:

Advantage of GGP1200/3000/300H-E Grout mixer and pump for back fill:

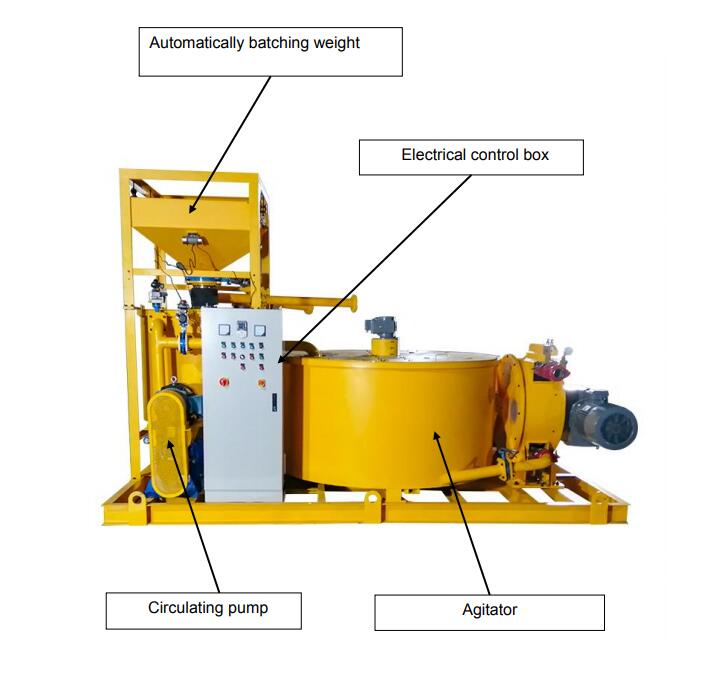

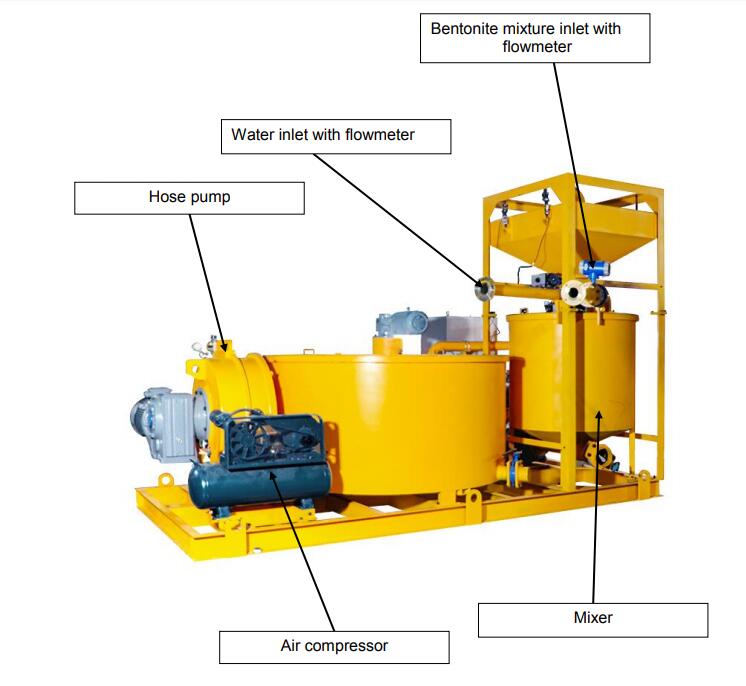

1. Grout mixer and pump for backfill grouting is mixer, agitator, hose pump in one frame base, compact size. It also takes up a small space.
2. Automatically batching and automatically mixing system.

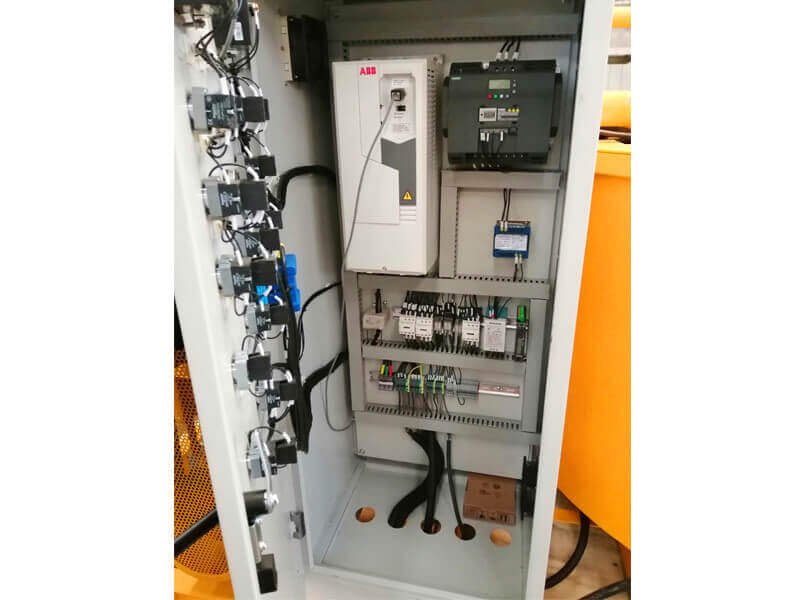

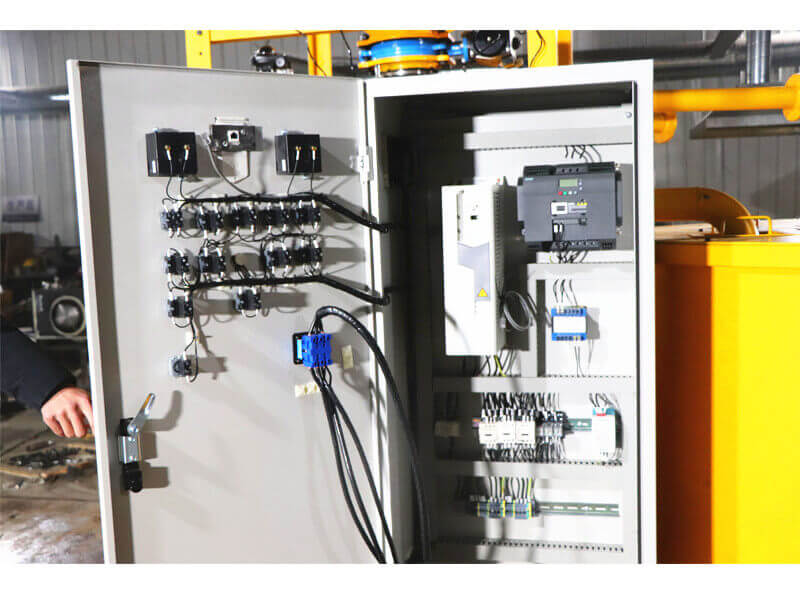

3. PLC control system, operation mode can be operated automatically and manually.
4. High turbulence mixing.
5. It is easy to operate.
6. Pump of GGP1200/3000/300H-E is a heavy duty industrial hose pump.
7. GGP1200/3000/300H-E is especially suitable for grouting backfilling hole.

Type		GGP1200/3000/300H-E Grout mixing plant for backfilling
Weighting	Sensor	S-type tension pressure sensor
	Load	800Kg
	Output Signal	Current signal
	Vibration Motor	24V, 4KN, 0.37Kw
Mixer	Volume	1200L
	Slurry Pump Power	11Kw
	Output	80m3/h
Agitator	Volume	3000L
	Geared Motor Power	3Kw
	Speed	45rpm
Hose pump	Output	300L/min
	Pressure	1.6MPa
	Power	18.5Kw
Air compressor		2.2Kw
Power supply		220V(380V, 415V Multiple choices)
Dimension		4150×2100×2750mm
Weight		4000kg
Gaodetec can also customize grout plant for backfilling according to your demands.
