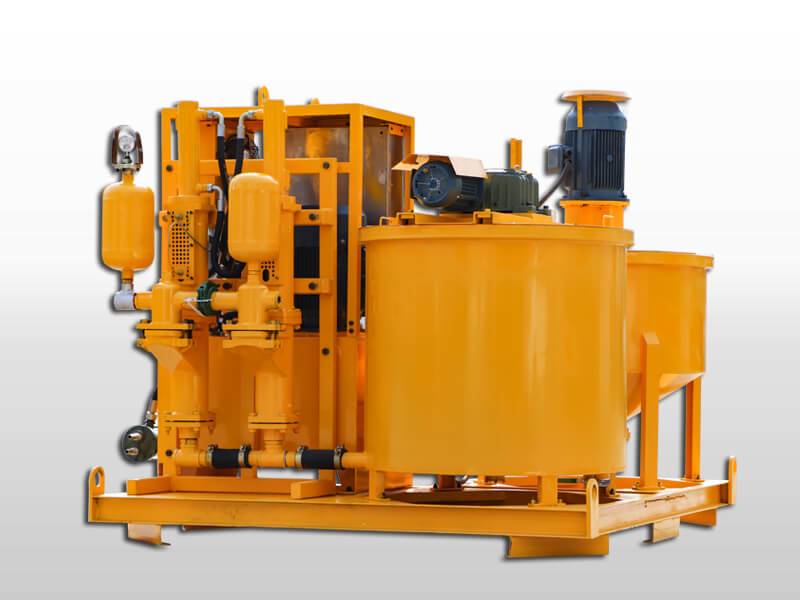

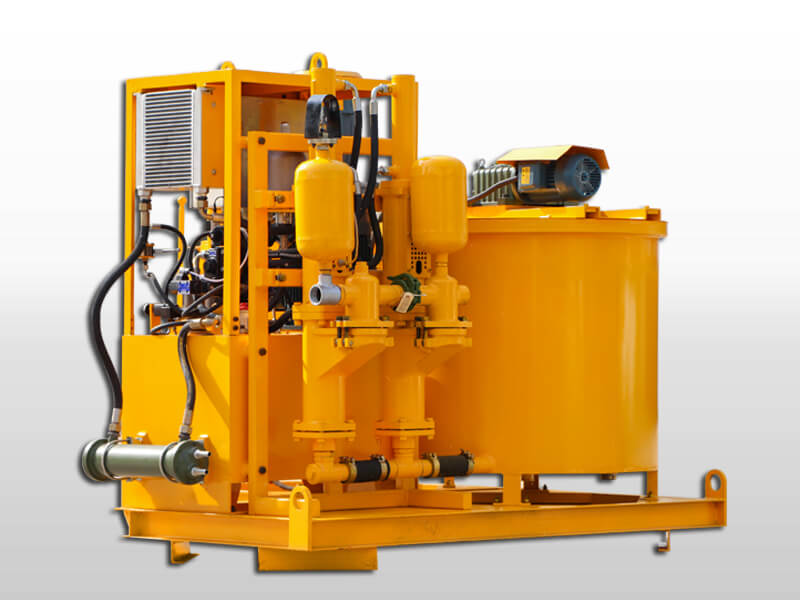

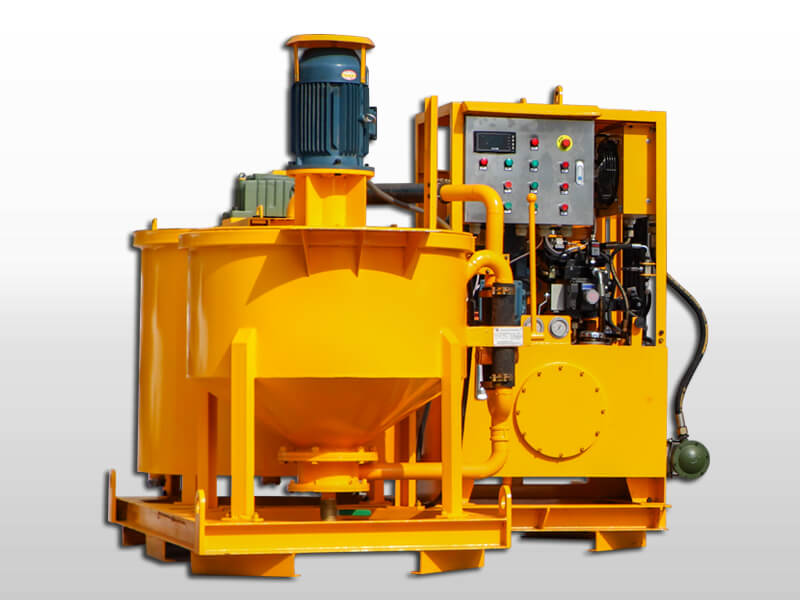

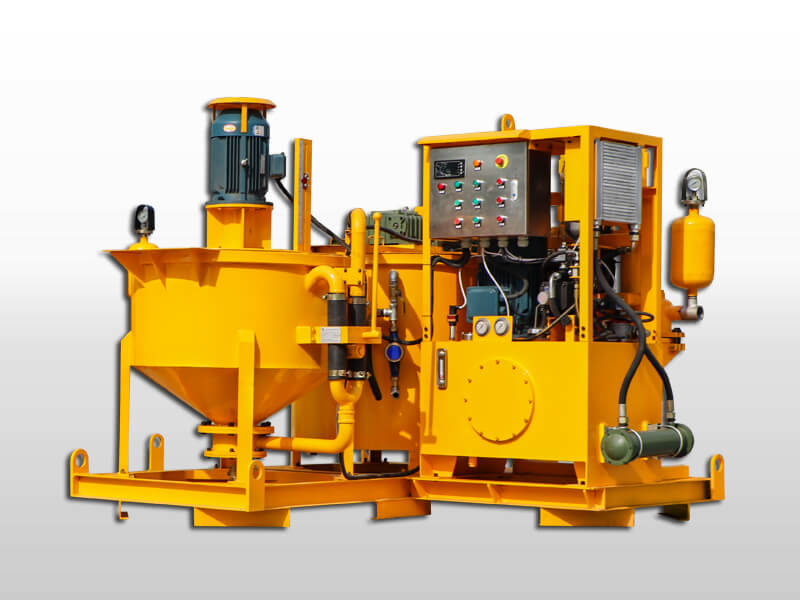

GGP400/700/80DPL-E TBM grout plant is a combination of grout mixer, grout agitator and grouting pump in one base frame. It is compact size and easy to operate. Grout mixer capacity is 400L, grout agitator capacity is 700L, output and pressure of vertical compact hydraulic grout pump: Low pressure: 0-80L/min, 0-25bar; High pressure: 0-58L/min, 0-40bar. The grout plant for tunnel is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. TBM grout plant is with simple structure, light weight easy maintenance.

High speed vortex grout mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. What's more, the double-plunger pump together with the pressure-holding system is used, so that the pump automatically stops and maintains the very little pressure impulse (1-4bar with 50bar grouting pressure) to ensure that the grouting hole is completely filled.

Gaode Equipment is one famous grout plant supplier, manufacturer and exporter in China, we have sent our grouting plant to Thailand, Singapore, Malaysia, Indonesia, Jordan, Qatar, UAE, etc. country.

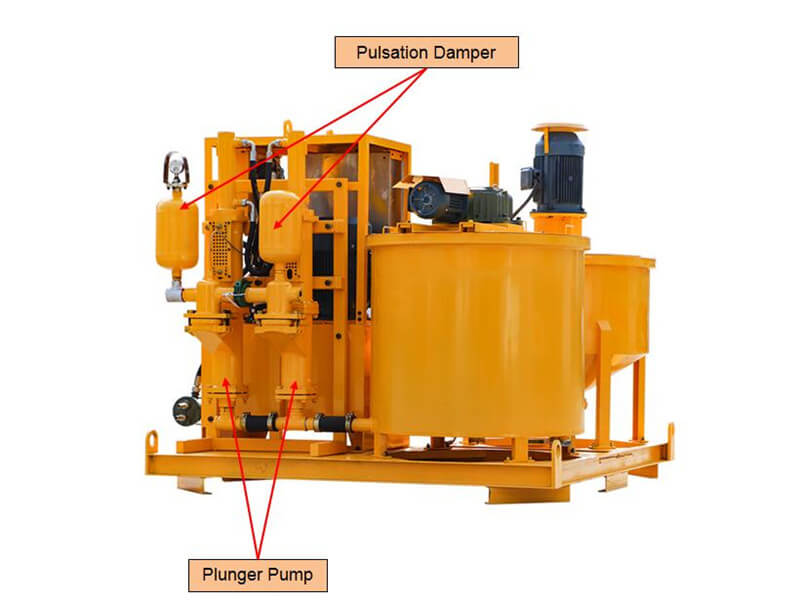

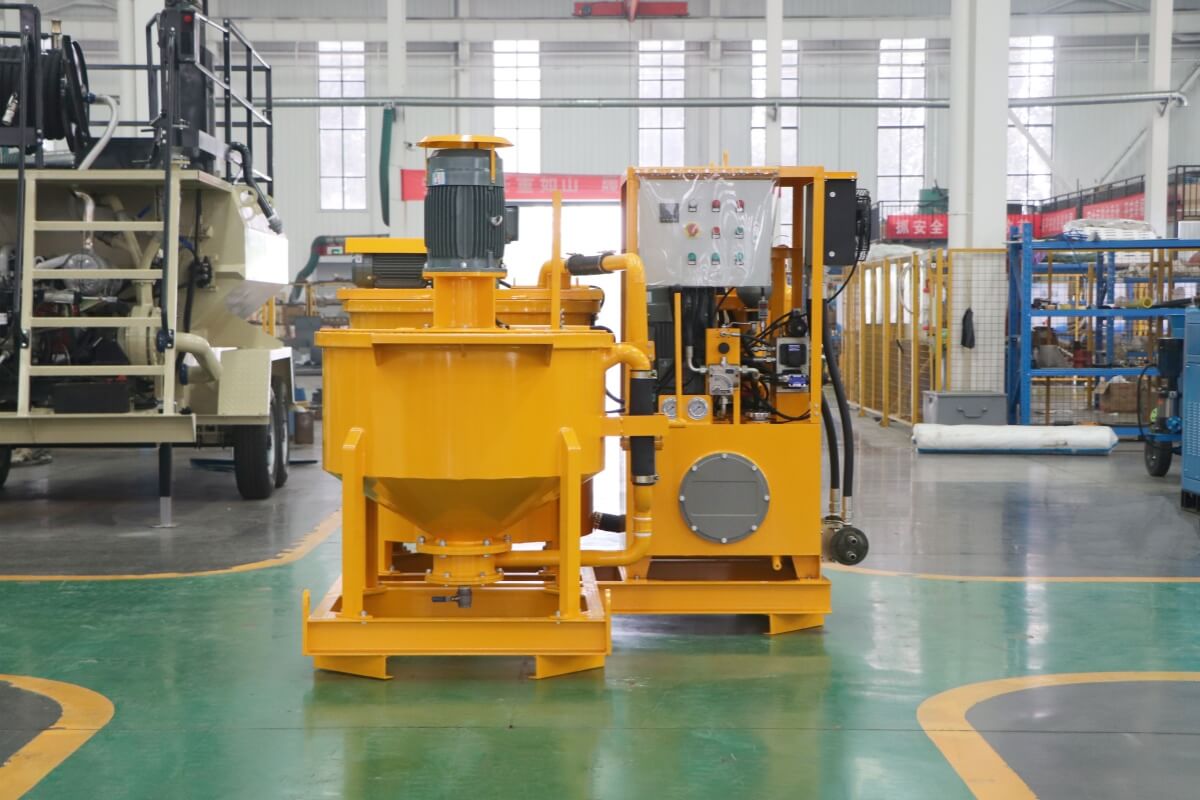

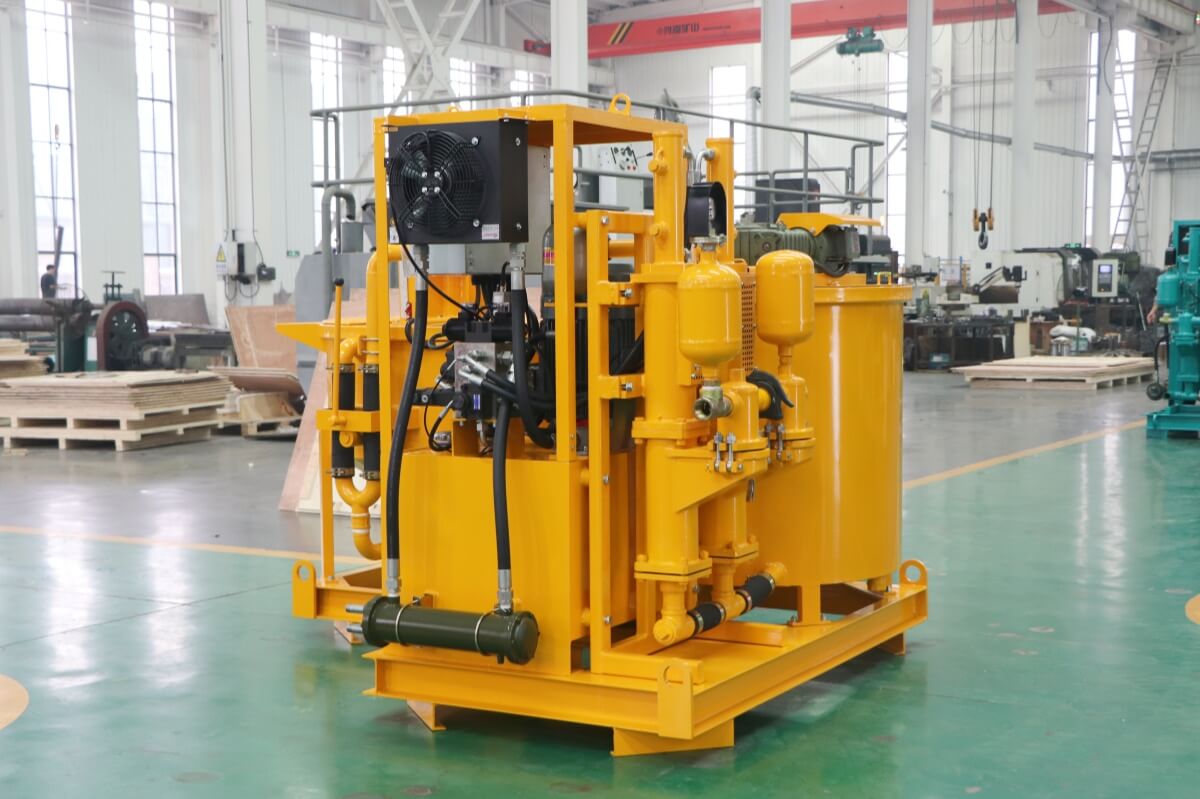

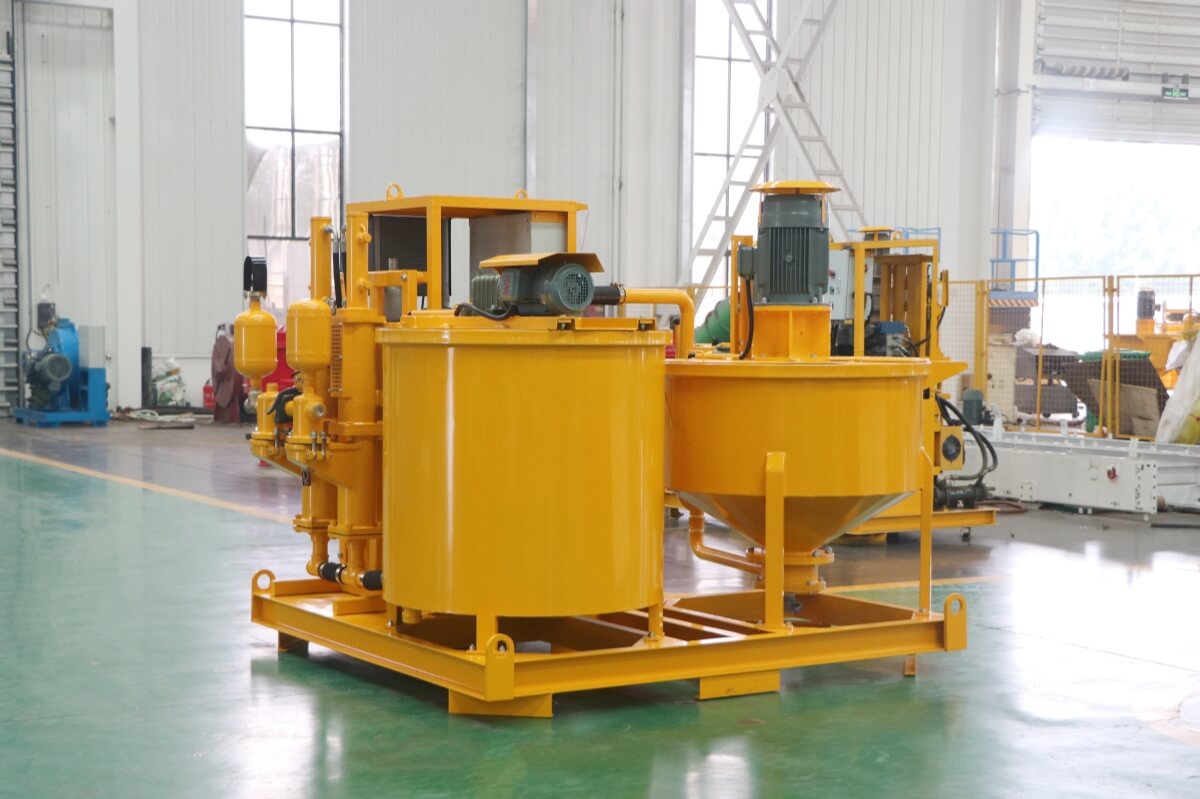

Structure of grout plant:

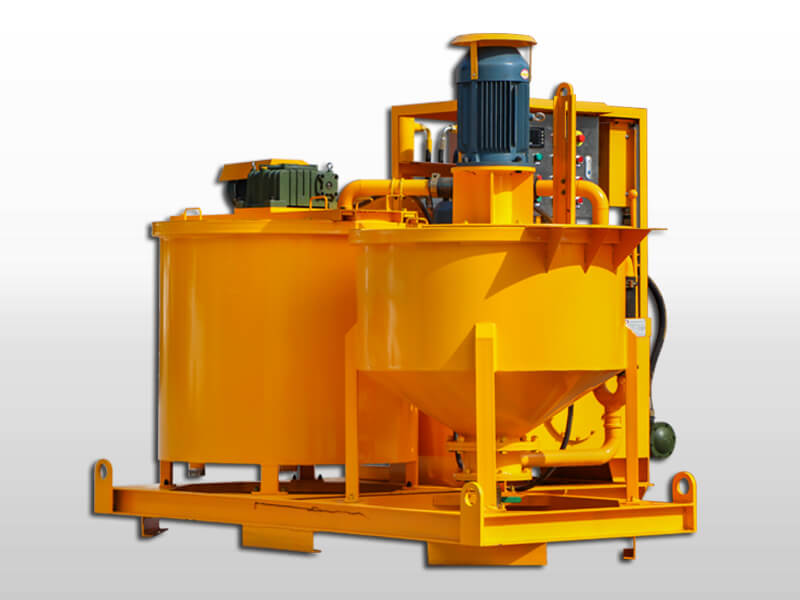

GGP400/700/80DPL-E TBM grout plant for back fill is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

Grout plant for backfilling

Grout plant for dam project

Grout plant for drilling rig

Grout plant for foundation

Grout plant for mixing and grouting

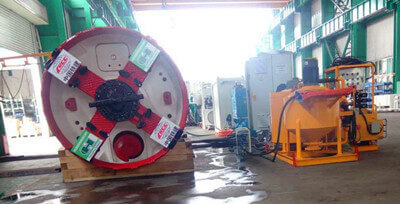

Grout plant for TBM

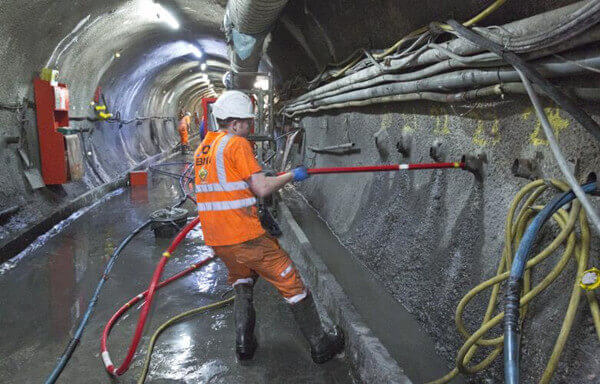

Grout plant for tunnel lining

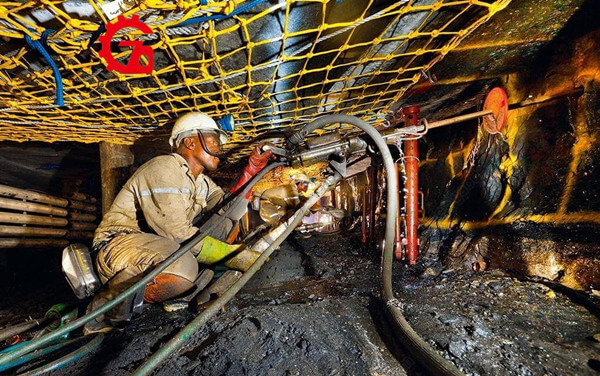

Grout plant for underground engineering

Grout plant advantage:

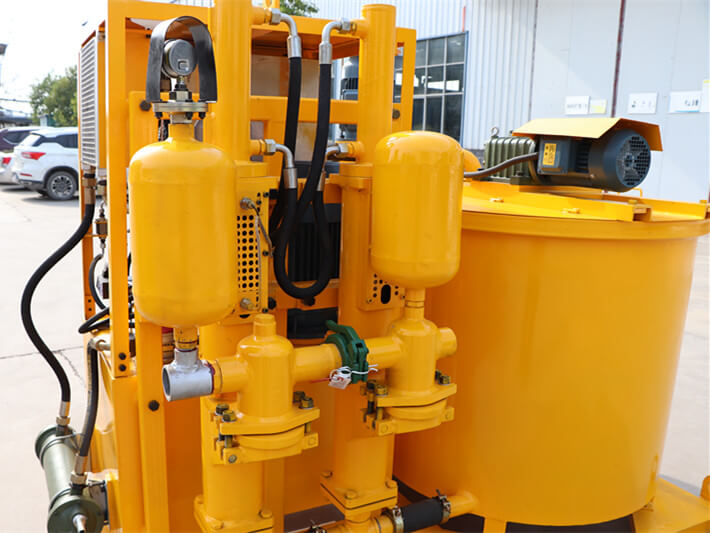

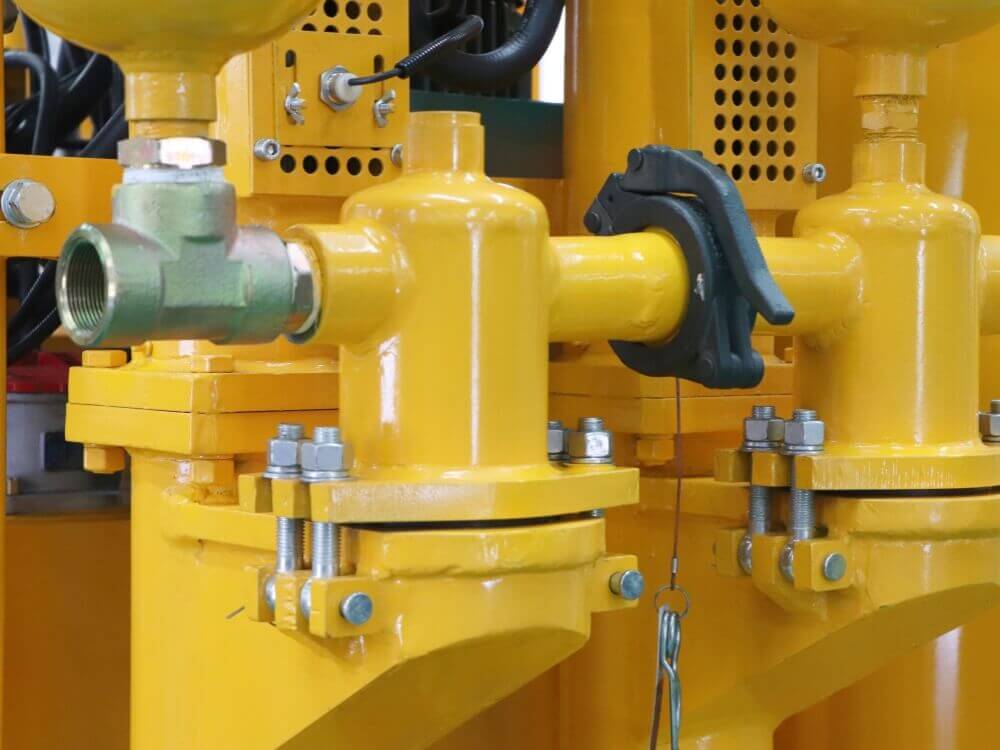

1. TBM grout plant is with double plunger pump
2. Pressure holding system
3. Low flow pressure surge system
4. Up to 5mm particle size

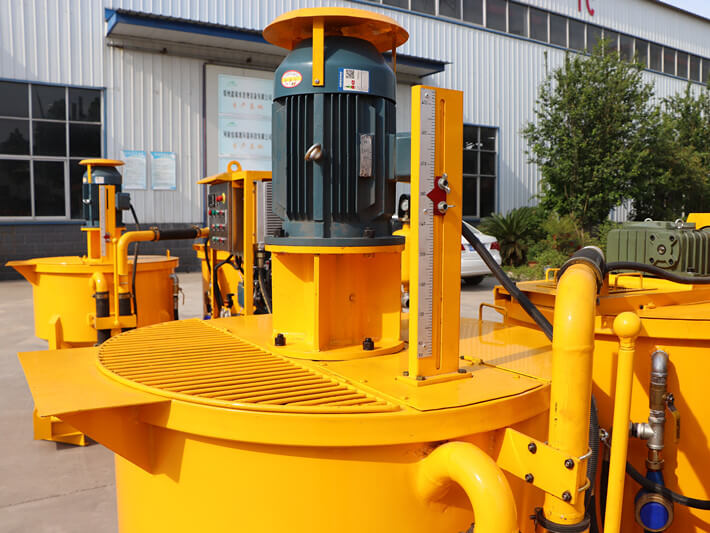

5. High-speed colloidal grout mixer
6. Vertical type pump with compact size
7. With the liquid level of the mixer tank

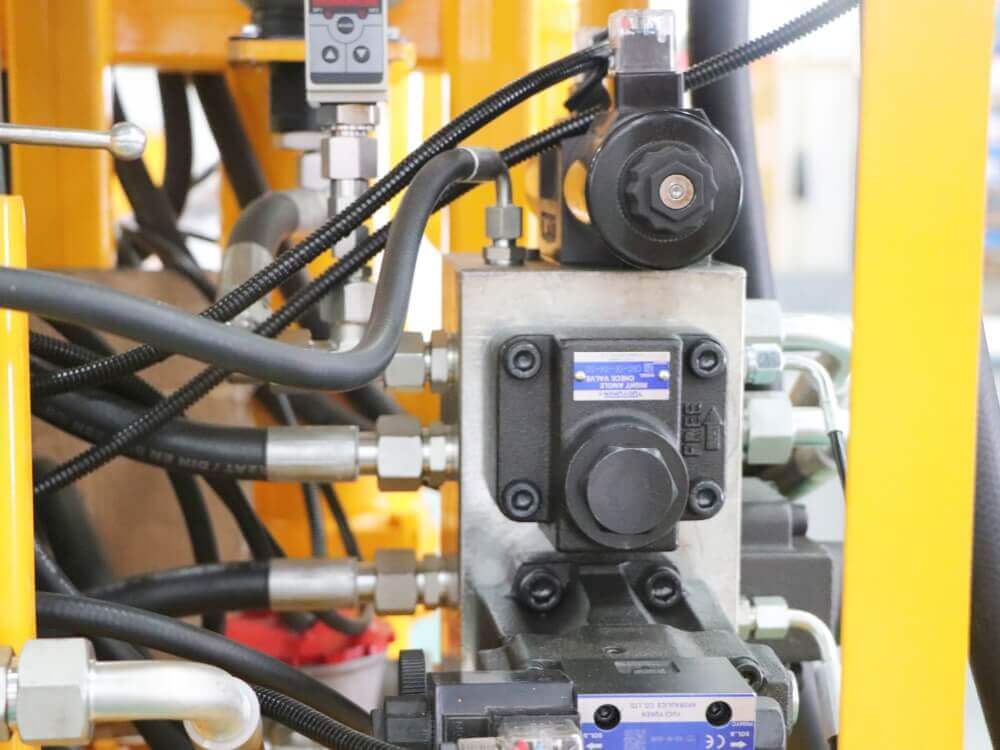

8. Hydraulic drive (safely releasing pressure when pumping block) grout plant

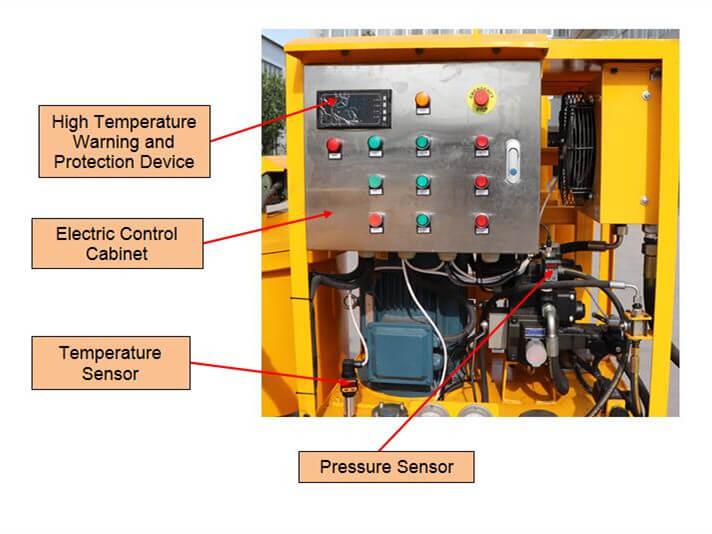

9. Hydraulic system with high temperature warning and protection system

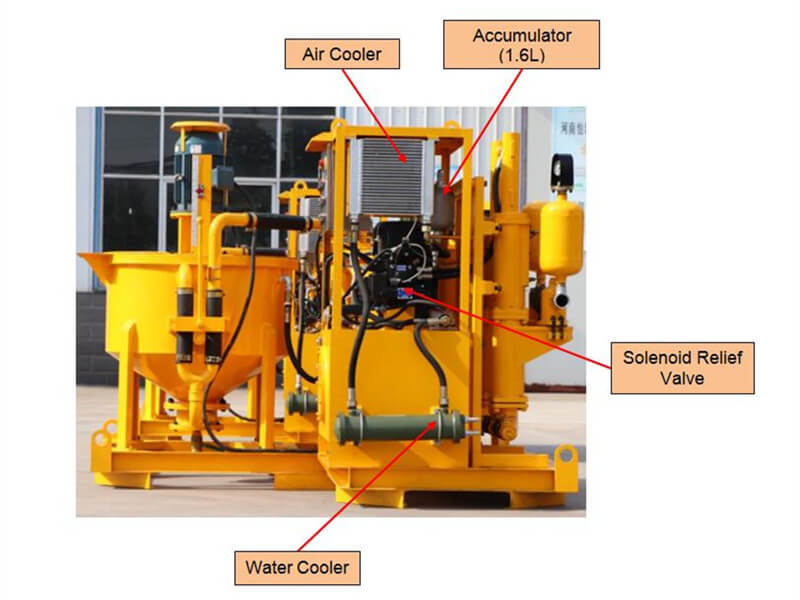

10. Air cooler and water cooler (suitable for working in tropical and sub-hot areas)

Details of grout plant:

Description	Data
Model	GGP400/700/80DPL-E grout plant for TBM
Dimensions	2350*2100*1830mm
Weight	1530kg
Mixer
Capacity	400L
Recycling discharge	1100L/min
Suitable water/cement ratio	≥0.5:1
Motor power	7.5Kw
Rated Rev.	1450rpm
Agitator
Capacity	700L
Motor model	1.5Kw
Rated Rev.	36rpm
Pump(vertical compact hydraulic grout pump)
Output/pressure	Low pressure: 0-80L/min, 0-25bar
	High pressure: 0-58L/min, 0-40bar
Power	11Kw
How do you think of the grout plant? We has ourselves technical team and with research and development ability, and can design customize TBM grout plant according to your demands, now has tens types grout plant for sale. So any need about our grout plant, please contact us for more information about grout mixing plant for grouting business now! Email address: info@gaodetec.com
