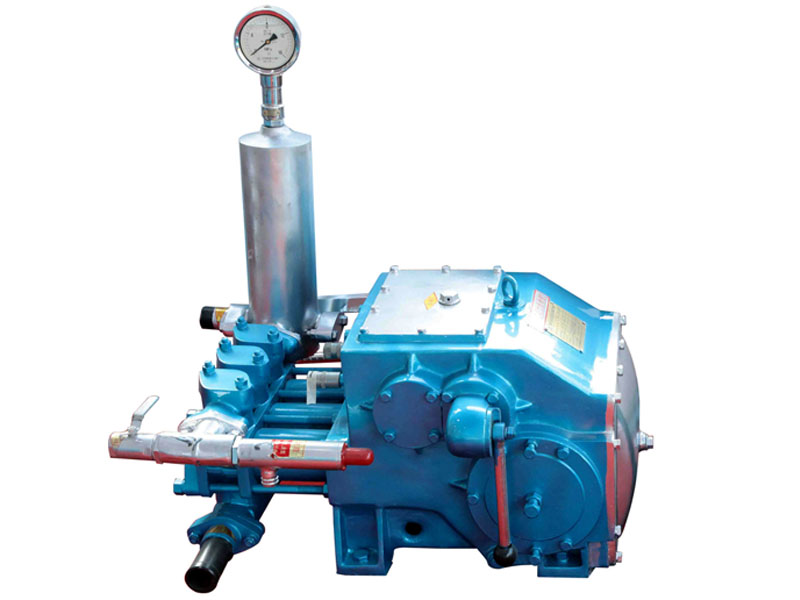

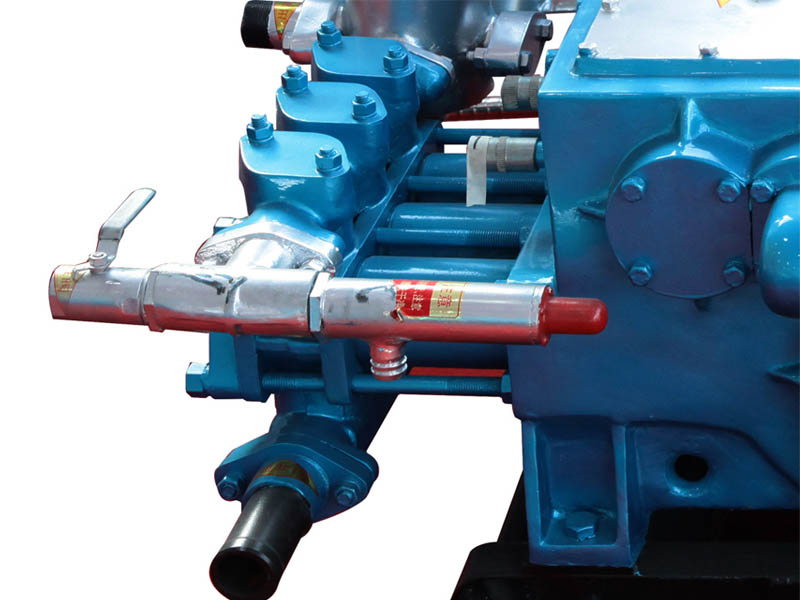

BW160/10 Slurry Pump is horizontal, tri-cylinder, reciprocating double-acting piston pump.

This slurry pump can be transformed into four different pressure and flow. Its max pressure can arrive 10 Mpa.

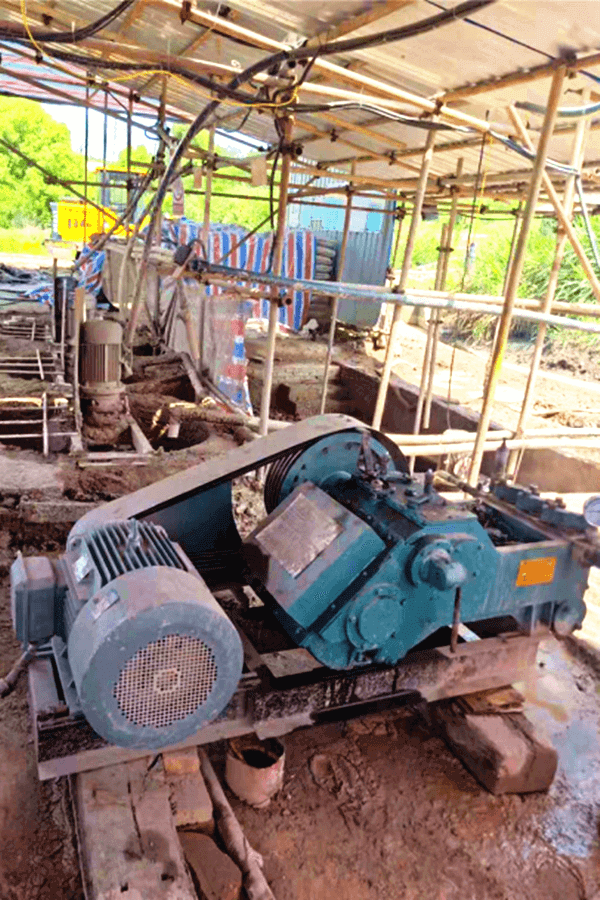

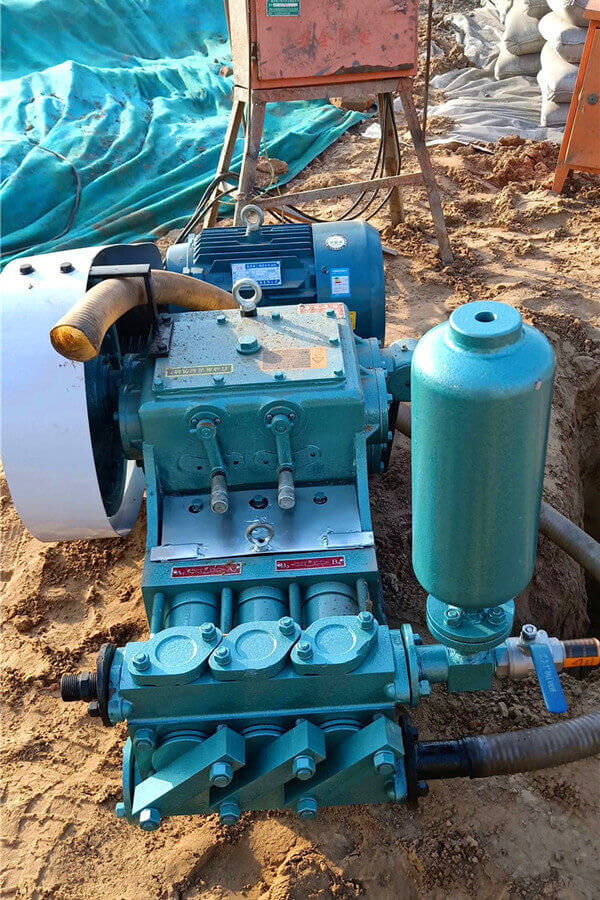

This slurry pump for drilling rig works with drilling machine used in mine, geological drilling, coal mine, railway, high speed way, water conservancy and hydropower, bridge, high building, ground stabilization etc. projects.

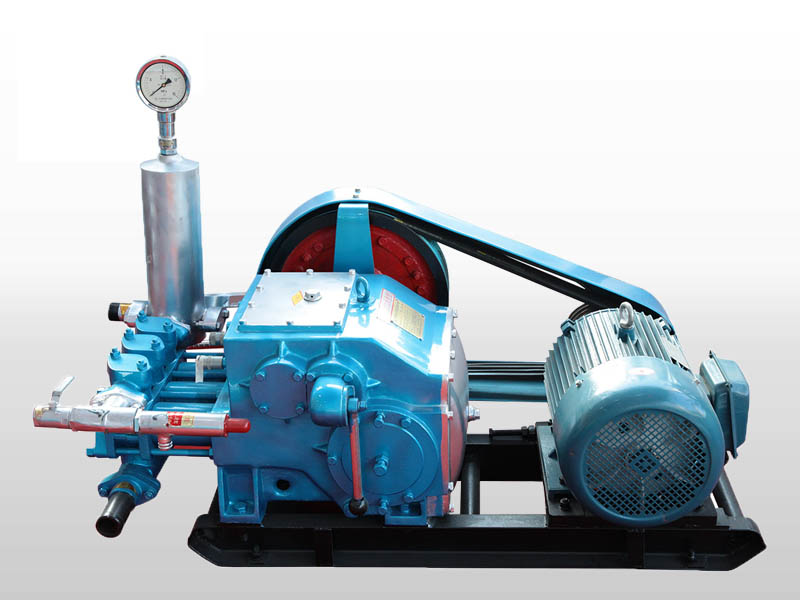

1. This full image triplex slurry pump is small size, light weight;
2. Triplex slurry pump has long life;
3. Easy handling;
4. Delivery time of slurry pump within 15 working days.

Model	BW160/10 Slurry Pump
Type	Horizontal tri-cylinder reciprocating single-acting piston pump
Piston stroke	70mm
Inside diameter cylinder	70mm
Volumetric efficiency	95%
Overall efficiency	75%
Power	11Kw
Triangle belt type specifications , number	B2050*4
Suction tube diameter	51mm
Discharge pipe diameter	32mm
