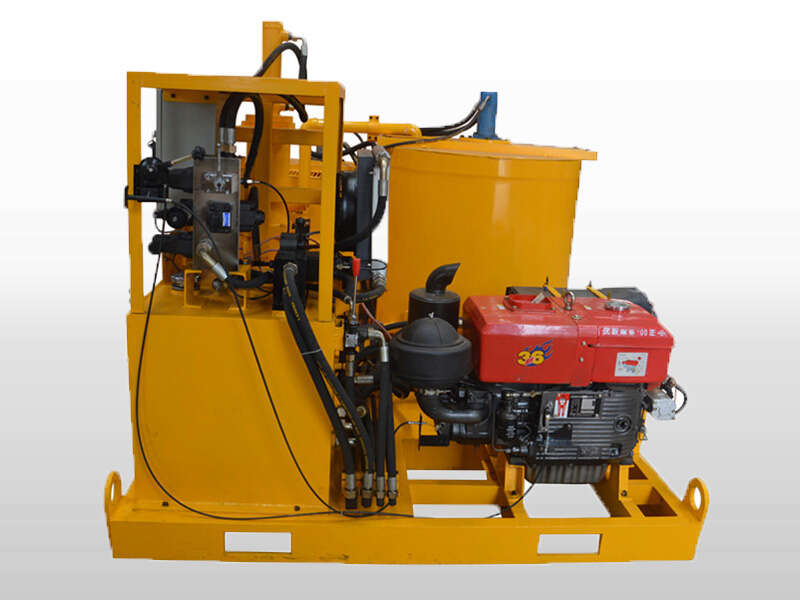

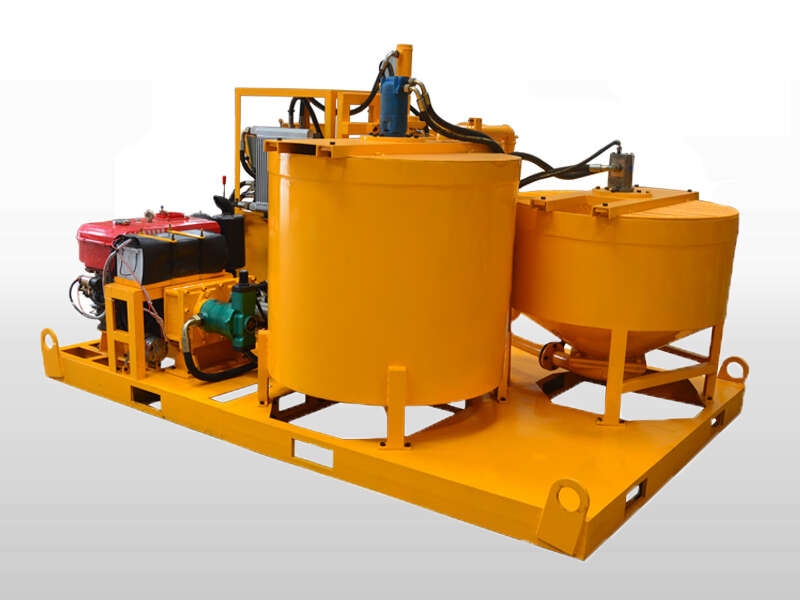

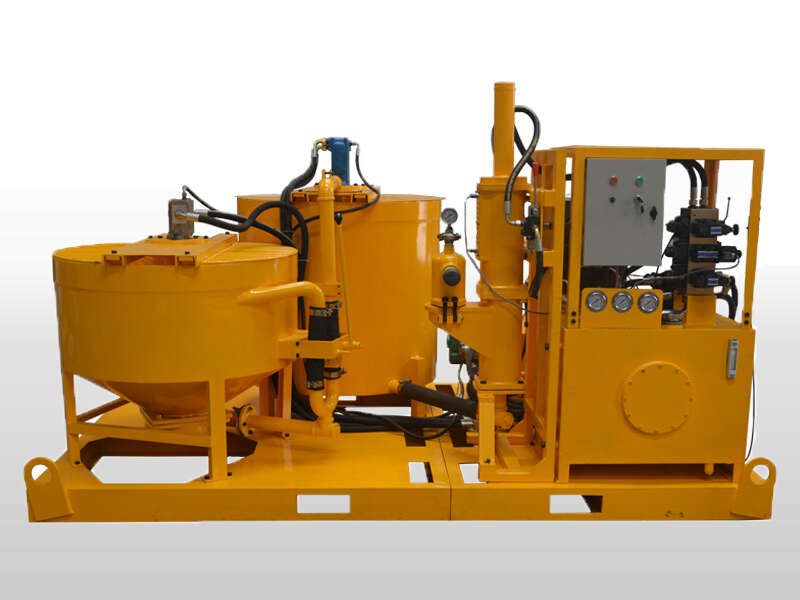

The GGP400/700/100PL-D grout station is combination of mixer, agitator and hydraulic plunger grout pump in one plant.Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts.
2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting, soil & rock grouting.
3. Construction - pavement under sealing, slab jacking and slab raising.
4. Marine - underwater foundations, piers, breakers, shoreline foundations.
5. Mining - tunnel lining, contact grouting, shaft waterproofing.
6. Utilities - encasements, waterproofing, slope line grouting.
7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment.

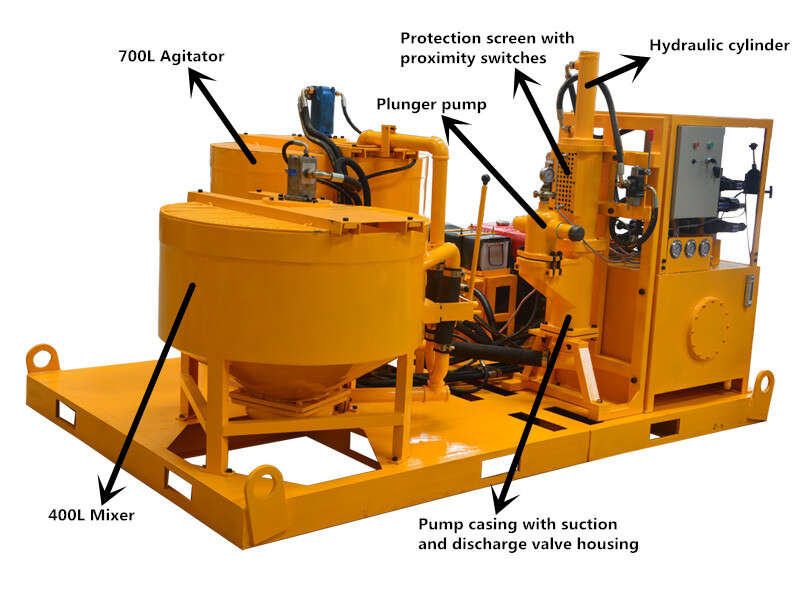

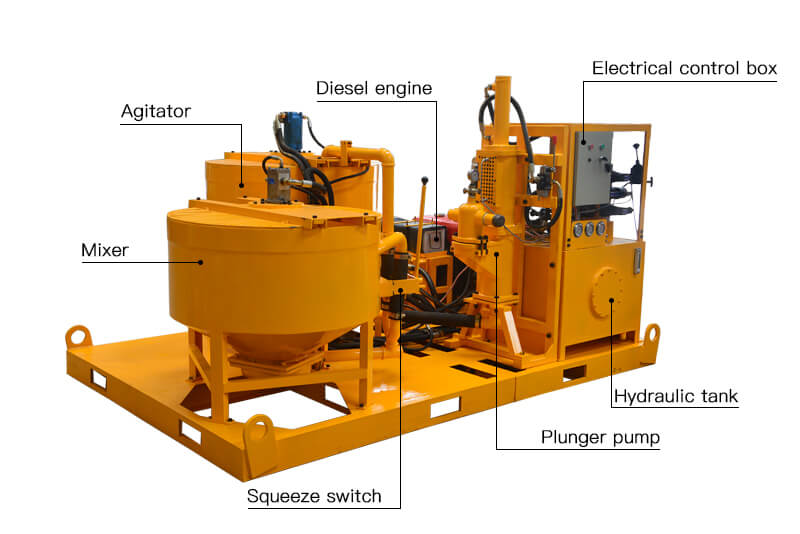

1. Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame;
2. Have low pressure and high pressure, stepless speed regulation;

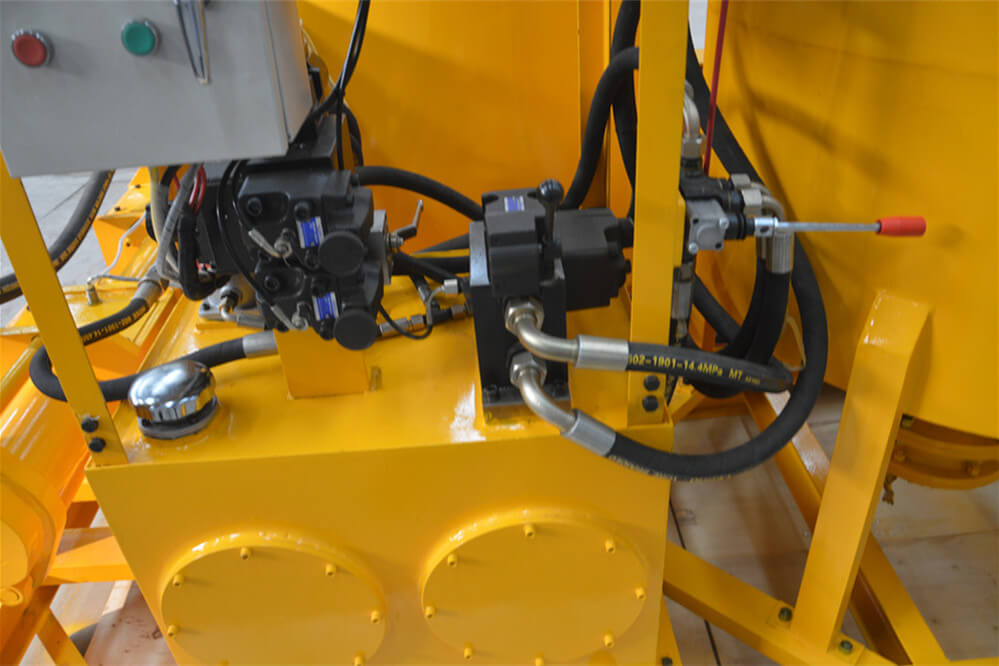

3. Yuken relief valve and directional valve for hydraulic system of grout pump;
4. Butterfly valve of mixer and agitator;

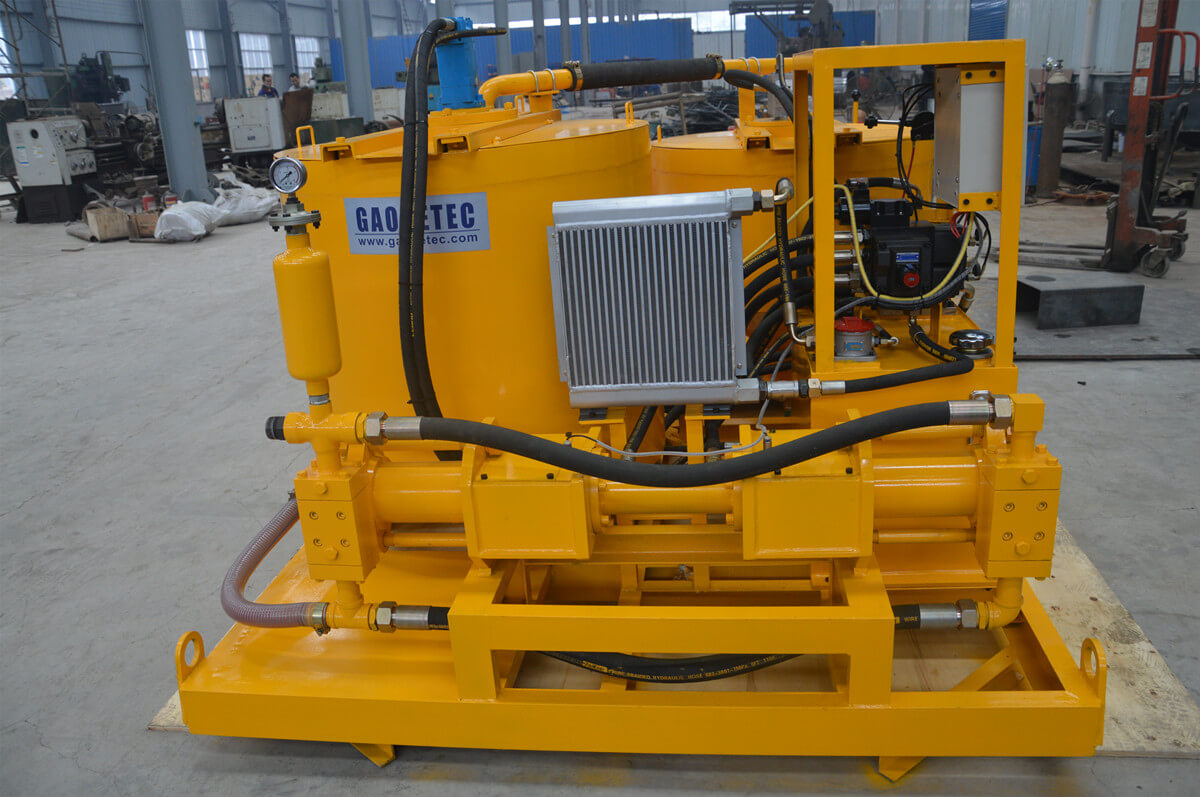

5. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

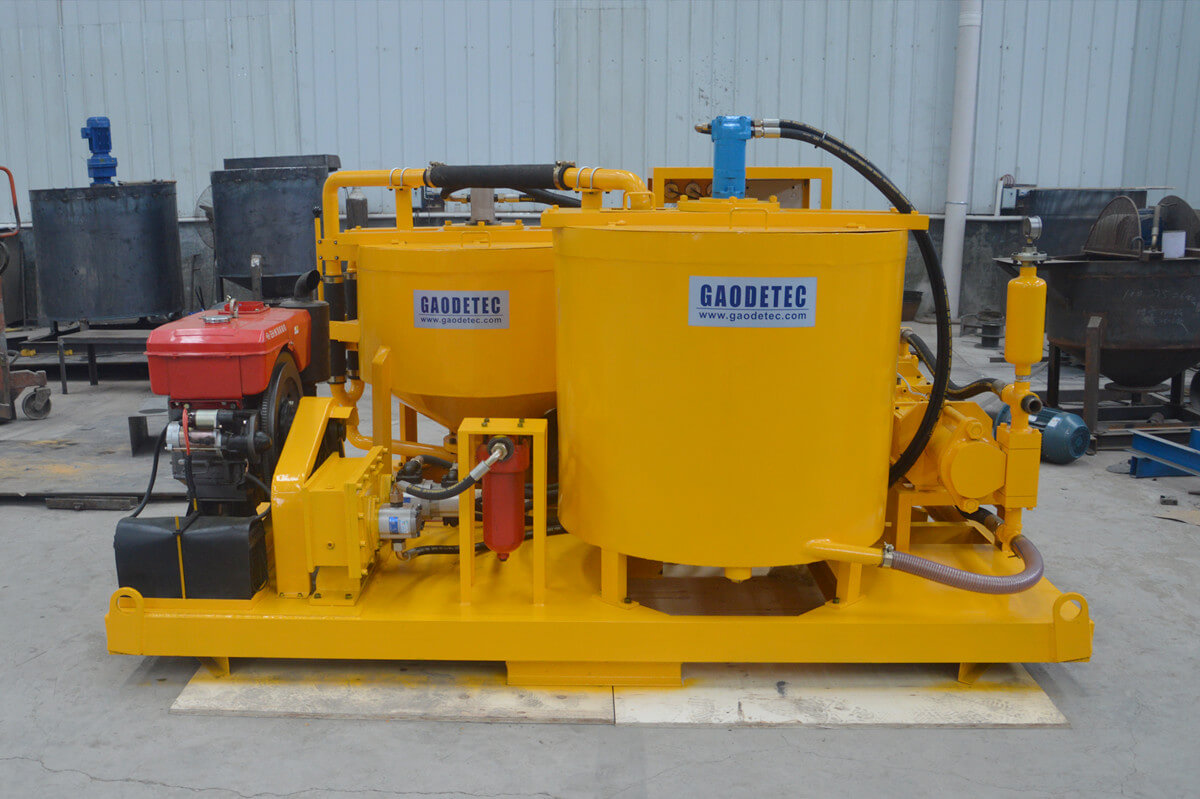

6. Full hydraulic drive, diesel engine;
7. Operation and maintenance are simple;
8. With ISO, CE certificate.

Type	GGP400/700/100PL-D Grout Station
Diesel engine	25kw/36HP
Rotating speed of engine	2200r/min
Dimensions	2900*1900*1750mm
Weight	1900kg

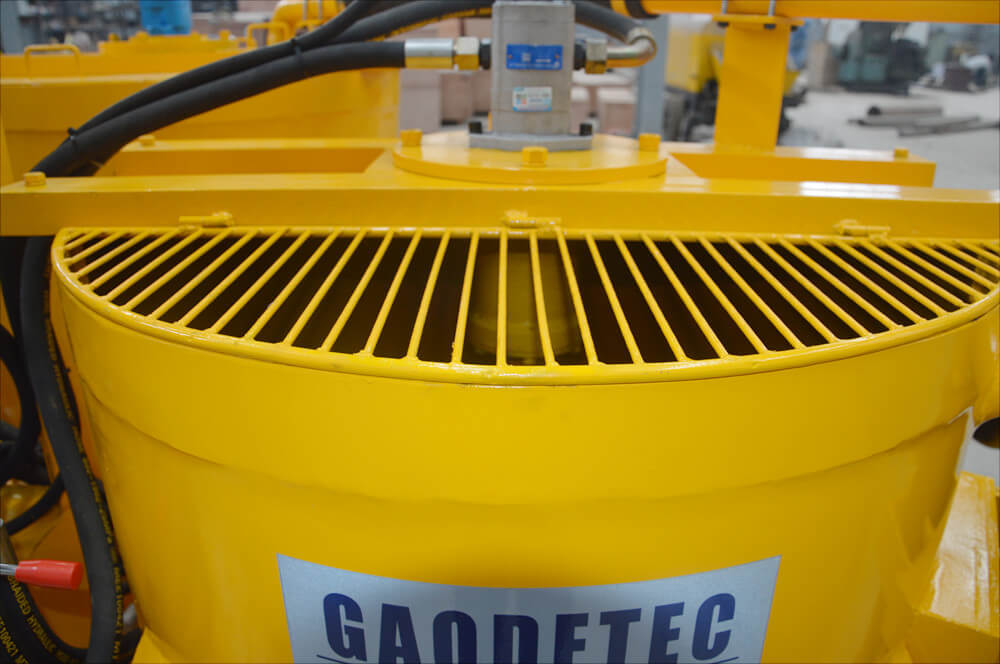

Mixer
Capacity	400L
W/C ratio	0.5-1
Rated Rev.	1500rpm
Agitator
Volume	700L
Rated Rev.	36rpm
Pump
Type	Hydraulic Plunger pump
Pressure and Output	25 Bar (low pressure)   100L/min
	50 Bar (high pressure)  40L/min
