500L portable electric refractory pan mixer

We are a portable electric refractory pan mixer manufacturer. We have all kinds of refractory pan mixer with different mixing capacity to choose. Their mixing capacity respectively is 100kg, 250kg, 300Kg, 500kg, 800kg and 1000kg, etc.

If the customer has other requirements for the mixing capacity or the appearance of the machine, we can also provide customized services. Such as: the mixing capacity and height of the portable electric refractory pan mixer can be customized.

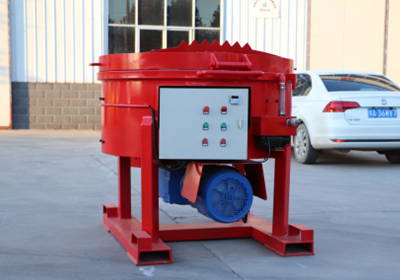

Our 500L portable electric refractory pan mixer is more popular. It is a small size refractory pan mixer and driven by electric engine. And it is equipped with mobile device, so the operator can easily move the mixers on the construction site.

Our 500L portable electric refractory pan mixer is widely used in mixing refractory materials, castables, friction materials, chemical materials, precast concrete, mortar, aggregate mixing and glass materials, etc. It also could work together with refractory wet shotcrete machine, used for refractory materials spraying project in the steel industry.

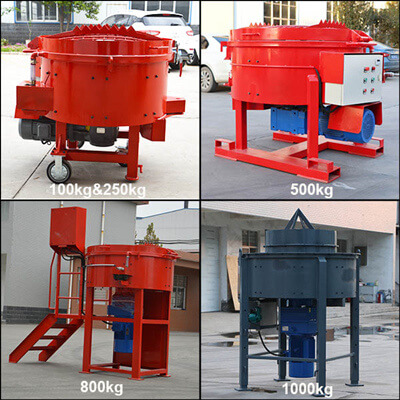

In addition, we also have other size electric refractory pan mixer.

100Kg and 250Kg portable electric refractory pan mixer also equipped with mobile device, so the operator can easily move the mixers on the construction site.

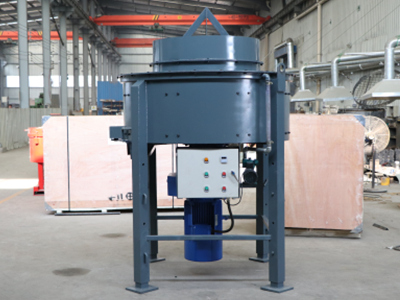

500Kg, 800Kg and 1000Kg refractory pan mixer is much heavier than 100Kg and 250Kg. In order to keep the refractory pan mixer steady, we did not equip these three electric refractory pan mixer with mobile device, but adopted the method of adding forklift holes.

In order to protect the engines of 500Kg, 800Kg and 1000Kg, these three electric refractory pan mixer are also equipped with a soft start device, which can start the engines smoothly.

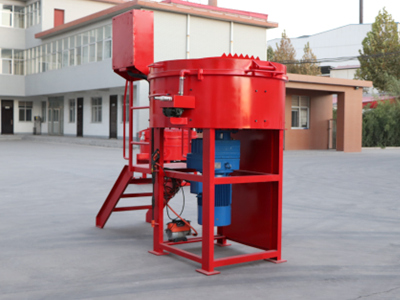

For 800Kg and 1000Kg electric refractory pan mixer, we have added ladders, operating platforms, and high-pressure water flushing devices.

How to operate refractory pan mixer:

1. After the portable electric refractory pan mixer is energized, start (stop) the switch through the power distribution cabinet with protection function.

2. When the equipment enters the normal working state, add one or more refractory materials or objects that need to be stirred and mixed into the mixing plate of the portable electric refractory pan mixer.

3. Add a certain amount of water to the refractory castable pan mixer through a water pump and stir together. After the materials are evenly mixed, open the discharge port and transport it to the location you need through the discharge tank.

4. After all the materials in the portable electric refractory pan mixer are drained, close the material door to complete a mixing cycle.

Contact us for detailed information about portable electric refractory pan mixer:

If you are interested in our portable electric refractory pan mixer, please help us confirm the following questions:

1. What is mixing materials with our machine, for mixing refractory, castable or others?

2. What is the mixer capacity you need, 100kg/batch, 250kg/batch, 500kg/batch, 800kg/batch, 1000kg/batch or others?

3. What is the voltage you need, here is 380V, 50HZ, 3 phase, is it OK for you?
