Beverage Industry Wine Making Filter Press

2019-12-19 18:14:14

Beverage Industry Wine Making Filter Press
Beverage industry wine making filter press is used for solid liquid separation of various suspensions. It is widely used in medicine, food, chemical industry, environmental protection, water treatment, electronics, textile, electroplating and other related industries.
beverage industry filter press, suspension is pumped into each closed filter chamber of the filter machine. Under the action of pressure, filtrate is filtered through, and the layer, sincere film or other filter materials are discharged through the liquid outlet of the membrane. The filter residue is left in the plate and frame to form filter cake, thus achieving the purpose of solid liquid separation.

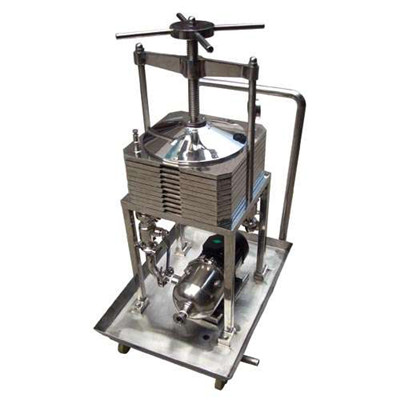

beverage industry filter press


The beverage industry filter press is made of SUS304 or SUS316L high quality stainless steel, which is corrosion-resistant and durable.The filter plate adopts screw thread structure, which can change different filter materials according to different filtration media and production process (primary filtration, semi-fine filtration and fine filtration) (directly select microporous filter membrane to achieve the purpose of aseptic filtration). Users can also reduce or increase the number of layers according to the size of the filter to fit the production needs.

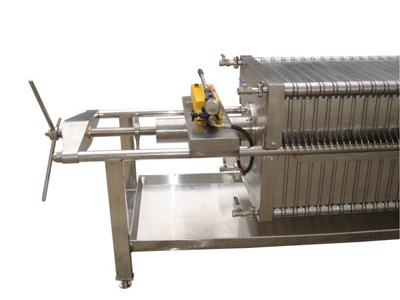

beverage industry wine making filter press


At the same time production cloth non - leakage plate frame filter. When this machine is working, it is pressurized and sealed to filter, the liquid material has no loss and the liquid has a good degree of clarification. Moreover, according to the needs of users, special multistage filter device can be made, with one stage filter material and two stage filter material, which can save time and improve the filtration accuracy.

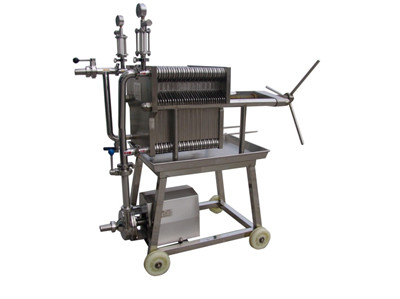

wine making filter press


All sealing parts of the wine making filter press adopt silicone rubber sealing ring, high temperature resistant, non-toxic, no leakage, good sealing performance. The beverage industry filter press can also be customized according to the user's needs of automatic backflow device, when the pump stopped rotating, open the backflow valve, all sediment automatic discharge (with exhaust function), and at the same time with clean water from the backflow pipe for recoil, very convenient.
