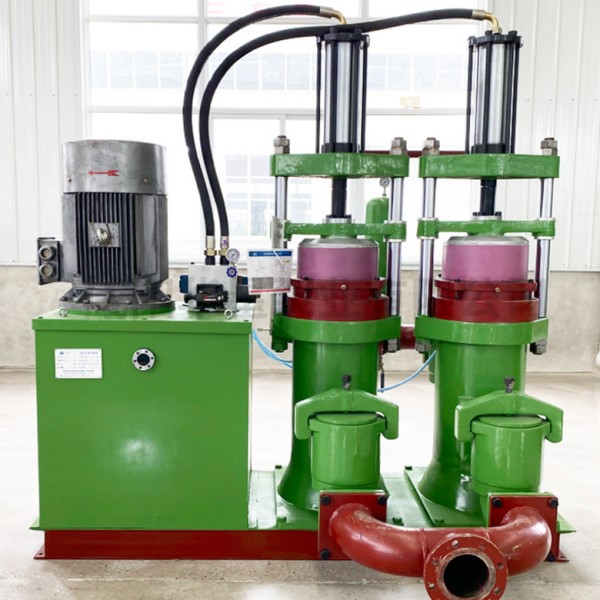

YB ceramic plunger mud pump is a vertical double-cylinder porcelain plunger pump. It is divided into two types: quantitative and variable. It is specially designed for pressure conveying of mud-like working medium. Quantitative pumps can be used in spray dry noise towers and other pressure conveying systems; variable pumps can adapt to the requirements of flow and pressure changes in the dehydration process of the filter press.



Using α-type alumina as the plunger, it has extremely high wear resistance and corrosion resistance. The ceramic plunger mud pump for sale has stable and reliable operation, high output pressure and metering, small pressure fluctuation, low noise, acid and alkali resistance, convenient operation and maintenance, and long service life. Long and other characteristics, it is an ideal product for various types of solid-liquid separation when used with a filter press. Compared with centrifugal pump, screw pump and rotor pump, the pump has the following advantages: low pressure power, low wear and long life, adjustable constant temperature function, maintenance cost is only one tenth of centrifugal pump, screw pump and rotor pump , reducing the cost of use and power consumption for users.



The ceramic plunger pump can automatically control the output flow and keep the set pressure unchanged. Set a pressure value according to the actual working conditions. When the pressure rises to the set value, the pressure stops rising. At this time, the flow of the pump can be between zero and maximum flow according to the actual situation. It is necessary to automatically change the operating speed and keep the set pressure constant. Driven by hydraulic pressure, the pressure is high, the pressure adjustment is quick, and the operation is stable. The α-type alumina ceramic plunger is used for less wear, convenient operation, installation and maintenance, low cost of use and long service life.



This ceramic plunger pump is mainly used for conveying clean water, mud, pulp, suspension or paste. When used with filter press in the ceramic industry, it fully meets the requirements of the filter press process, with large flow at low pressure and small flow at high pressure to ensure low and uniform water content in the mud. The pump is hydraulically driven, running smoothly and reliably with low noise. , high pressure, small mud pressure fluctuation (not more than 1.8MPa), the ceramic plunger mud pump can also be used for ceramic mud spray drying, high pressure spray combustion of coal water slurry, clean (sewage) water, various suspended liquids, mud, sand-containing liquid long distance conveying, can also be used for filter press feed.

1. The wear-resistant plunger is fired from alumina ceramics and is finely ground. The hardness is above HLC8.5 and the surface roughness is 0.4um. The plunger and the conveyed material have no shearing motion. It is suitable for conveying sand and solid particles.

2. Strong self-suction capacity: plunger type vacuuming method, self-suction capacity is 4-8 meters (the specific gravity of the material determines the change of the suction stroke).

3. Adjustable constant pressure automatic variable: the working pressure of the plunger mud pump is adjustable, and can be adjusted arbitrarily within the range of 0-20 kg. The adjusted pressure will not change due to the change of the output flow of the pump, and the set pressure will be maintained. Even if the outlet of the running pump is shut off, the pressure will not change. (The change cannot exceed the large flow of the pump, and the flow can be zero)

4. High-pressure and high-efficiency: common models with a maximum pressure of 20 kg. When the pressure is greater than or equal to 5 kg and the flow rate is the same, the motor power of the plunger mud pump is 1 to 2 models smaller than other types of pumps.

5. Simple operation: Just tighten or loosen the pressure regulating valve to adjust the pressure. After adjusting the pressure, lock it, and there is no need to adjust it later.

6. Low cost of use: The wearing parts of the pump are valve plates and plunger seals. The replacement cycle is once every 3-6 months for ceramic mud and 6-12 months for municipal mud.

7. Long service life: The service life is at least 15 years.
