20m3 per hour fully automatic container type cement grout mixer is a highly efficient and automated cement grouting mixing equipment. The equipment adopts a containerized design, compact structure, easy to transport and install. Its mixing capacity reaches 20m3/h, which can meet the needs of large-scale cement grouting operations.
Features of GMA20 20m3 per hour full automatic container type cement grout mixer:
1. High-speed colloidal grouting mixer:
The mixer is the core component of the system and is designed for high-speed mixing to produce high-quality colloidal grouting.
The mixer is equipped with efficient mixing blades inside, which can fully mix various raw materials in a short time.
2. Main pipeline valves:
All main pipeline valves are pneumatic valves, which have the advantages of fast response speed and high control accuracy.
Pneumatic valves are driven by compressed air and can be remotely controlled and automated.
3. Automatic cleaning function:
Both the mixture circulation pump and the agitator have automatic cleaning functions, which can automatically clean the inside of the equipment after mixing is completed to reduce residue and pollution.
The automatic cleaning function improves the hygiene performance and reliability of the equipment.
4. Cement addition method:
Cement can be automatically added to the mixer through the cement silo or screw feeder.
The cement silo stores a large amount of cement, and the screw feeder is responsible for accurately metering and conveying cement to the mixer.
5. Ternary or quaternary compound mixing capability:
The system supports the mixing of ternary or quaternary compounds, which can accommodate one or two liquid components and one solid component.
This flexibility enables the system to adapt to different ratios and process requirements.
6. Operation mode:
The system provides two operation modes: fully automatic mode and manual mode.
In fully automatic mode, the system can automatically complete tasks such as mixing and conveying according to preset parameters; in manual mode, the operator can manually control each component.
7. Operation and maintenance:
The system is designed to be easy to operate and maintain, and the control panel is intuitive and easy to understand, which is convenient for operators to get started quickly.
The equipment is easy to maintain, and the main components are easy to disassemble and replace.
8. Processing capacity:
The system can handle particles with a maximum particle size of 5mm and is suitable for many different types of grouting materials.
9. Lighting equipment:
The system is equipped with ceiling lights to illuminate different working areas and improve the visibility and work efficiency of operators.

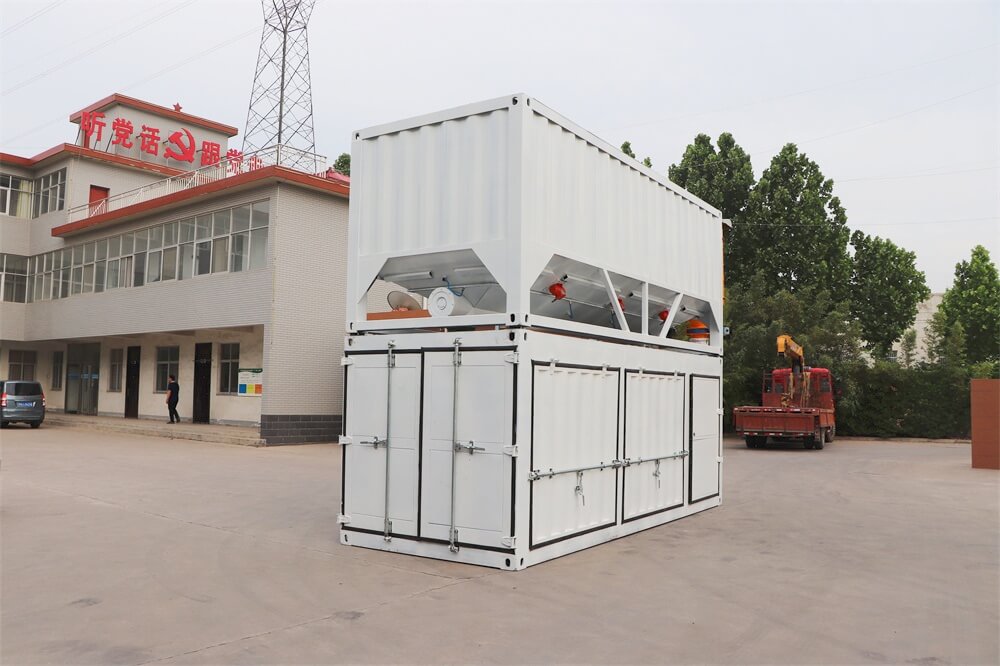

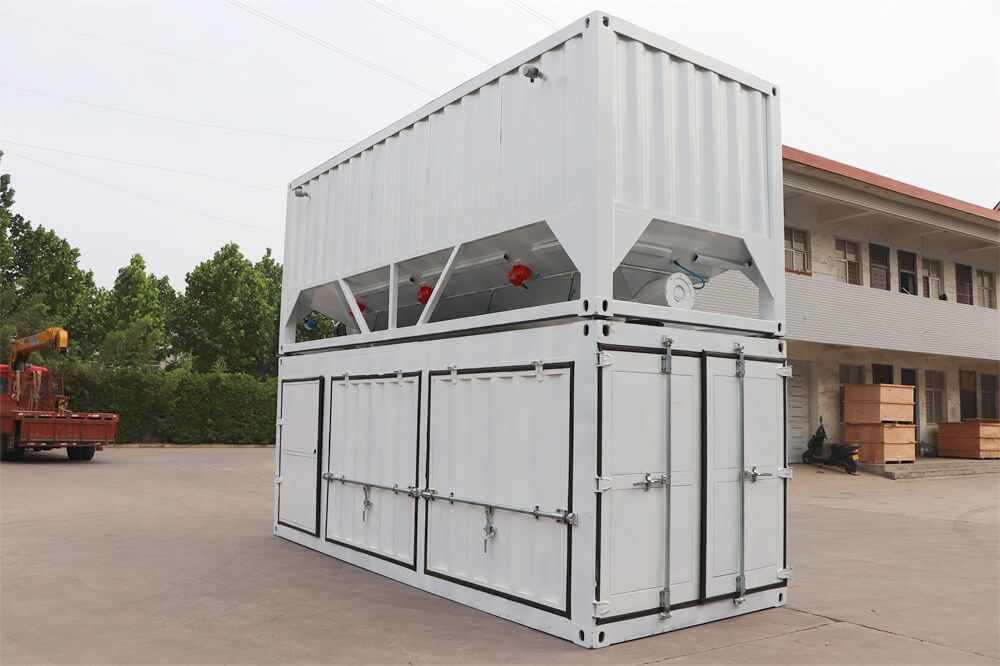

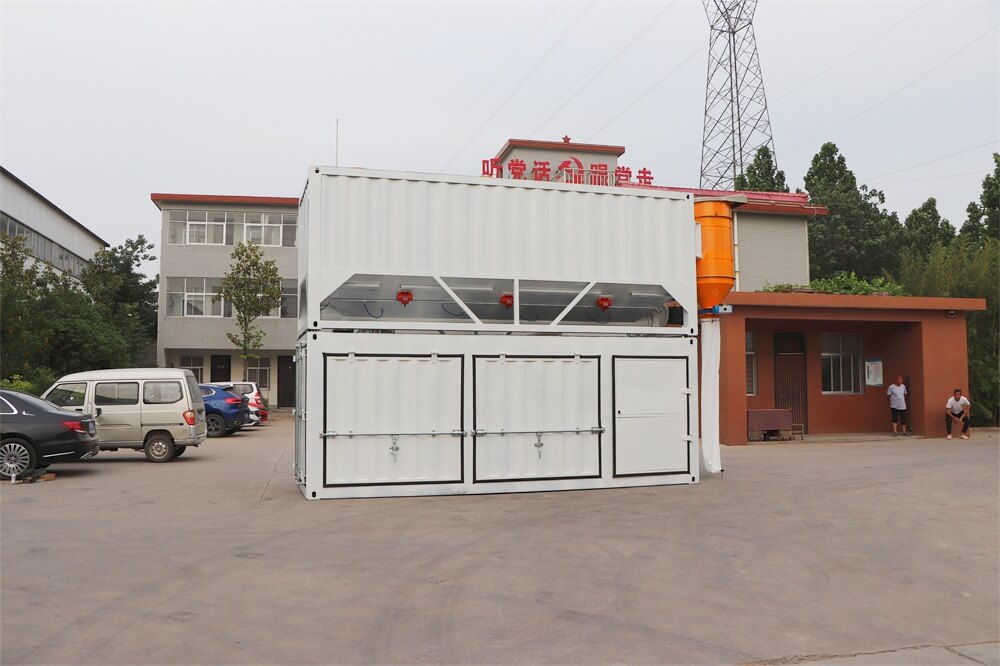

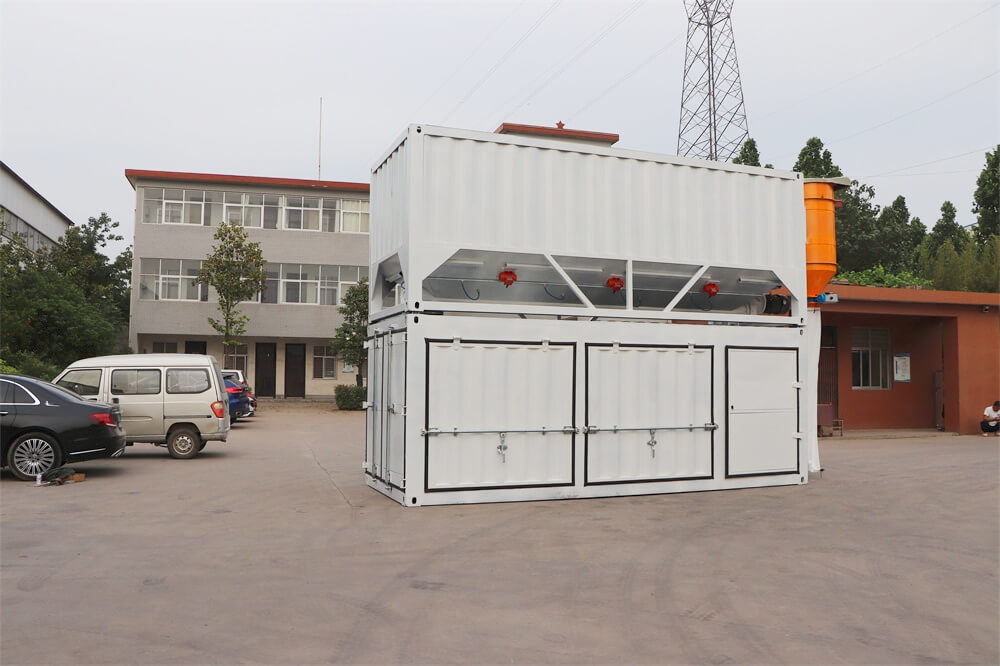

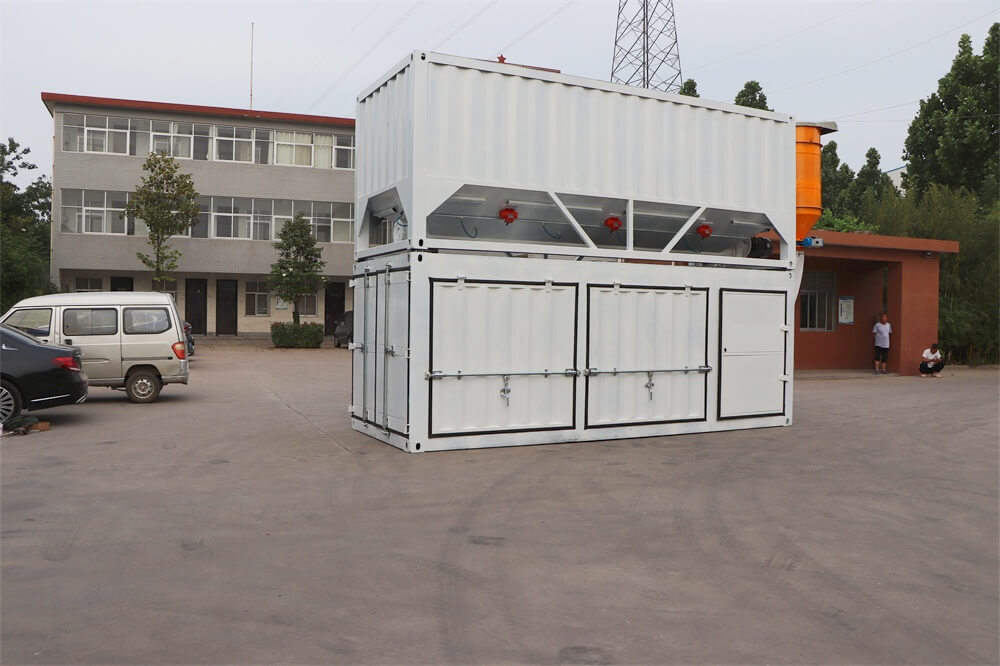

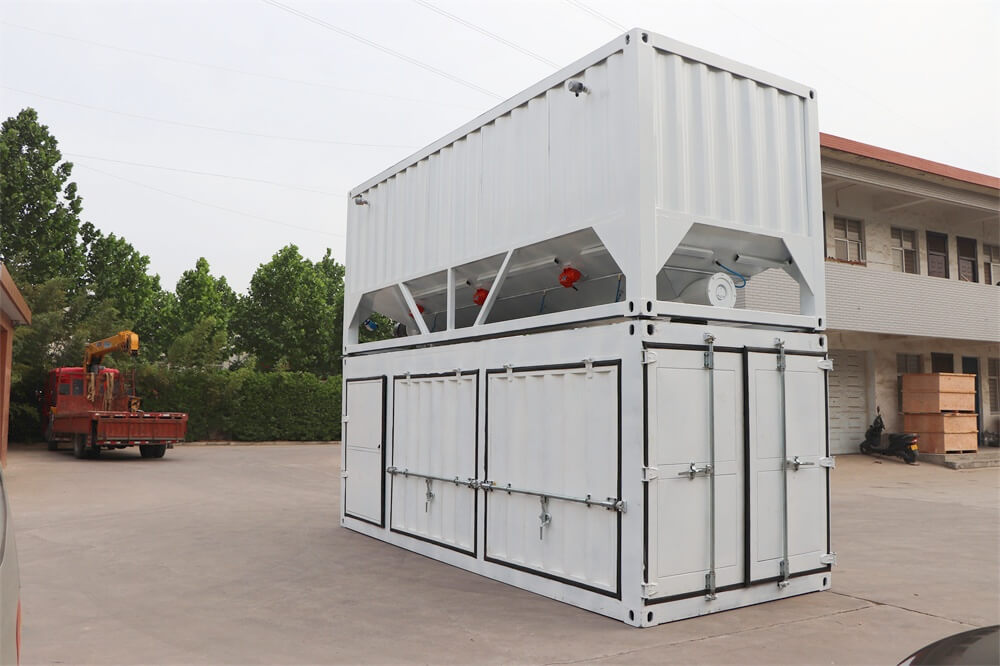

10. Installation and layout:
The system can be placed directly in a 20-foot cabinet for easy transportation and on-site layout.
The compact design makes the system occupy a small area and is suitable for various construction environments.
In summary, the
GMA20 automatic grouting mixing system is an efficient, flexible, easy to operate and maintain equipment that can meet the needs of different engineering projects for grouting mixing. Its compact structure and comprehensive functions provide a reliable solution for construction sites. If you want to get more information or quotation of our container type cement grout mixer, please contact us by Email address:
