Standard and Customized Electric Pump Station For Hydraulic Jack

2017-09-28 11:18:21

Electric pump station is a power tool, you should carefully read all instructions, warnings and cautions before using, to comply with security measures to avoid damage to persons or equipment occurs when operating the equipment.

Warning: Setting the maximum pressure is 63Mpa, non-arbitrary non-professionals regulated pressure valve factory prior to the pumping station. The Company unsafe operation and damage caused by incorrect operation irresponsible

Tip: Use the 46 # or 32 # hydraulic oil for the pump station.

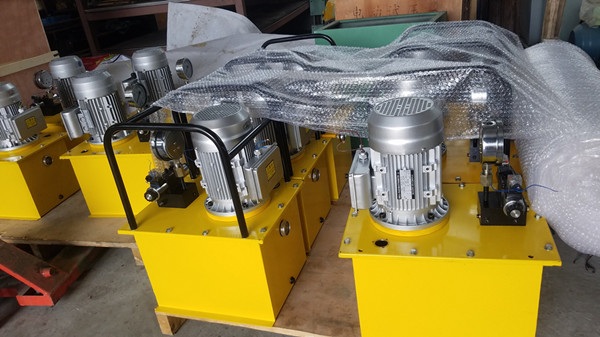

Electric pump station is a three-phase asynchronous motors, low voltage pumps, high pressure pumps, tank composed. Small volume, high pressure, light weight, the advantages of simple structure, and it is equipped with pressure gauges connected to the standby interface.

The following is the standard model of our electric pump for your reference.


Type

Power

High pressure

High pressure flow

Low pressure Flow

Oil capacity

ZB-0.55

0.55 kw

63 MPa

0.4 L/min

1 L/min

7L

ZB-0.75

0.75 kw

63 Mpa

0.7 L/min

2.4 L/min

16L

ZB-1.5

1.5 kw

63 MPa

1 L/min

6 L/min

26L

ZB-2.2

2.2 kw

63 MPa

2.4 L/min

6 L/min

42L

ZB-3

3 kw

63 Mpa

3 L/min

6 L/min

42L

ZB-4

4 kw

63 MPa

4 L/min

9 L/min

60L

ZB-5.5

5.5 kw

63 MPa

5 L/min

10L/min

90L

ZB-7.5

7.5 kw

63 Mpa

7 L/min

10L/min

120L

ZB-11

11 kw

63 Mpa

9 L/min

20 L/min

150L


We also could customize pump station for you, the electric pump station can be remotely controlled by handle, with wire or without wire, it is like the below picture.
