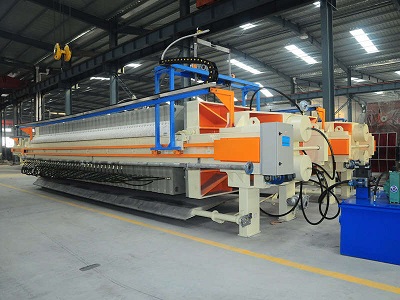

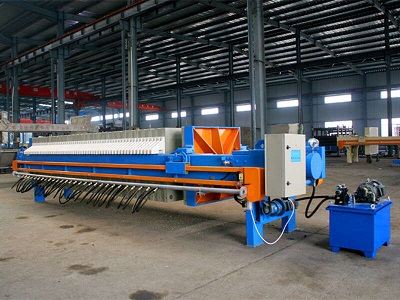

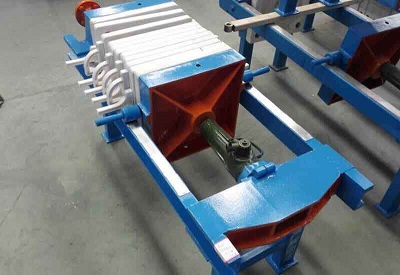

Filter press for edible oil ( palm oil ) made by high quality carbon steel, consists of frame, jack, press plate, thrust plate, filter,plate and filter cloth.

Gaodetec filter press for edible oil is solid-liquid separation machine, also widely used in coal washing, tailing disposal, ceramics, pharmaceutical, metallurgy, mining, chemical industrial, alcohol, petroleum, fuel, edible, medicine, sewage treatment, de-waxing, oil filtration, waste water treatment, environmental protection, textile, printing,dyeing, paper making,sewage treatment, cyanide leaching process and other fields.

The filter is made of low carbon steel plate, cast steel, channel steel and hollow profiles through various processes (such as cutting, welding, lathe, grinding, assembly and coating). These filters are widely used to filter edible oi and palm oil extracted from the oil seed discharge to remove impurities and sludge content. They can also be used to filter other types of extracted oil. The crude oil is pumped into a vertical leaf filter press or filter press, which filters the impurities and sludge before they are pumped to the oil storage tank.

Working principle of press filter:The pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate, Thus realize solid liquid separation. In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port.

Filter press for edible oil ( palm oil ) is equipped high-pressure and low-noise oil pump, high oil filtering rate, low maintenance cost and energy consumption. Suitable for clearing and filtering the different edible oil and palm oil, also it could clear the waste water,waste cooking oil . Use the smaller mesh filtering cloth ,which could be used for clearing the bio diesel oil.

Filter presses can be divided into plate and frame type and recessed plate and are used for soild-liquid separation of various suspending liquid in intermittent pressure filtration. Filter press are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid part and liquid are separated through filter cloth. The products are simply in structure but good in separating effects, convenient in use.

The filter plate is made of pure PP material, so that the filter plate has excellent corrosion resistance, wear resistance and high temperature resistance. The filter plates are processed under CNC presses with pressures of 1,000 tons, 2000 tons, 2500 tons, 3000 tons, and 3800 tons respectively, so as to obtain good pressure resistance and not easy to deform.

We have many kinds of filter press for your option: membrane filter press, chamber filter press, cast iron filter press, round plate filter press, stainless steel filter press, etc. If you are interested in our filter press machine, please contact us.
