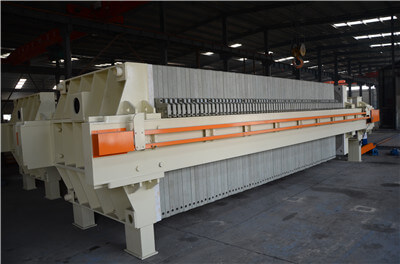

Membrane filter press is one kind filter press that using the membrane filter plates. In the process of operation, in the end of feeding the material, high hydraulic liquid or gas(0.8-2.0mpa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered, which is usually called membrane squeeze.

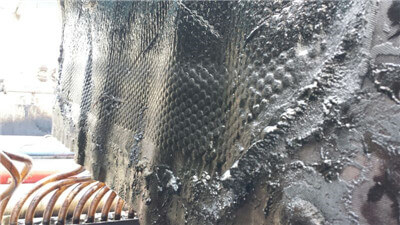

The China membrane filter press for sale chamber is formed by mixed membrane filter plates and chamber filter plates, the feeding pump feeds the sludge into the chamber and through the filtration of filter cloth, the solid and liquid are separated. When the solids formed the filter cake, then blow the air or water into the membrane to further dry the filter cake.

The membrane filter press made in China is specially designed for viscous and glutinous material and who has higher requirements about moisture.

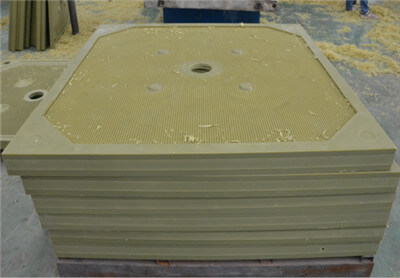

The filter plates of China membrane filter press for sale are made of strengthened polypropylene (PP) by molding, the membrane and PP filter plates are inlaid together to make it firm and stable and assure its long lifetime. Also, it is equipped with multiple safety devices,which assures the safety of the workers and the stable working of the filter press.

Our membrane filter press made in China has the below advantages:

1. The use of low pressure filtration and high pressure can greatly shorten the entire filtration cycle.

2. The material is TPE elastomer, the feeding pressure can reach 1.6MPa, and the pressing pressure can reach 2.0MPa.

3. The moisture content is greatly reduced, saving subsequent costs.

4. Squeeze can choose air, inert gas, water, oil and other fluid media to meet the needs of different industries.

5. Strong corrosion resistance, basically suitable for all solid-liquid separation operations.

6. Diaphragm filter plate has the characteristics of anti-fatigue, anti-aging and good sealing performance.

Compared with the ordinary chamber filter press, in the case of the same filtration area, the volume of the filter chamber of the membrane filter press will be smaller than that of the ordinary chamber filter press. This is because the membrane plate of the membrane filter press needs to inject water or air or other fluid media in the second press to press the filter cake for the second time, which ensure the filter cake moisture content lower than normal cake. It cannot be used to hold materials. Only the chamber plate of the membrane filter press can hold put materials. In the case of the same filter plate size, the thickness of the filter plate of the filter press will be higher than that of the ordinary chamber filter press.

If you are interested in our membrane filter press, or you working in the wastewater treatment, Sewage treatment, various concentrates and tailings, metallurgy, chemical, pharmaceutical, food, ceramics and other industries etc want to know more about membrane filter press, please do not hesitate to contact us: info@gaodetec.com
