Full Hydraulic Drive Grout Plant for Dam Foundations

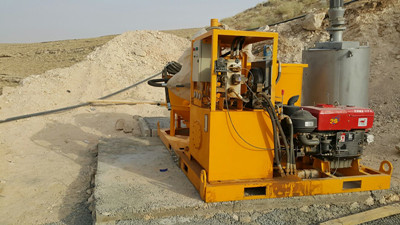

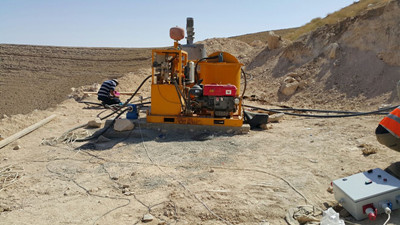

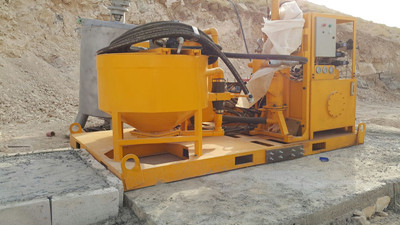

Full hydraulic drive grout plant is combination of mixer, agitator and hydraulic double cylinders piston grout pump in one skid, we also called it 3 in 1. The grout plant was mainly designed for dam foundations.

The working process is, put cement water etc. into mixer tank, after completely mixed, then put the slurry to agitator, the slurry in the agitator tank also be mixed in slow speed to avoided sedimentation. The pump’s suction is connected to the outlet of the agitator. Turn on the grout pump to start grouting. The whole process is continuous because of the mixer agitator pump all on one station.

The grout plant is hydraulic drive to control the grouting process more stable, more continuously.
