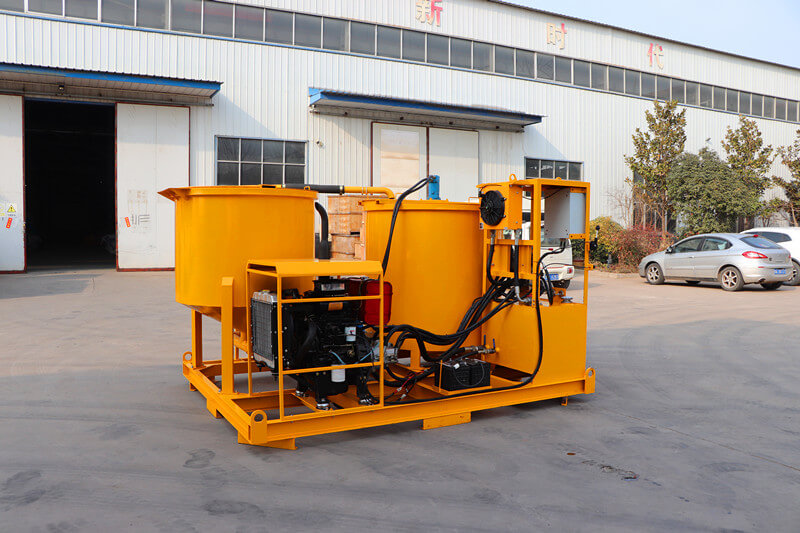

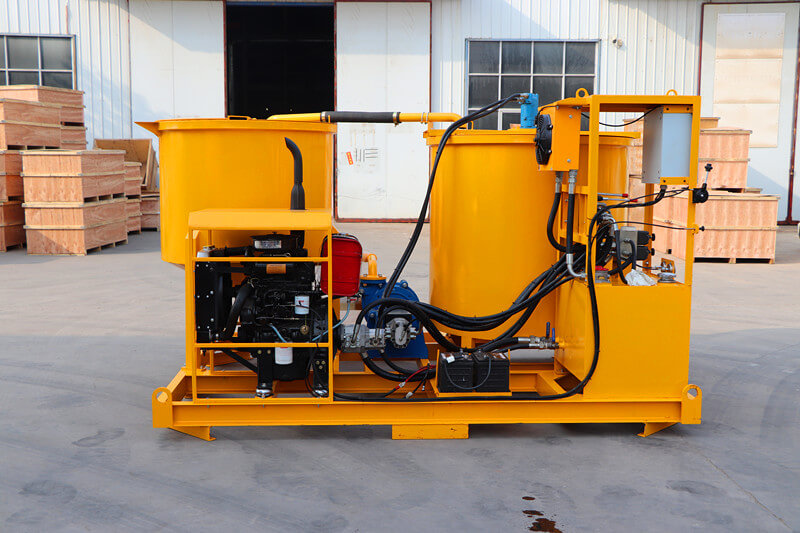

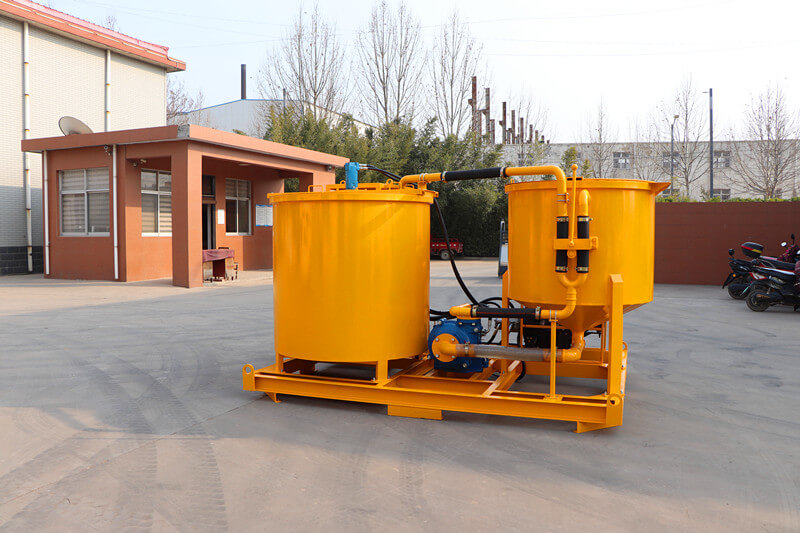

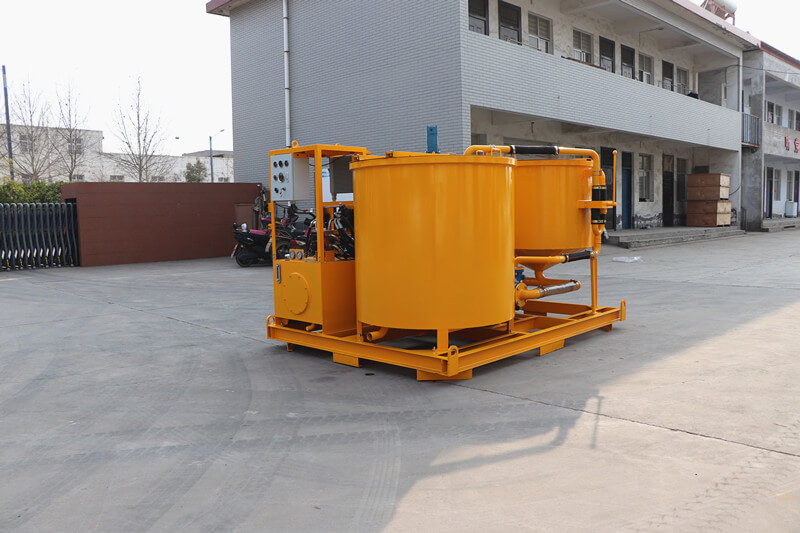

A grout mixer with an agitator working in conjunction with a grout pump adopts high-speed strong vortex double-force circulation, multiple shearing, and simultaneous tearing The crushed solid body fluid is highly dispersed and mixed for pulping, and has pumping capability. Compared with general pulping machines and blade mixers, it has the characteristics of faster pulping speed and more uniform slurry mixing. It is the key equipment for large-scale pulping station one.

Here's how the grout mixer with agitator system works:

1. Grout mixer: The grout mixer is designed to blend the components of the grout mixture thoroughly. It usually consists of a mixing tank or drum where materials like water, cement, and sand are added. An agitator, which can be a set of blades or paddles mounted on a rotating shaft, is submerged in the tank. When activated, the agitator rotates, ensuring the ingredients are mixed evenly and consistently to the desired consistency. Proper mixing is crucial to achieve the right viscosity and homogeneity in the grout, ensuring its effectiveness and preventing separation or clogging during pumping.

2. Agitator: The agitator plays a significant role in maintaining the mix's consistency by continuously stirring the grout while it's in the mixer or waiting to be pumped. This is particularly important because grout can settle over time, especially if it contains particulates that tend to separate. Continuous agitation ensures that the grout remains workable and ready for pumping without any lumps or inconsistencies.

3. Grout Pump: Once the grout has been adequately mixed, it is transferred to the grout pump. Grout pumps are specifically designed to handle the viscous nature of grout and can be either piston or rotor-stator type pumps. They apply pressure to push the grout through a hose or pipeline to the exact location where it's needed. This allows for precise placement, even in hard-to-reach areas or deep cavities.

4. Combined Operation: In operation, the grout mixer with agitator and the grout pump work in tandem. As the mixer blends the components to form the grout, the agitator keeps it well-mixed. The pump then draws the prepared grout from the mixer and forces it through a hose or pipeline to the injection point. This continuous flow ensures that the grout is applied evenly and efficiently, reducing waste and increasing productivity on the job site.

5. Benefits: Using a grout mixer with an agitator alongside a grout pump offers several advantages, including increased efficiency, improved mix quality, reduced labor, and the ability to work in remote or confined spaces. It also allows for consistent grout delivery, which is essential for achieving structural integrity and aesthetic appeal in applications like tile installation.

Overall, this setup is a reliable and efficient method for handling grouting tasks in construction, civil engineering, and maintenance projects, ensuring both speed and quality in the application process.
