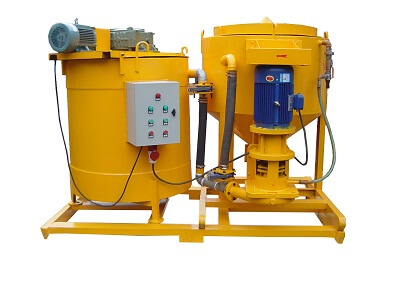

Grout plant unit is a mixer-grouting group, equipped with the squeeze-type hose pump, the mixing tank, the agitator tank, electric control system and frame. It is applied for the mixing and pumping of the cement slurry or similar slurries.

When working, water and cement according certain ratio is added into the mixing tank, then, the materials work in the high speed continuous flow to be compounded equably under the action of the mixing pump. The compounded slurry is discharged into the storage tank through the updated operating valve and then sucked into the hose pump. Same as the work principle of the squeeze-type hose pump, the slurry is pumped continually.

Gaodetec mixing and pumping equipment it is a combination of mixer, agitator and grout pump in one plant. Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.

Gaodetec is one leading grout plant supplier in China. Gaodetec has tens types grout plant supply, also could supply customize grout plant according to customer demands. Now Gaodetec mainly supply electric grout plant and diesel engine drive grout plant.

While according to the difference of the grout pump in the grout plant, also have single piston pump, double piston pump and plunger grout pump for option.

Features of cement grout plant unit:

Hydraulic reversing and Hydraulic drive for vertical grouting pump;

Grouting pressure and output are step-less adjustable;

Using rectangular agitator, makes the plant has compact structure, small size;

With high speed and low speed, by rotating ball valve switch;

With function of record and display grouting pump reciprocating times by a counter;

Mixer and agitator switch is a squeeze handle that is easy to operate and reliable.

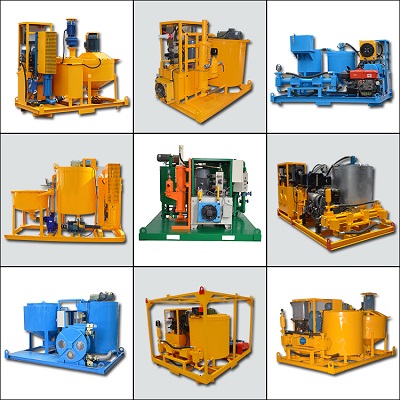

In addition, we have grout mixer, agitator and grout pump. Similarly, we also have many different output grout plant unit models.

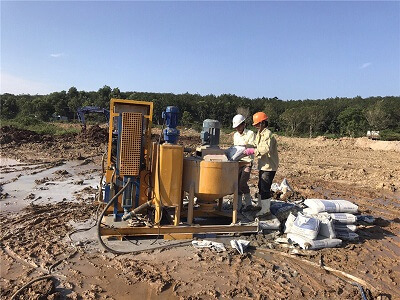

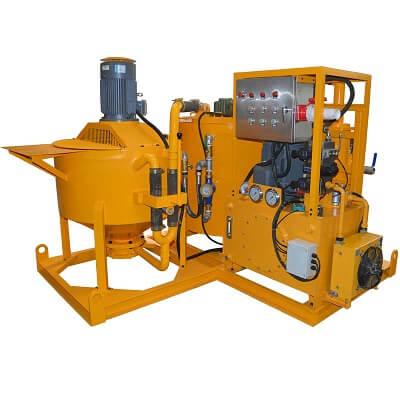

Gaodetec grout mixing and pumping unit mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small space.

Many customers have feedbacked that the product is very useful, we also have detailed online after-sales and guidance, so don't worry about product usage.

From years of experience Gaodetec has developed its own R&D and technician teams, which supports further development and customized service for clients. In Grout plant equipment, grout mixer volume from 200L to 800L, grout agitator volume from 300L to 1200L, grout pump flow from 0 to 200L/min and pressure from 0 to 100 bar.

If you have other needs, please contact us. email address: info@gaodetec.com
