Skid type electrical driven grout pump plant for micro pilling could be used for mixing construction materials and pumping bentonite slurry in tunnel excavation projects, foundation treatment, municipal, highway, railway, hydropower, construction, mining and other construction site for grouting.

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;

2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;

3. Construction - pavement under sealing, slab jacking and slab raising;

4. Marine - underwater foundations, piers, breakers, shoreline foundations;

5. Mining - tunnel lining, contact grouting, shaft waterproofing;

6. Utilities - encasement, waterproofing, slope line grouting;

7. Geotechnical engineering- deep well casing, monitor wells, well sealing and abandonment.

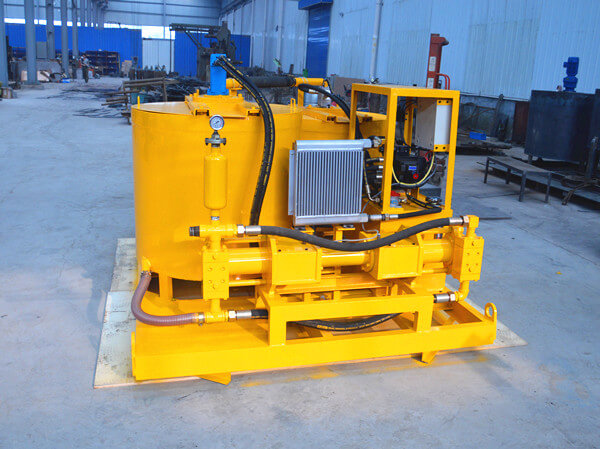

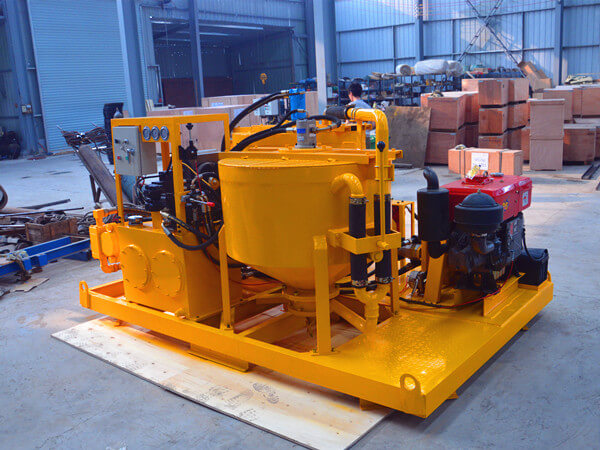

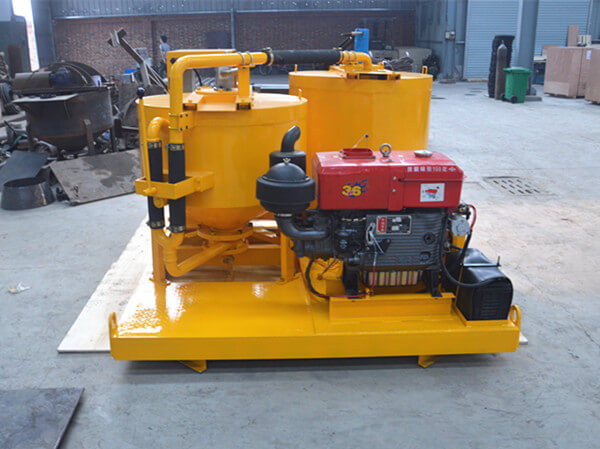

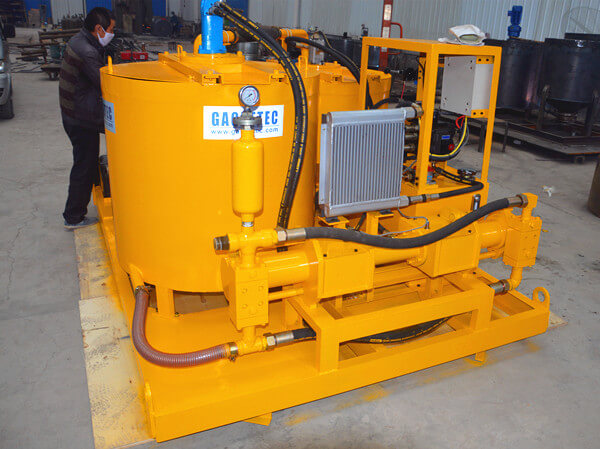

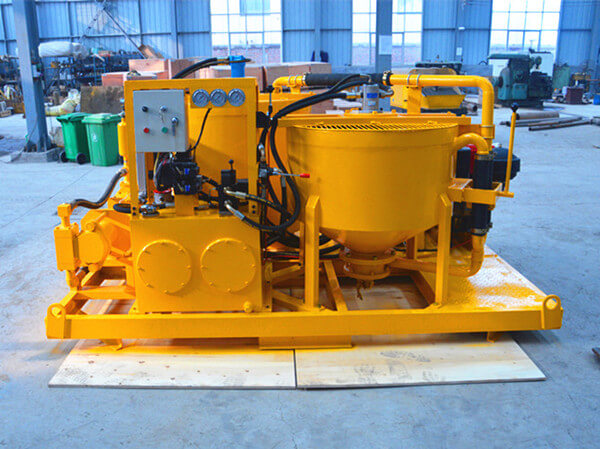

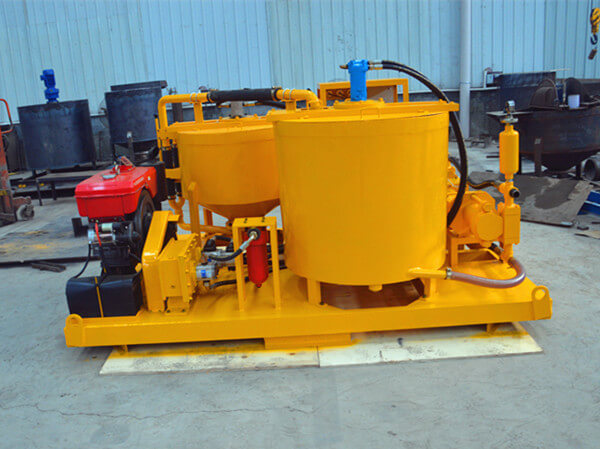

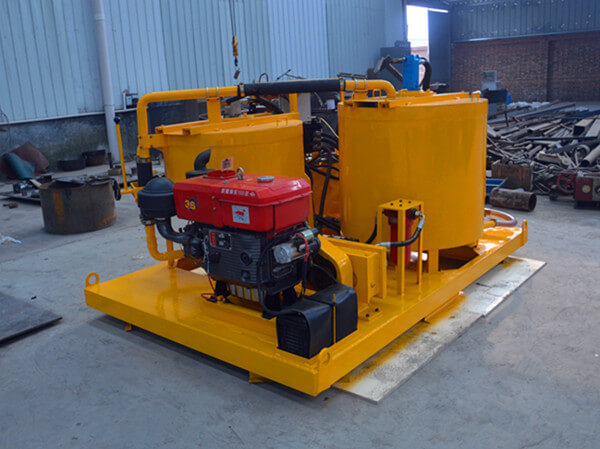

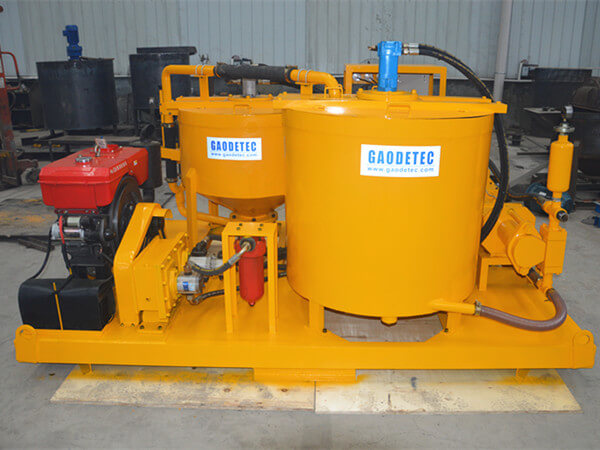

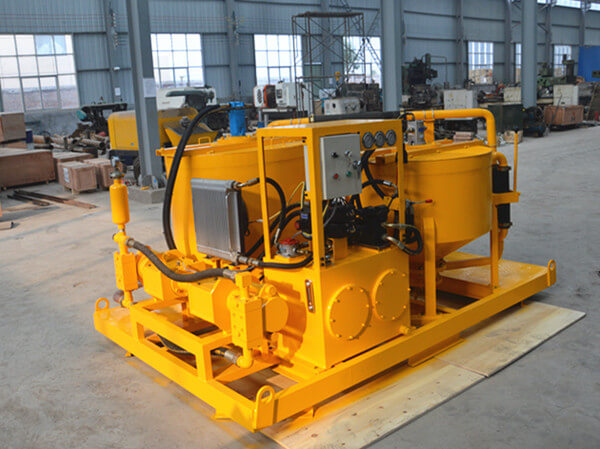

The GGP400/ 700/100PL-D skid type electrical driven grout pump plant is driven by diesel engine. It is combination of mixer, agitator and hydraulic plunger grout pump in one plant.

Its diesel engine working power is 25kw/36HP. Its Mixer volume is 400L and W/C ratio :0.5-1. Its agitator volume is 700L. This grout pump plant is equipped with hydraulic plunger grout pump. When it working at low voltage, its working pressure is 25Bar, its output is 100L/min; When it working at high voltage, its pump working pressure is 50Bar, its output is 40L/min.

Features of GGP400/ 700/100PL-D skid type electrical driven grout pump plant:

1. Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame;

2. Have low pressure and high pressure, step-less speed regulation;

3. Yuken relief valve and directional valve for hydraulic system of grout pump;

4. Butterfly valve of mixer and agitator;

5. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

6. Full hydraulic drive, diesel engine;

7. Operation and maintenance are simple;

8. With ISO, CE certificate.

Maintenance of grout pump plant for micro pilling:

In order to ensure the normal operation of the grout pump plant for micro pilling during use, reduce the failure rate, improve work efficiency, and reduce maintenance costs. When using the grout plant, it should be maintained regularly, carefully maintained, and scientifically maintained to increase the life of the grouting pump.

1. After use, clean up the grouting pump pipeline to prevent residual cement slurry from solidifying and causing blockage;

2. Brush lubricating oil on the lubricated parts to prevent rust; replace the lubricating oil in the box after long-term use, and do a good job of preventing rust and moisture;

3. Regularly check the key components of the grout plant for micro pilling, and tighten the screws if they are loose.

Contact us for grout plant details:

We are a grout plant supplier. If you are interested in our grout plant for micro pilling, we will recommend a suitable one for you. Please help us to confirm the following points:

1. What kind of grouting project would you use the grout equipment?

2. What is the pressure and flow rate do you need?

3. How about the water and cement ratio, does any sand in?
