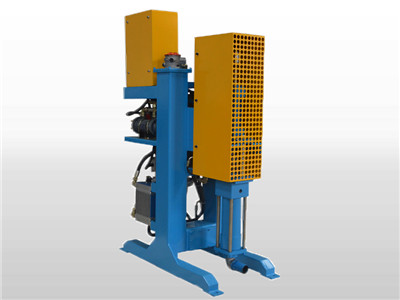

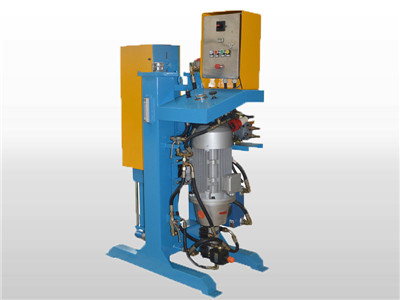

High Pressure Vertical Grouting Pump

GDH75/100 High-Pressure Vertical Grouting Pump is specially designed for high-pressure grouting; It is mainly used for highways, railways, water and electricity construction, mining etc. ground/underground construction.

And it adopts full hydraulic drive, it is pressure and flow can be adjusted according to the requirements of grouting, grouting pump has functions of high speed and low speed through a three-way ball valve at bottom of the unit.

When low speed, the output pressure can be adjusted 0-10Mpa, the flow is 0-40L/min. when high speed, the output pressure is 0-5Mpa, the flow is 0-75Mpa. Besides, GDH75/100 high pressure grout pump has digital display counter that can display at any time, and can accumulate work times. Therefore, we can know how much cement paste is used.

The hydraulic system has two sets of cooling device-air cooler and water -cooler, Suitable for hot and cold areas.

Furthermore, we can design according to customer requirements, For example, the pressure, displacement or power supply, etc.

The equipment is high efficiency and low cost, simple operation and convenient maintenance .So it is a cost-effective ideal machine to meet your project requirements.
