Large capacity refractory cement pan mixers are capable of handling large volumes of refractory cement and other materials, making them ideal for large-scale construction or industrial applications. The refractory cement pan mixer design ensures that the materials are mixed evenly and thoroughly. The pan mixer's pan is typically equipped with mixing arms or blades that rotate to blend the materials. Refractory cement mixers are built to withstand the abrasive nature of the materials they mix. High-wear-resistant steel liners and other durable materials are often used in the construction of these mixers to ensure long-term performance. We can offer customization options for refractory cement pan mixers, allowing customers to tailor the mixer to their specific needs. This can include customizing the mixer's size, capacity, and other features.

$large capacity refractory castable mixer$

Technical parameters of large capacity refractory cement pan mixers:

Item	GRM100	GRM250	GRM500	GRM800	GRM1000
Mixing capacity	100kg	250kg	500kg	800kg	1000kg
Rotating speed	33rpm	34rpm	36rpm	39rpm	39rpm
Motor Power	4kw	7.5kw	11kw	22Kw	37Kw
Feeding Height	1100mm	1200mm	1300mm	2500mm	2100mm
Dimensions (mm)	1400x1300x1100	1480x1380x1230	1700x1250x1350	2800x1880x2640mm	1600x1500x2140mm
Weight	550kg	650kg	1010kg	1350kg	1680Kg
Note: Technical data of refractory cement pan mixers may change due to technical progress, subject to modification without notice.

$large capacity refractory cement pan mixer$

$large capacity refractory concrete pan mixer$

Large capacity refractory cement pan mixer has the following features:

1. Suitable for on-site construction on construction sites and refilling of refractory castables, etc.;

2. Fast mixing speed, high homogeneity, common mixing materials such as mortar, concrete, refractory materials, etc.;

3. The large refractory pan mixer design is simple and generous, the structure is compact, the internal cleaning is simple, and it is convenient to move ;

4. With bag breaking device, the feeding height is comfortable and convenient to use;

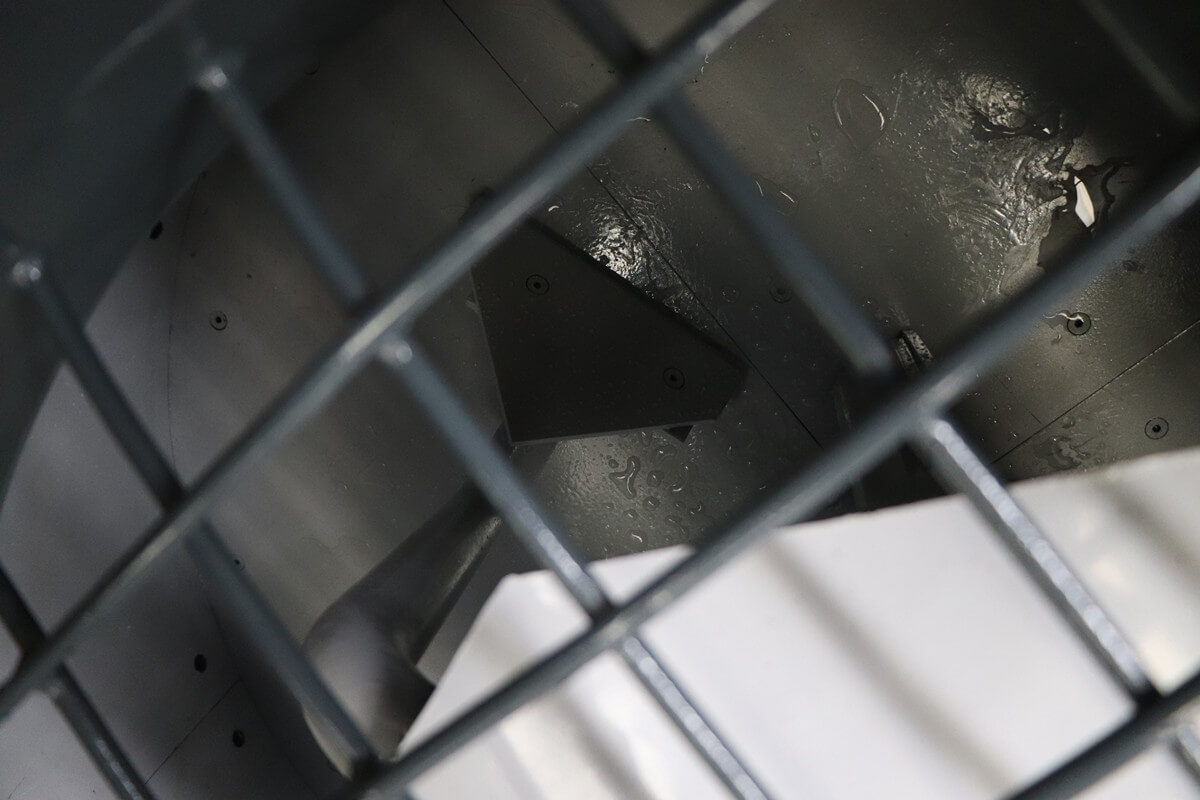

5. The inner liner is attached to prevent the mixing material from wearing the cylinder, and the liner can be replaced for continued use, with low maintenance cost and long life.

$large capacity refractory pan mixer$

Compared with traditional mixers, large-capacity refractory pan mixers have undergone significant technological innovation and optimization in many key aspects, which are specifically reflected in the following aspects:

Improvement of wear resistance: By implementing curing treatment and Wear-resistant reinforcement technology has significantly enhanced the wear resistance of this new mixer. This improvement not only reduces downtime and maintenance costs caused by component wear but also directly extends the overall service life of the equipment, bringing users Long-term economic benefits.

The balance between cost control and durability: Wear-resistant upgrade treatment reduces the long-term operating costs of users while ensuring the high durability of the equipment, achieving a good balance between cost-effectiveness and equipment performance. This is for those who need to continue An efficient production environment is particularly important.

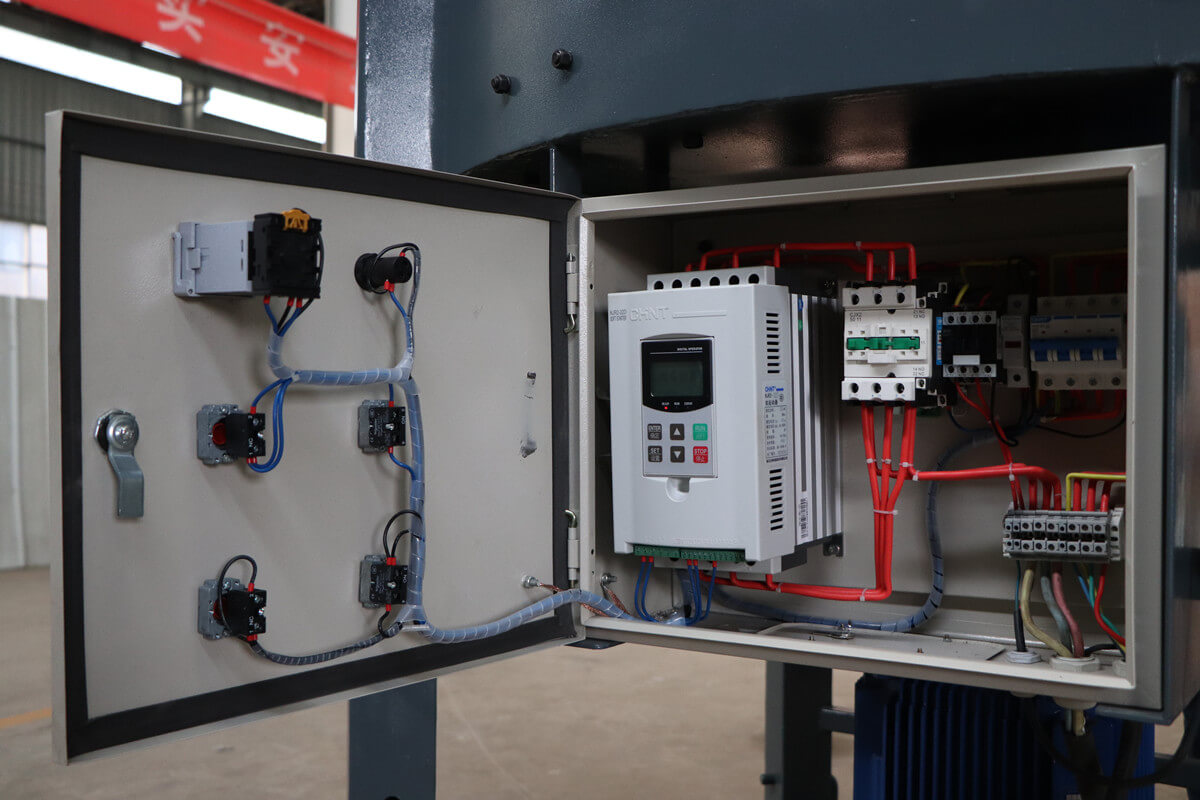

Flexible speed and variable speed processing: The large-capacity pan mixer is equipped with an advanced speed regulation and variable speed processing system, which can flexibly adjust the mixing speed according to the different characteristics of the mixing materials and process requirements, so as to give full play to the The mixing capacity and efficiency of the equipment ensure the stability and uniformity of the mixing process.

Efficient and convenient mobility and operation: The equipment is designed with practicality and convenience in mind, is easy to move, and can quickly adapt to different working environments and site layouts. At the same time, the mixing speed is fast and the uniformity is high, ensuring production efficiency and quality.

$large mixing capacity refractory pan castable mixer$

Compact structural design and comfortable feeding height: The compact structural design not only reduces floor space but also improves space utilization. Comfortable feeding The high design facilitates efficient loading of materials, reducing the difficulty and labor intensity of manual operation.

$large refractory pan castable mixer manufacturer$

High mixing efficiency and low maintenance cost: As a large refractory mixer, it has high mixing efficiency and can complete the mixing of a large amount of materials in a short time, meeting the High-capacity production needs. At the same time, due to the use of wear-resistant materials and optimized design, the maintenance cost is relatively low, which further improves the overall cost performance of the equipment.

In summary, the large-capacity refractory disc mixer has excellent wear resistance, flexible speed adjustment, high mixing efficiency and low maintenance cost, it has become an important upgraded alternative to traditional mixers and is widely used in various industrial fields that require high-intensity and high-efficiency mixing operations.

Any interested in our large capacity refractory cement pan mixers, please contact us freely, at email address: info@gaodetec.com
