Automatic membrane filter press manufacturer

2020-09-21 15:05:32

Automatic membrane filter press manufacturer
For the sewage treatment industry, its scope is very wide, including not only municipal wastewater, but also industrial wastewater. For each type of wastewater, there are different properties and characteristics. Some need to add chemicals, such as printing and dyeing wastewater, while others do not, such as stone cutting wastewater. Some wastewater is very complicated to treat, such as municipal wastewater, and some are very easy to treat, such as bituminous concrete wastewater. For most sewage treatment industries, filter presses are a very effective tool for solid-liquid separation.

Automatic membrane filter press


For some wastewater which is difficult to deal, an automatic membrane filter press is a good choose for you. General speaking, the automatic membrane filter press can get a lower moisture content when compare with normal filter press.

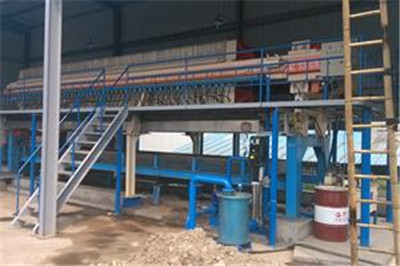

automatic filter press for municipal wastewater


The automatic membrane filter chamber is formed by mixed membrane filter plates and chamber filter plates, when the feeding pump feeds the sludge into the chamber and through the filtration of filter cloth, the solid and liquid are separated.when the solids formed the filter cake, then blow the high pressure liquid or gas (0.8-2.0mpa) medium into the membrane to further dry the filter cake. The high pressure liquid or gas(0.8-2.0mpa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered.

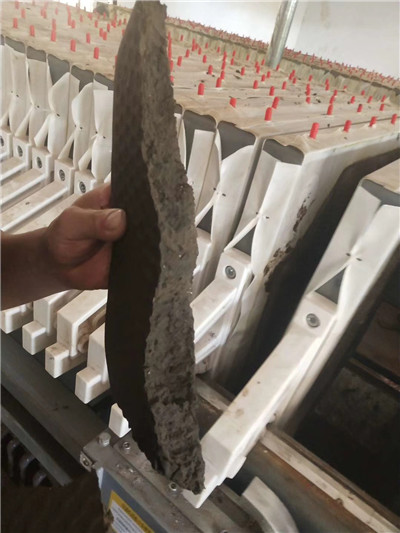

automatic membrane filter press for sale


The membrane filter press is widely used in sewage treatment, various concentrates and tailings, metallurgy, chemical, pharmaceutical, food, ceramics and other industries and fields. Especially for viscous materials, it has a unique filtering effect, such as municipal wastewater, printing and dyeing wastewater, fine chemicals, etc. If you want to know more about our automatic membrane filter press, please let us know, we are membrane filter press manufacturer.

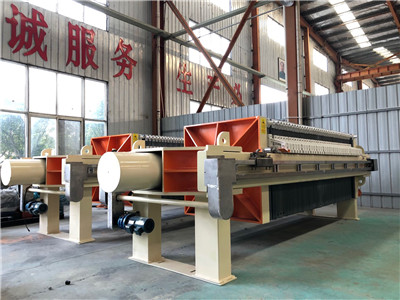

membrane filter press


Our automatic membrane filter press has the below features:
1. This membrane filter press can realize fully automatic operation with flexible devices, such as belt conveyor, drip tray, cloth washing system etc
2. PP plates have outstanding performance in high pressure and high pressure resisting; and they are good at acid & alkali resisting.
3. Hydraulic station is steady in operation and easy in maintenance. Cylinder can realize 20-25MPa high closing pressure and ensure lowest cake moisture.
4. Control system can realize fully automatic operation, such as auto closing, auto opening, automatic plate shifting, so that to save working time and manpower.
5. Structure is made of high quality carbon steel Q345b and processed with sand blasting to remove rust and getting higher intensity and corrosion resistance.
6. All beams are produced by making use of submerged arc auto welding technology.
7. Side bars are covered by stainless steel 304, which can improve work efficiency of plate shifter.
8. Good filter cloth features of high solid capture and easy to discharge cakes.
9. Every filter press will do operation test to ensure best performance.

Gaode Equipment is a membrane filter press manufacturer, which has focus on manufacturing and selling filter press for more than 12 years. We have our own technical team, can provide customized service for you. If you have any needs about filter press, please feel free to contact us, you can send email to us: info@gaodetec.com, or live chat, we will reply you in a short time.
