Mini diesel concrete pumps for building construction are used in some special construction environments, including: railway and highway tunnels, diversion tunnels, culverts, mines, bridges and tunnels and other caves, as well as the pouring of large building structural columns, as well as water conservancy and hydropower projects. Slope support, underground construction operations, foundation filling works, etc.

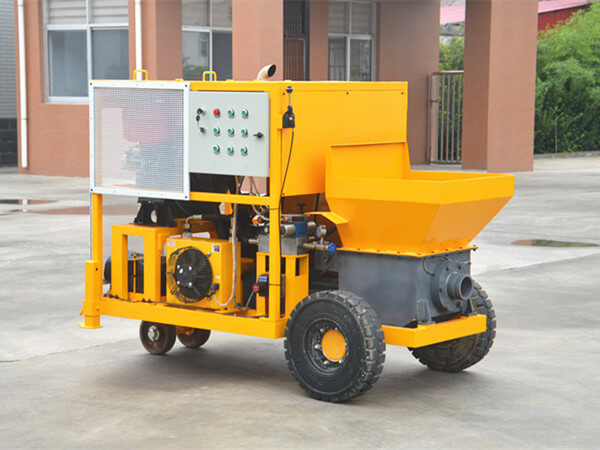

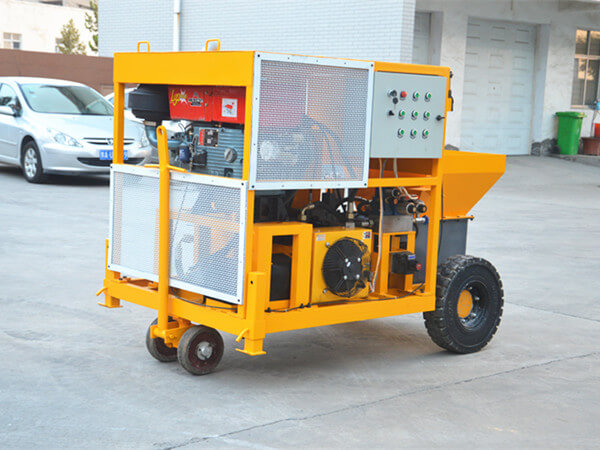

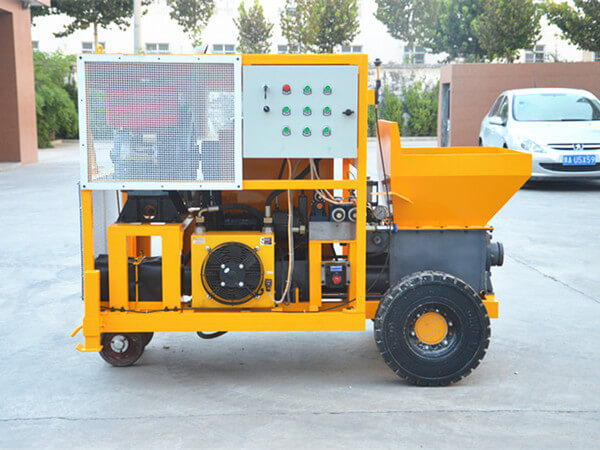

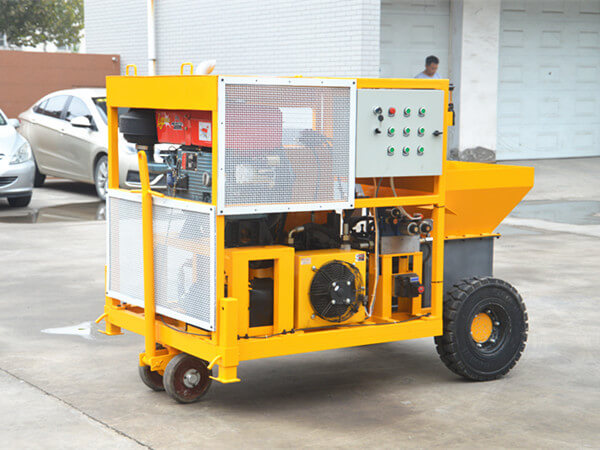

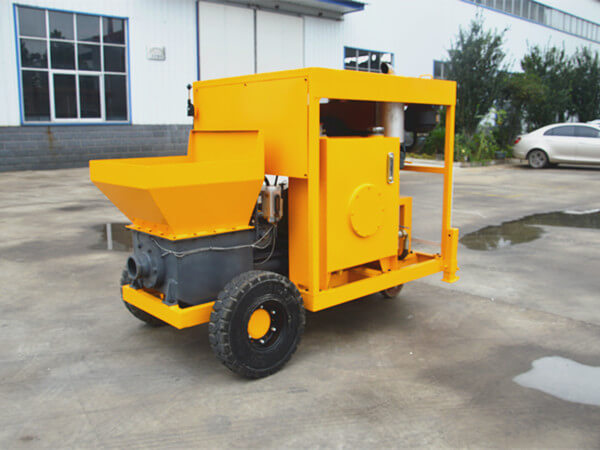

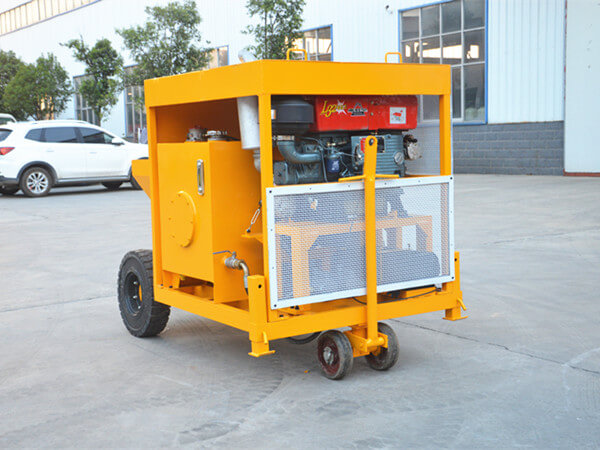

The mini diesel concrete pump for building construction has the characteristics of small size, light weight and simple structure. This diesel concrete pump is a combination of a concrete pump composed of a special pump valve driven by a motor and a hydraulic pump flow system, which can realize long-distance transportation and pouring of concrete. It can be combined with a spray device to realize spray mortar and concrete construction. Shotcrete. The machine has reliable system, low failure rate and convenient maintenance. It is an ideal conveying equipment for mortar, fireproof mortar, fine stone concrete, and mixtures containing heavy metal particles.

The main technical features of mini diesel concrete pump for building construction are as follows:

1. The distribution valve adopts advanced S-type pipe valve, which has good sealing performance and simple and reliable structure. The box body adopts a welded structure, which has good rigidity, high strength and beautiful appearance; the eye plate and wear-resistant ring are made of hard alloy, which has good wear resistance, long service life and easy replacement.

2. Electric control reversal of hydraulic system. Constant power variable plunger pump, high reliability and long life. The fuel tank is equipped with a self-sealing oil suction filter, and the side of the fuel tank has a cleaning hole, which is convenient for maintenance and ensures the cleanliness of the system oil.

3. The electrical system adopts Japanese programmable controllers and intermediate relays, French sensors, electrical company AC contactors and button switches and other electrical components, with a high degree of protection; the remote control distance of the wireless remote control system exceeds 200 meters; the centralized lubrication system starts from the program Stop and run time is automatically controlled. The control circuit is simple and reliable.

4. The pump system has the function of stepless speed regulation, which solves the problem of different concrete conveyors under various construction conditions, and is easy to operate; it has two working modes of low pressure and large displacement and high pressure and small displacement.

5. The mixing device has reliable sealing and is not easy to leak; the mixing blade has a reasonable structure and can adapt to a variety of concrete ratios.

6. Use high-quality seals as the main hydraulic seals to prevent leakage inside and outside the hydraulic system.

7. The cooling system adopts an oil-air cooler with large cooling power, which can effectively reduce the heat generated by the hydraulic system and ensure the working reliability of the hydraulic system.

This mini diesel concrete pump for building construction is used for high-rise building mortar and fine-stone concrete transportation, secondary structural column grouting, various pressure grouting, foundation treatment, weak foundation, steel bar grouting, tunnel, subway, mine construction, medium-sized backfill grouting and anchoring of reservoirs, hydropower stations, and ports Support, watering of secondary structural columns, etc. This mini diesel concrete pump is a new, multi-purpose, multi-purpose industrial pump developed by absorbing foreign advanced technology. Typical applications include: masonry block filling, wall grouting, hoisting mortar for masonry wall construction; concrete sidewalk and terrace slab pumping; small-volume sprayed concrete. If you have any questions, please do not hesitate to contact us. We will give you feedback as soon as possible. Email address: info@gaodetec.com
