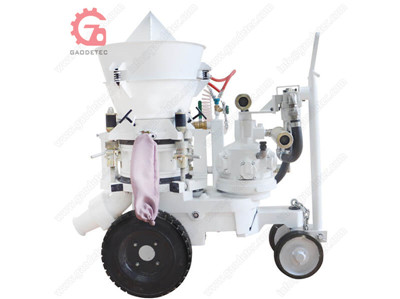

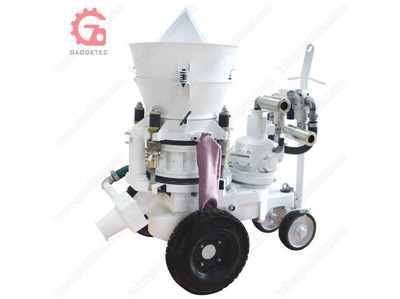

Gaodetec refractory gunning machine is divided into pneumatic and electric refractory gunning machine. Pneumatic gunning machine recently sold a special best seller. Summarized the customer's most concerned issue is the price. Gaodete make one 3m3/h air motor refractory gunning machine according to customer demands, the specification as below:
| Rated Output | 1-3m3 /h (2-6 ton/h) |
| Max. Horizontal Conveying Distance | 200m |
| Max. Aggregate Size | Φ10 mm |
| Conveying Hose Inner Diameter | 38mm |
| Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 10-11m3/min(air motor drive) |
| Engine | 4kw (air motor) |
| Material Charging Height | 1.1m |
| Rotor Speed | 13.2r/min |
| Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
| Weight | 450kg |
The best price of GZ-3AR 3m3/h pneumatic refractory gunning machine is EXW USD9800/set, The quotation is valid for 1 week. If you want to buy this 3m3/h pneumatic refractory gunning machine or consult 3m3/h pneumatic refractory gunning machine price in the future, please send your needs to this mailbox, email address: info@gaodetec.com

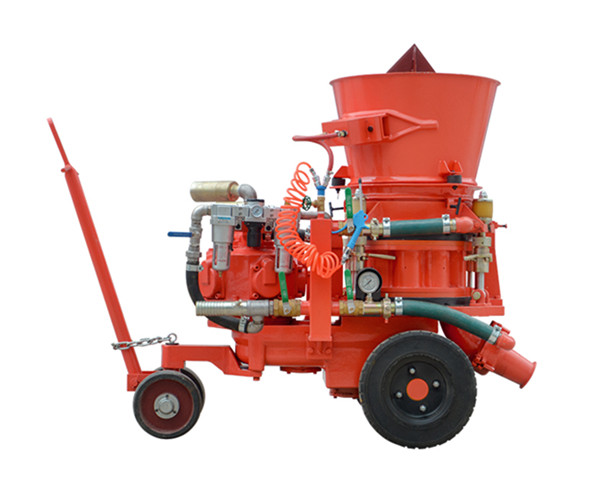

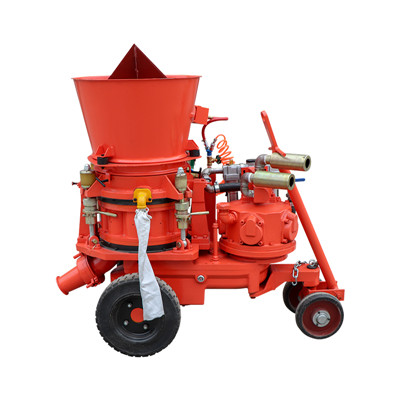

5m3/h pneumatic refractory gunning machine:
| Rated Output | 1-5m3/h(2-10Ton/h) |
| Max. Horizontal Conveying Distance | 100m |
| Max. Aggregate Size | Φ15mm |
| Conveying Hose Inner Diameter | 51mm |
| Operating Air Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 8~9m3/min(285-325CFM) |
| Air consumption for air motor | 7.5m3/min |
| Drive Type | Air motor |
| Material Charging Height | 1.2m |
| Rotor Speed | 0-13.2r/min |
| Overall Dimension(L×W×H) | 1.35×0.75×1.3m |
| Weight | 500kg |
The best price of GZ-5AR 5m3/h pneumatic refractory gunite machine is EXW USD11000/set, The quotation is valid for 1 week. If you want to buy this 5m3/h pneumatic refractory gunite machine or consult 5m3/h pneumatic refractory gunite machine price in the future, please send your needs to this mailbox, email address: info@gaodetec.com
Please check the woking video of gunning machine for more information:

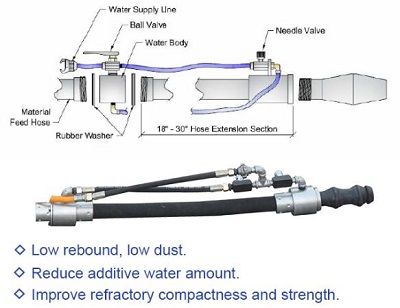

Regards the pneumatic or air motor drive refractory gunning machine, we choose new pre-dampening nozzle for spraying refractory material:

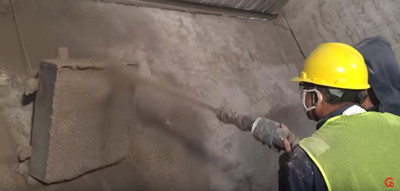

Application of pneumatic refractory gunning machine:
Pneumatic or air motor drive refractory gunning machine is used for building lime plant, shaft kiln and kiln at limestone units, rotarykiln in cement plants, boiler in thermal power stations, all of other type stoves and drying rooms in a different industrial plants.
Advantages of pneumatic refractory gunning machine:
1. Low rebound, low dust.
2. Reduce additive water amount.
3. Improve refractory compactness and strength.
