Today our factory shipped a GZ-3ER refractory repair used gunning machine to our UAE customer. The UAE customer has purchased this GZ-3ER refractory gunning machine many times and the customer feedback is very good.

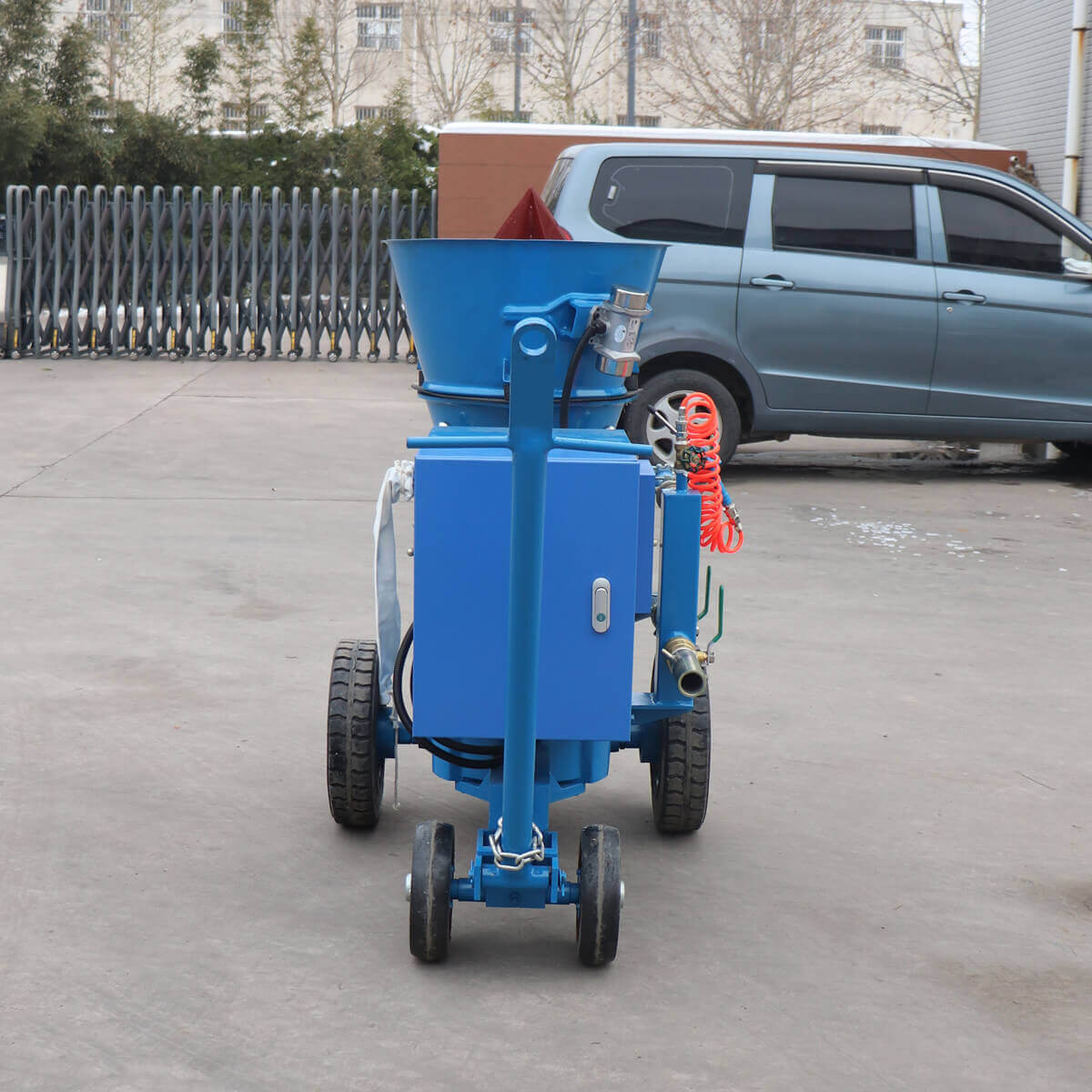

$Rotor gunning machine for refractory$

$Refractory work used gunning machine$

Dry refractory repair gunning machine is mainly used to repair refractory materials to industrial equipment that needs protection by dry spraying. The working principle of the dry mix refractory spraying machine is based on the compressed air conveying dry refractory materials to the nozzle, and then spraying them onto the working surface after mixing with water at the nozzle. Specifically, the dry material enters the rotating distribution drum from the silo, and after the distribution drum rotates a certain angle, its upper mouth is connected to the air channel of the compressor. The material is transported to the vicinity of the nozzle by the compressed air through the pipeline, mixed with water in the nozzle, and then sprayed onto the working lining by the high-pressure airflow. Most of the sprayed material is adsorbed on the working lining, and part of it rebounds and falls to the ground.

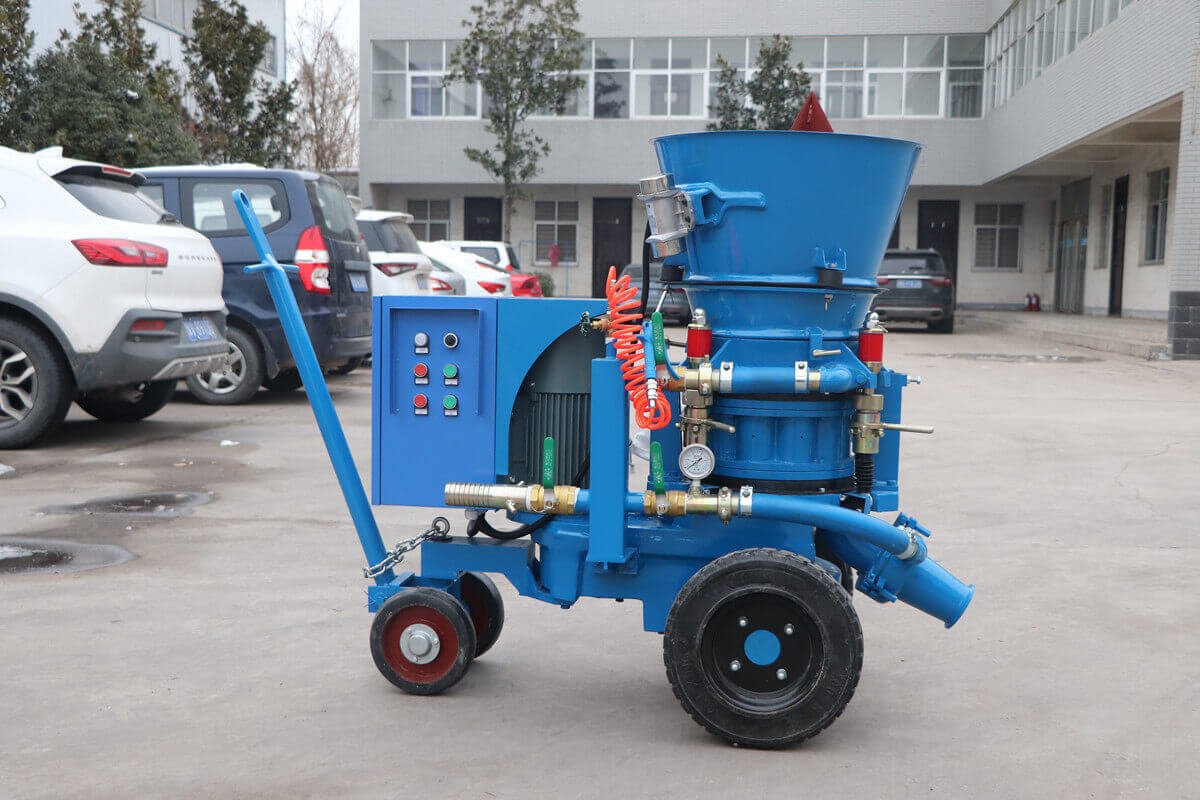

$refractory repair spraying machine$

Features of gunning machine for refractory repair:

1. High-efficiency spraying:
The dry refractory spraying machine has a high spraying efficiency and can complete large-area repair work in a short time, thereby shortening the construction period and improving construction efficiency.

2. Strong material adaptability:
The refractory repair spraying machine can adapt to the spraying of a variety of refractory materials, such as refractory cement, refractory brick powder, refractory castables, etc., to meet different construction needs.

3. Easy operation:
It adopts an advanced control system, which is easy and flexible to operate and easy to master. At the same time, the refractory work used gunning machine has a compact structure, is easy to move, and is suitable for various construction environments.

4. Strong durability:
The key components are made of high-quality materials, which are wear-resistant and durable, and have a long service life. At the same time, the machine also has high stability and reliability to ensure construction quality and safety.

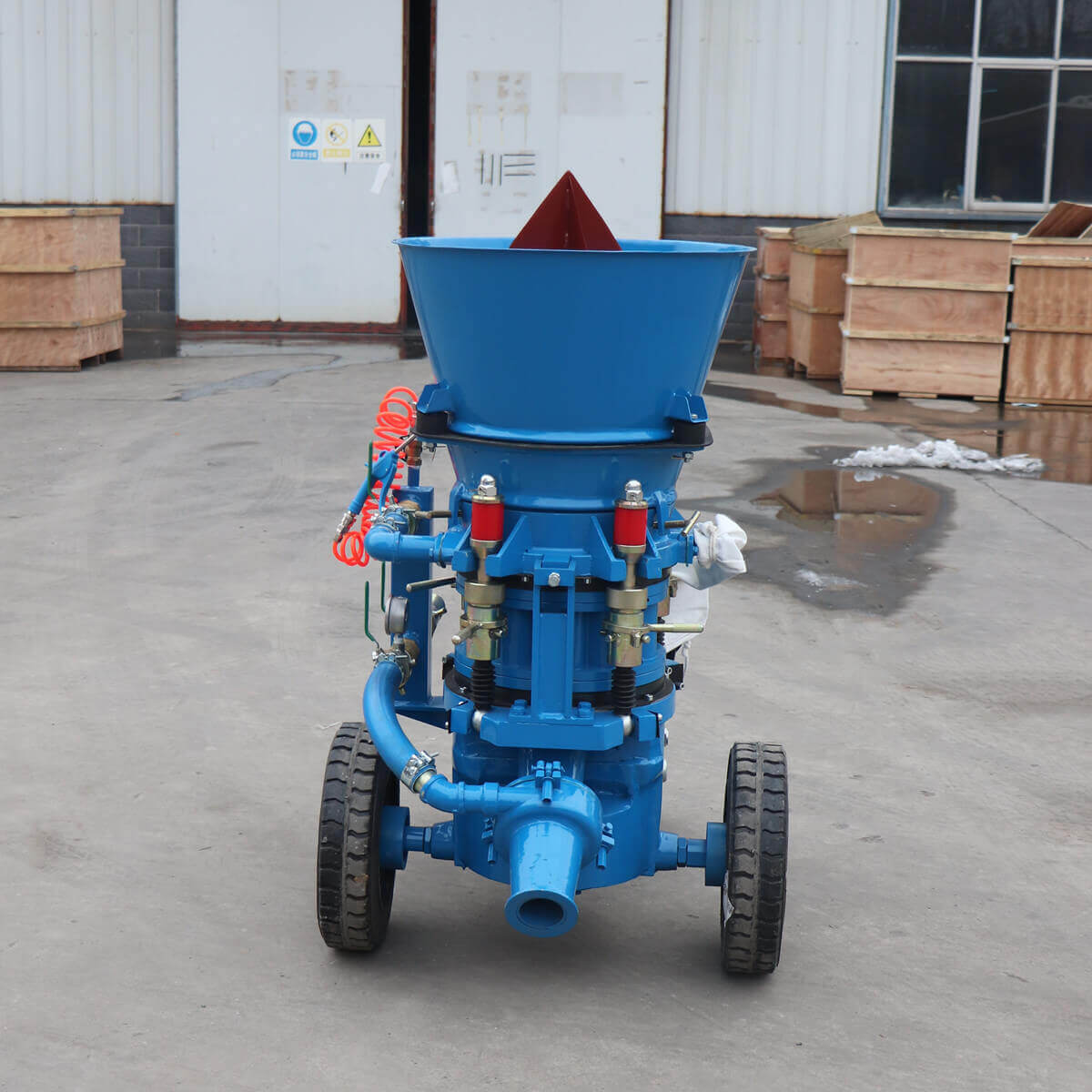

$Refractory repair gunning machine$

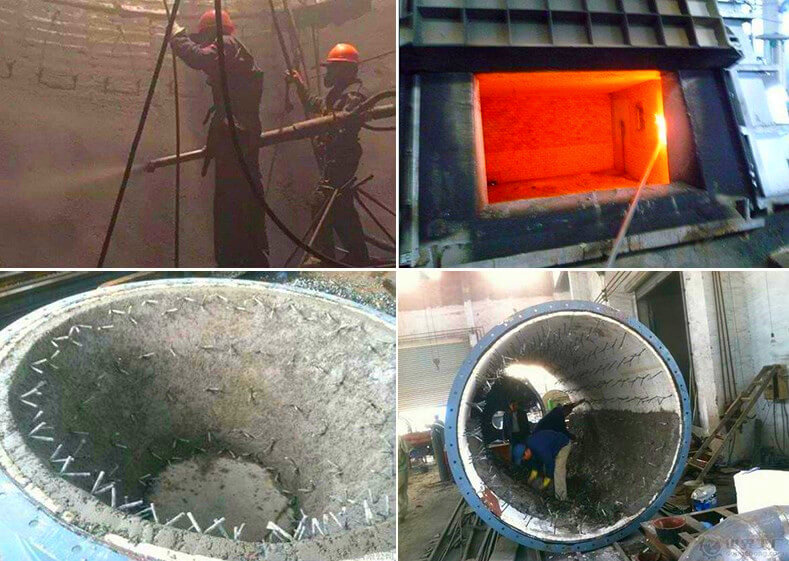

Refractory repair gunning machine is suitable for use in a variety of industrial occasions that require fire protection. The following are some of the main application occasions:

Steel industry:

In the repair and spraying of the refractory layer of steelmaking furnaces, blast furnaces, converters and other equipment, the dry refractory spraying machine can efficiently and evenly spray the refractory material onto the working surface to form a solid refractory layer, thereby improving the high temperature resistance and service life of the equipment.

Cement industry:

The cement rotary kiln is an important equipment in the cement production process, and its inner wall needs to withstand high temperature and material erosion. The dry refractory spraying machine can be used for repairing and spraying the refractory layer of the inner wall of the rotary kiln to ensure the stable operation of the equipment.

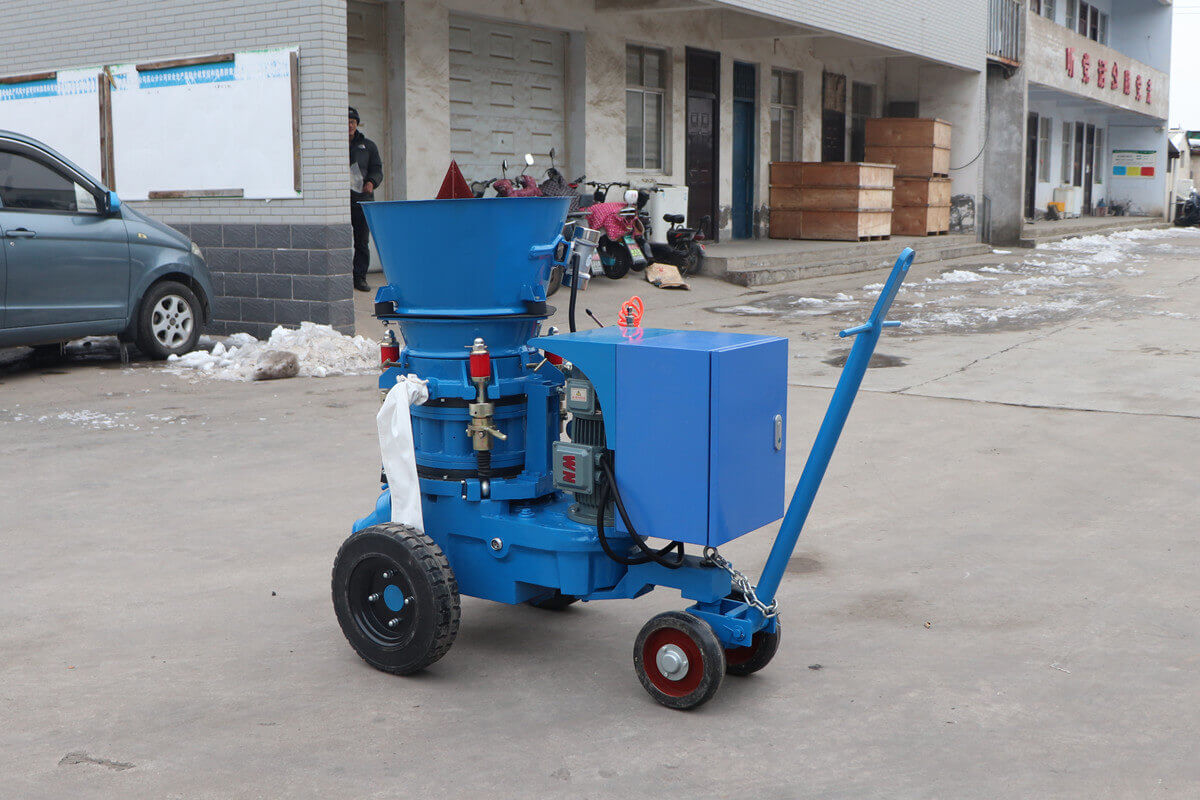

$refractory gunning machine for cement rotary kilns$

Glass industry:

Glass kilns are key equipment in the glass production process, and the quality and stability of their refractory layer have an important impact on the quality and production efficiency of glass products. The dry refractory spraying machine can be used for repairing and spraying the refractory layer of glass kilns to improve the high temperature resistance and stability of the kiln.

Power industry:

In the power industry, equipment such as boilers and flues need to withstand the test of high temperature and corrosion. Dry refractory spraying machines can be used for refractory repair and spraying of these equipment to improve the high temperature resistance and corrosion resistance of the equipment.

Other industrial occasions:

In addition to the above industries, dry refractory spraying machines can also be used for refractory repair and spraying in ceramics, petrochemicals, metallurgy and other industries. Many equipment in these industries need to withstand high temperatures and harsh environments, and dry refractory spraying machines can provide effective refractory protection.

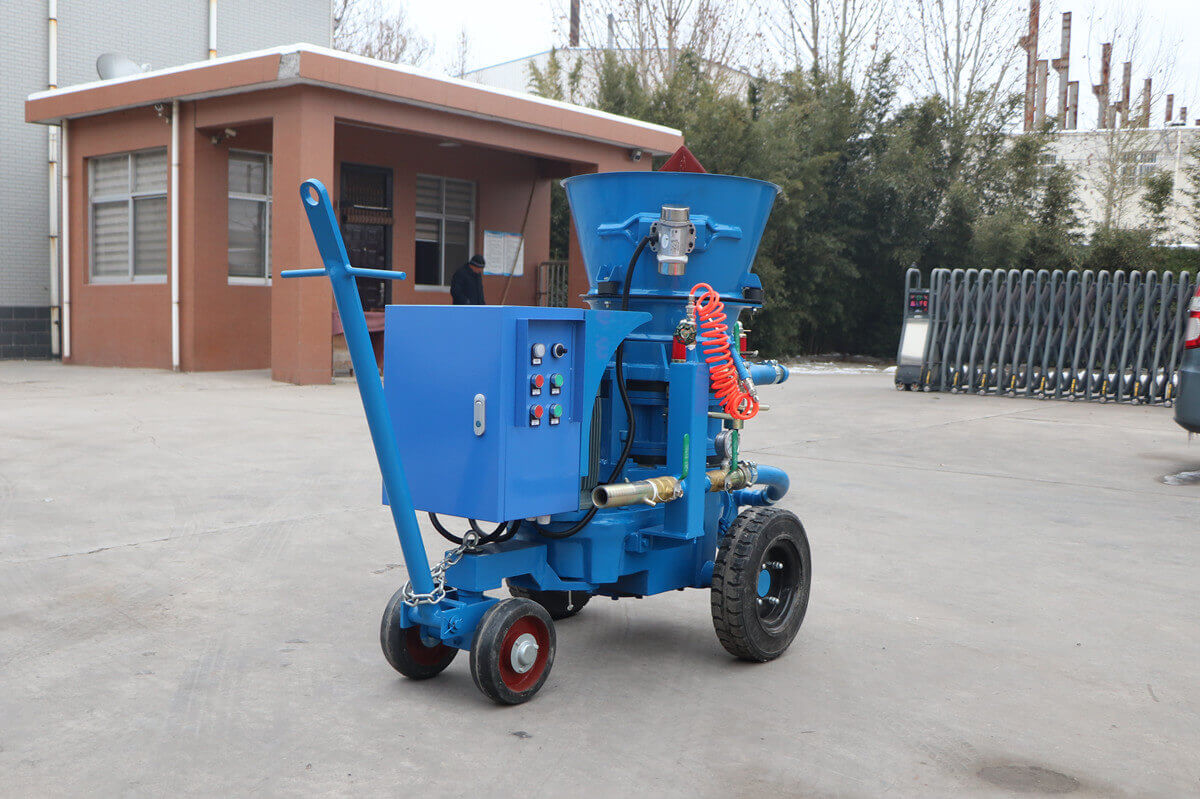

$gunning machine for refractory repair$

In general, dry mix refractory gunning machines play an important role in a variety of industrial occasions that require refractory protection due to their high efficiency, strong material adaptability and easy operation. The refractory material is evenly sprayed onto the surface to be repaired through high-pressure spraying, which can form a solid refractory layer, thereby improving the high temperature resistance and service life of the equipment. If you have any need about our GZ-3ER refractory repair gunning machine, please contact us directly.

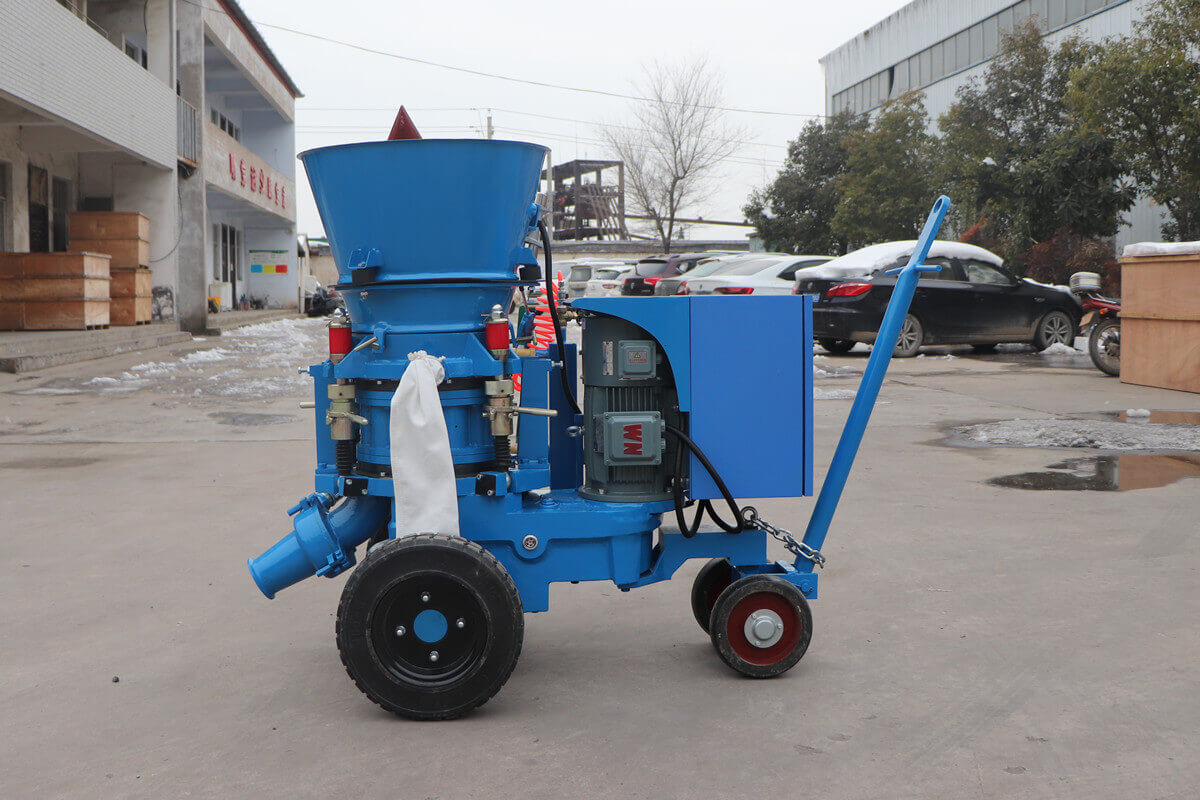

$dry mix refractory gunning machine$
