Road line marking equipment, a road construction machine widely used in roads, high-grade highways, parking lots, squares, and runways to mark different restrictions, guidelines and warnings on the flat ground. The road marking equipment has played a huge role in urban planning and highway construction due to its fast, efficient and accurate advantages, which has saved the construction period of the road to the greatest extent.

Road marking equipment are classified into self-service road line marking equipment, hand-drawn road line marking equipment and vehicle-mounted road line marking equipment according to the classification of equipment carriers. According to the construction temperature, it can be divided into hot melt road line marking equipment, cold spray (cold paint) road line marking equipment and two-component road line marking equipment.

Self-service type road line marking equipment, hand-held driving form. The machine itself has a driving device, which can walk on its own, without manual assistance. It is used for short-distance construction of large and medium-sized projects and vehicle-mounted operations, which is smart and easy to operate.

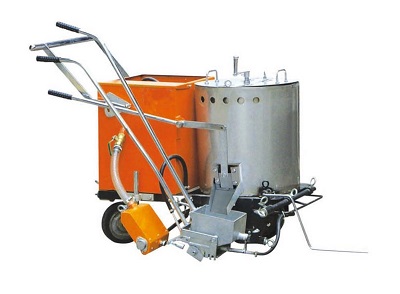

GD320 hand-push thermoplastic road marking machine absorbs advanced technology. This machine adopts specially designed high precision alloy steel shoe to ensure index line’s even edge, head, thickness and tidy lines.

The grounding knife can apply to road surface of different conditions. There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance.

GD320 road making machine features:

1. Light body, compact structure, nice look.

2. Lift handgrip, operator can adjust it asrequired.

3. Automatic glass bead broadcaster.

4. Speeder and shocks of bead broadcaster equipped with 2 gears which can be adjusted as required.

5. Demountable device is designed for the heating and holding tank. The reasonable design agitator solves the problem of storing used coating in the tank.

6. The adjustable pointer improves working efficiency.

7. The shoe made by high-precision steel, board scraping structure, it has good thermo stability, resistscorrosion, transformation, and can heated easily.

8. The tire is made by cast iron and imported rubber, which make the tire lighter, stronger and more durable.

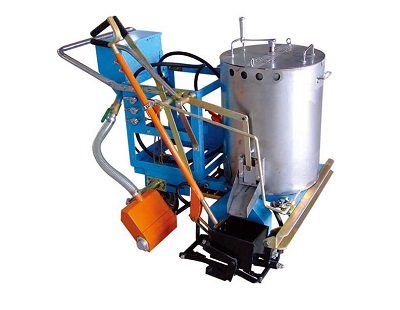

GD18L road line marking equipment feature:

1. The hand push and truck-mounted dualpurpose high pressure airless cold paint road sign marking machine is the high pressure, equal flow airless striper.

2. The machine uses gasoline engine to drive the single plunger pump and markes the coating in high pressure inside of the engine to spray, so that the lines are uniform in thickness and angles.

3. The direction bar of gun shelf can be adjusted up and down, which can conveniently adjust the width of spray. It can work conveniently and quickly with less labor intensity.

4. The truck-mounted model can be equipped with the computer line controller.

We have many standard models for your option, and we also could customize as per your requirement. If you are interested in our products, Welcome to contact us.
