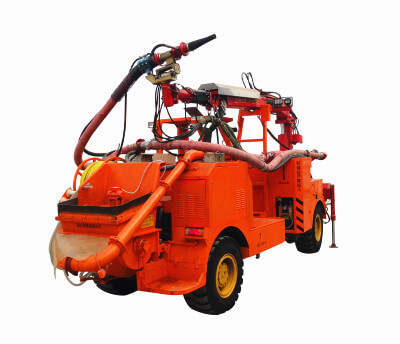

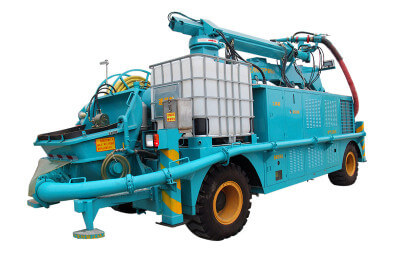

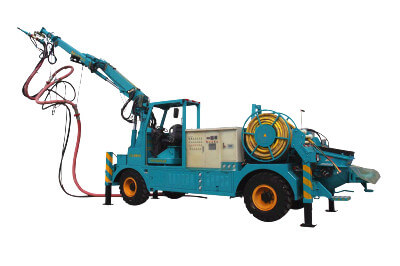

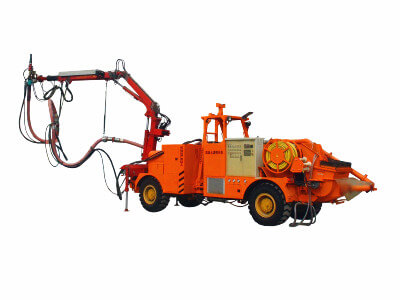

Shotcrete pump with separate robotic spraying arm

Shotcrete pump with separate robotic spraying arm
Gaodetec robotic shotcrete pump with spraying arm is based on the achievements of technology pioneers. They've been researching and developing new technologies - and have been doing this for years! Wet robotic shotcrete pumps are suitable for high-rise conveyor, railway, tunnel, bridge construction and special applications, hydropower, mining and defense.

Shotcrete pump with separate robotic spraying arm brief instruction:

The shotcrete pump with separate robotic spraying arm consists of two parts, one is a track-type self-walking spray robot, the other is a trailer wet concrete sprayer, the spray robot has automatic walking ability, the wet sprayer to be dragged to the subsequent transition in a small-scale work site. In common work, the trailer injection concrete machine is not within the working range, while the robot injection concrete machine walks in the work area. Wet-sprayed concrete machines supply fine stone wet concrete, and robotic spray concrete machines are responsible for the final spraying work.

The shotcrete pump with robotic spraying arm has a wireless remote control that the operator can precisely control in a safe area. The trailer sprayer at the back can deliver fine stone wet concrete, which is effective, safe and reliable. The rear trailer sprayer can work alone or through manual labor to spray the final work.

Technology of robotic shotcrete pump with spraying arm:

1. Switch directions using the S valve for the transport of fine stone concrete.

2. A well-sealed S valve with a floating wear ring.

3. High-quality wear-resistant alloy components for long service life.

4. High conveying pressure to meet the needs of high-rise and long-distance projects.

5. Dual-circuit open hydraulic system ensures fast directional switching speed and high efficiency.

6. Air cooling system, no external water supply required.

7. With the re-pumping function, the construction can be smoother.

8. Automatic lubrication system with long service life.

9. The PLC system ensures optimum electrical control performance.

10. Equipped with a wired remote control, easy to operate.

Gaodetec Machinery is a company engaged in engineering robotic shotcrete pump with spraying arm research, design and production for nearly 20 years. We provide the most reasonable solution according to the specific needs of different customers. With multiple research and development and production sites in China, we can provide strong technical services and superior machinery to our customers around the world.
