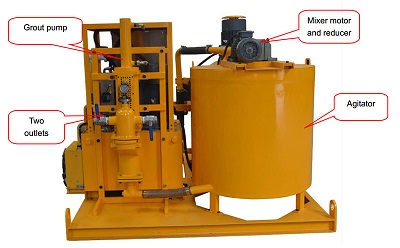

Gaodetec cement grout mixing and pumping machine working principle is cement or bentonite with water is archived in mixer by a high turbulence created in the pump casing. This turbulence with high shear forces separates the cement or bentonite particles which results in a fully hydrated suspension.

As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.

Gaodetec grout mixing and pumping machine features mainly have the following points:

1. Grouting pressure, displacement is stepless adjustable

2. Simple structure, light weight, easy maintenance

3. Continuous output with small pulse

4. Less spare parts ensure low maintenance costs

5. High speed vortex mixer ensures mix quickly and evenly

6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate

7. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection

8. With high-speed, low-speed mode, by using ball valve to achieve two-function switch

9. With CE, ISO certification

Gaodetec mixing and pumping unit has a more secure product design, Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.

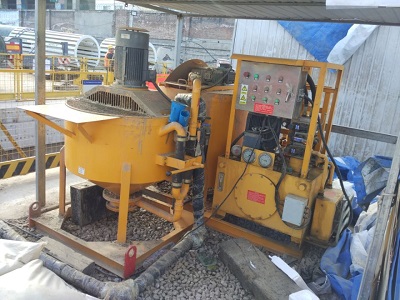

Gaodetec cement grout mixing and pumping machine applications:

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts

2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting

3. Construction - pavement under sealing, slab jacking and slab raising

4. Marine - underwater foundations, piers, breakers, shoreline foundations

5. Mining - tunnel lining, contact grouting, shaft waterproofing

6. Utilities - encasements, waterproofing, slope line grouting

7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment

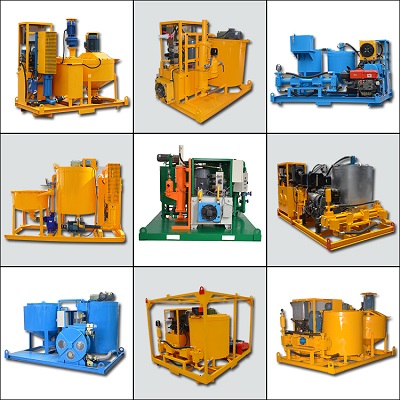

Our grouting mixing and pumping equipment has a variety of design and combination methods, which can be flexibly adapted to the construction environment. The mixer, mixer and pump are reasonably distributed and the material is reliable. We have many different models of mixing and pumping unit, grouting pressure and output are step-less adjustable; mixer capacity and agitator capacity can be customized. Gaodetec grout Pump including piston type, plunger type and hose type. Mixer volume from 200L to 800L, agitator volume from 300L to 1200L, pump flow from 0 to 200L/min and pressure from 0 to 100 bar.

We also provide grouting pumps and pulpers. The application fields are the same. They can be used together or separately. Convenient and optional for users, your inquiry is welcome.
