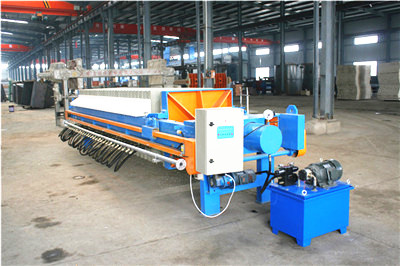

The high pressure membrane filter press machine is composed of frame, filter plate, filter press system and electric control cabinet. The frame is composed of a base, a push plate and a girder, and supports a pressing device and a filter plate. The filter plate is installed on the girder between the tail plate and the push plate, and the filter cloth is clamped in the middle. In operation, the pressing device drives the pressing plate to compress the filter plate and the filter cloth between the pressing plate and the pressing plate. The function of the electric control cabinet is to control the dewatering process of sludge, such as setting the dewatering time, pump pressure, treatment capacity, etc.

Filter press machine for mineral is a kind of solid-liquid separation machine, which has been widely used in industrial production for many years. It has good solid-liquid separation effect and wide application range, especially for the separation of small sticky materials.

Working principle of high pressure membrane filter press machine: When the mixed liquid flows through the filter cloth, the solid will be trapped on the filter cloth and accumulated to form into the cake. The clean liquid, which has not included the solid, will permeate from the filter cloth.

The high pressure membrane filter press is widely used in mining, food, pharmaceutical, petroleum, textile, printing and dyeing, paper making, sewage treatment, etc. solid-liquid separation industries. Details are: ceramics, glaze wastewater, gelatin, oil, edible oil, vinegar, chemicals, food processing, pharmaceutical, leather tannery, sewage treatment plant, sugar, fertilizer, gasoline chemicals. Many oil plants, such as rapeseed, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc. medium and small oil refinery, oil mill and private oil squeezing workshop.

With the advanced TPE membrane technology, Gaodetec membrane filter press can ensure stable performance and long service life, and is widely used in various industries.

The cake in the membrane filter press can be pressed to a maximum pressure of 1.6Mpa to achieve the lowest cake residual moisture. In some wastewater treatment industries, the final filter cake can be used for landfill or direct combustion. High pressure membrane filter press machine can be fully automatic operated by belt conveyor, drip tray, cloth washing system and other flexible equipment.

Features of Membrane Filter Press Machine:

1. Automatic functions include automatic compression plate, automatic pressure maintaining, automatic plate shifting, etc.

2. The main material of the frame is carbon steel: Q235. The crossbeam and the rectangular tube are welded seamlessly. The frame is deformed specially and durable.

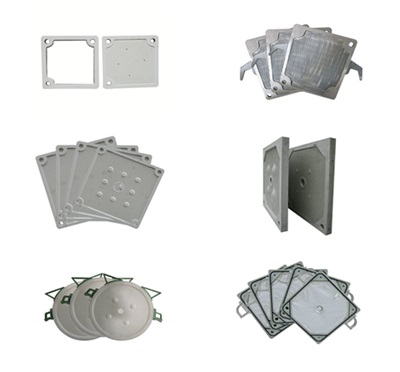

3. The filter plate is made of pure PP without other fillers. No recycling material, high strength, light weight, corrosion resistance, acid and alkali resistance, non-toxic and tasteless.

4. A variety of filter cloth, suitable for all kinds of materials, improve the filtering accuracy.
