Grout plant, also known as grout mixing and pumping unit, grout mixer pump or grout mixing and pumping equipment, it is a combination of mixer, agitator and grout pump in one plant. The special mixing effect of cement or bentonite with water is archived in mixer by a high turbulence created in the pump casing.

Working principle is cement or bentonite with water is archived in mixer by a high turbulence created in the pump casing. This turbulence with high shear forces separates the cement or bentonite particles which results in a fully hydrated suspension.

As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.

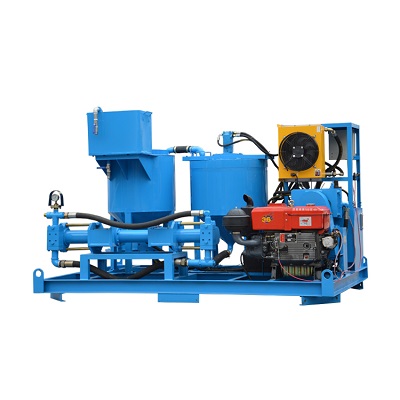

In the diesel-powered grout mixing and pumping unit, GGP250/350/100PI-D grout mixing and pumping unit for sale is our hot selling model. Mix volume is 250L, agitator volume is 350L, grout pump output is 100L. The product features mainly have the following points:

1. Hydraulic reversing and Hydraulic drive for vertical grouting pump

2. Grouting pressure and output are step-less adjustable

3. Using rectangular agitator, makes the plant has compact structure, small size

4. With high speed and low speed, by rotating ball valve switch

5. With function of record and display grouting pump reciprocating times by a counter

6. High speed vortex mixer ensures mix quickly and evenly

7. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate

Gaodetec mixing and pumping unit has a more secure product design, oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.

In the electric-powered grout mixing and pumping unit, GGP300/300/75PI-E is our hot selling model. Mix volume is 300L, agitator volume is 300L, grout pump output is 75L.

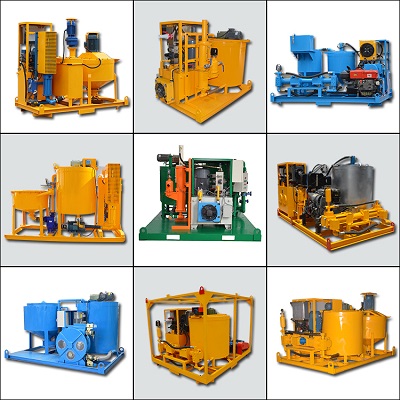

We have many different models of mixing and pumping unit, grouting pressure and output are step-less adjustable; mixer capacity and agitator capacity can be customized. Gaodetec grout Pump including piston type, plunger type and hose type. Mixer volume from 200L to 800L, agitator volume from 300L to 1200L, pump flow from 0 to 200L/min and pressure from 0 to 100 bar.

Our grouting mixing and pumping equipment has a variety of design and combination methods, which can be flexibly adapted to the construction environment. The mixer, mixer and pump are reasonably distributed and the material is reliable. In order to make it easier for customers to meet the needs of on-site construction, we have specialized technical staff to design accordingly according to your needs. Product parameters can also be discussed and improved.

If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations. We are the grout equipment factory, we also can customize according to your requirements. Email address: info@gaodetec.com
