Gaodetec high-speed pulper is a special pulping equipment developed for low water-to-binder ratio grouting materials. It is mainly used in the construction of hydropower, railway, highway, construction, mining and other industries. After mixing grouting or grouting agent, cement and water can be quickly made into a slurry. Compared with the general blade type mixer, it has the characteristics of high pulping efficiency, simple operation, uniform slurry, and short-distance conveying function.

Factory price colloidal electric grouting mixer available in Nepal. Our grouting mixer machine is the effective method for mixing cement-based grouting and other materials in the construction industry, producing a very stable mixture that prevents water loss and contamination. Available grouting mixer will rapidly and efficiently mix various types of grout which can include cement, bentonite and sand, widely used in civil engineering.

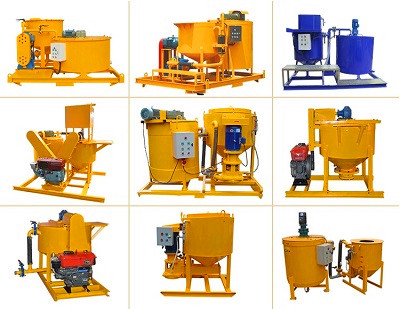

Grouting mixer and agitator can be used together or separately. We have grouting mixers and mixers with different displacements. The power drive is mainly divided into electric and diesel. Of course, it can also be customized according to your needs.

GM500E electric grout mixer, capacity is 500L, mixing time is 3 min, acceptable W/C ratio is greater than or equal to 0.5 to 1. Our hot products are 300L, 360L, 400L, etc.

Grouting mixer in Nepal has been designed for use either in conjunction with a conventional paddle mixer and pump or by virtue of its own built in impeller pump, as a stand-alone mix and place machine.

Working principle: The motor drives a high-speed turbo pump. The slurry is sucked from the bottom into a vortex and sprayed from the upper end of the barrel to generate a high-speed liquid flow. A strong vortex is formed in the barrel to fully and evenly mix the dry powder and water, thereby achieving the preparation of low water glue Purpose than slurry.

Gaodetec cement mixer and agitator is a combination of mixer and agitator, it is specially designed for continuous cement mixing and grouting in ground/underground engineering.

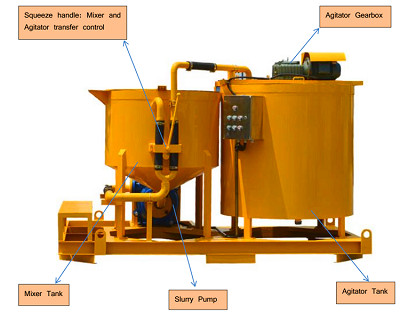

This system is designed to provide a continuous mixing operation. It is a combination consist of a steel sheet cylindrical mixer tank, heavy-duty slurry pump, and agitator tank, set-up on a strong base frame.

The water, cement and bentonite are mixed through a high speed vortex produced by a special pump. As soon as the mixing process is over, the mixing is transferred into the agitator.

The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Mixer and agitator is switch by using butterfly valve.

Take this GMA750-1500E Nepal grouting mixer machine as an example: mixer volumeis 750L, agitator volume is 1500L. We are the grout equipment factory, the output and power of the mixer and agitator are both customizable.

If you need a grouting mixer available in Nepal, welcome your inquiry, we will answer your questions in detail. Email address: info@gaodetec.com
